User Manual for Meopta 1.5-6x42 MeoStar R1 Riflescope Click to enlarge the picture
Contents of the user manual for the Meopta 1.5-6x42 MeoStar R1 Riflescope
- Product category: Riflescopes Meopta
- Brand: Meopta
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meopta Riflescopes
 |
User manual for the Meopta 1.5-6x42 MeoStar R1 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meopta product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meopta user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meopta product will considerably shorten its lifespan!
|

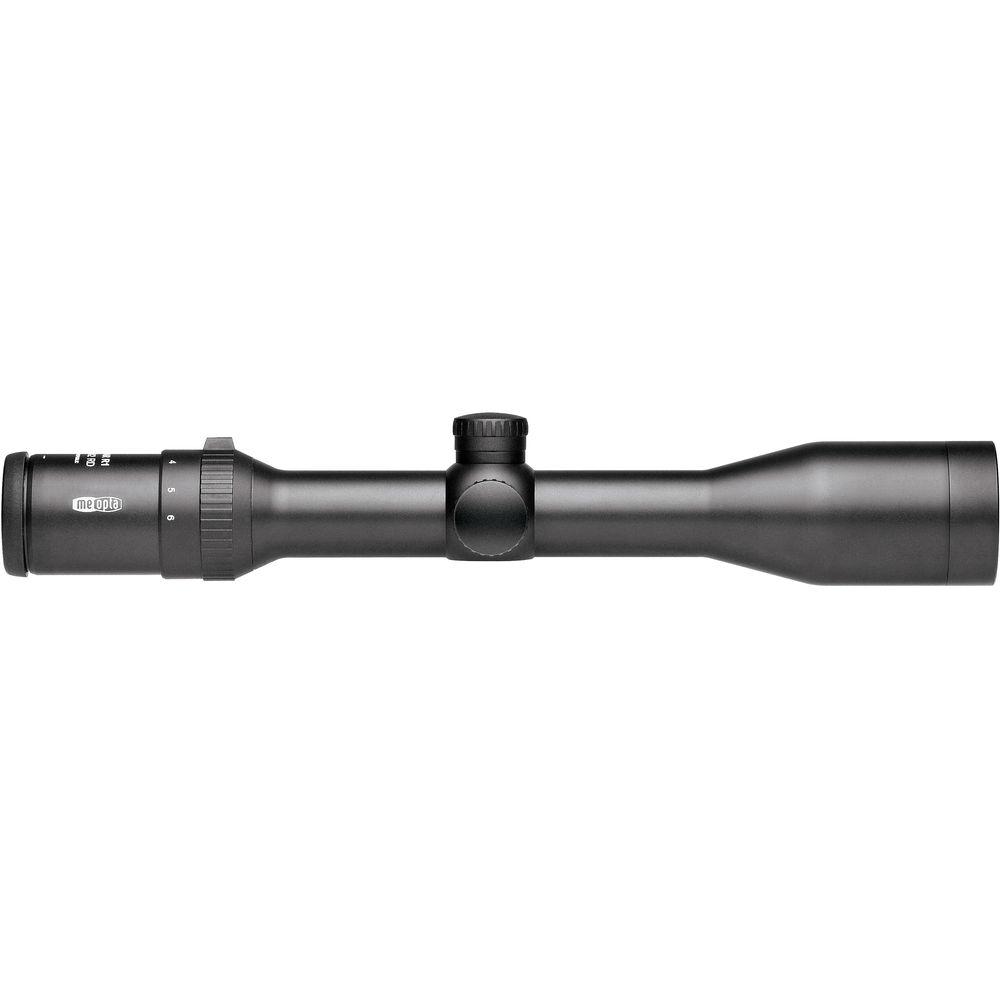

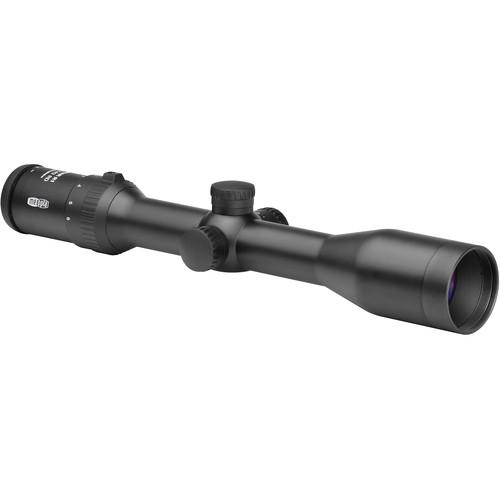

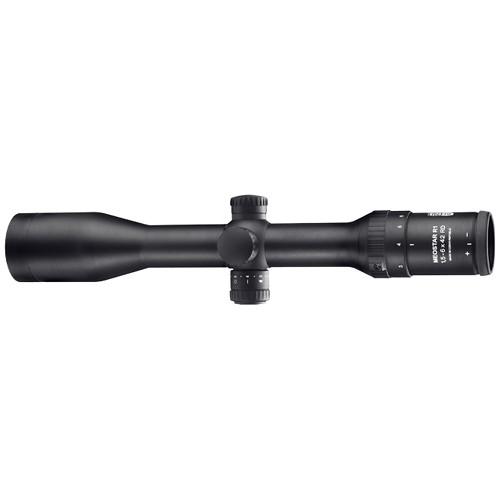

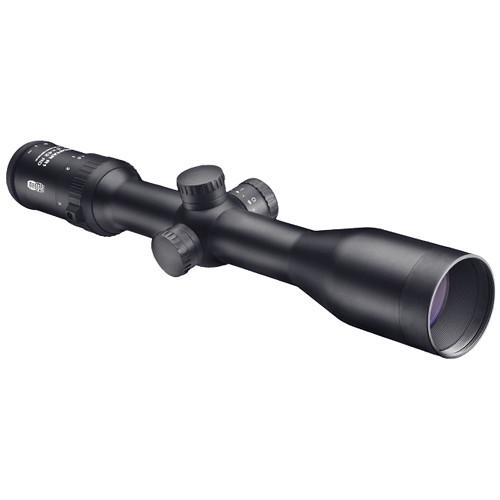

Product description Meopta engineered the 1.5-6x42 MeoStar R1 Riflescope as a precision deer hunting optic, aimed at dramatically improving your performance in low light. Its optical system features elements that are not only ground and polished with high precision to deliver superior performance and high edge-to-edge clarity, but also treated with optical coatings like MeoBright for high transmission and low glare and MeoShield for anti-scratch performance. The second focal plane of the optical system contains an RD BDC 3 illuminated reticle to provide you with an accurate aiming reference. Its illuminated red dot has seven brightness levels to help in most light conditions. To compensate for ballistics and winds, the turret system offers 95 MOA of horizontal and vertical adjustment ranges and a 1/4 MOA (0.7 cm at 100 m) impact point correction.
To match the precision and quality of the optical system, the housing is manufactured from a strong and durable aluminum alloy and treated externally with Meopta's ELOX scratch- and abrasion-resistant anodized finish. It features a single-piece 30mm maintube that is filled with nitrogen and sealed for fogproof and waterproof performance. Additional highlights of the construction are a MeoQuick fast-focus eyepiece for instant zooming, MeoTrack II posi-click windage and elevation turrets (with audible reassurance) for precise corrections, and a robust erector system for providing a maximum holding force and enduring heavy recoils. - Optical Performance
-
- 1.5-6x magnification
- 42mm objective diameter
- Proprietary lens grinding and polishing techniques result in superior performance
- MeoBright full multi-coatings ensure high transmission and low glare
- MeoShield exterior coatings protect from scratches and abrasions
- Use and Handling
-
- 1/4 MOA impact point correction
- 95 MOA windage and elevation
- Diopter adjustment
- Construction Details
-
- Aluminum alloy
- 30mm one-piece maintube
- ELOX scratch- and abrasion-resistant anodized finish

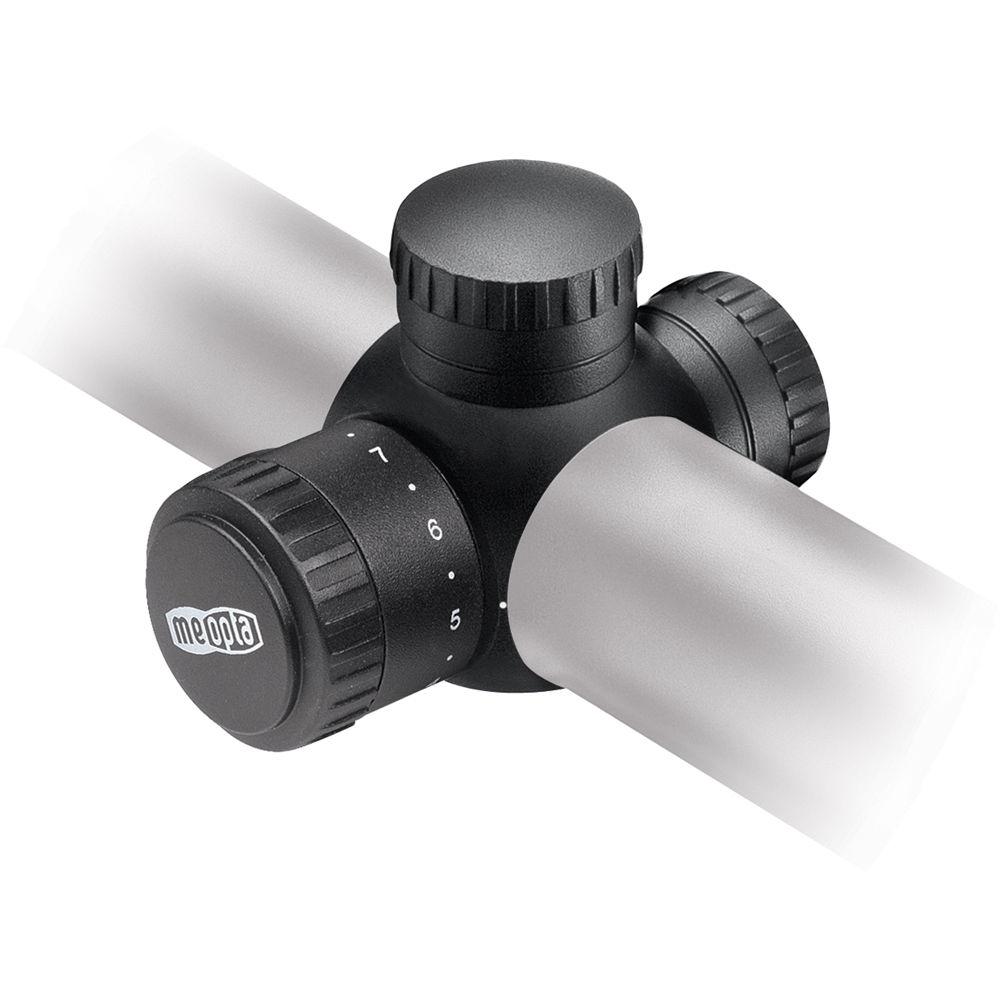

- MeoTrack II posi-click finger adjustable turrets with audible clicks offer great precision and repeatability
- Erector system designed to provide maximum holding force and withstand heavy recoil
- MeoQuick fast-focus eyepiece quickly brings your targets into sharp focus
- Nitrogen-filled fogproof
- Waterproof

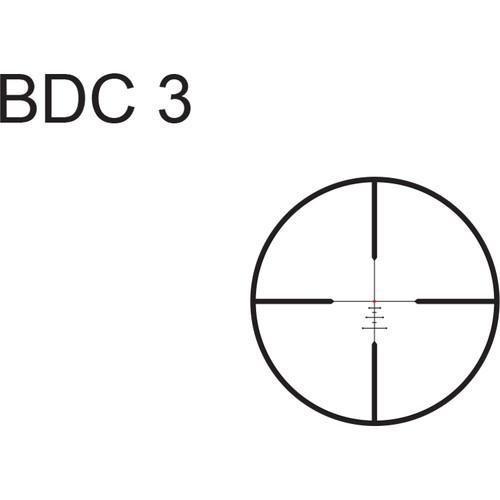

- RD BDC 3 Reticle
-
- 2nd focal plane
- Four tapered posts
- Thin crosshair
- Brilliant red target dot
- Wind and ballistic compensation bars under the center
UPC: 836538004315 In the Box Meopta 1.5-6x42 MeoStar R1 Riflescope (RD BDC 3 Illuminated Reticle, Matte Black) - 2 x Lens Caps
- CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meopta 1.5-6x42 MeoStar R1 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeopta 580120 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 42 mm | | Field of View | 1.5x: 67.2' @ 100 yd / 22.4 m @ 100 m
6x: 20.4' @ 100 yd / 6.8 m @ 100 m | | Exit Pupil Diameter | 1.5x: 14.8 mm
6x: 7 mm | | Eye Relief | 3.2 to 3.7" / 82 to 95 mm | | Diopter Correction | -3.0 to +3.0 | | | | Reticle Type | RD BDC 3 Reticle (Second Focal Plane) | | | | Filter Thread | M46 x 0.75 | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 95 MOA | | Elevation Adjustment | 95 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.4" / 344 mm | | Weight | 20.6 oz / 584 g |
