User Manuals for Amphenol

Looking for help with a Amphenol product? Have you lost your user manual? Download the Amphenol manual in which you will find instructions on how to install, use, maintain and service your product. Find your instruction manual using the search button, or by searching for the specific Amphenol product in the relevant category.

Choose the category:
Networked Audio Systems - Audio Connectors

Showing: 1-10 productsTotal: 110 products
1 | | ...

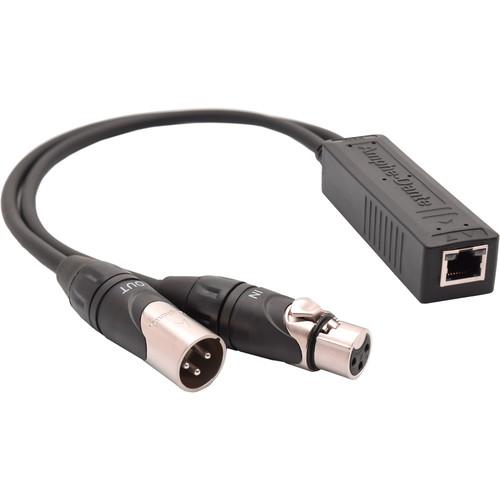

Amphenol Amphe-Dante RJ45 Audio Adapter with
Rating: 3 of 5
Amphenol Amphe-Dante RJ45 Audio Adapter with When you need a straightforward and rock-solid solution for patching two channels of AES3 digital signal in and out of a Dante network, consider the Amphenol Amphe-Dante RJ45 Audio Adapter with AES3 XLR I/O. This 19.7" long bidirectional AES3/Dante adapter interfaces AES3-capable equipment such digital mixers or audio interfaces via its premi...

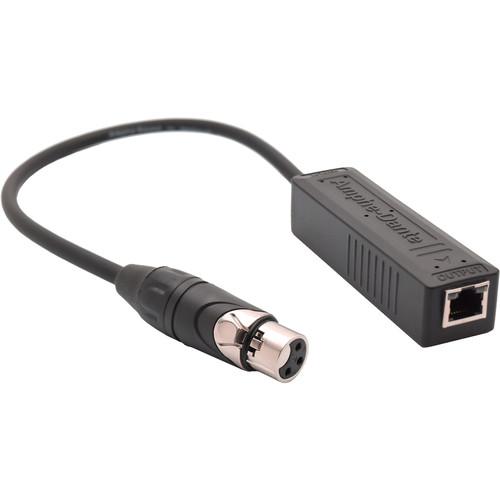

Amphenol Amphe-Dante RJ45 Audio Adapter with
Rating: 4.5 of 5
Amphenol Amphe-Dante RJ45 Audio Adapter with When you need a straightforward and rock-solid solution for patching one analog live-level input into a Dante network, consider the Amphenol Amphe-Dante RJ45 Audio Adapter with One XLR Input. This 19.7" long analog-to-Dante adapter accepts analog signal via its single premium AX-Series XLR jack, and converts it at up to 24-bit / 96 kHz resolu...

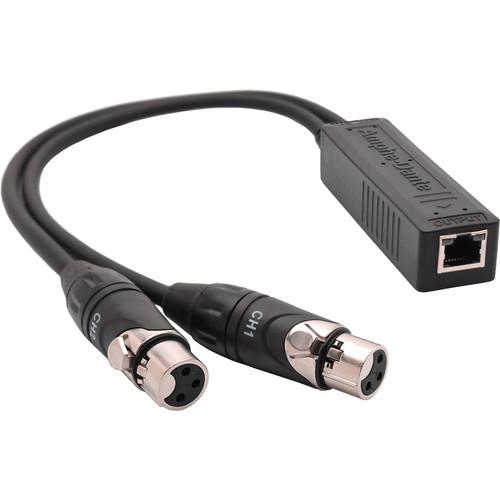

Amphenol Amphe-Dante RJ45 Audio Adapter with
Rating: 5 of 5
Amphenol Amphe-Dante RJ45 Audio Adapter with When you need a straightforward and rock-solid solution for patching two analog live-level inputs into a Dante network, consider the Amphenol Amphe-Dante RJ45 Audio Adapter with Two XLR Inputs. This 19.7" long analog-to-Dante adapter accepts analog signal via its dual premium AX-Series XLR jacks, and converts it at up to 24-bit / 96 kHz resol...

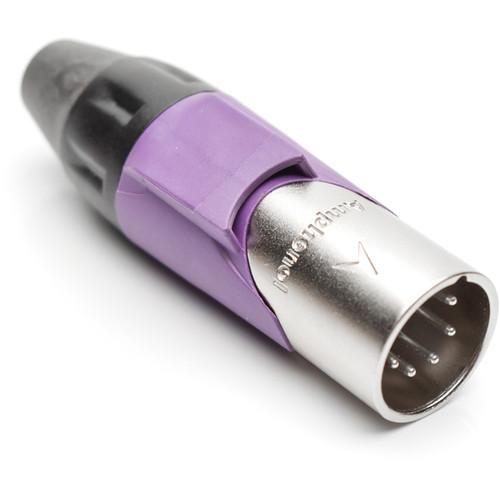

Amphenol AX Series 5-Pin XLRM Cable
Rating: 3 of 5
Amphenol AX Series 5-Pin XLRM Cable The violet AX Series 5-Pin XLRM Cable Connector with Marking Sleeve from Amphenol is a one-piece ground/latch spring design with channel I.D capability. Featuring a colored I.D sleeve, satin-shell finish, and a chuck-style cable clamp, the AX series 5-pin XLRM cable connector is equipped with silver-plated contacts and fits 3 to 8mm cable diamet...

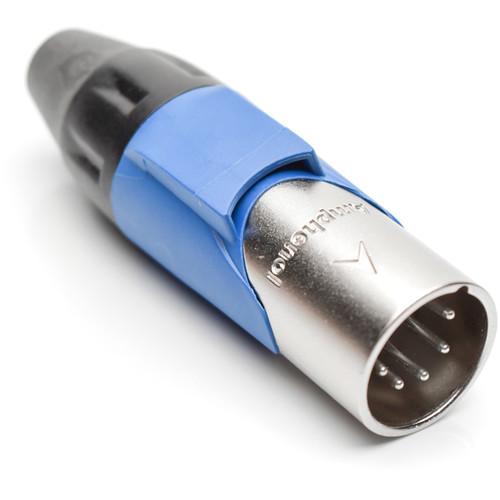

Amphenol AX Series 5-Pin XLRM Cable
Rating: 3.5 of 5
Amphenol AX Series 5-Pin XLRM Cable The blue AX Series 5-Pin XLRM Cable Connector with Marking Sleeve from Amphenol is a one-piece ground/latch spring design with channel I.D capability. Featuring a colored I.D sleeve, satin-shell finish, and a chuck-style cable clamp, the AX series 5-pin XLRM cable connector is equipped with silver-plated contacts and fits 3 to 8mm cable diameter...

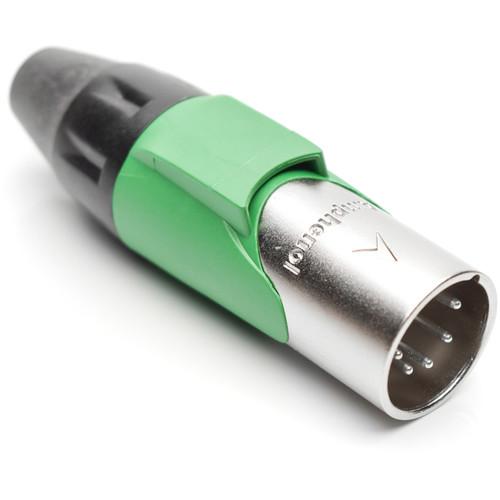

Amphenol AX Series 5-Pin XLRM Cable
Rating: 4 of 5
Amphenol AX Series 5-Pin XLRM Cable The green AX Series 5-Pin XLRM Cable Connector with Marking Sleeve from Amphenol is a one-piece ground/latch spring design with channel I.D capability. Featuring a colored I.D sleeve, satin-shell finish, and a chuck-style cable clamp, the AX series 5-pin XLRM cable connector is equipped with silver-plated contacts and fits 3 to 8mm cable diamete...

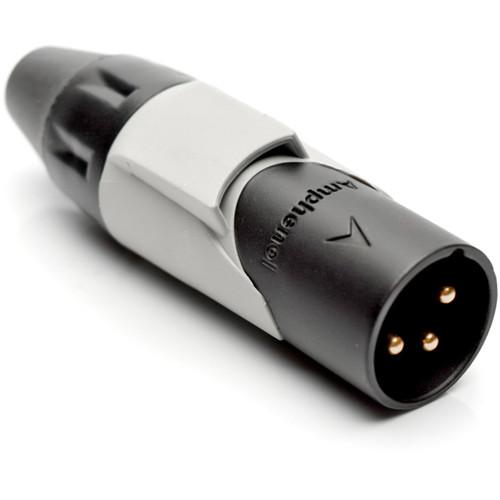

Amphenol AX3MB8M-AU 3-Pole Male XLR Connector
Rating: 5 of 5
Amphenol AX3MB8M-AU 3-Pole Male XLR Connector The Amphenol AX3MB8M is a cable connector with a 3-pole XLR male connection point. It's designed for use in audio applications, providing a 14 AWG wire gauge suitable for cable diameters between 3 and 8mm. The connector features gold contacts, a die-cast zinc alloy shell, and a black finish. For purposes of differentiation, this connector features...

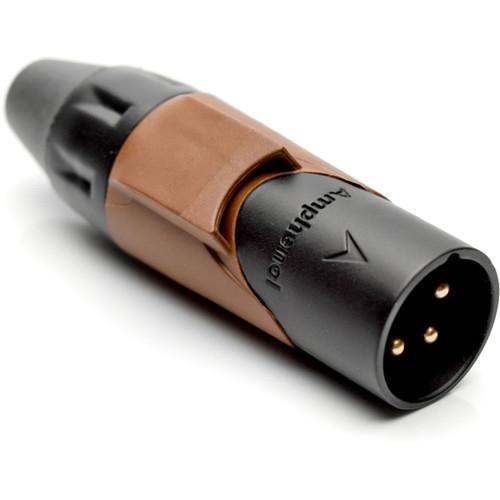

Amphenol AX3MB1M-AU 3-Pole Male XLR Connector
Rating: 4.5 of 5
Amphenol AX3MB1M-AU 3-Pole Male XLR Connector The Amphenol AX3MB1M is a cable connector with a 3-pole XLR male connection point. It's designed for use in audio applications, providing a 14 AWG wire gauge suitable for cable diameters between 3 and 8mm. The connector features gold contacts, a die-cast zinc alloy shell, and a black finish. For purposes of differentiation, this connector features...

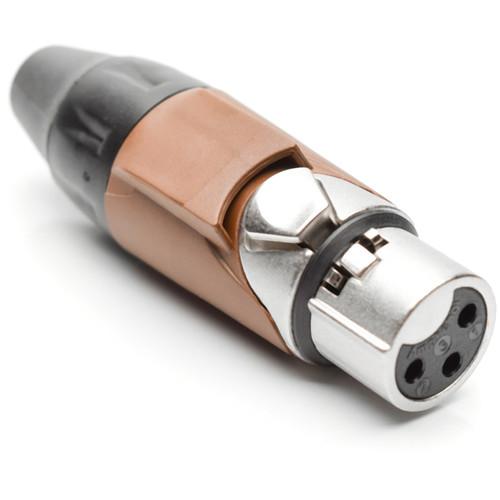

Amphenol AX3F1M 3-Pole Female XLR Connector
Rating: 5 of 5
Amphenol AX3F1M 3-Pole Female XLR Connector The Amphenol AX3F1M is a cable connector with a 3-pole XLR female connection point. It's designed for use in audio applications, providing a 14 AWG wire gauge that's suitable for cable-diameters between 3 and 8mm. The connector features silver contact plating, a die-cast zinc alloy shell, and a satin-nickel finish. For purposes of differentiation,...

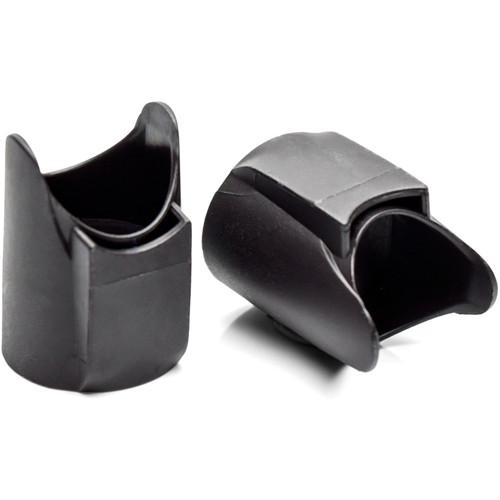

Amphenol AX-Mark0 Sleeve for AX-Series Connectors
Rating: 5 of 5
Amphenol AX-Mark0 Sleeve for AX-Series Connectors The Amphenol AX-MARK0 is a sleeve intended for color-coordinating your AX-series connector, or any connector of comparable size and construction. This one is black. In the Box Amphenol AX-Mark0 Sleeve for AX-Series Connectors (Black) Limited 1-Year Warranty Table of Contents ...
1 | | ...
Showing: 1-10 productsTotal: 110 products
