User Manuals for DATAPATH

Looking for help with a DATAPATH product? Have you lost your user manual? Download the DATAPATH manual in which you will find instructions on how to install, use, maintain and service your product. Find your instruction manual using the search button, or by searching for the specific DATAPATH product in the relevant category.

Choose the category:
Multiviewer Accessories - Multiviewer Processors - Graphic Display Cards - DisplayPort Cables - Monitors - Computer Hardware

Showing: 1-10 productsTotal: 37 products
1 | | |

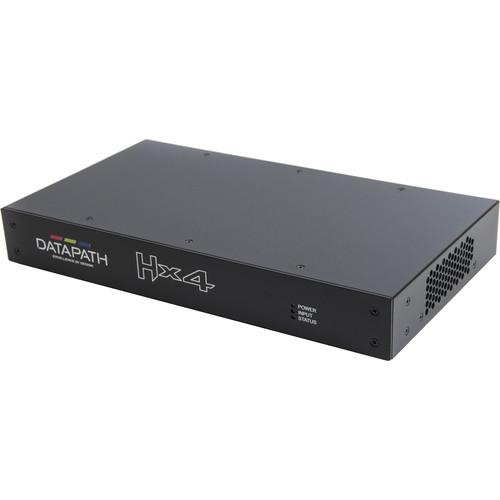

DATAPATH Hx4 HDMI Display Wall Controller
Rating: 5.0 of 5
DATAPATH Hx4 HDMI Display Wall Controller The DATAPATH Hx4 HDMI Display Wall Controller with HDCP Support allows you to create and deploy small, mid-level, and large-scale signage projects for retail stores, stadiums, public spaces, and other environments. It features one HDMI 1.4 input, four HDMI 1.3 HD monitor outputs, a USB maintenance port, and an Ethernet port. The HDMI input suppor...

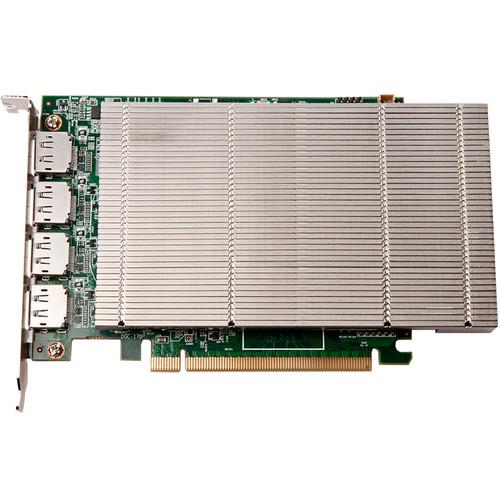

DATAPATH ImageDP4 Graphics Card
Rating: 5 of 5
DATAPATH ImageDP4 Graphics Card The DATAPATH ImageDP4+ Graphics Card is a professional 4-output graphics card for multi-display setups and video walls. The four DisplayPort outputs can drive four displays simultaneously at 2560x1600 resolution at 30 Hz or two displays at 4096x2160 resolution at 30 Hz. Connections can be made to other displays using separately available adapters....

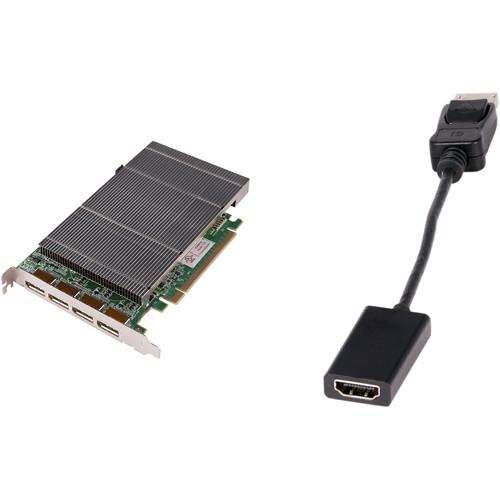

DATAPATH ImageDP4 Graphics Card
Rating: 4.5 of 5
DATAPATH ImageDP4 Graphics Card The DATAPATH ImageDP4+ Graphics Card is a professional 4-output graphics card for multi-display setups and video walls. The four DisplayPort outputs can drive four displays simultaneously at 2560x1600 resolution at 30 Hz or two displays at 4096x2160 resolution at 30 Hz. Four DisplayPort to HDMI adapters are included with the card for compatibility...

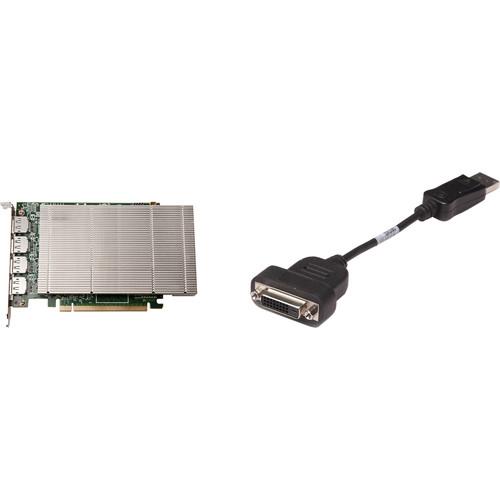

DATAPATH ImageDP4 Graphics Card
Rating: 4 of 5
DATAPATH ImageDP4 Graphics Card The DATAPATH ImageDP4+ Graphics Card is a professional 4-output graphics card for multi-display setups and video walls. The four DisplayPort outputs can drive four displays simultaneously at 2560x1600 resolution at 30 Hz or two displays at 4096x2160 resolution at 30 Hz. Four DisplayPort to DVI adapters are included with the card for compatibility ...

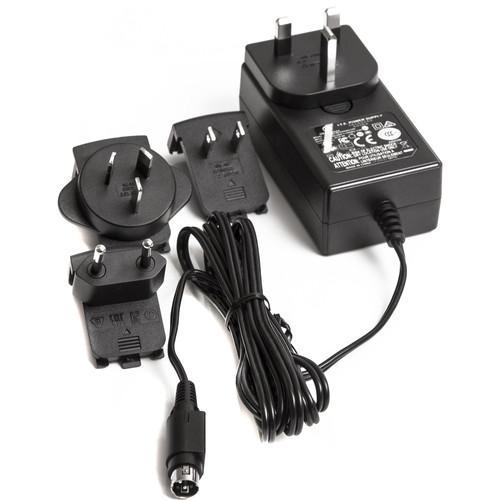

DATAPATH Power Supply for x4 Display
Rating: 3 of 5
DATAPATH Power Supply for x4 Display DATAPATH X4-PSU Specs Package Weight 0.75 lb Box Dimensions (LxWxH) 5.9 x 3.4 x 2.8" ...

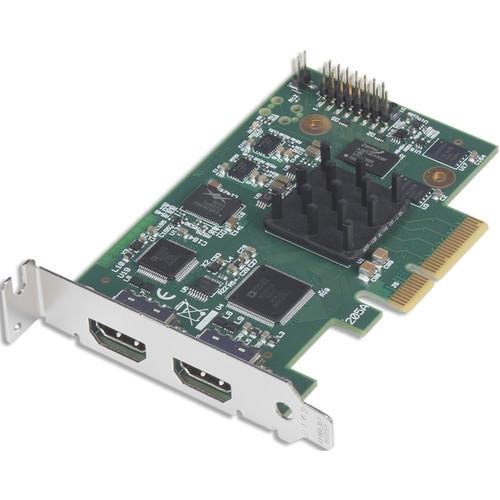

DATAPATH VisionLC-HD2 Dual-Channel LiveStream HDMI Video
Rating: 5.0 of 5
DATAPATH VisionLC-HD2 Dual-Channel LiveStream HDMI Video The VisionLC-HD2 Dual-Channel LiveStream Capture Card from Datapath provides dual-channel HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, lecture capture, real-time streaming, and videoconferencing. The card allows captured video to be processed and delivered in real time to a p...

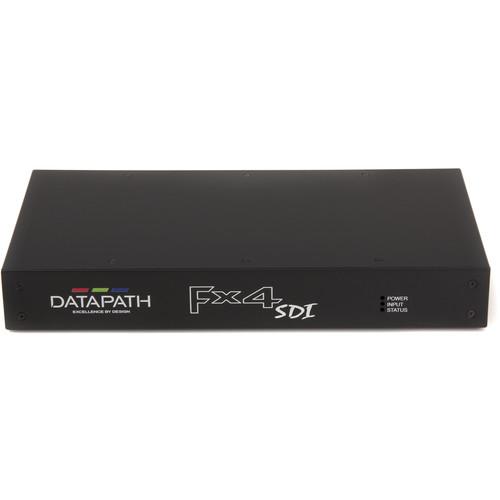

DATAPATH 4K Display Wall Controller with
Rating: 3.5 of 5
DATAPATH 4K Display Wall Controller with Take your video wall projects to the next level with the 4K Display Wall Controller from DATAPATH. Delivering four SDI outputs and the ability to loop multiple units together, this controller enables you to create even large and complex video wall configurations. DATAPATH's intuitive wall designer software and fully featured API make projects quic...

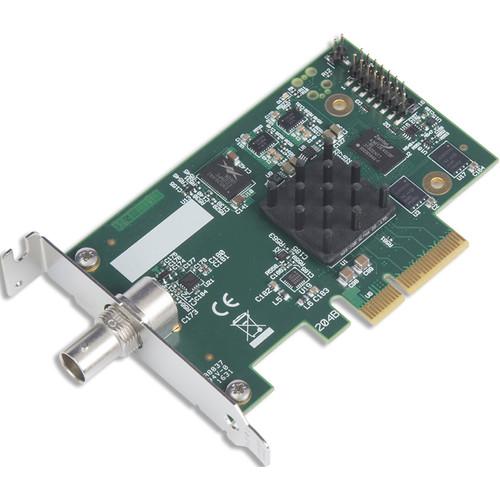

DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video
Rating: 5 of 5
DATAPATH VisionLC-SDI Single-Channel LiveStream SDI Video The VisionLC-SDI Single-Channel LiveStream Capture Card from Datapath provides tri-band SDI capture for small form factor appliances being used in medical environments, simulation systems, lecture capture, real-time streaming, and videoconferencing. The card allows captured video to be processed and delivered in real time to a processor or graphic...

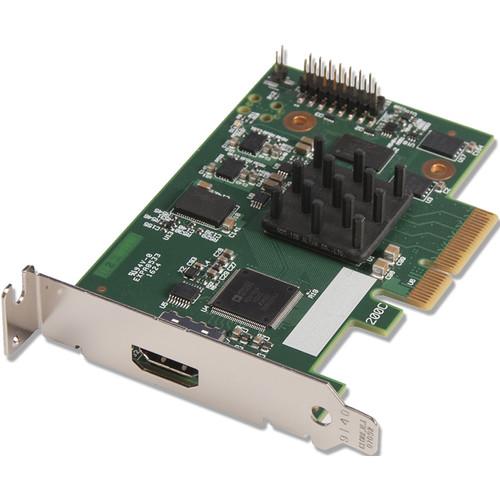

DATAPATH VisionLC-HD Single-Channel LiveStream HDMI Video
Rating: 5 of 5
DATAPATH VisionLC-HD Single-Channel LiveStream HDMI Video The VisionLC-HD Single-Channel LiveStream Capture Card from Datapath provides HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, live events, PC and gaming console capture, lecture and presentation capture, and real-time streaming. More than one card can be added into a system for ...

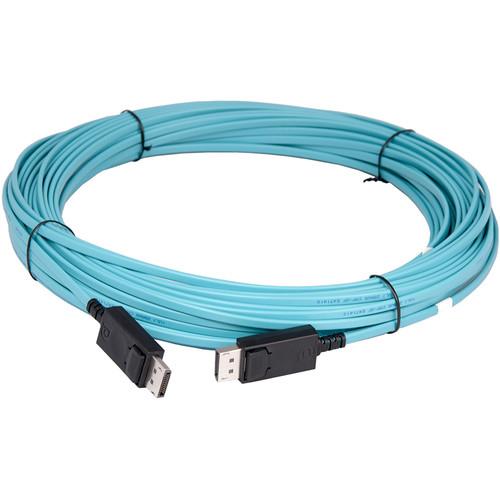

DATAPATH ActiveConnect DisplayPort 1.2 Fiber Optic
Rating: 5 of 5
DATAPATH ActiveConnect DisplayPort 1.2 Fiber Optic The 328' ActiveConnect Fiber Optic Extender Cable from DATAPATH features DisplayPort 1.2 connectors on both sides. It is designed to connect a 4K media player to Vision Capture cards, or from ImageDP4 graphics cards to DisplayPort-capable monitors and projectors. This cable supports 3840 x 2160 resolution at 60 Hz and 4096 x 2160 resolution at 691...
1 | | |
Showing: 1-10 productsTotal: 37 products
