User Manuals for UTP Balun

Looking for help with a UTP Balun product? Have you lost your user manual? Download the UTP Balun manual in which you will find instructions on how to install, use, maintain and service your product. Find your instruction manual using the search button, or by searching for the specific UTP Balun product in the relevant category.

Choose the category:
Video Extenders & Repeaters - Cable Connectors - Signal Extenders

Showing: 1-10 productsTotal: 18 products
1 |

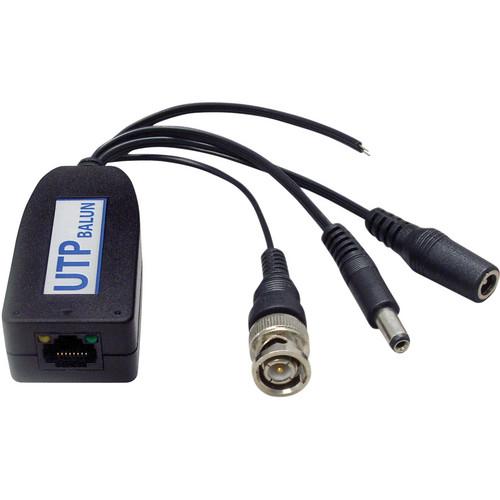

UTP Balun VPB111RJ Passive Video Balun
Rating: 2.5 of 5
UTP Balun VPB111RJ Passive Video Balun The UTP Balun VPB111RJ Passive Video Balun has one BNC male output for video, two connectors for power, and a 2-wire bare lead for transmitting data. It can be used to transmit color video signals to a maximum of 1,000’ (300m), while black-and-white video signals can go up to 1,600’ (500m) over a standard CAT5 cable. It can also transm...

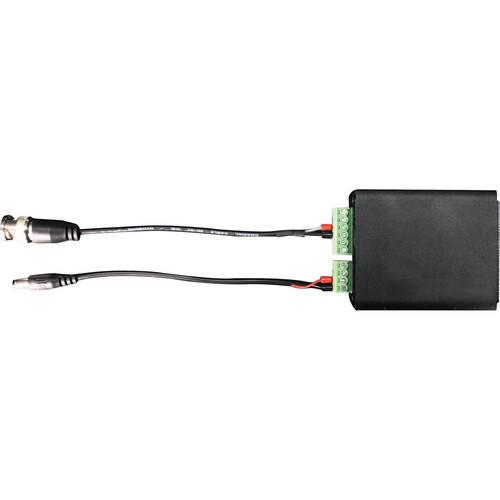

UTP Balun VBDP-C Video, Audio, Power
Rating: 3 of 5
UTP Balun VBDP-C Video, Audio, Power The black VBDP-C Video, Audio, Power and Data Transceiver from UTP Balun is used with 4 / 8 / 16-Channel Video, Audio, Power and Data Transceiver Hubs (sold separately). Equipped with a standard RJ45 cable, it is used on the camera side and is capable of receiving video, audio, 24VAC / 12VDC power, and data signals over one UTP cable. Receives v...

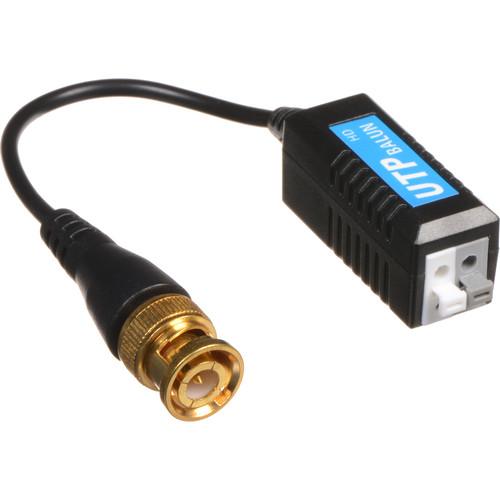

UTP Balun Passive HD Video Balun
Rating: 3.5 of 5
UTP Balun Passive HD Video Balun Transmit video signals in up to 1080p resolution with this black pair of Passive HD Video Baluns with Pigtails from UTP. Depending on the signal type, the baluns can transmit video up to 984' over a Cat 5e/Cat 6 cable. HD-TVI, HD-CVI, AHD, and CVBS signals are supported. Male BNC video connector ESD protection for air discharge (8kV) and con...

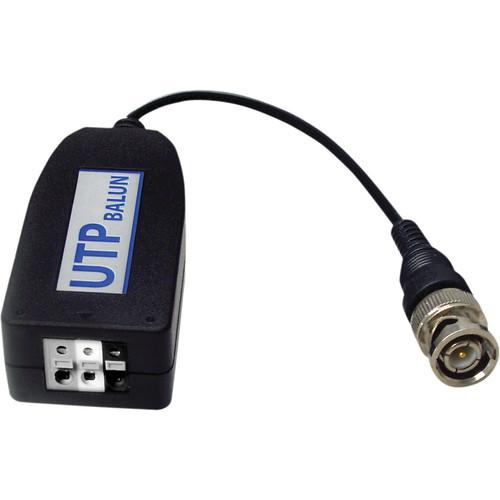

UTP Balun VPIG100L Passive Video Balun
Rating: 4.5 of 5
UTP Balun VPIG100L Passive Video Balun The black VPIG100L Passive Video Balun from UTP Balun has a high performance ground loop isolator filter for preventing distortion in ground loop video signals. Also equipped with a surge protector, this three-in-one balun can transmit video signals via UTP CAT5 cables to a maximum distance of 1,000’ (300m) when working with a passive balun....

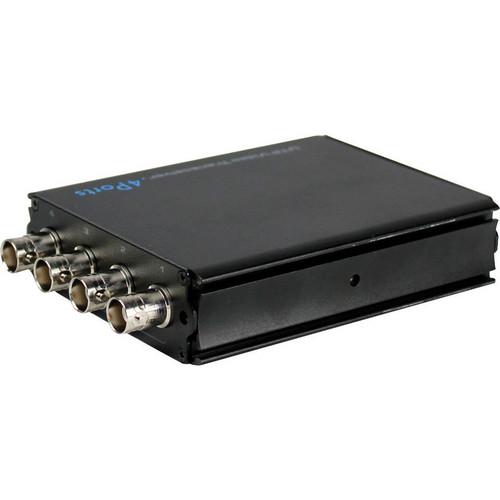

UTP Balun VPB400TRB 4-Channel Passive Video
Rating: 4 of 5
UTP Balun VPB400TRB 4-Channel Passive Video The black VPB400TRB 4-Channel Passive Video Transceiver Balun from UTP Balun is used to transmit up to 4 channels of color or monochrome PAL, NTSC or SECAM video over CAT 5/5e/6 cables. This device works with both passive or active video baluns, and features long-distance transmission, high transmission quality, and good protection from electromag...

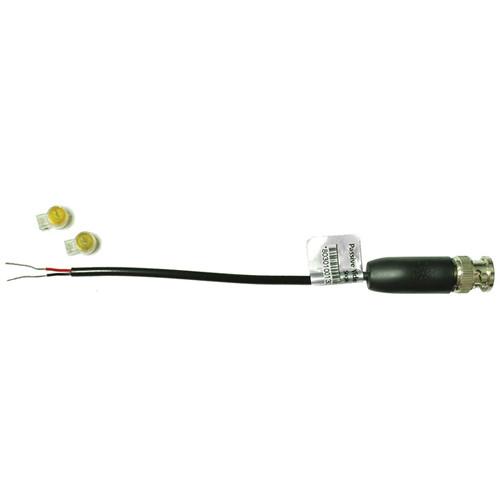

UTP Balun BNC Passive Video Transceiver
Rating: 4 of 5
UTP Balun BNC Passive Video Transceiver The black BNC Passive Video Transceiver with K1 IDC Communication Connectors from UTP Balun is used to transmit baseband signals over large distances. It supports PAL, NTSC, and SECAM formats, and can transmit signals as far as 1,000’ (300m) when used with passive transceivers; when coupled with active receivers, its transmission range goes ...
UTP Balun VBP36DC-04HA 4-Channel Passive Video
Rating: 3.5 of 5
UTP Balun VBP36DC-04HA 4-Channel Passive Video The UTP Balun VBP36DC-04HA 4-Channel Passive Video Balun with Power Server is a power hub capable of transmitting up to 4 channels of baseband video signals and providing 12VDC power to all 4 channels simultaneously via UTP cables. This balun is used with the VBP2412DC Passive Video Balun & Power Step Down 12V DC Receiver (sold separately). Uses...

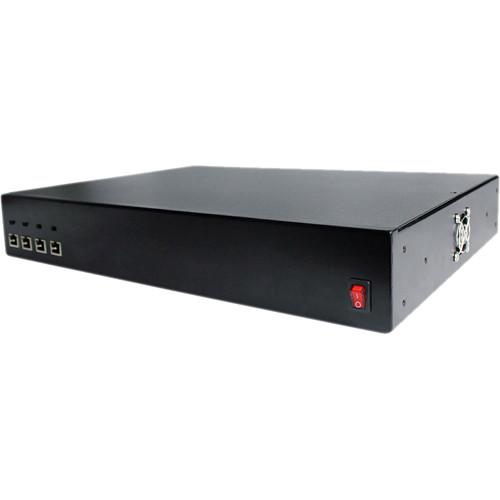

UTP Balun VBDP24AC-4-120 4-Channel Video, Audio,
Rating: 2.5 of 5
UTP Balun VBDP24AC-4-120 4-Channel Video, Audio, The black VBDP24AC-4-120 4-Channel Video, Audio, Power, Data Transceiver Hub from UTP Balun allows the transmission of CCTV video, audio, AC power, and data over a single network cable at the same time. This device uses a single CAT5, 5e, or 6 UTP cable as a transmission medium and works together with the VBDP-C Camera Side Transceiver Device (sol...

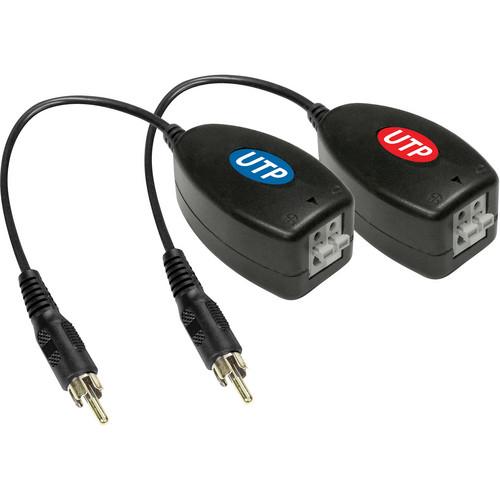

UTP Balun VPAB100LP Passive Audio Balun
Rating: 5 of 5
UTP Balun VPAB100LP Passive Audio Balun The VPAB100LP Audio Balun Kit from UTP Balun is a transmitter/receiver set with 4.5" leads that allow you to transmit audio over UTP cable in real-time, without any delay. A 1V audio signal can be transmitted up to 1000 ft and a 6V audio signal can be transmitted up to 3300 ft. The set is passive, so no power is required. UPC: 721405351626 In the ...

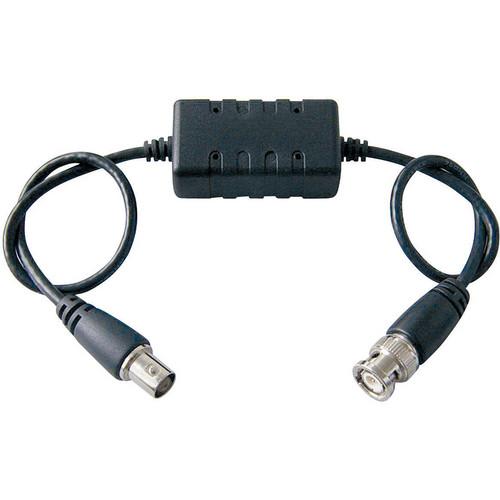

UTP Balun BNC Video Ground Loop
Rating: 3.5 of 5
UTP Balun BNC Video Ground Loop The 17.5" BNC Video Ground Loop Isolator Filter from UTP Balun reduces ground loop interference in CCTV signals. It features built-in surge protection and helps eliminate picture tearing, crosstalk, and rolling and prevents prevents video-signal distortion caused by video ground loops. This isolator is passive and requires no power. BNC male to ...
1 |
Showing: 1-10 productsTotal: 18 products
