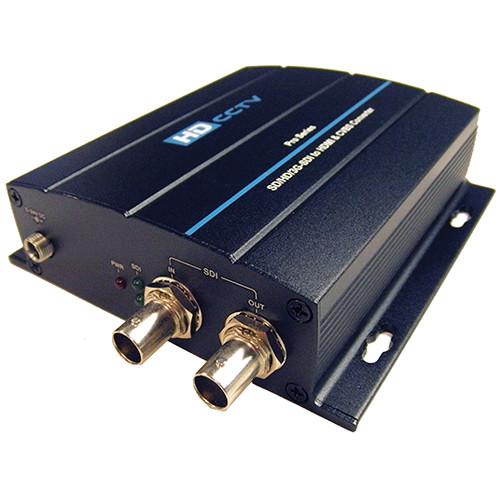

User Manual for AAS 3G HD SD-SDI to HDMI & CVBS Converter Pro Series Click to enlarge the picture
Contents of the user manual for the AAS 3G HD SD-SDI to HDMI
- Product category: Signal Converters AAS
- Brand: AAS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AAS Signal Converters
|
User manual for the AAS 3G HD SD-SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AAS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AAS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AAS product will considerably shorten its lifespan!
|
Product description The AAS 3G/HD/SD-SDI to HDMI & CVBS Converter Pro Series converts an SDI signal to HDMI or Composite in real-time, in resolutions up to 1080p60/50. The output type is user selectable, and the HDMI output supports embedded audio. An SDI loop output allows for local or remote monitoring.
An integrated SDI cable equalizer and reclocker maintains the strength of the SDI input signal for the best possible output of the signal. Using a Belden 1694A cable, you can connect a 3G-SDI signal from up to 450 ft away, an HD-SDI signal from 600 ft, and an SD-SDI signal from 1300 ft. - Main Features
-
- Converts an SDI signal to HDMI or Composite
- Supports resolutions up to 1080p60/50
- SDI loop output for local or remote monitoring
- Integrated SDI cable equalizer and reclocker
- Supports 3G SDI cable lengths up to 450 ft, HD SDI up to 600 ft, and SD SDI up to 1300 ft
UPC: 721405356379 In the Box AAS 3G/HD/SD-SDI to HDMI & CVBS Converter Pro Series 12VDC 1 Amp Power Adapter with Locking Connector Limited 1-Year Warranty User Manual PDF 482kb Table of Contents
|
Upload User Manual
Have you got an user manual for the AAS 3G HD SD-SDI to HDMI & CVBS Converter Pro Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAAS HD-SD-HDMI-PRO Specs | Connections | 1x 3G/HD/SD SDI input
1x 3G/HD/SD SDI loop output
1x HDMI output
1x Composite BNC output | | Input Signal | 3G-SDI (2.97 Gbps), HD-SDI (1.485 Gbps), SD-SDI (270 Mbps) | | SDI Formats Supported | 3G:
1080p @ 50 Hz, 59.94 Hz, 60 Hz
HD:
720p @ 23.98 Hz, 24 Hz, 25Hz, 29.97 Hz, 30 Hz
720p @ 50 Hz, 59.94 Hz, 60 Hz
1080i @ 50 Hz, 59.94 Hz, 60 Hz
1080p @ 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, 30 Hz
SD:
252 @ 59.94 Hz, 625i @ 50 Hz
SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C | | SDI Signal Range | 0.8 V p-p | | SDI Impedance | 75 ohms | | SDI Coupling Type | AC coupling | | Maximum Cable Length | Using Belden 1694A cable:
3G-SDI: 450 ft (137 m)
HD-SDI: 600 ft (61 m)
SD-SDI: 1300 ft (396 m)
*For best quality and long range, AAS recommends RG6 Belden 1694A Low Loss Serial Digital Coax cables and Contact Plating Gold Plated Pin BNC connectors. RG6 cables have better grounding than RG59 cables and are better for digital signals. Contact Plating Gold Plated Pin connectors provide better conductivity. In installing, do not overcut the braid because that affects the grounding -- the image will have lines and noise. | | Frequency Bandwidth | 165 MHz / up to standard with HDCP, HDMI 1.3 | | Composite Output Format | CVBS: PAL / NTSC auto detection | | Power Supply | 5 - 24 V DC | | Power Consumption | 6 W (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Dimensions | 6.1 x 4.7 x 1.4" (15.5 x 12 x 3.5 cm) | | | | Package Weight | 1.135 lb | | Box Dimensions (LxWxH) | 8.3 x 8.2 x 2.8" |
