User Manual for Neewer RF550D LED Macro Ring Light Click to enlarge the picture
Contents of the user manual for the Neewer RF550D LED Macro Ring Light
- Product category: Macro & Ringlights Neewer
- Brand: Neewer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neewer Macro & Ringlights
 |
User manual for the Neewer RF550D LED Macro Ring Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neewer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neewer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neewer product will considerably shorten its lifespan!
|

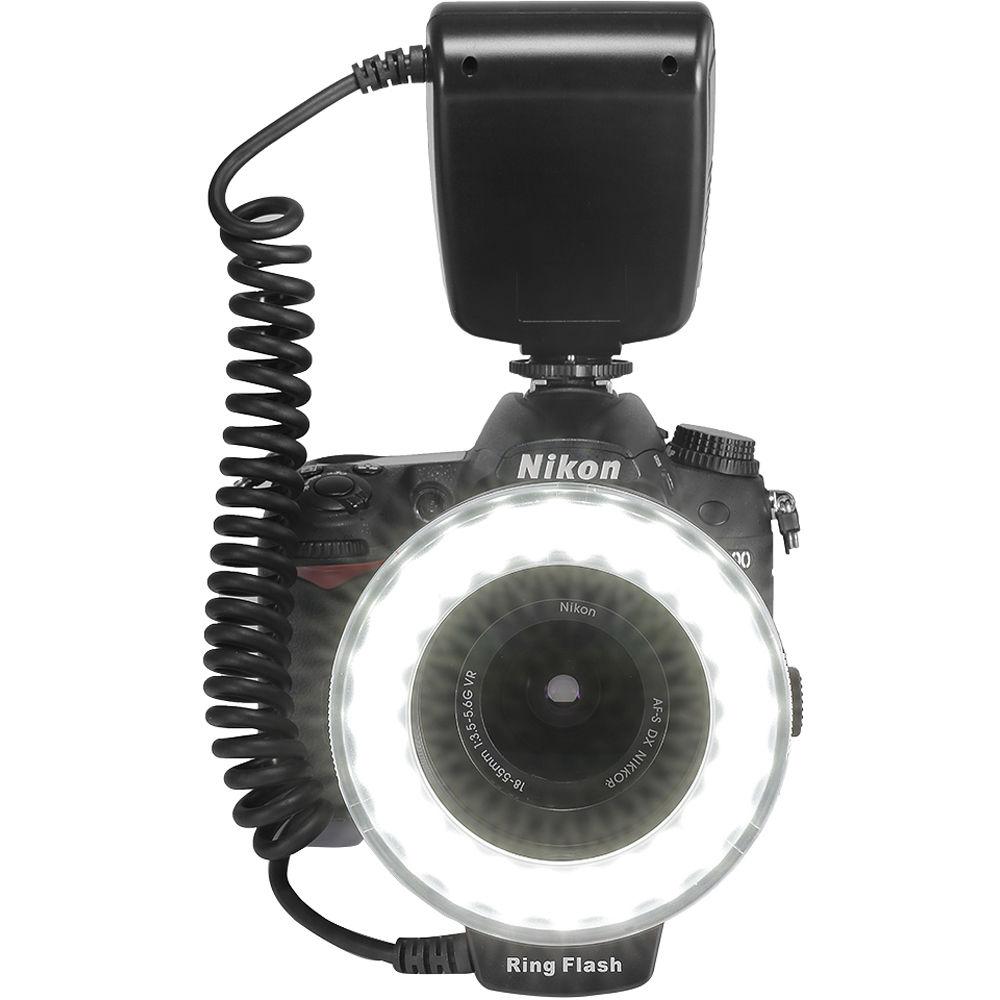

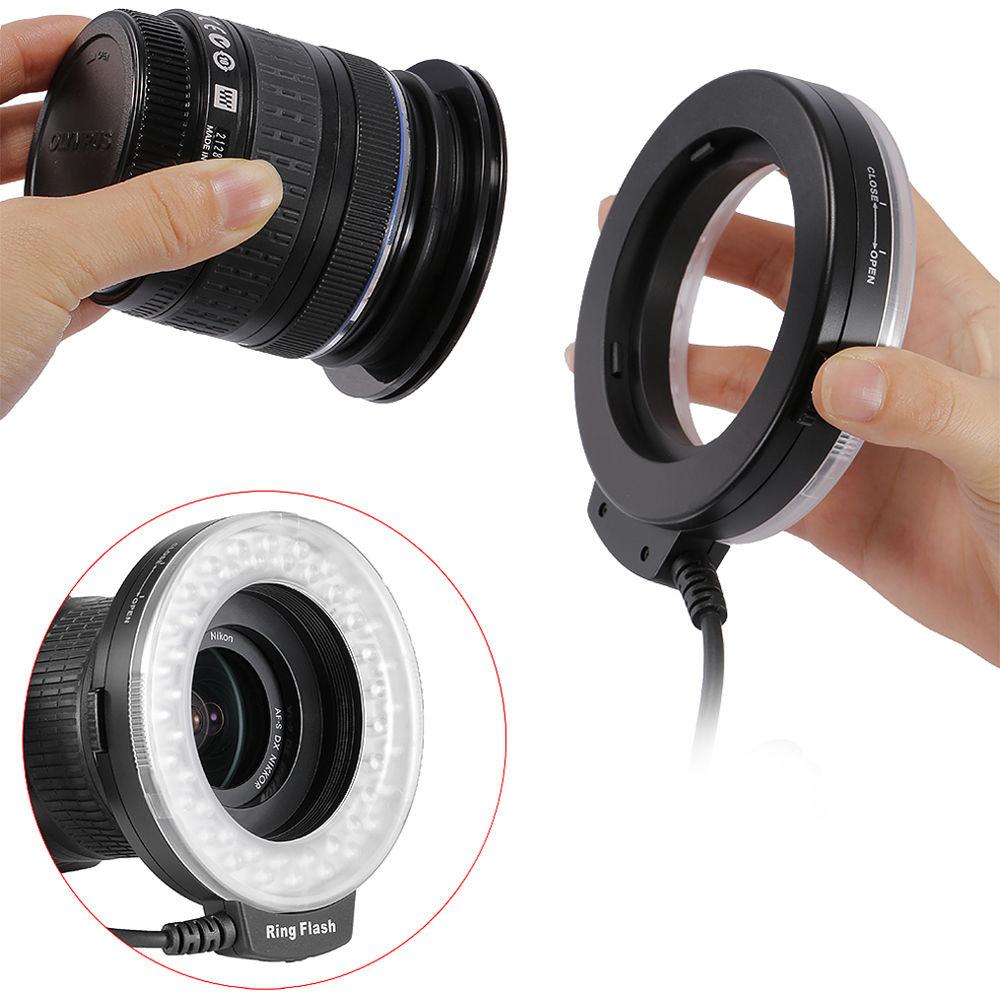

Product description Offering both continuous lighting as well as customizable flash modes, the RF550D LED Macro Ring Light from Neewer is well suited for macro photography and scientific applications. The light boasts a guide number of 49' and an effective working distance of 4.9', achieved with 48 individual LEDs that are scattered around the ring. Another notable feature is a large color temperature range from 3000 to 15,000K, which enables a wide range of tones from warm orange to deep blue. You can further modify the quality of your light with the four included diffusion filters: orange, blue, white, and transparent.For installation, attach the light to your lens with one of the eight adapter rings provided, which range in size from 49 to 77mm. Load four AA batteries, available separately, onto the control unit, then either mount it on your camera hot shoe for easy operation or use it handheld by extending the 39" long coiled connection cord. On the back of this control unit is a backlit LCD screen that displays the output power, current mode, and the battery level. Dedicated buttons allow you to choose LIGHT for steady lighting, FLASH for strobe operation, and L and R modes for using only the left or right side of the ring light. Finally, you can also adjust your output power in seven different steps from 1/1 to 1/64 or dial in exposure compensation and bracketing configurations. - Features
-
- Macro ring light with 48 LEDs offers guide number of 49'
- Achieves color temperatures from 3000K to 15,000K for wide variety of tones
- Output power control from 1/1 to 1/64, enabling an effective range of 4.9' at full power

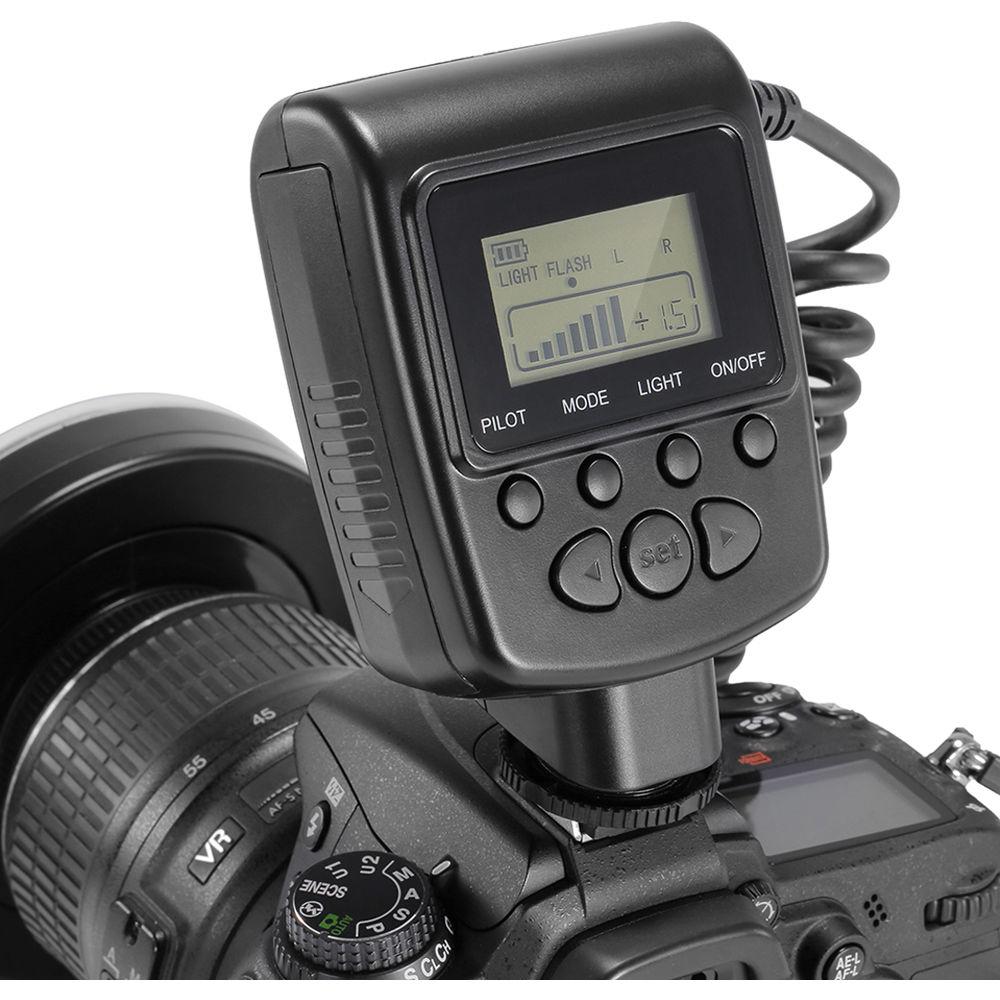

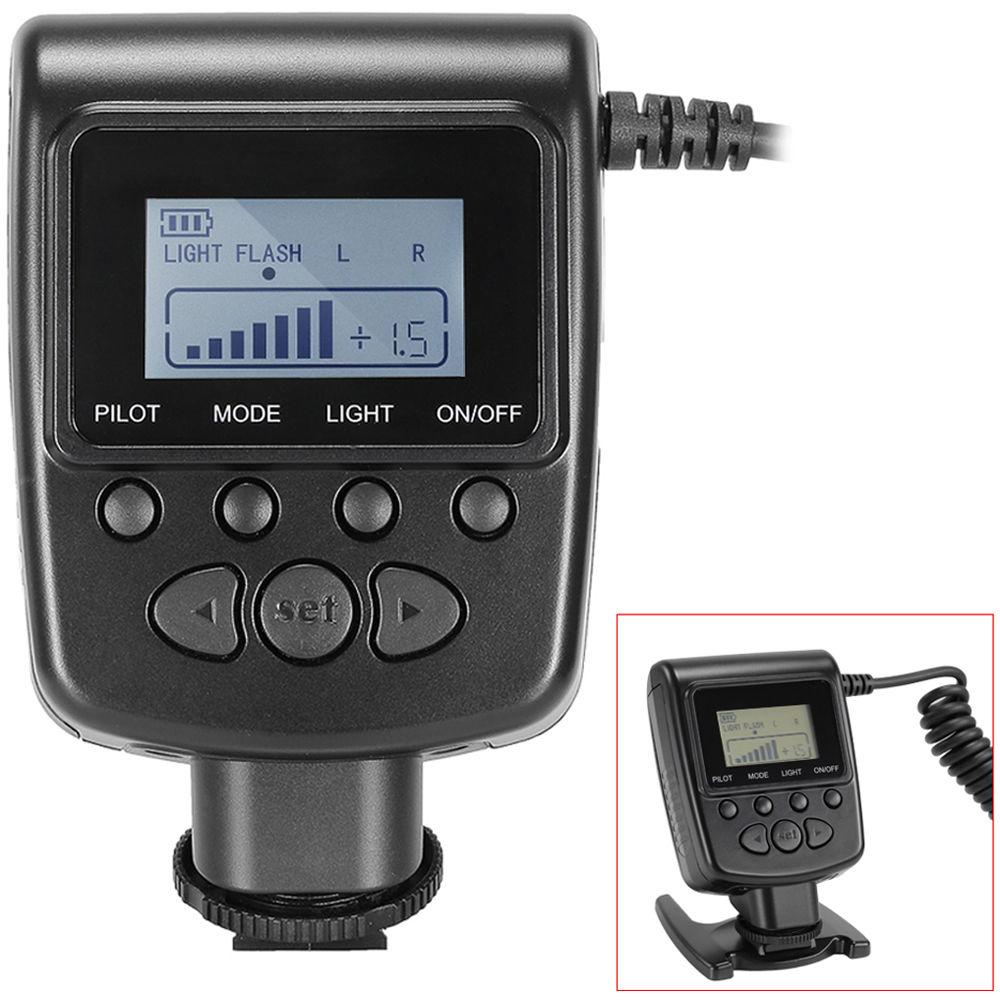

- Power control unit with LCD display for viewing and adjusting settings mounts onto camera hot shoe
- LIGHT mode for continuous lighting, FLASH mode for strobe operation, and L and R modes for using only one half of the ring
- Runs on four user-supplied AA batteries and features a battery level indicator at the top left of the LCD screen
- Eight adapter rings included for mounting to compatible lenses: 49mm, 52mm 55mm, 58mm, 62mm, 67mm, 72mm, and 77mm

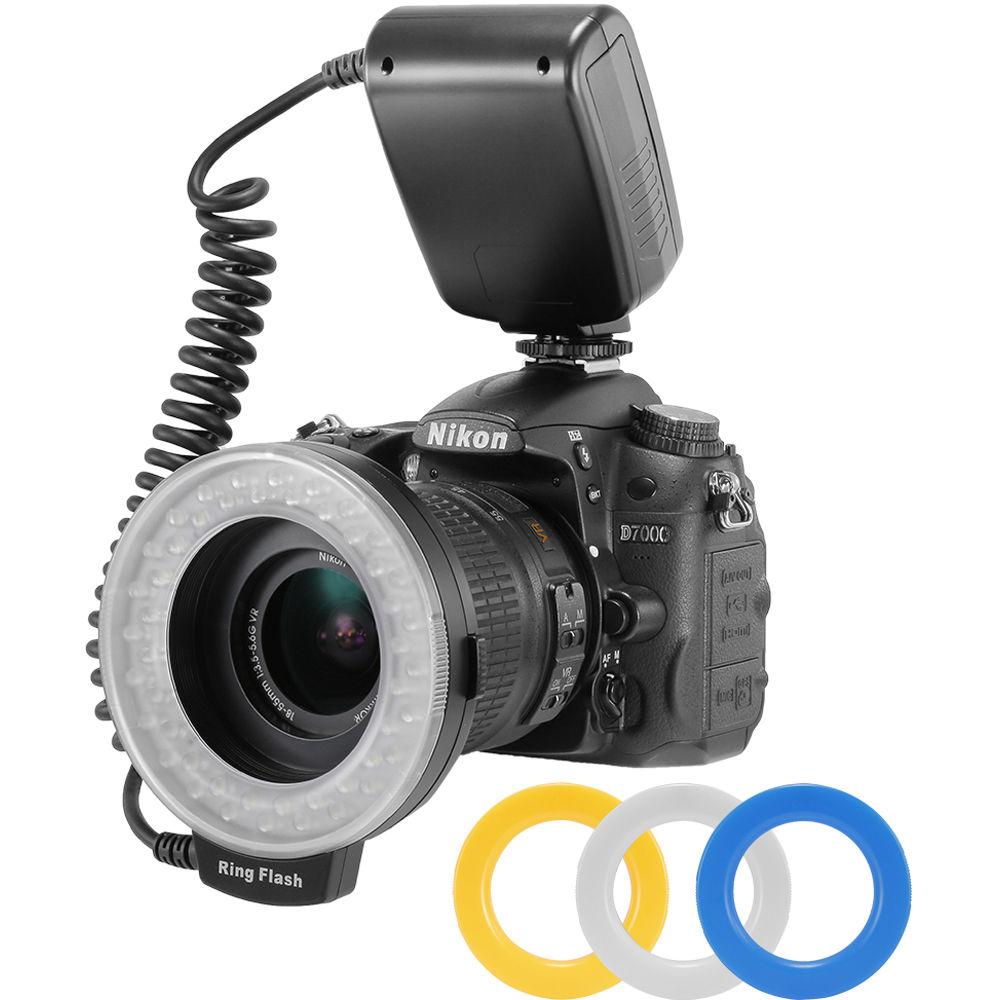

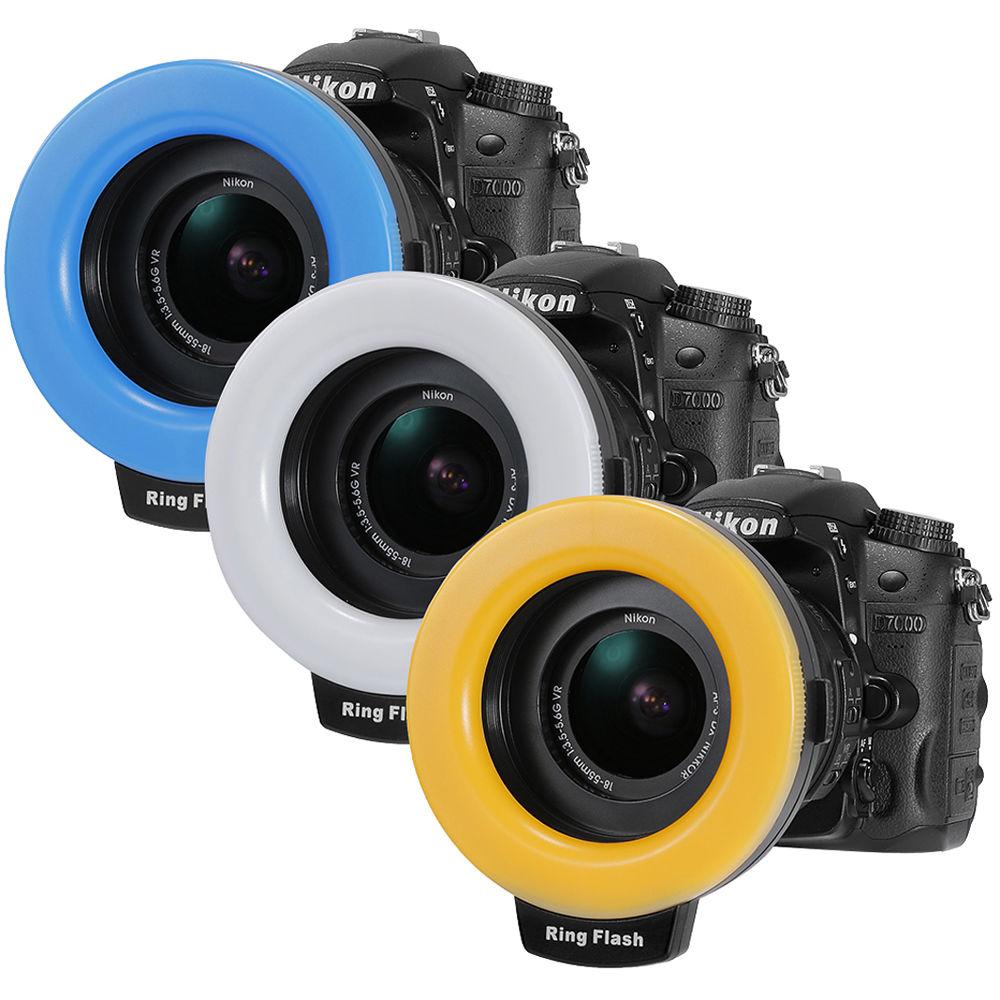

- Four screw-on diffusion filters included: orange, blue, white, and transparent

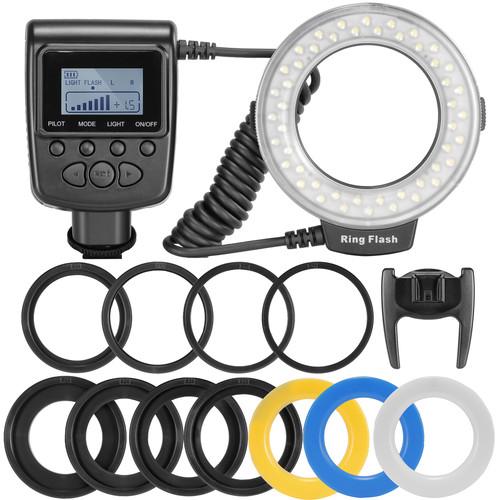

UPC: 804808134192 In the Box Neewer RF550D LED Macro Ring Light - 8 x Adapter Rings (49mm, 52mm 55mm, 58mm, 62mm, 67mm, 72mm, 77mm)
- 4 x Diffusion Filters (Orange, Blue, White, Clear)
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Neewer RF550D LED Macro Ring Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Neewer RF550D LED Macro Ring Light can be downloaded in PDF format at the link stated below.
Technical parametersNeewer RF550D Specs | Type | Flash/LED | | Mount | Shoe | | Guide No. | 49.21' / 15 m | | Effective Range | 4.92' / 1.5 m | | Modeling Light | No | | Vari-Power | 1/1 to 1/64 | | Color Temperature | 3000 to 15,000K | | Flash Duration | 1/100 sec | | TTL Dedication | No | | Off-Camera Terminal | None | | Filter Thread | 49 to 77 mm | | LEDs | Ring Light: 48 | | Charge Indicators | Yes | | Display | Yes, (Backlit) | | Voltage | Charging: 100 - 240 V | | Power Source | 4 x AA Batteries | | Weight | 7.05 oz / 200 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 10.75 x 6.0 x 3.5" |
