User Manual for Kingwin USI-2535CLU3 EZ-Clone USB 3.1 Gen 1 to SATA & IDE One Click Clone Adapter Click to enlarge the picture
Contents of the user manual for the Kingwin USI-2535CLU3 EZ-Clone USB 3.1 Gen
- Product category: Internal Hard Drive Accessories Kingwin
- Brand: Kingwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kingwin Internal Hard Drive Accessories
 |
User manual for the Kingwin USI-2535CLU3 EZ-Clone USB 3.1 Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kingwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kingwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kingwin product will considerably shorten its lifespan!
|

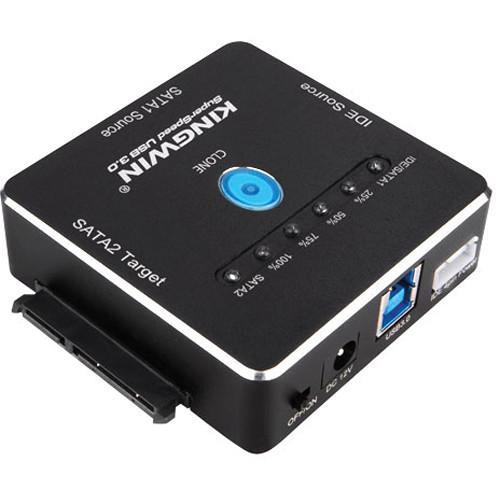

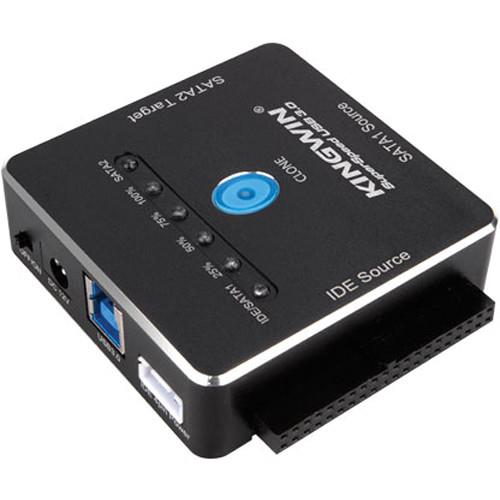

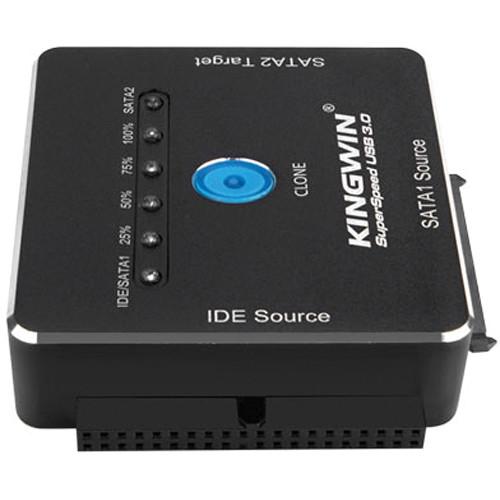

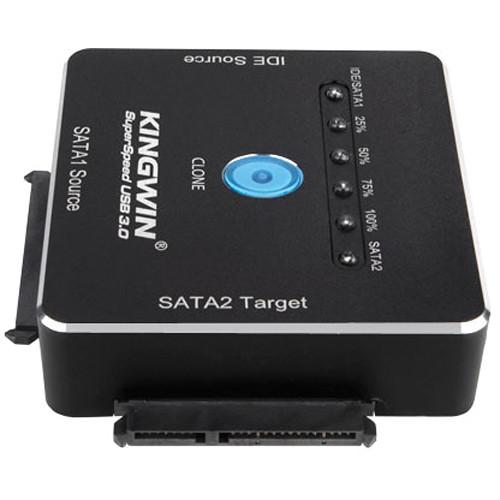

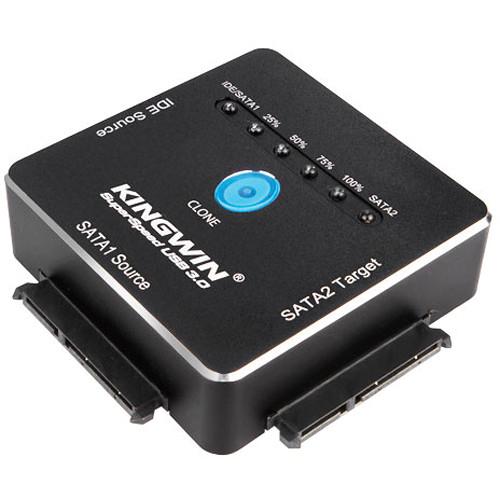

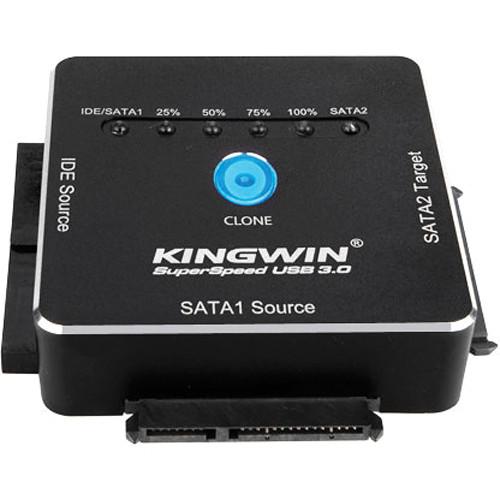

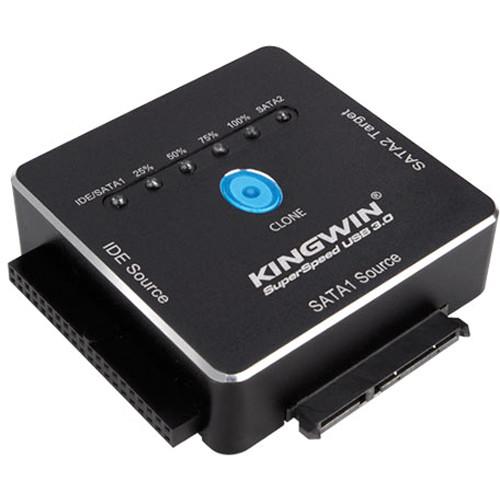

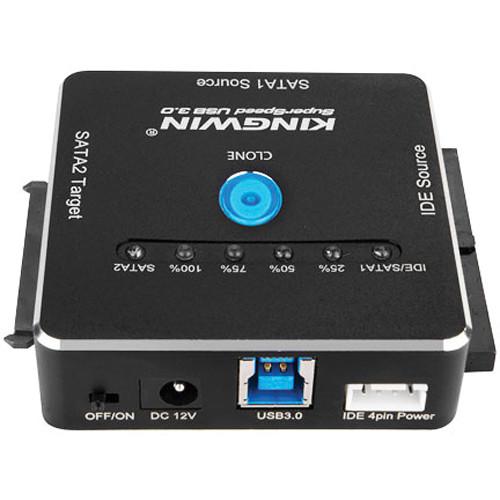

Product description The USI-2535CLU3 EZ-Clone USB 3.0 to SATA & IDE One Click Clone Adapter from Kingwin is a USB to dual SATA and a IDE hard drive adapter that also works as a standalone disk-cloning duplicator. The EZ-Clone adapter provides support for two SATA SSD or HDD drives and one IDE hard drive in 2.5" or 3.5" form factors. Access up to two external drives at the same time, two SATA drives or one IDE and one SATA drive when connected to a computer. The EZ-Clone also works as a standalone disk duplicator (IDE to SATA, or SATA to SATA) while disconnected from the computer.
Connecting your computer to IDE and SATA drives is easy with the EZ-Clone adapter. Simply attach the IDE power and IDE/SATA drives, connect the 12 V DC power adapter, turn on the adapter power switch, and plug the USB cable into your computer and the drives are automatically recognized. You can choose to connect just one IDE drive, or one SATA drive, or one IDE and one SATA drive, or two SATA drives. The EZ-Clone adapter has an IDE/SATA1 and SATA2 LEDs that turn red when the drives are detected properly. This feature allows a Windows or Mac computer to access or store individual files onto the drive or drives. You can also hot-swap SATA hard drives while plugged into the computer.
SuperSpeed USB 3.0 PC interface offers 10x faster performance (5 Gb/s) over Hi-Speed USB 2.0 (480 Mb/s) while still retaining backward compatibility and interoperability with all PC USB ports and devices. SuperSpeed USB 3.0 also works well with the latest Windows 8 and Mac OS X with no driver installation needed. USB plug-and-play allows the drives to be detected easily without needing to restart the computer.
Another unique feature of the EZ-Clone is the stand-alone disk cloning feature that allows you to duplicate or clone the entire IDE or SATA source drive to another faster or larger SATA drive without having to connect to a computer. Simply attached the IDE or SATA source drive and the new SATA drive to the SATA2 Target connector, then turn on the EZ-Clone power and press the CLONE button for 3 seconds to begin the cloning process. The EZ-Clone has 4 progress LEDs (25%, 50%, 75%, 100%) that will turn blue to indicate the completed percentage of the clone process. The result is two identical drives containing the same files, boot sector, partition table and file system format. If the target drive is larger than the source drive, the remaining partition of the drive that was not used during the cloning process will be converted as an unallocated partition. You can still repartition and format that partition as an extra logical drive. - External USB 3.0 to Dual-SATA & Single-IDE Clone Adapter
- Standalone Disk Duplicator with One-Touch Clone Button (no PC needed)
- Supports 2.5" and 3.5" IDE and SATA Drives (SSD or HDD)
- Compatible with SATA I/II/III (1.5/3.0/6.0 Gb/s)
- SATA Drive Hot-Swap Capability
- Supports Hard Drive up to 3TB disk size
- Dual output power supply with standard 4-pin power output and new SATA power output
- Up to 5 Gb/s Data Transfer Rate in USB 3.0 port
- Compatible also with USB 2.0 (480 Mb/s) port
- USB Plug-and-Play Capability
- 2 Drive LEDs and 4 Clone Progress LEDs
- Screw-less and Easy-to-Connect Design
- Windows & Mac OS Compatible (no driver installation needed)
UPC: 812348012290 In the Box Kingwin USI-2535CLU3 EZ-Clone USB 3.1 Gen 1 to SATA & IDE One Click Clone Adapter USB 3.0 Cable AC/DC Power Adapter 3.5" to 2.5" IDE Bridge Board 4-Pin IDE Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kingwin USI-2535CLU3 EZ-Clone USB 3.1 Gen 1 to SATA & IDE One Click Clone Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKingwin USI-2535CLU3 Specs | Drive Configurations | 1 x IDE (Source)
1 x SATA (Source or Target)
1 x IDE (Source) and 1 x SATA (Target)
1 x SATA (Source) and 1 x SATA (Target) | | Transfer Rate | USB 3.0 up to 5 Gb/s
SATA III 6 Gb/s | | Drive Capacity | Up to 3 TB per drive | | System Requirements | PC/Mac with one available USB port
Windows 2000/XP/Vista/7/8
Mac OS X 10 or higher | | LED Indicators | 4 x LED for Cloning Progress
2 x LED for IDE/SATA | | Weight | 1 lb / 431 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.9 x 5.6 x 1.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Kingwin USI-2535CLU3 EZ-Clone USB 3.1 Gen 1 to SATA & IDE One Click Clone Adapter
| Subject: query | | Date: 08.05.2025 05:54:32 | Name: steve | | I plug in an ide drive. Never get the red led but all 4 blue leds flash rapidly. What does this mean? | | Post reply |
