User Manual for Chief CM2-L40 Universal Automated Pop-Up Lift for Large Flat-Panel Displays Click to enlarge the picture
Contents of the user manual for the Chief CM2-L40 Universal Automated Pop-Up Lift
- Product category: Monitor Furniture & Cabinet Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Monitor Furniture & Cabinet Mounts
 |
User manual for the Chief CM2-L40 Universal Automated Pop-Up Lift contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|

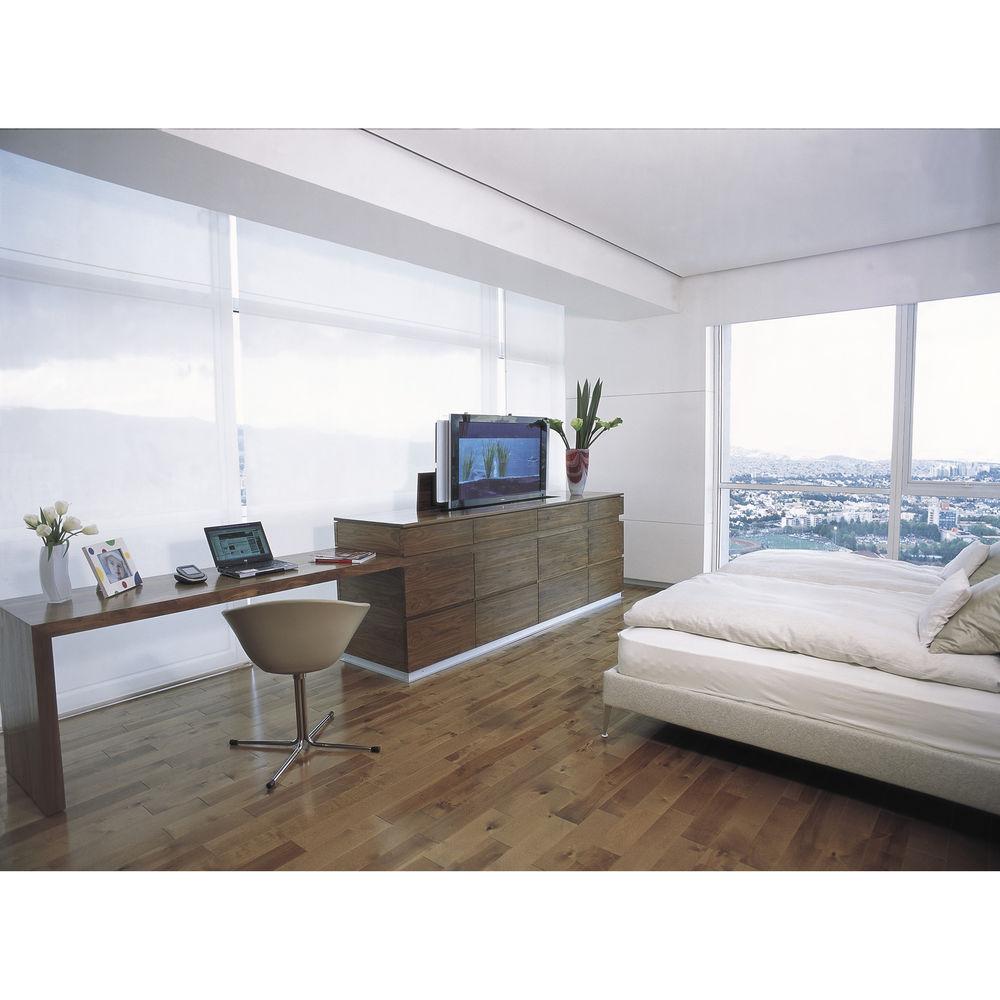

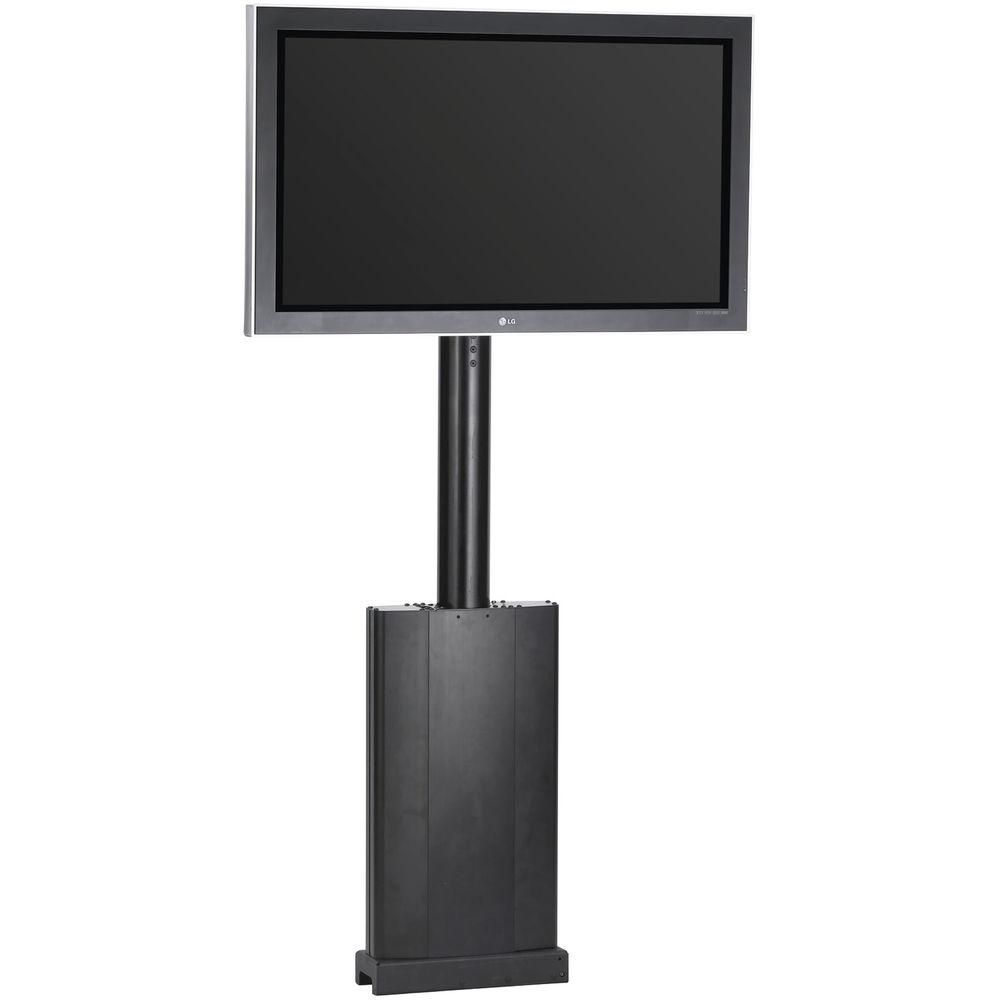

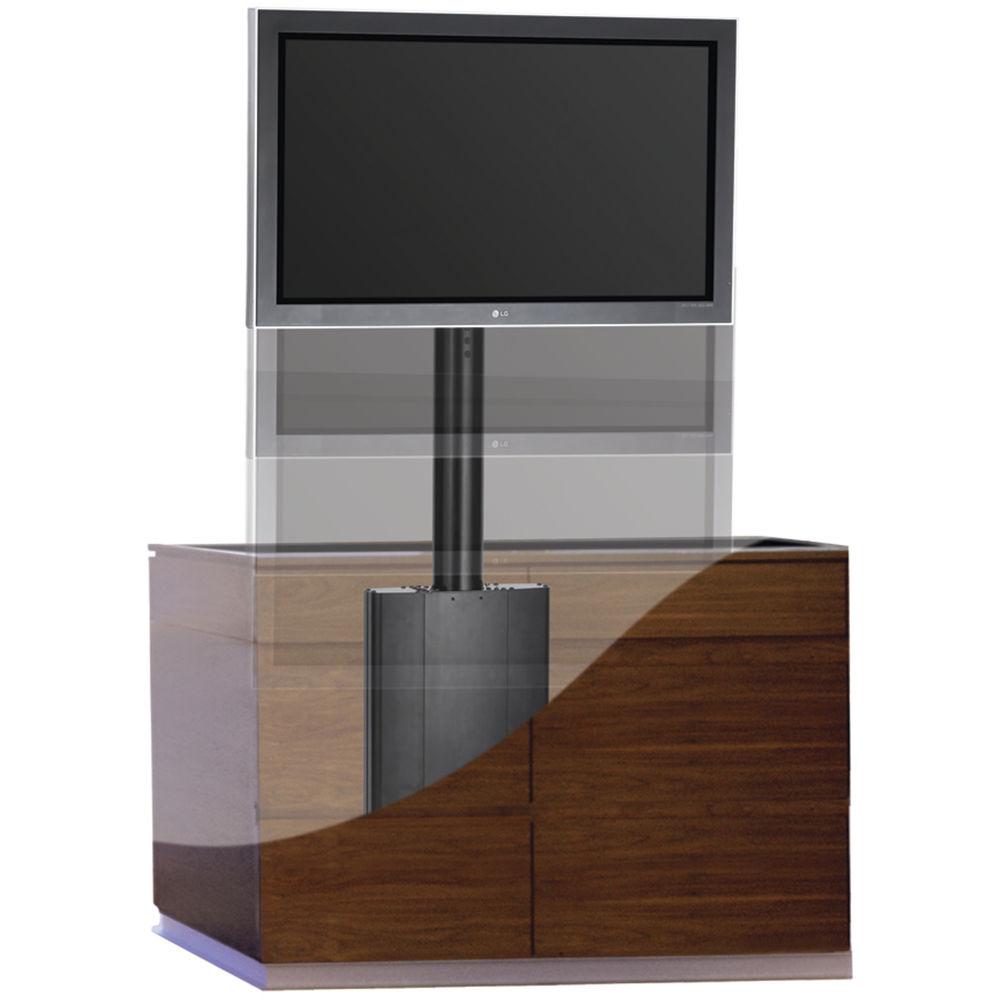

Product description Create a custom installation that permits your display to be hidden when not in use yet lift out into a show position as needed. With the Chief CM2L40 Automated Pop-Up Lift, you can raise or lower your flat panel screen with the press of a button. Designed for flat panel TVs up to 61" or 170 lbs, the CM2L40 provides fast adjustments at over 2" per second. The lift provides up to 40" of travel with a stored height of only 31", and the exclusive Auto Drive gliding system provides fast and quiet adjustment. Customizable store and show positions allow fine-tuning for any installation, and the unique lift design eliminates flat panel TV width constraints. A cable management system makes installation clean and hassle free. Using the required PSB-xxx interface bracket, the CM2L40 can be customized for hundreds of flat panel displays from 32-61" or 170 lbs. To confirm the compatibility of this mount with your flat panel TV or monitor, visit Chief's MountFinder Pro. Note: Because a Chief custom bracket or flat-panel display model must be specified at the time of purchase, orders for this product must be placed by phone. Viewing Conveniences - Exclusive Auto Drive gliding system provides fast and quiet travel at over 2" (51 mm) per second with preset viewing positions.

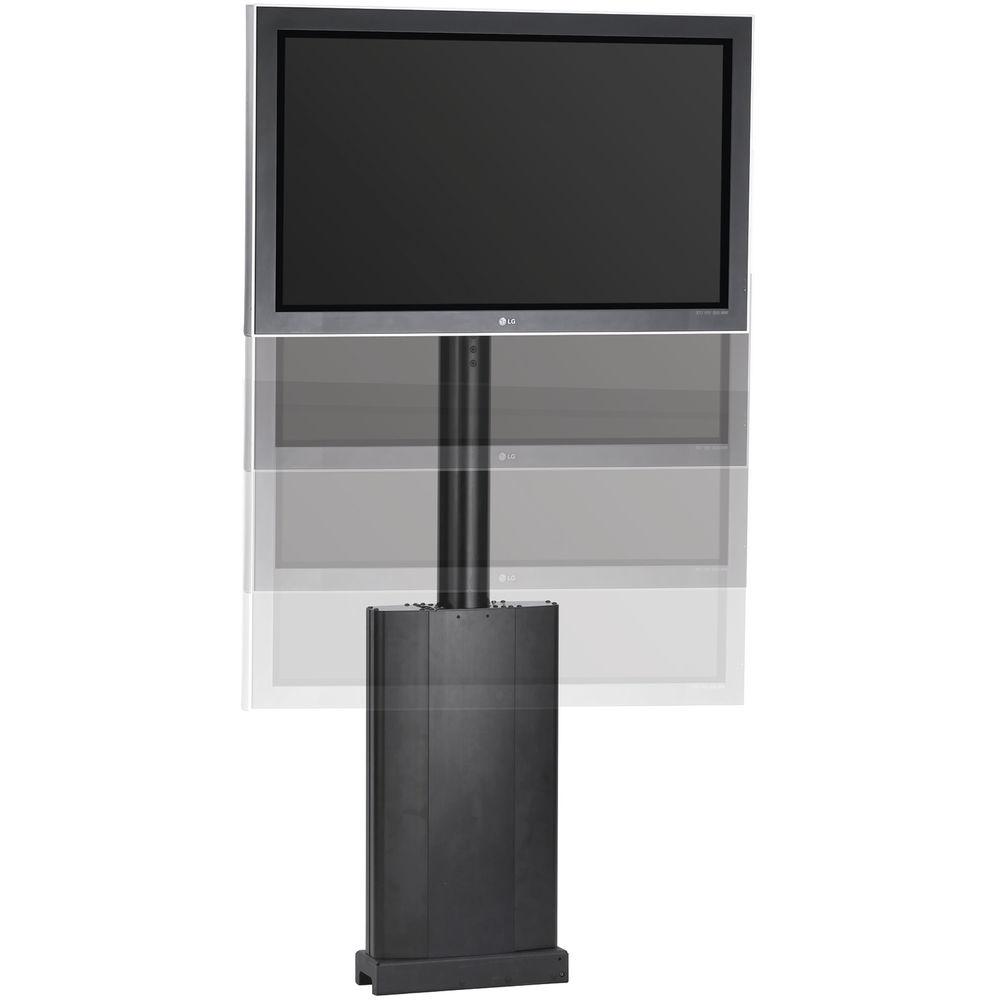

- Telescoping design collapses to a stored height of 31" (790 mm) with approximately 40" (101.6 cm) of travel.
- Multiple control options include serial communication, dry contact control and IR remote (included).
Easy Installation - Unique lift design eliminates flat panel TV width constraints.

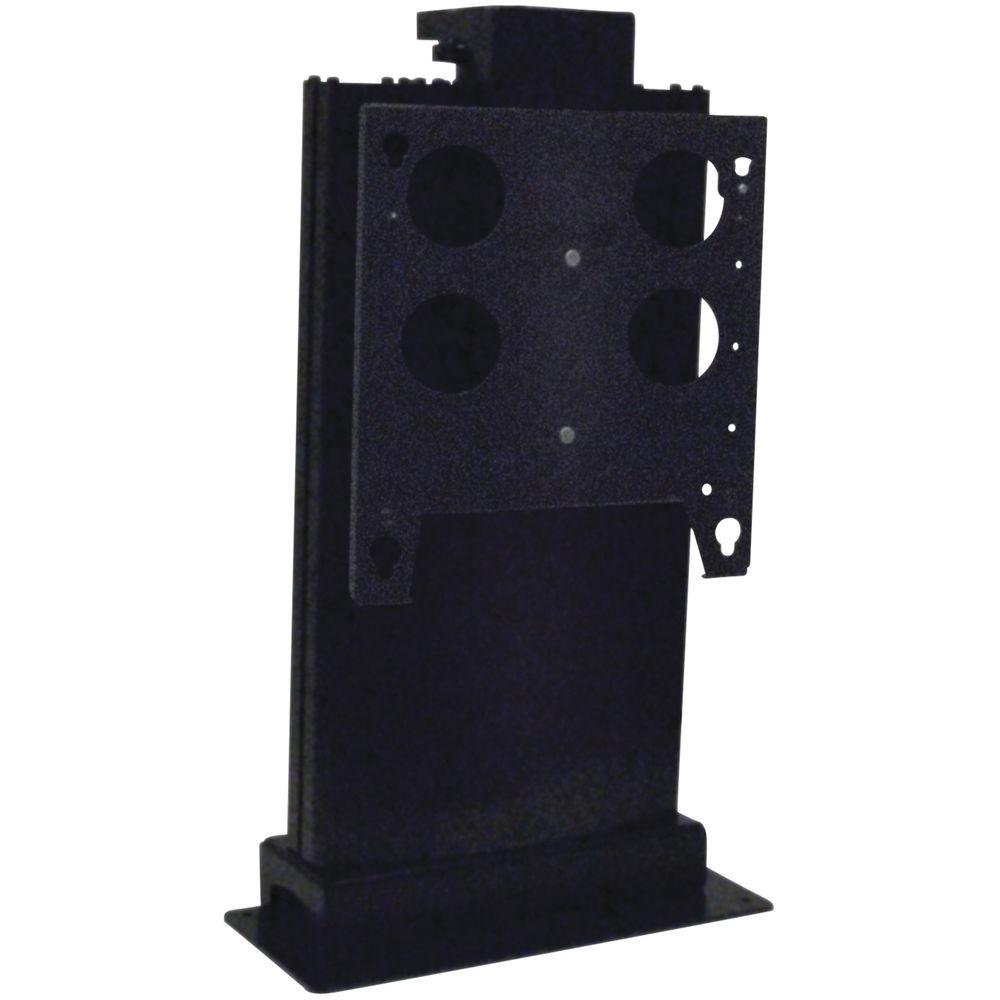

- Q-Latch Mounting System simplifies installation. It uses a lockable latch to safely secure display to the mount- no tools required. Provides quick display connect/disconnect and is compatible with multiple accessories. A padlock can be used to secure the display.
- Customizable store and show positions allow fine-tuning for any installation.
- A unique cable management system allows cables to move freely within the lift and makes installation clean and hassle free.
UPC: 841872098029 In the Box Chief CM2-L40 Universal Automated Pop-Up Lift for Large Flat-Panel Displays Automated Flat-Display Lift Remote Control 6" Power Cable Ten-Year Warranty Against Defects In Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief CM2-L40 Universal Automated Pop-Up Lift for Large Flat-Panel Displays in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChief CM2-L40 Specs | | | Lift Type | Automatic telescoping lift | | Depth From Mounting Source | Not specified by manufacturer | | Mounting Source Opening (WxD) | Determined by the size of the flat-panel display used with lift | | Closure Panel Dimension (WxD) | Determined by the size of the flat-panel display used with lift | | Max Equipment Size | Flat-panel displays up to 61" | | Travel Distance | 40" | | Travel Speed | 2" per second | | Adjustments | Custom adjustable store & show positions | | | | Control Option | Remote control | | Integrated Control | None | | Low Voltage | None | | | | Construction | Steel | | Power Requirements | 120VAC | | Maximum Current Draw | Not specified by manufacturer | | Dimensions | Not specified by manufacturer | | Weight Capacity | 190 lbs | | Weight | Not specified by manufacturer | | | | Package Weight | 125.0 lb | | Box Dimensions (LxWxH) | 39.0 x 28.13 x 18.0" |
