Lenovo ThinkCentre M625q Tiny Thin Client

Search your instruction manual in PDF to download

User Manual for Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer

Click to enlarge the picture
Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Contents of the user manual for the Lenovo ThinkCentre M625q Tiny Thin Client
  • Product category: Terminal & Thin Clients Lenovo
  • Brand: Lenovo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lenovo Terminal & Thin Clients

Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer
User manual for the Lenovo ThinkCentre M625q Tiny Thin Client contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lenovo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!



Product description

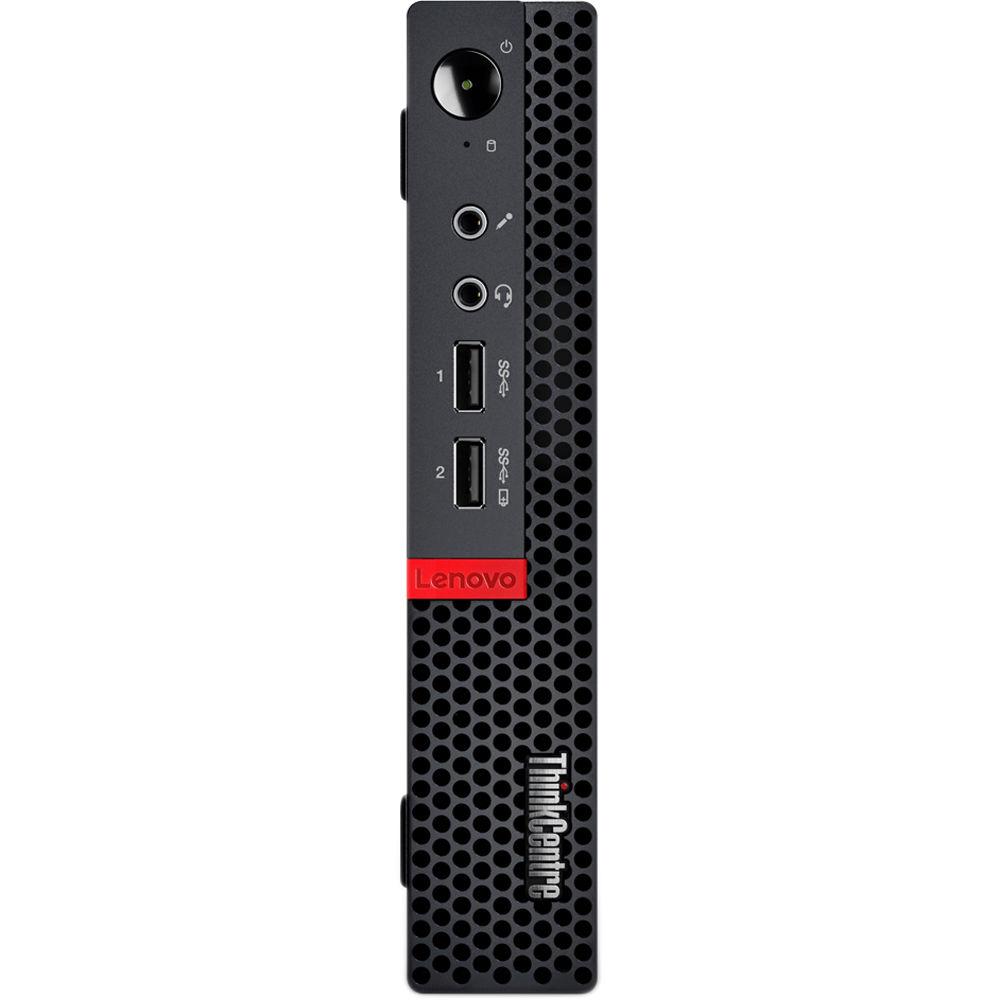

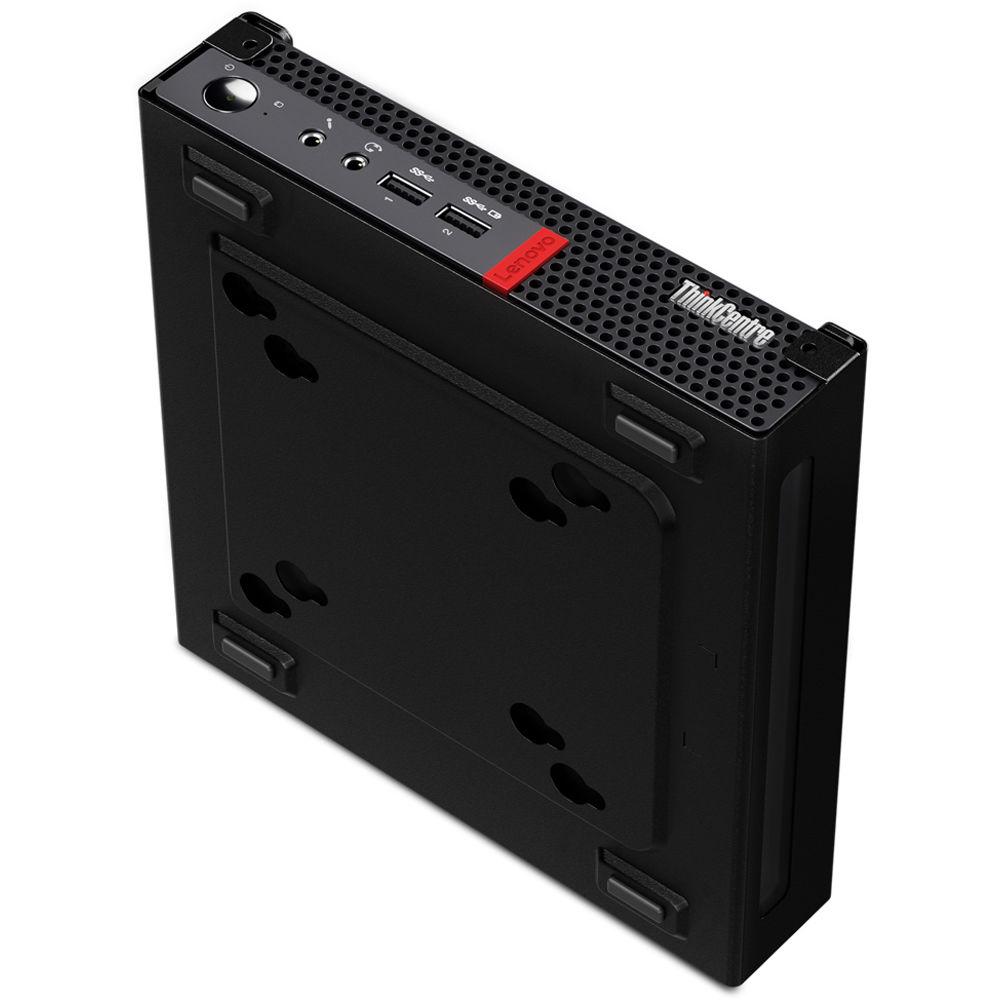

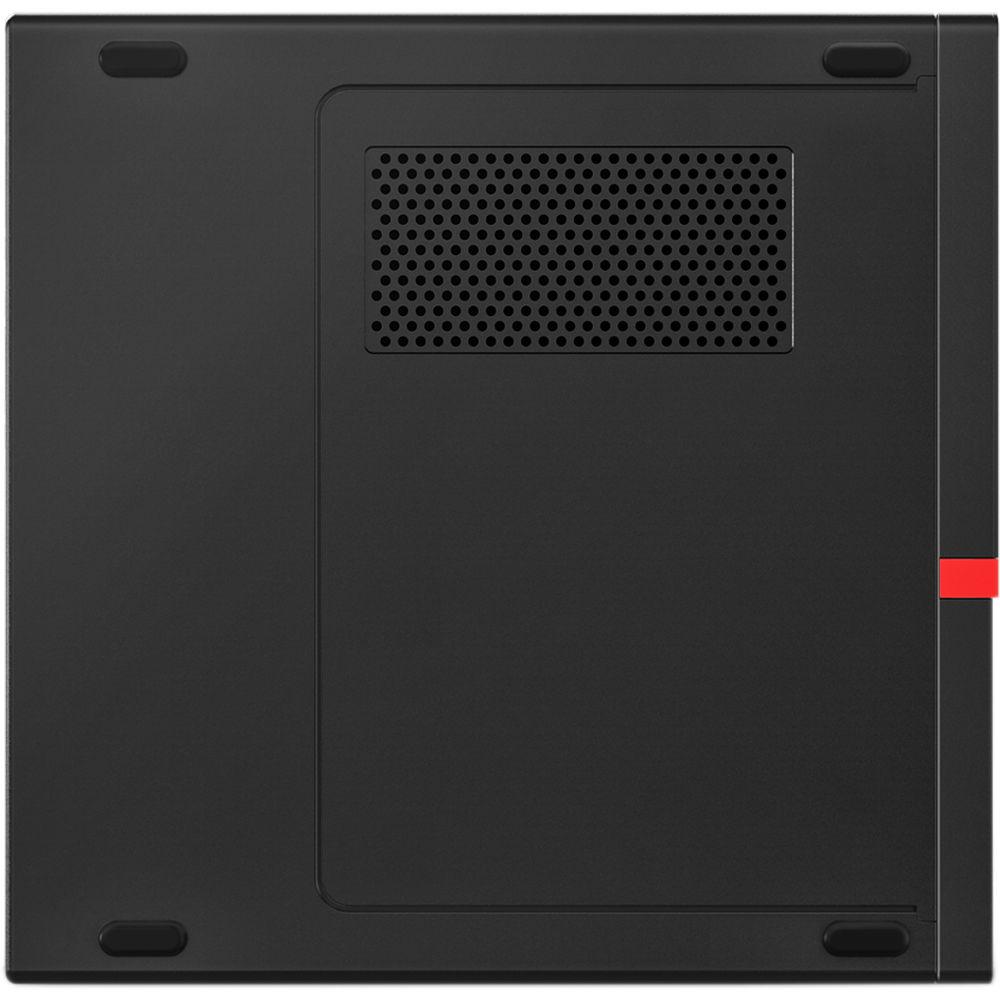

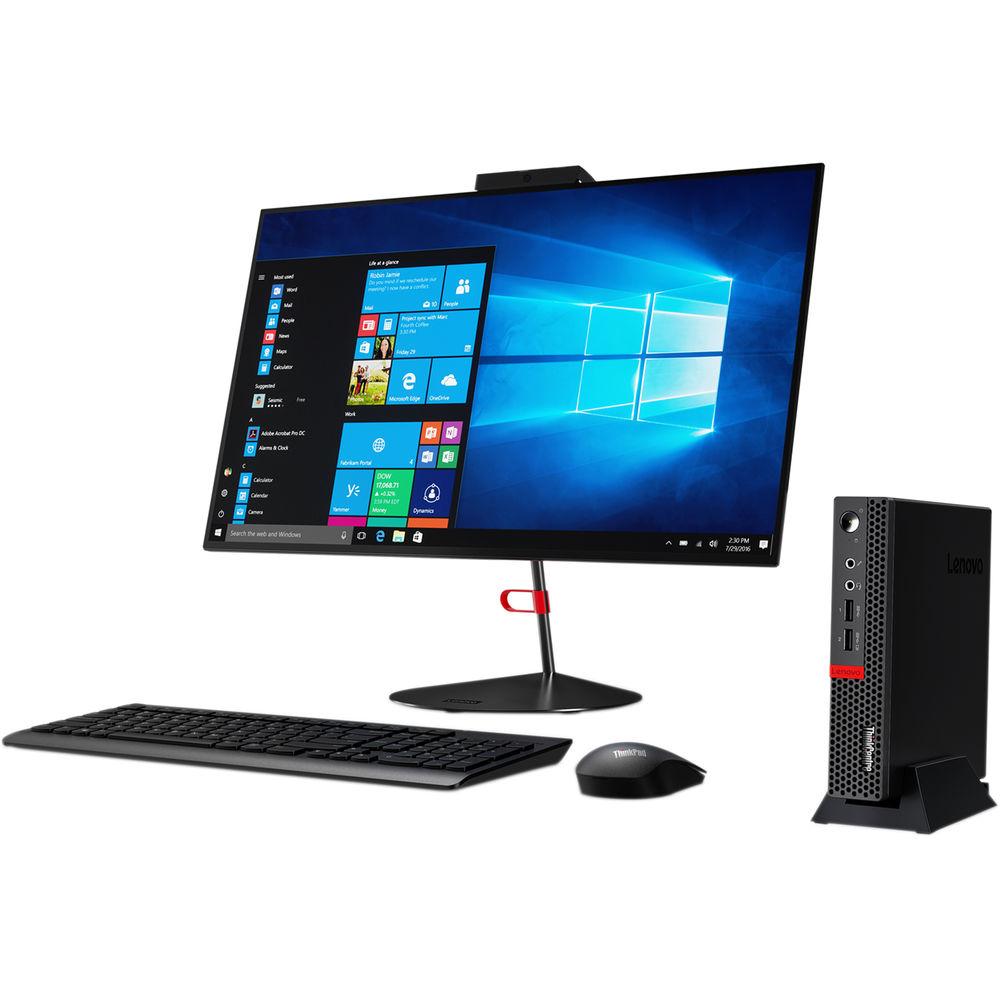

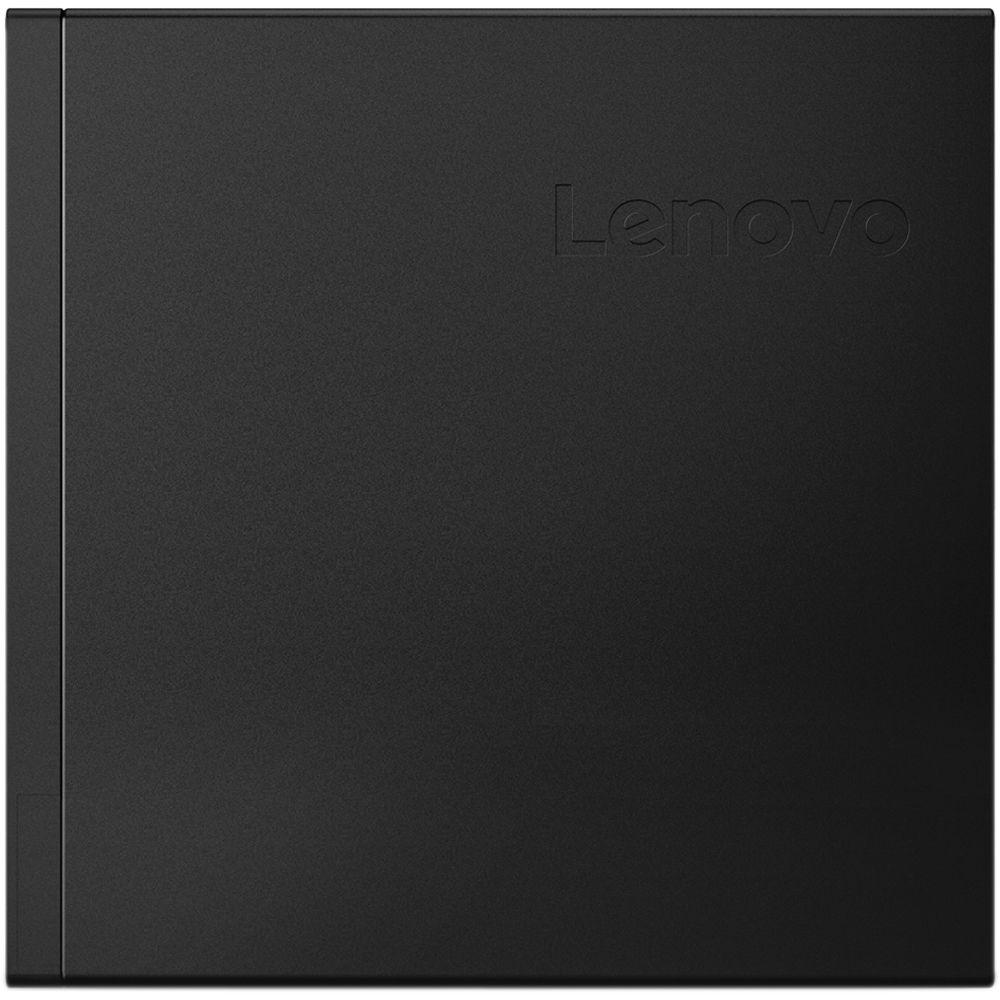

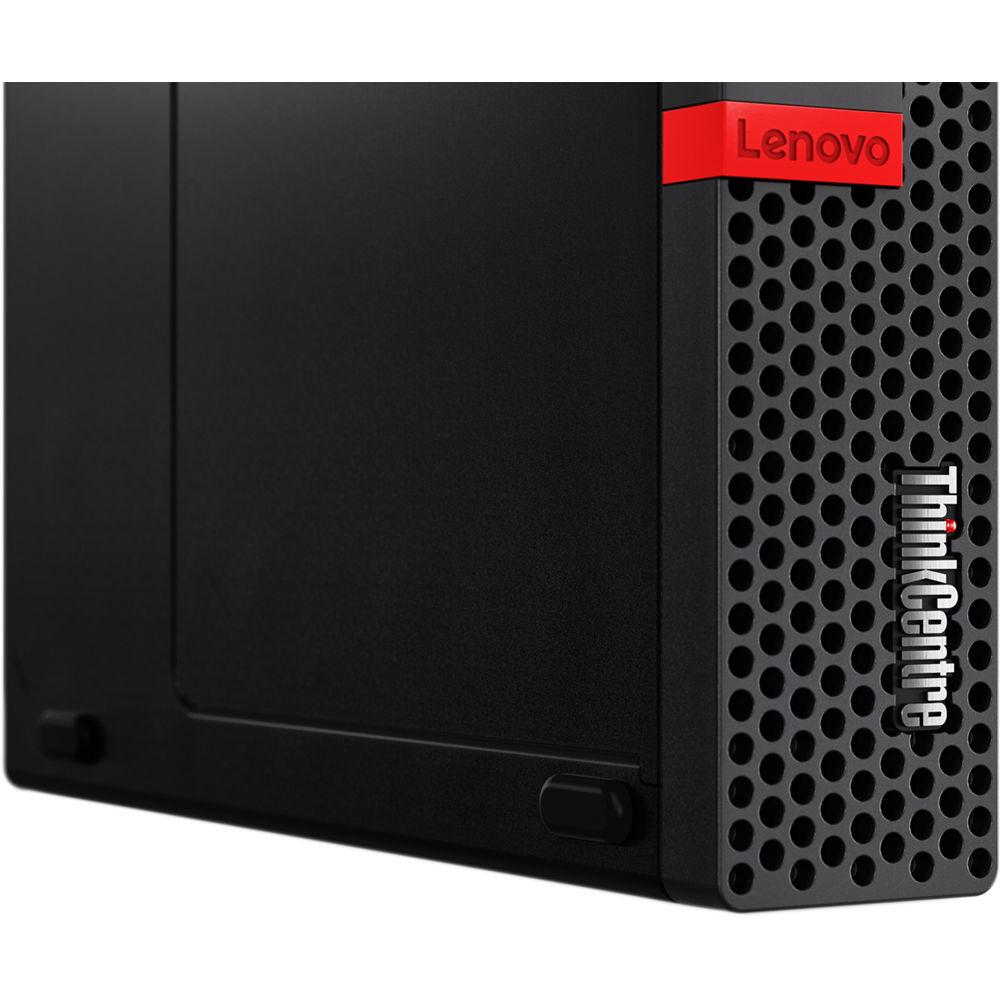

The ThinkCentre M625q Tiny Thin Client Desktop Computer from Lenovo harnesses the full potential of your network servers to provide rendering performance for robust workloads. Utilizing a 1.5 GHz AMD Pro E2-9000E Dual-Core processor and 4GB of DDR4 memory, the M625q provides efficient processing and easy multitasking. Furthermore, the M625q houses a 32GB SSD for storing your files and handling the system's overall virtualized environment. In terms of graphics, the M625q has an integrated AMD Radeon R2 chipset that delivers crystal clear images.

The ThinkCentre M625q Tiny Thin Client comes equipped with two DisplayPort outputs for supporting dual-monitor setups, as well as three USB 3.0 and three USB 2.0 ports to access printers, external storage drives, and other useful devices. Other notable features include a built-in 1.5W speaker system along with three audio jacks, powered by a Realtek ALC233-CG audio processor. The M625q connects you to the internet via QCA6174Aac Wi-Fi or Gigabit Ethernet, while wireless peripherals pair via Bluetooth 4.2. Moreover, the M625q accesses the network using a Windows 10 IoT Enterprise operating system.

General Features

    Bluetooth 4.2
  • If you've run out of USB ports, or would just rather save them, compatible peripherals, such as keyboards, mice, and headsets can be paired using Bluetooth 4.2 technology.
    QCA6174Aac Wi-Fi & Gigabit Ethernet
  • Connect to the internet wirelessly using QCA6174Aac Wi-Fi. Additionally, the system uses an integrated Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch.
    6 x USB Type-A Ports
  • The M625q Tiny Thin Client features three 5 Gb/s USB 3.0 Type-A and three 480 Mb/s USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. One of the USB 3.0 ports is equipped with always on and fast charge technology.
    2 x DisplayPort
  • The two DisplayPort outputs support resolutions up to 3840 x 2160 @ 60 Hz. Up to two independent displays are supported.
    Energy Star Certified
  • The 65W power supply is 88% efficient.
    Mil-SPEC Tested
  • The ThinkCentre M625q Tiny Thin Client's Mil-SPEC design is built to resist shock and most environments, including arctic temperatures of -4°F / -20°C, to desert heat of 140°F / 60°C.
    Portable & Compact Design

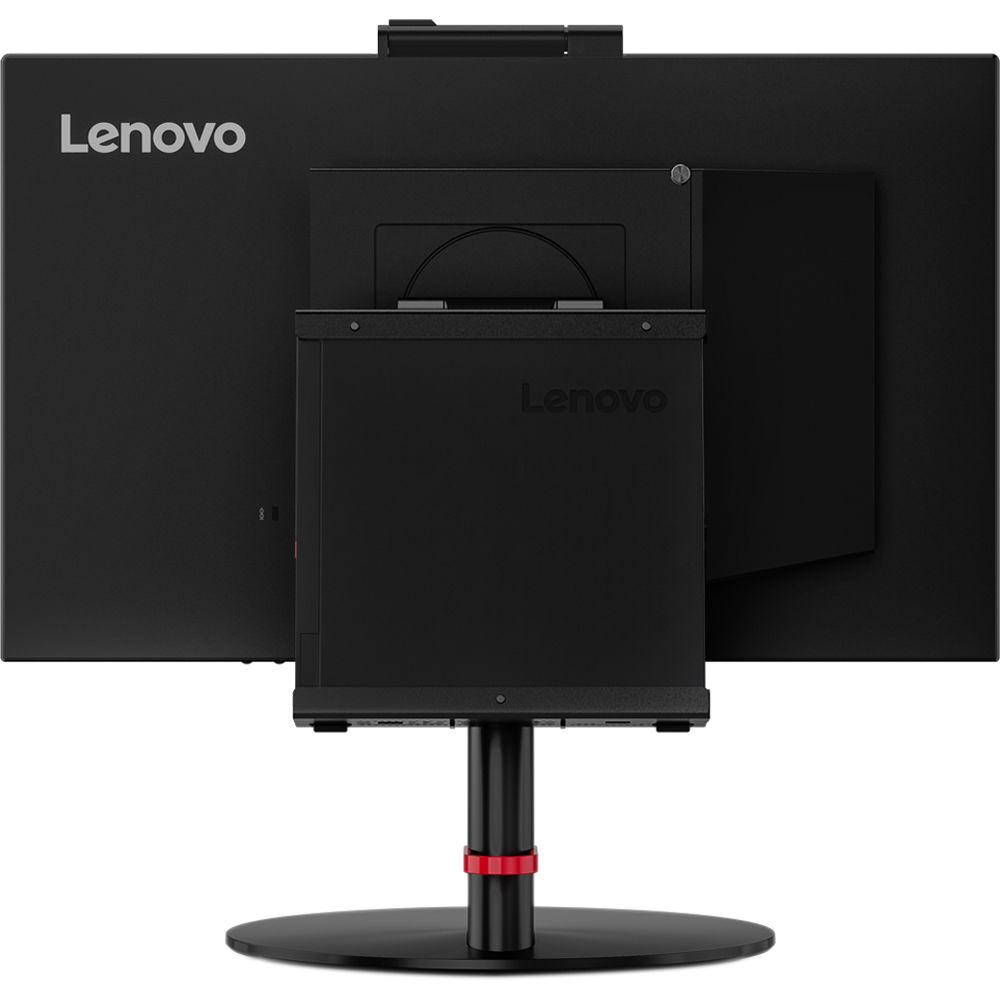

  • The M625q Tiny Thin Client desktop can be positioned horizontally or vertically, mounted on a wall, behind a monitor, or even under a desk. Furthermore, you can power digital signage with a PC that's easy to hide from view. It also delivers professional-level performance while freeing up valuable desk-space.
UPC: 192563114468 In the Box Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Lenovo ThinkCentre M625q Tiny Thin Client Desktop ComputerDownload PDF User Manual - https://www.search-manual.com/ upload/ lenovo-thinkcentre-m625q-tiny-thin-client-desktop-computer-294499-user-manual.pdf
    (PDF file, 8.4 MB)


    Technical parameters

    Lenovo ThinkCentre M625 Thin Client Specs

    Operating System Windows 10 IoT Enterprise (64-Bit)
    CPU 1.5 GHz AMD E2-9000E Dual-Core
    Maximum Boost Speed 2.0 GHz
    Memory Type 1866 MHz DDR4
    Total Installed Memory 4 GB
    Memory Configuration 1 x 4 GB (User-Replaceable)
    Maximum Memory Capacity 8 GB
    Memory Slot Type 260-Pin SO-DIMM
    Available Memory Slots 1
    Graphics Type Integrated
    GPU AMD Radeon R2
    Total Drive Bays Not Specified by Manufacturer
    Total Installed Capacity 32 GB
    Solid State Storage 1 x 32 GB M.2 SATA
    PCI Expansion None
    Optical Drive None
    Ports 3 x USB Type-A (USB 3.1 Gen 1)
    3 x USB Type-A (USB 2.0)
    Display 2 x DisplayPort
    Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
    1 x 1/8" / 3.5 mm Microphone Input
    Built-In Speakers Yes
    Media Card Slots None
    Ethernet 1 x RJ45 (Gigabit)
    Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
    Bluetooth 4.2
    Security Infineon TPM Software Professional Package
    Dimensions 1.4 x 7.2 x 7" / 3.6 x 18.3 x 17.8 cm
    Weight 2.9 lb / 1.3 kg
    Package Weight 7.4 lb
    Box Dimensions (LxWxH) 19.2 x 10.9 x 5.6"
