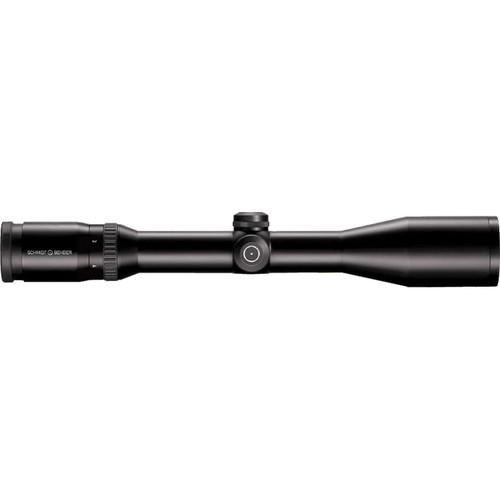

Schmidt & Bender 3-12x42 Klassik Riflescope

Search your instruction manual in PDF to download

User Manual for Schmidt & Bender 3-12x42 Klassik Riflescope

Click to enlarge the picture
Schmidt & Bender 3-12x42 Klassik Riflescope Contents of the user manual for the Schmidt & Bender 3-12x42 Klassik Riflescope
  • Product category: Riflescopes Schmidt & Bender
  • Brand: Schmidt & Bender
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Schmidt & Bender Riflescopes

User manual for the Schmidt & Bender 3-12x42 Klassik Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Schmidt & Bender product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Schmidt & Bender user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Schmidt & Bender product will considerably shorten its lifespan!



Product description

Schmidt & Bender aimed at striking a delicate balance between low-light performance and size with the 3-12x42 Klassik Riflescope. Its combination of 42mm objective and custom-engineered index-matched anti-reflection lens coatings ensure bright and clear views with maximum light transmission and enhanced contrast from dawn to dusk, and allow users to discern game in heavily shadowed areas. The smaller objective allows the use of lower mounts and offers more mounting options over larger objective scopes.This version of the Klassik features 0.1 mrad windage and elevation impact point correction, and ±1.0 mrad elevation adjustment ranges. The scope's housing has a larger 30mm one-piece main-tube and is made of a lightweight aluminum alloy that has a scratch and corrosion-resistant matte-black anodized finish. The housing is nitrogen-filled to provide the Klassik with fogproof performance in all weather, and is O-ring sealed to be waterproof to 9.8 feet
    Optical Performance
    • 3-12x zoom magnification
    • 42mm objective lens
    • Index-matched anti-reflection fully multicoated optics
    • 33.3-10.2' wide field of view at 100yd
    Reticle
    • Positioned on first (front) focal plane
    • Reticle size changes to remain proportionate with zoom magnification selected
    • P3 MilDot ranging duplex crosshair reticle
    • Thick outer posts, and thin center hairs with MilDotranging dots on all four axes
    Use and Handling
    • 0.1 mrad/click impact point correction
    • ±1.0 mrad windage and elevation adjustment range
    • Covered windage and elevation turrets
    • Rubberized and knurled zoom collar
    • Fast-zoom mechanism goes from min to max in 180° rotation
    Construction Details
    • 30mm one-piece aluminum main-tube
    • Corrosion and scratch-resistant matte-black anodized finish
    • Nitrogen-filled. Fogproof and waterproof: Tested to 9.8'/3m
    • Mount, rail, or rings required
    • Manufactured by hand
In the Box Schmidt & Bender 3-12x42 Klassik Riflescope (P3 MilDot Duplex Reticle)
  • Cleaning Kit
  • Eyepiece Cover
  • Objective Lens Cover
  • Limited 10-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Schmidt & Bender 3-12x42 Klassik Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Schmidt & Bender 3-12x42 Klassik Riflescope can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Schmidt & Bender 3-12x42 Klassik Riflescope can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Schmidt & Bender 3-12x42 Klassik Riflescope can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Schmidt & Bender 3-12x42 Klassik RiflescopeDownload PDF User Manual - https://www.search-manual.com/ upload/ schmidt-bender-3-12x42-klassik-riflescope-190298-user-manual.pdf
    (PDF file, 1.81 MB)


    Technical parameters

    Schmidt & Bender 645-811-882-05-05A02 Specs

    Magnification 3 to 12x
    Objective Lens Diameter 42 mm
    Field of View 3x: 33.3' @ 100 yd / 11.1 m @ 100 m
    12x: 10.2' @ 100 yd / 3.4 m @ 100 m
    Exit Pupil Diameter 3x: 14.4 mm
    12x: 3.5 mm
    Eye Relief 3.7" / 94 mm
    Reticle Type P3 MIL Dot Ranging Duplex Crosshair Reticle (First Focal Plane)
    Impact Point Correction 0.1 MRAD per Click
    Windage Adjustment

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 98 owners. Add your rating and experience with the product.
