User Manual for DeSisti Cyc De Lux 4 x 55W DMX

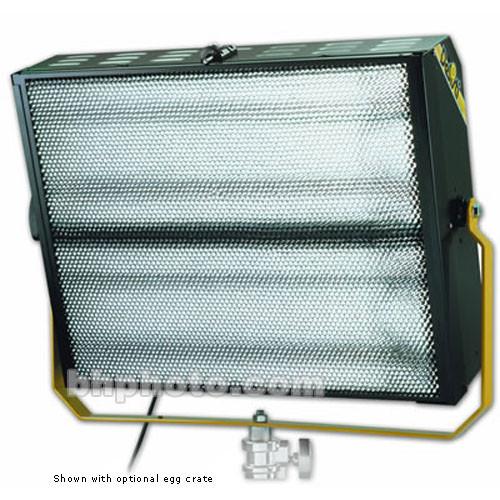

Click to enlarge the picture
DeSisti Cyc De Lux 4 x 55W DMX Contents of the user manual for the DeSisti Cyc De Lux 4 x
  • Product category: Fluorescent Lights DeSisti
  • Brand: DeSisti
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DeSisti Fluorescent Lights

User manual for the DeSisti Cyc De Lux 4 x contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DeSisti product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DeSisti user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DeSisti product will considerably shorten its lifespan!



Product description

The Desisti Cyc De Lux 4 x 55W series is made up of several models of high efficiency, multi-voltage fluorescent softlights, designed for studio use. This manually operated model may be mounted onto a stand, or hung from a pipe or grid. Different dimming control options are available with each model: Analog, with dimming control on the fixture, DMX control dimming with local controls, and Phase Control, which allows dimming from a standard dimmer. This DMX dimming, manual control 4 x 55W fixture has a total of 220 watts. When fitted with four Osram 4200K fluorescent tubes (available separately) and no eggcrate, it emits a beam 82 of footcandles, 26.5 x 11.5' from a distance of 10'.
  • Lightweight steel housing with low-glare epoxy powder coating.
  • High efficiency, polished aluminum reflector system eliminates the need for an external intensifier.
  • Dual accessory track for loading colorframes and eggcrates.
  • Fixture and accessories have been designed for one-handed operation, and are secured by a locking safety latch that is effective in vertical or horizontal position.
  • Fixture is UL listed.
In the Box DeSisti Cyc De Lux 4 x 55W DMX (Manually Operated, 115-230 VAC)
  • Color Frame (4617100)
  • 12' Neutrik Power Cable
  • Manual Flat Aluminum Yoke with 1 1/8" Spigot (461011040)
  • Brass C-Clamp (91200)
  • Integral Quicktronic Ballast Dimming Control
  • Integral DMX Outlet
  • Limited 2-Year Warranty
  • Note: Fluorescent tubes not included Table of Contents




    Upload User Manual

    Have you got an user manual for the DeSisti Cyc De Lux 4 x 55W DMX in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DeSisti De Lux 4 Cyc Specs

    Input Voltage 115-230 VAC, 50/60 Hz
    Lamps 4 x 55 W compact, optional
    Ballast Integral, dimming
    Mounting 1 1/8" Junior spigot
    Weight ~35 lb / 16 kg
    Dimensions 27.5 x 22.2 x 6.3" / 69.8 x 56.3 x 16 cm (including yoke)
