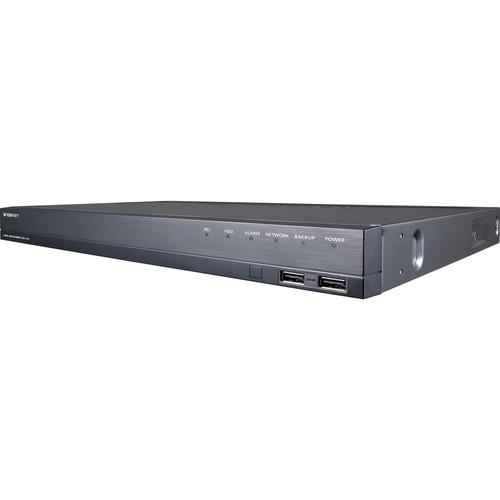

Product description Stream and record up to 16 video channels with the WiseNet HD+ HRD-1641 HD-AHD DVR from Hanwha Techwin at resolutions of up to 4MP. Equipped with two SATA ports, each supporting an HDD up to 6TB, this DVR can accommodate up to 12TB of HDD storage (HDDs available separately). The recorder supports AHD cameras up to 4MP and HD-TVI/CVI cameras up to 2MP via its BNC interface. With the help of H.264 compression, file sizes are kept manageable while recording and playback quality are maintained.
The DVR's interface includes ports for two-way audio communication, as well as HDMI and VGA connections for video output with support for dual streaming to maximize bandwidth efficiency. The HDMI connection can output up to 4K UHD resolution video. - VGA output at up to 1920 x 1080 resolution
- HDMI output at up to 4K UHD resolution (3840 x 2160)
- Supports AHD cameras up to 4MP
- Supports HD-TVI and HD-CVI cameras up to 2MP
- Also supports SD analog cameras (NTSC/PAL)
- Recording rates of up to 240 fps (NTSC) and 200 fps (PAL) at 4MP resolution
- Recording rates of up to 480 fps (NTSC) and 400 fps (PAL) at 1080p resolution
- Spot composite output channel for secondary monitor
- 4-channel audio input and 1-channel audio output
- Pelco-C and ACP coax protocols
- Remote monitoring via iOS and Android devices
- 1 x USB 3.0 and 1 x USB 2.0 ports
UPC: 849688009475 In the Box Hanwha Techwin WiseNet HD+ HRD-1641 16-Channel 4MP AHD DVR with No HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet HD HRD-1641 16-Channel 4MP AHD DVR with No HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin HRD-1641 Specs | | | Video Inputs | 16 x BNC
AHD (2 MP, 4 MP), HD-TVI (2 MP), HD-CVI (2 MP), NTSC/PAL | | Video Resolution | NTSC: 2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480
PAL: 960 x 576, 704 x 576 | | Live Frame Rate | NTSC: Up to 480 fps
PAL: Up to 400 fps | | Live Resolution | NTSC: 2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480
PAL: 960 x 576, 704 x 576 | | Multi-Screen Display | 1, 4, 7, 9, 13, 16, 16A, Sequence, Picture-in-Picture | | | | Compression | H.264 | | Recording Rate | NTSC:
Up to 240 fps at 4MP
Up to 480 fps at 1920 x 1080
Up to 480 fps at 1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240
PAL:
Up to 200 fps at 4MP
Up to 400 fps at 1920 x 1080
Up to 400 fps at 1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288 | | Mode | NTSC: Manual, Schedule (Continuous, Event), Event (Pre, Post), Time Lapse (1 to 30 fps)
PAL: Manual, Schedule (Continuous, Event), Event (Pre, Post), Time Lapse (1 to 25 fps) | | Event | Video Loss, Motion (Level 1 to 10), Alarm, Tampering (Level: Low, Medium, High) | | Overwrite Modes | Continuous | | Pre-Alarm | Up to 30 Sec (5, 10, 20, 30 Sec) | | Post-Alarm | Up to 6 hours (5/10/20/30 Sec, 1/3/5/10/20 Minutes, 1/2/3/4/5/6 Hours) | | | | Search Modes | Date/Time, Event, Backup, Motion | | Playback Function | Fast Forward/Backward (2, 4, 8, 16, 32, 64x)
Slow Forward/Backward (1/2, 1/4, 1/8x)
Step Forward/Backward | | | | Support | IPv4 | | Transmission Speed | Record (Main) Stream
4MP: 15 fps per Channel
1080p/720p/WD1/4CIF/CIF: 30 fps per Channel (NTSC), 25 fps per Channel (PAL)
Network (Sub) Stream
WD1/4CIF: 12 fps per Channel
2CIF/CIF: 30 fps per Channel (NTSC), 25 fps per Channel (PAL) | | Bandwidth | Up to 64 Mb/s | | Bandwidth Control | Selectable | | Streaming | Record Stream and Network Stream Selectable (at Monitoring Viewer) | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP | | Monitoring | SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer | | | | Platform | iOS and Android | | Protocol Support | RTP, RTSP, HTTP | | Control | Live: 8 Channels Multi-Profile Support Playback: 1 Channel | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | | | HDD Capacity | 2 x SATA (Up to 6 TB per Drive)
HDDs Available Separately
1 x eSATA | | Backup | 1 x USB 3.0, Rear
1 x USB 2.0, Front
File Format: BU (DVR Player), SEC (Include Player), AVI | | | | Password Protection | 1 Admin, 10 Groups, 10 Users per Group | | Data Authentication | Watermark | | | | Monitors | 1 x VGA: 1280 x 720, 1280 x 1024, 1920 x 1080
1 x HDMI: 1280 x 720, 1280 x 1024, 1920 x 1080, 2K (2560 x 1440), 4K (3840 x 2160) | | Spot Composite | 1 x BNC
Included OSD on Screen, Multi-Mode Support | | Audio | 4-Channel Line In, 1-Channel Line Out
Compression: G.711
Sampling Rate: 8 kHz | | Alarm | 16 x Inputs (NO/NC)
4 x Relay Outputs (NO/NC)
Rating: 30 VDC / 2 A, 250 VAC / 0.25 A | | Email Alert | Remote Notification via Email | | Connections | Ethernet: 1 x RJ45 10/100/1000Base-T
Serial Interface: RS-485 (Half Duplex) for PTZ, Samsung System Keyboard
USB: 1 x USB 3.0 (Rear), 1 x USB 2.0 (Front)
1 x External eSATA Port
Application Support: Mouse, Remote Controller
RS-485 Protocol: Samsung-T/E, Pelco D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
Coax Protocol: Pelco C, Coaxitron (NTSC/PAL), ACP (AHD) | | | | GUI | 25 Languages: English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Dutch, Portuguese, Swedish, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai, and Taiwanese | | Web Browser | 23 Languages: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, and Thai | | | | Input Power | 12 VDC Adapter, 100-250 VAC ±10%, 50/60 Hz | | Power Consumption | With 1 x 4 TB HDD: 27 W Maximum | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 85% RH | | | | Dimensions | 14.57 x 1.73 x 12.6" / 37.0 x 4.4 x 32.0 cm | | Weight | 6.53 lb / 2.96 kg Approx., with 4 TB HDDs |
