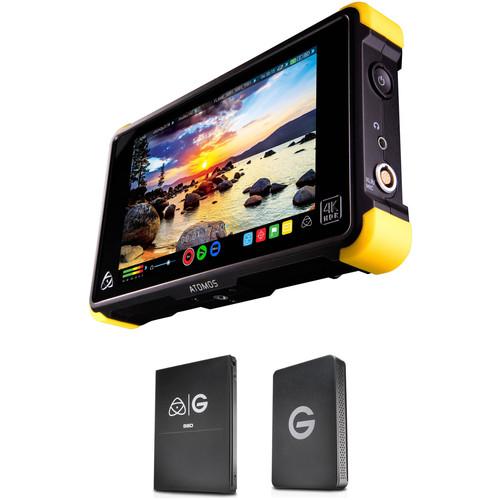

Product description Atomos Shogun Inferno Updates Software to 8.11 Read More Record, monitor, store, and transfer high-resolution video with this Atomos Shogun Flame Kit from . Consisting of the Atomos Shogun Flame 4K recorder plus a G-Technology 256GB SSD and ev|Series Reader, this kit has everything you need to start shooting and transferring 4K and HD video right out of the box. The included ev|Series reader is directly compatible with select G-Technology ev|Series hardware. See below for more information on each individual item in this kit. - Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor
- Hands-On Review: Atomos Shogun Inferno
The Atomos Shogun Flame is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160), recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology supporting a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High-Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V Phantom Power via an included audio breakout cable. Additional features included Genlock / LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. An AC adapter is included, as is a Master Caddy II 2.5" drive enclosure. For protection during storage and transport, a zippered travel case is also included. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High-Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- 4K UHD downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs / outputs
- SDI/HDMI cross-conversion
- Genlock / LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
- Additional Features
-
- Dual Sony L-Series battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020725 - G-Technology Atomos Master Caddy 4K (256GB)
- Hands-On Review: Atomos Shogun Inferno
A robust media solution designed for Atomos recorders, the G-Technology Atomos Master Caddy 4K contains a 256GB solid-state drive capable of recording and storing HD as well as 4K video. Shaped like a standard Atomos drive caddy, the Master Caddy 4K SSD will be compatible with any Atomos recorder that uses Master Caddys, including those in the Flame, Inferno, and Shogun series. When video needs to be transferred, simply insert the Master Caddy 4K into the separately available ev Series Reader specially designed for the Master Caddy 4K and offload files at speeds up to 500 MB/s. UPC: 705487203417 - G-Technology ev|Series Reader Atomos Master Caddy Edition
- Hands-On Review: Atomos Shogun Inferno
Seamlessly incorporate Atomos media into your storage workflow with the G-Technology ev|Series Reader Atomos Master Caddy Edition. Whether using standard drives housed in Atomos Master Caddys or G-Technology's Master Caddy drives, this ev|Series Reader offers a convenient way to import your videos. The I/O panel holds a USB-C port for plugging into your computer with the included cables and a SATA port for integrating with other G-Technology Evolution hardware. UPC: 705487203394 In the Box - Shogun Flame 7" 4K HDMI/SDI Recording Monitor bebyzcaqtfvw
- Shogun Travel Case
- Master Caddy II
- AC Adapter
- XLR Breakout Cable for Shogun (Input Only)
- Limited 1-Year Warranty (Extends to 3 years with registration)
- G-Technology - Atomos Master Caddy 4K (256GB)
- G-Technology - ev|Series Reader Atomos Master Caddy Edition
bebyzcaqtfvw Table of Contents
|
Upload User Manual
Have you got an user manual for the Atomos Shogun Flame with 256GB G-Technology SSD Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atomos Shogun Flame with 256GB G-Technology SSD Kit can be downloaded in PDF format at the link stated below.
Technical parameters - Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Output
1 x BNC (12G-SDI) Output | | Embedded Audio | HDMI: 8-Channel
SDI: 12-Channel | | Audio | 1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x Genlock/LTC (BNC)
1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080PsF: 24/25/30
1080i: 50/60
720p: 50/60 | | Video Signal Conversion | HDMI to SDI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI to HDMI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | SDI, HDMI | | Encoding Formats | 4096 x 2160
ProRes Raw, Raw HQ, 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
1920 x 1080
ProRes 422, LT, HQ
DNxHD 220x, 145, 36 | | Recording Media | 1 x 2.5" SSD (SATA III) | | Phantom Power | +48 V | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 10.079 x 6.535 x 4.095" | - G-Technology Atomos Master Caddy 4K (256GB)
| | | Interface | SATA III (6 Gb/s) | | Maximum Read Speed | 500 MB/s | | | | Dimensions | 4.1 x 2.9 x 0.5" / 104 x 74 x 12 mm | | Weight | 4.5 oz / 127 g | | | | Box Dimensions (LxWxH) | 6.5 x 4.7 x 2.3" | - G-Technology ev|Series Reader Atomos Master Caddy Edition
| Interface | 1 x USB Type-C
1 x SATA | | Dimensions | 5.1 x 3.2 x 0.9" / 130 x 81 x 22 mm | | Weight | 6.4 oz / 181 g | | | | Box Dimensions (LxWxH) | 6.4 x 4.8 x 2.3" |
