Tram TR50 - Omnidirectional Lavalier Condenser

Search your instruction manual in PDF to download

User Manual for Tram TR50 - Omnidirectional Lavalier Condenser Microphone

Click to enlarge the picture
Tram TR50 - Omnidirectional Lavalier Condenser Microphone Contents of the user manual for the Tram TR50 - Omnidirectional Lavalier Condenser
  • Product category: Microphones for Wireless Tram
  • Brand: Tram
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Tram Microphones for Wireless

User manual for the Tram TR50 - Omnidirectional Lavalier Condenser contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Tram product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Tram user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Tram product will considerably shorten its lifespan!



Product description

The Tram TR50 is a professional omnidirectional electret condenser lavalier microphone with a low-profile design resulting in low visibility. The TR50 features a frequency response that enhances the character and frequencies associated with speech.The polar pattern provides a generous pick up response at the direct and off-axis sections of the microphone capsule. This enhances sensitivity and minimizes noise associated with movement, wind and clothing contact. The TR50 features minimum sound coloration and is available in a variety of connectors for direct integration with wireless transmitters. This version features the TA5F-pin connection for use with Audio-Technica and Lectrosonics wireless transmitters.

The TR50 is powered by your Audio-Technica or Lectrosonics transmitter, but can also be hard-wired with the assistance of the TR79 power supply, not included. The TR79 accepts external Phantom power or uses internal battery power.
  • Minimum sound coloration for universal use
  • Easily combined with boom microphones
  • TA5-pin connector for use with Lectrosonics and Audio-Technica transmitters

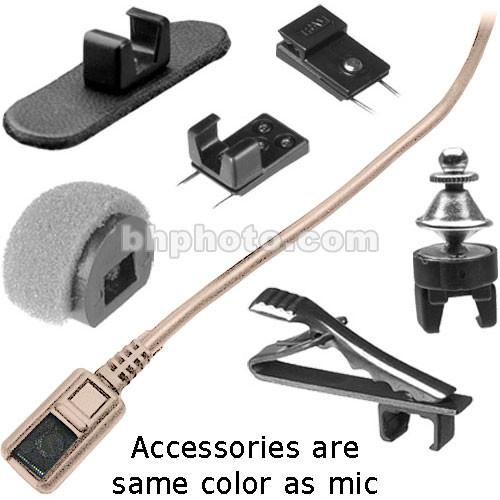

In the Box Tram TR50 - Omnidirectional Lavalier Condenser Microphone (Tan)
  • (CH) Cable Holder
  • (COH) Clip On Holder
  • (TB) Tie Bar
  • (WS) Windscreen
  • (CC) Carrying Case
  • (TD) Tape Down
  • (TT) Tie Tack
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Tram TR50 - Omnidirectional Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Tram TR50 Specs

    Transducer Electret Condenser
    Polar Pattern Omnidirectional
    Frequency Response 40Hz - 16kHz
    Dynamic Range (Typical) 108dB
    Signal-to-Noise Ratio 110dB
    Maximum Input Sound Level 134dB
    Power Requirements Powered by an Audio-Technica or Lectrosonics wireless transmitter
    Hard-wired use: Phantom or battery powered (Requires TR79 power supply, not included)
    Output Impedance 3.5k Ohms
    Output Connectors TA5F Connection for Lectrosonics and Audio-Technica Transmitters
    Pad None
    Low Frequency Roll-Off None
    Dimensions Microphone: 0.300 x 0.540 x 0.196" (7.62 x 13.716 x 4.978mm) WxHxD
    Cable: 4.5' (1.37m) L
    Weight 0.27 oz. (7.7g)
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 5.0 x 3.0 x 1.0"
