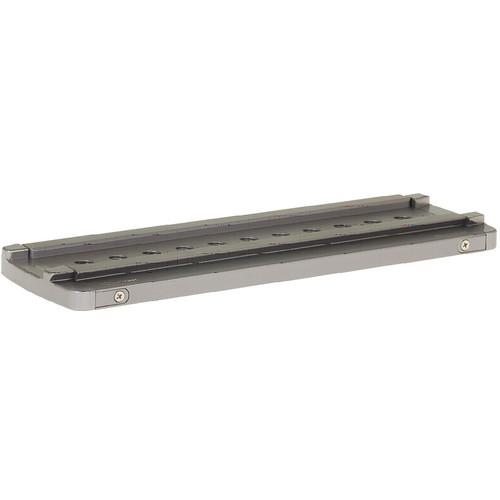

User Manual for 16x9 169-CBM15-01-115 Compact Dovetail Click to enlarge the picture
Contents of the user manual for the 16x9 169-CBM15-01-115 Compact Dovetail
- Product category: Baseplate Components 16x9
- Brand: 16x9
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 16x9 Baseplate Components
|
User manual for the 16x9 169-CBM15-01-115 Compact Dovetail contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 16x9 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 16x9 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 16x9 product will considerably shorten its lifespan!
|
Product description The 16x9 Inc. 169-CBM15-01-115 Compact Dovetail is designed for use with the 16x9 Inc. Cine Base or Camera Spacer. Machined out of solid aluminum, it offers 9” (228.6mm) of smooth travel space for proper camera balancing. Designed for quick and easy mounting, this dovetail offers rigid support and a wide range of balance adjustment capabilities. - Safety Mechanism
- The dovetail offers a quick-release mechanism that allows a faster and easier method for removing the 15mm Support Base (sold separately). By simply pressing the spring-loaded locking mechanism located at either end in the direction shown on the Compact Dovetail, the support base can be released.
- Thread Mounting for Most Tripods
- Designed to accommodate a multitude of tripods, from entry-level to professional, the dovetail comes standard with 2 thread hole patterns. The first row features alternative 1/4"-20 and 3/8"-16 female threads for use with small to mid-sized tripods. The second row features 3/8"-16 female threads for use with larger cine-style tripods and gear heads.
In the Box 16x9 169-CBM15-01-115 Compact Dovetail Limited 1-Year Warranty Table of Contents
|
