16x9 169-CBM15-FS700-LS Cine Base Mini 15

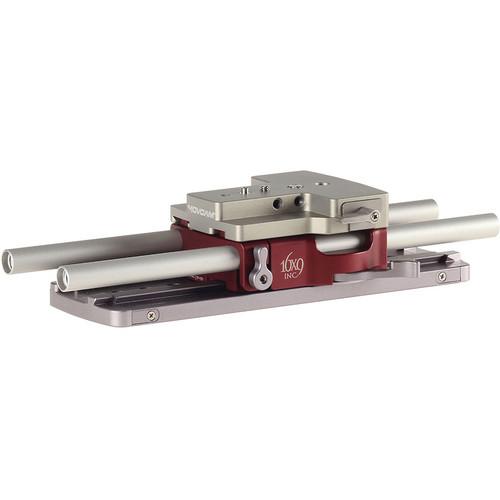

User Manual for 16x9 169-CBM15-FS700-LS Cine Base Mini 15 Kit for Sony FS700 Camcorder

• Product category: Camcorder Supports & Rigs 16x9
• Brand: 16x9
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for 16x9 Camcorder Supports & Rigs

Product description

• Cine Base M15 Support Base The 16x9 Inc. Cine Base M15 Support Base is a part of the camera support setup used to balance the camera when shooting with zoom lenses and other accessories.

  The dual lock knobs lock the 15 mm support rods onto the Cine Base; they can also be used to adjust the rods individually for fine tuning. A locking lever with a spring-loaded brake system securely locks the Cine Base onto the compact Dovetail or any industry-standard dovetail rails. On mounting the camera support plate to the Cine Base, a safety lock automatically falls in place and secures the plate to the base. The presence of delrin, a thermoplastic with low friction, on the bottom of the Cine Base allows it to smoothly slide over the dovetail. The Cine Base is made of solid aluminum, which makes it highly durable. The Cine Base is designed to mount onto studio base plates from ARRI or Chrosziel.
  • Cine Base balances cameras with zoom lenses or accessories
  • Dual knobs lock the support rods and adjust their lengths individually
  • Spring-loaded brake system secures the Cine Base onto the compact Dovetail or any industry-standard dovetail rails
  • A safety lock secures the plate to the Cine Base
  • Cine Base with delrin-based bottom smoothly slides over the dovetail
  • Solid aluminum construction to withstand tough working environments
  • Compatible with ARRI and Chrosziel studio base plates
• Camera Top Spacer for Sony FS700 The Movcam Camera Top Spacer for Sony FS700 mounts a separately-sold 16x9 Cine Base M15 rail/plate support system to provide height spacing between the system and a Sony FS700 camera. The extra spacing lets you properly align accessories such as a mattebox and follow focus.

  Another use would be additionally attaching into the two screw-holes on the side a Movcam FS700 Side Bracket with an FS700 Top Handle. This combination will wrap around the camera and will provide you with numerous 1/4" and 3/8" threads, with a rod clamp and with a cold shoe.
• 15mm Support Rods for Cine Base M15 The 16x9 Inc. 15mm Support Rods for Cine Base M15 are 12" heavy-duty industry-standard aluminum rods that can be used to mount accessories like matte boxes, follow focus systems, or sunshades.
  • 12" heavy-duty industry-standard aluminum rods
  • Allows you to mount accessories such as matte boxes or sunshades
  • Dual-locking mechanism for securely locking the rods onto the Cine Base
  • Individual lock levers to adjust the rods independently for fine tuning
• 169-CBM15-01-115 Compact Dovetail The 16x9 Inc. 169-CBM15-01-115 Compact Dovetail is designed for use with the 16x9 Inc. Cine Base or Camera Spacer. Machined out of solid aluminum, it offers 9” (228.6mm) of smooth travel space for proper camera balancing. Designed for quick and easy mounting, this dovetail offers rigid support and a wide range of balance adjustment capabilities.
  Safety Mechanism
  • The dovetail offers a quick-release mechanism that allows a faster and easier method for removing the 15mm Support Base (sold separately). By simply pressing the spring-loaded locking mechanism located at either end in the direction shown on the Compact Dovetail, the support base can be released.
  Thread Mounting for Most Tripods
  • Designed to accommodate a multitude of tripods, from entry-level to professional, the dovetail comes standard with 2 thread hole patterns. The first row features alternative 1/4"-20 and 3/8"-16 female threads for use with small to mid-sized tripods. The second row features 3/8"-16 female threads for use with larger cine-style tripods and gear heads.

• 1-Year Warranty

• 2-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cine Base M15 Support Base

  Weight

  1.18 lb (0.09 kg)

  Box Dimensions (LxWxH)	7.15 x 5.25 x 1.65"

• Camera Top Spacer for Sony FS700

  Material

  High grade aluminum

  Box Dimensions (LxWxH)	5.2 x 4.1 x 1.8"

• 15mm Support Rods for Cine Base M15

  Diameter	0.59" 15 mm
  Length	12" (304.8 mm)

  Box Dimensions (LxWxH)	11.3 x 1.8 x 0.6"

• 169-CBM15-01-115 Compact Dovetail

  Weight

  1.32 lb (0.59 kg)

Rating
