User Manual for 2Box Music Applications DrumIt Three Drum Module

Click to enlarge the picture
2Box Music Applications DrumIt Three Drum Module Contents of the user manual for the 2Box Music Applications DrumIt Three Drum
  • Product category: Electronic Drums 2Box Music Applications
  • Brand: 2Box Music Applications
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for 2Box Music Applications Electronic Drums

2Box Music Applications DrumIt Three Drum Module 2Box Music Applications DrumIt Three Drum Module
User manual for the 2Box Music Applications DrumIt Three Drum contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any 2Box Music Applications product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official 2Box Music Applications user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a 2Box Music Applications product will considerably shorten its lifespan!

Product description

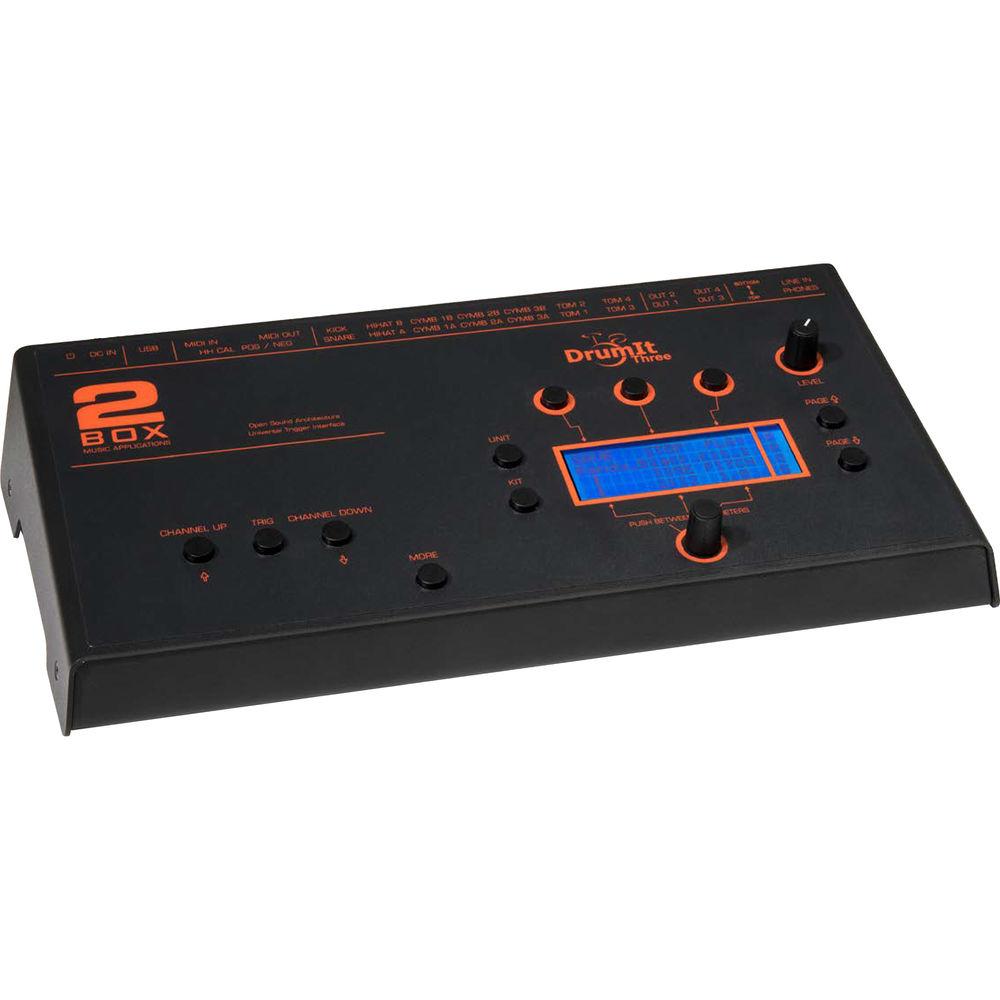

The DrumIt Three Drum Module from 2 Box Music Applications is an instrument sound module with 15 independent trigger channels, 4 audio outputs, and 4 GB of sound memory. It can be used with drum pads (sold separately) as a trigger interface and sound source to deliver latency-free playing for drummers in applications for recording, live stage, theater, and rehearsal functions.Several zones are available for triggering different sounds depending on the pads used. The snare channel supports 3 zones (head, rim, and cross stick), the three tom channels provide 2 (head and rim), and the cymbal channels 3 (edge, bow, and bell). The DrumIt Three includes 100 kits or presets and the sounds are programmed using a multi-layer method, with some of the factory presets consisting of up to 128 single layers. The attention to detail gives the DrumIt Three added nuance and authenticity.Other features of the DrumIt Three module include a play-along function via USB or line inputs, a built-in metronome, and a downloadable Windows/Mac software editor to edit your sounds. Finally, the DrumIt's sounds are mixed in stereo to deliver a natural listening experience.
  • The DrumIt Three has an ultra-fast and precise trigger interface that allows latency-free playing with a huge dynamic range. Depending on the pads used, several zones are available for triggering different sounds. The snare channel supports 3 zones (head, rim, and cross stick), the DrumIt Three's tom channels provide 2 (head and rim) and the cymbal channels 3 (edge, bow, and bell). In addition, the cymbal channels feature a "Choke" function that allows drummers to abruptly silence the cymbal sound in the same way as on an acoustic kit.
  • Drums and cymbals were recorded at hi-end recording studios with multiple mics and at various distances. All sounds were mixed in stereo, some rather "dry" and others with clearly audible room ambience. Some of the factory presets consist of up to 128 single layers, resulting in a natural sound performance with real authenticity.
    Memory Locations (Kits)
  • The-DrumIt Three sound module provides 4 GB of memory with 100 sound presets (kits). User-kits in DrumIt Three are already preconfigured at the factory but can be modified and saved per your needs. Of course, you can rename and rearrange kits to make access and handling on stage easier.
    Play-Along Function
  • If you like to practice with songs or backing tracks, you can load standard WAV files in CD quality (stereo, 16-bit/44.1 kHz) into the module via USB and then assign them to a kit. Alternatively, you can connect a CD or MP3 player to the line-in jack.
  • The built-in metronome helps you with practicing and refining your technique, but can also be used for live performances. You can save one individually programmed metronome per kit. There are avariety of time signatures and sounds available and the tempo can precisely be adjusted per your specifications.
    Windows/Mac Editor
  • With the DrumIt Three software editor, you can manage your module from your computer, andeven create your own sounds in the DrumIt Three format. Once the DrumIt Three module is connected toyour computer (Mac or Windows) via USB, you can organize and manage the 100 internal kits. Assign sounds from the internal DrumIt library and make your personal settings (tuning, volume, pan). Preview the sounds comfortably on the computer and edit settings with ease.
In the Box 2Box Music Applications DrumIt Three Drum Module
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the 2Box Music Applications DrumIt Three Drum Module in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    2Box Music Applications Drumit Three Specs

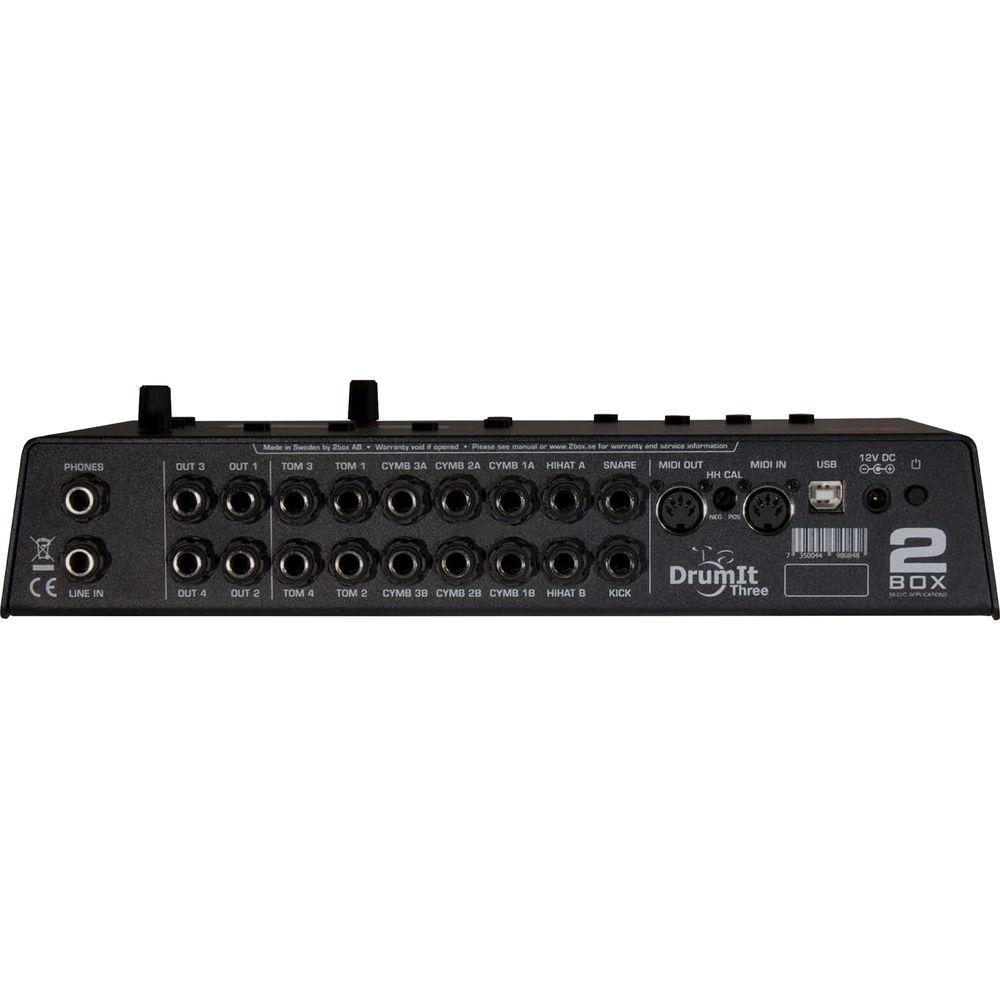

    Input Connectors 10 x 1/4" / 6.3 mm stereo jack trigger inputs
    4 x 1/4" / 6.3 mm stereo jack control-input for hi-hat and cymbals
    Line In/Out Input: 1 x stereo 1/4" / 6.3 mm jack
    Output: 4 x mono 1/4" / 6.3 mm jack
    Headphone Connector 1/4" / 6.3 mm stereo jack
    USB USB 1.1 (full speed)
    MIDI In/Out 1 x in, 1 x out
    Power Supply 12 VDC external power supply
    LCD Display 20 x 4 characters
    Flash Memory 4 GB
    Controls 11 x pushbutton
    1 x rotary push controller (endless)
    1 x rotary controller
    Amount of Manageable Data The operating system can manage up to 8000 dsnd files, 1000 folders, and 800 Wav files.
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Package Weight 6.15 lb
    Box Dimensions (LxWxH) 15.7 x 10.0 x 5.8"
