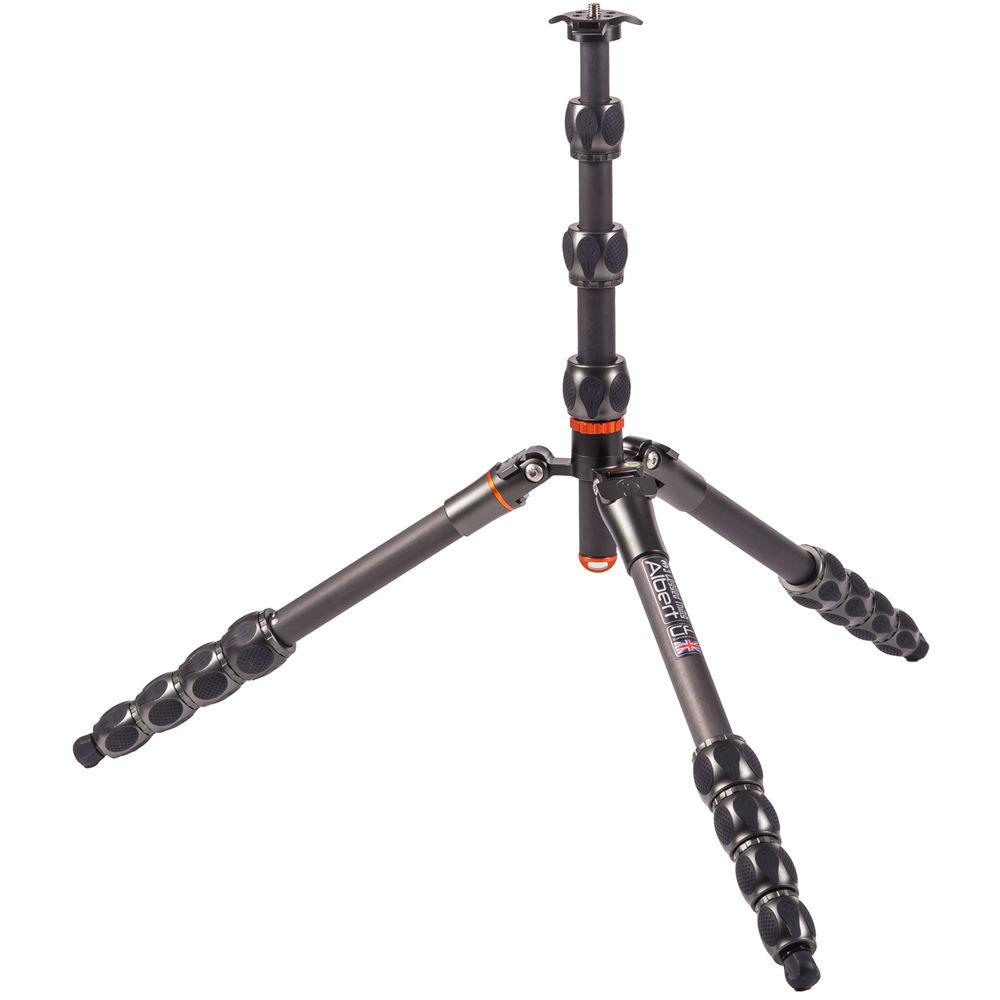

Product description The Eclipse Albert Carbon Fiber Travel Tripod from 3 Legged Thing is an updated variant of the original Albert tripod. Identical in nearly every way, the Eclipse series only differs from the Equinox through the use of Gunmetal Gray colored fittings instead of the classic blue and bronze.
The Albert Eclipse features five leg sections that can extend to a maximum height of 70.5" and also go as low as 5". At the 23° angle leg spread, which is considered a normal stance, the tripod can support a maximum of 66 lb. (The legs have two additional wider stances, and these will support less weight.) The twist lock's Para-lock feature works by restricting the opening movement of the friction lock, preventing you from accidentally unscrewing the lock until the leg section detaches. The three-section center column can be inverted, enabling the user to raise the height of the tripod, while physically lowering the camera to the desired height. This is a helpful feature for doing macro photography. Fold the legs 180° in reverse to make the tripod more compact for travel and storage. All 3 Legged Thing tripods have a detachable leg with standard 3/8"-16 threads at both ends. The Tri-mount plate and threaded bolt can be unscrewed and removed from the top of the center column, then screwed directly onto the leg. The detachable leg can be used as a monopod, microphone boom, and selfie stick. - 3-Position Leg Angle Stops

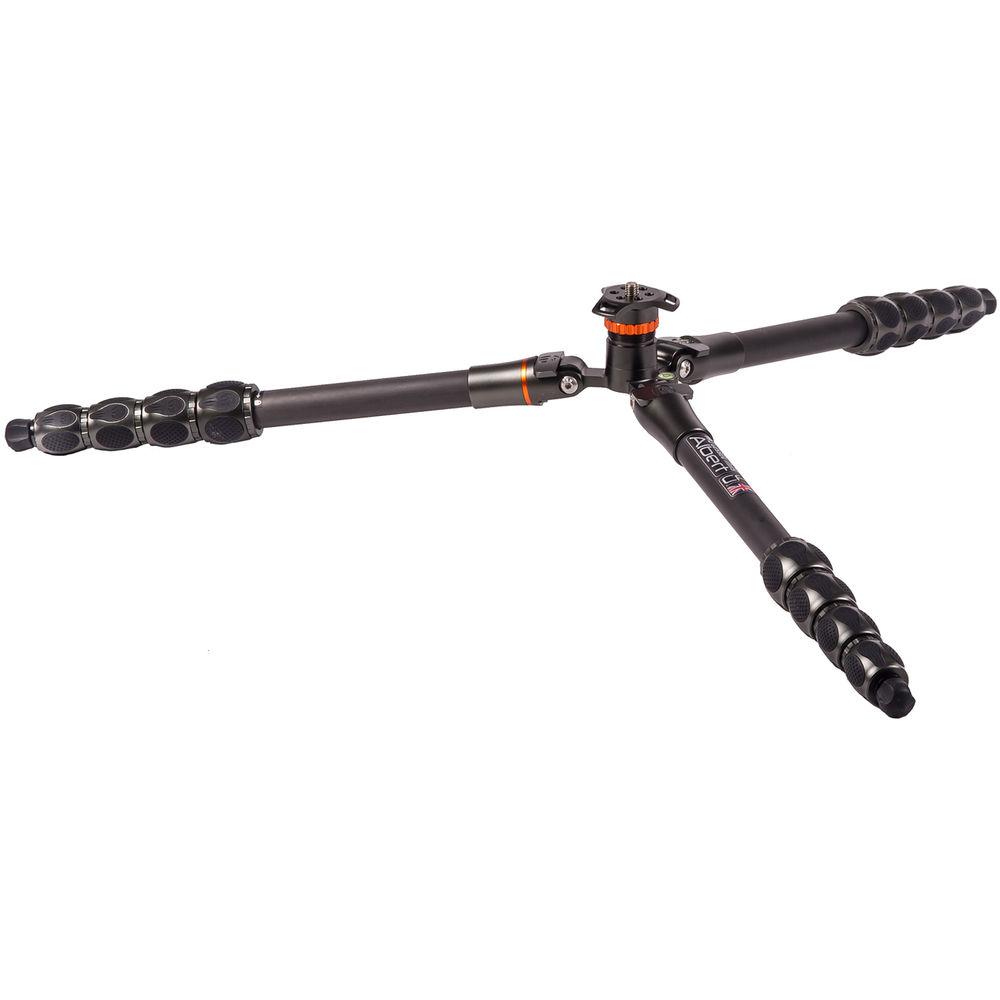

- The legs spread to three angles of 23°, 55°, and 80°.
- Para-Lock Leg Locking System
- Para-locks work by restricting the opening movement of the friction lock, preventing you from accidentally unscrewing the lock until the leg section detaches.
- Reversible Folding Legs

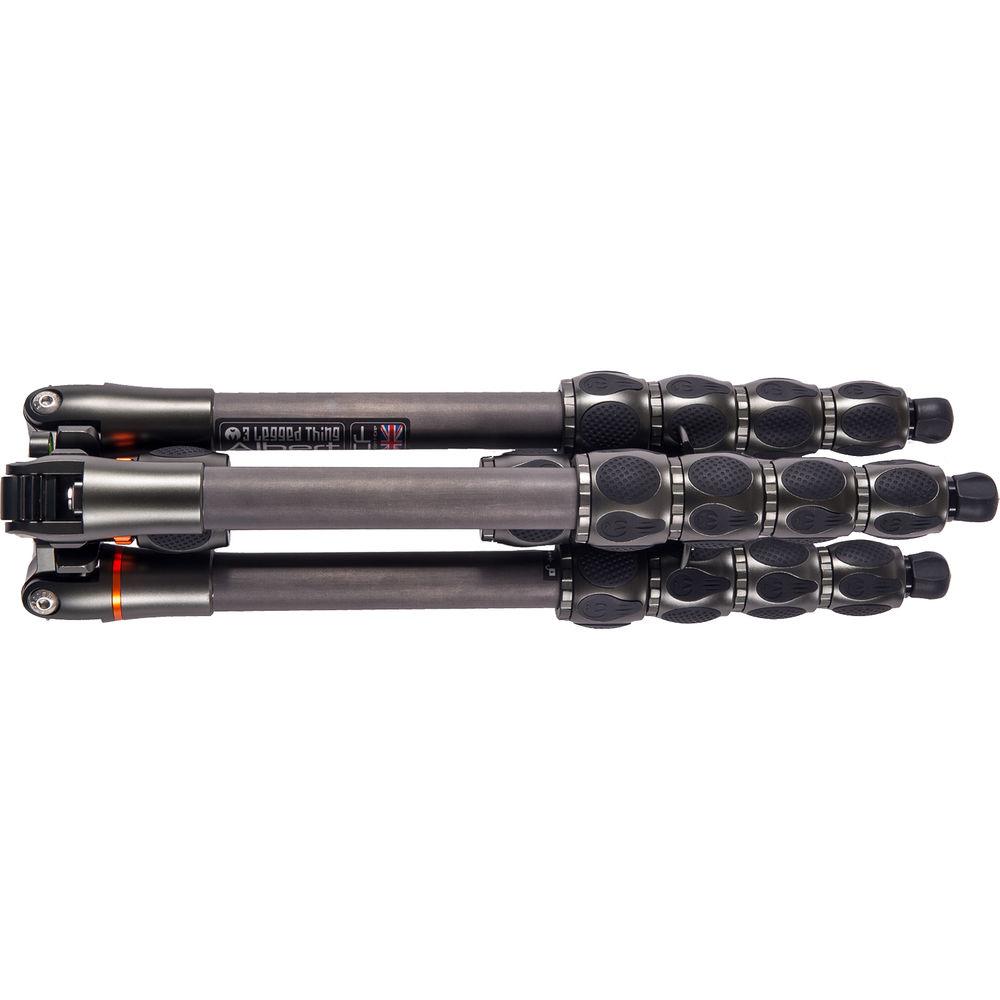

- Fold legs 180° in reverse for compactness and storage.
- 3-Section Center Column
- Center column can be inverted, enabling the user to raise the height of the tripod, while physically lowering the camera to the desired height.

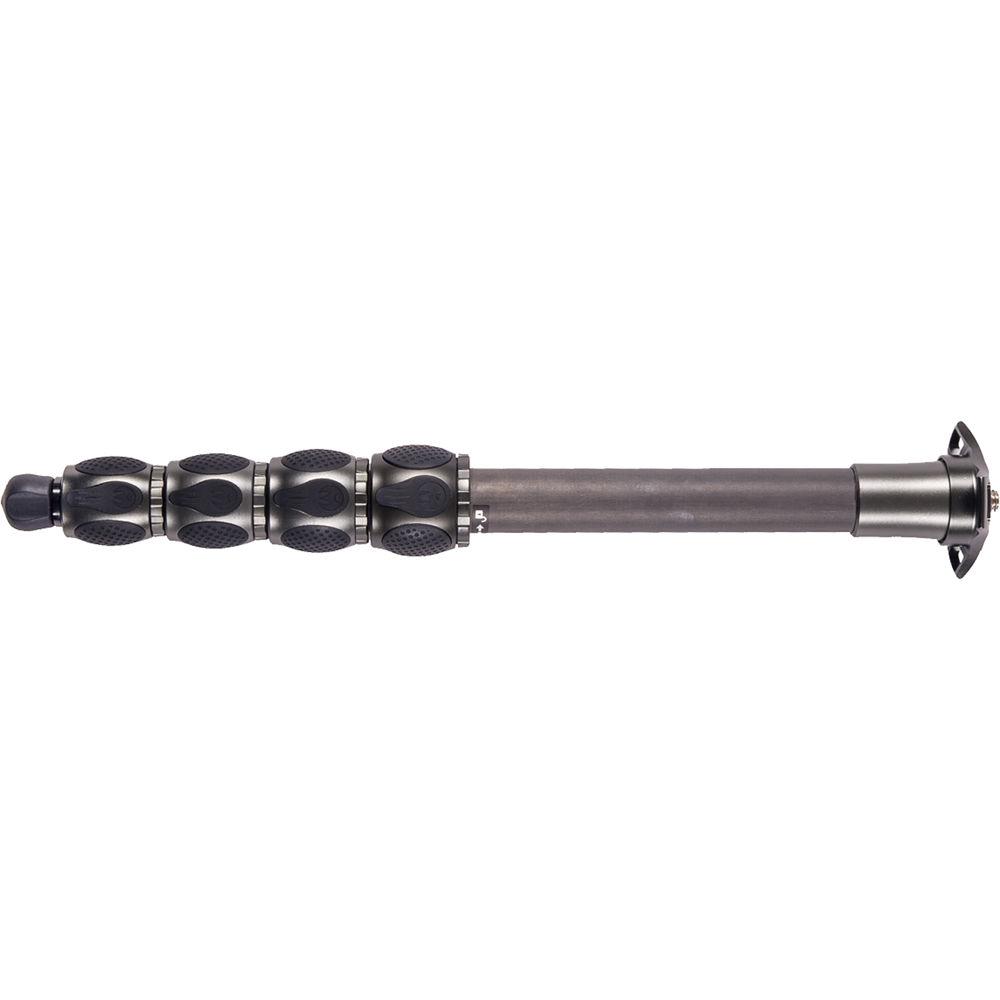

- Removable Leg
- All 3 Legged Thing tripods have a detachable leg with standard 3/8"-16 female threads, which can be used as a monopod, microphone boom, and selfie stick.
In the Box 3 Legged Thing Eclipse Albert Carbon Fiber Travel Tripod (Gunmetal Gray) Hex Key D-Ring Carabiner Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 3 Legged Thing Eclipse Albert Carbon Fiber Travel Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters3 Legged Thing ALBERTGREY Specs | Material | Carbon fiber | | Maximum Height | 70.5" (179 cm) | | Maximum Height without Column Extended | 48.5" (123 cm) | | Minimum Height | 5" (13 cm) | | Folded Length | 16" (41 cm) | | Load Capacity | 66 lb (30 kg) | | Leg Sections | 5 | | Leg Lock Type | Twist | | Leg Tube Diameters | 0.55, 0.66, 0.78, 0.9, and 1" (14, 17, 20, 23, and 26 mm) | | Independent Leg Spread | Yes: 23°, 55°, and 80° | | Center Column Sections | 3 | | Center Column Type | Rapid | | Column Tube Diameter | 0.78, 0.9, and 1" (20, 23, and 26 mm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 17.9 x 5.7 x 5.6" |
