User Manual for 3 Legged Thing Ellie-C Universal L-Bracket Click to enlarge the picture
Contents of the user manual for the 3 Legged Thing Ellie-C Universal L-Bracket
- Product category: Tripods & Support 3 Legged Thing
- Brand: 3 Legged Thing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 3 Legged Thing Tripods & Support
 |
User manual for the 3 Legged Thing Ellie-C Universal L-Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 3 Legged Thing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 3 Legged Thing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 3 Legged Thing product will considerably shorten its lifespan!
|
Product description - 3 Legged Thing Ellie Universal L-Bracket

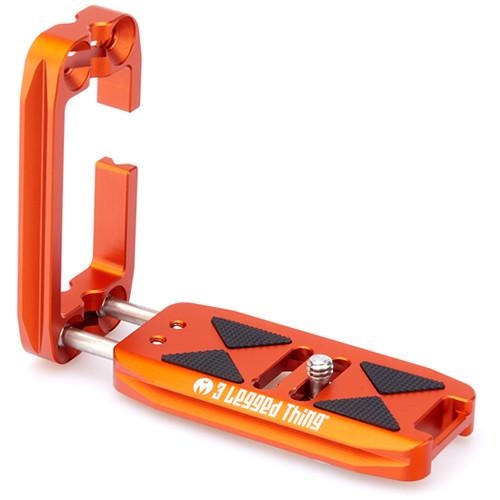

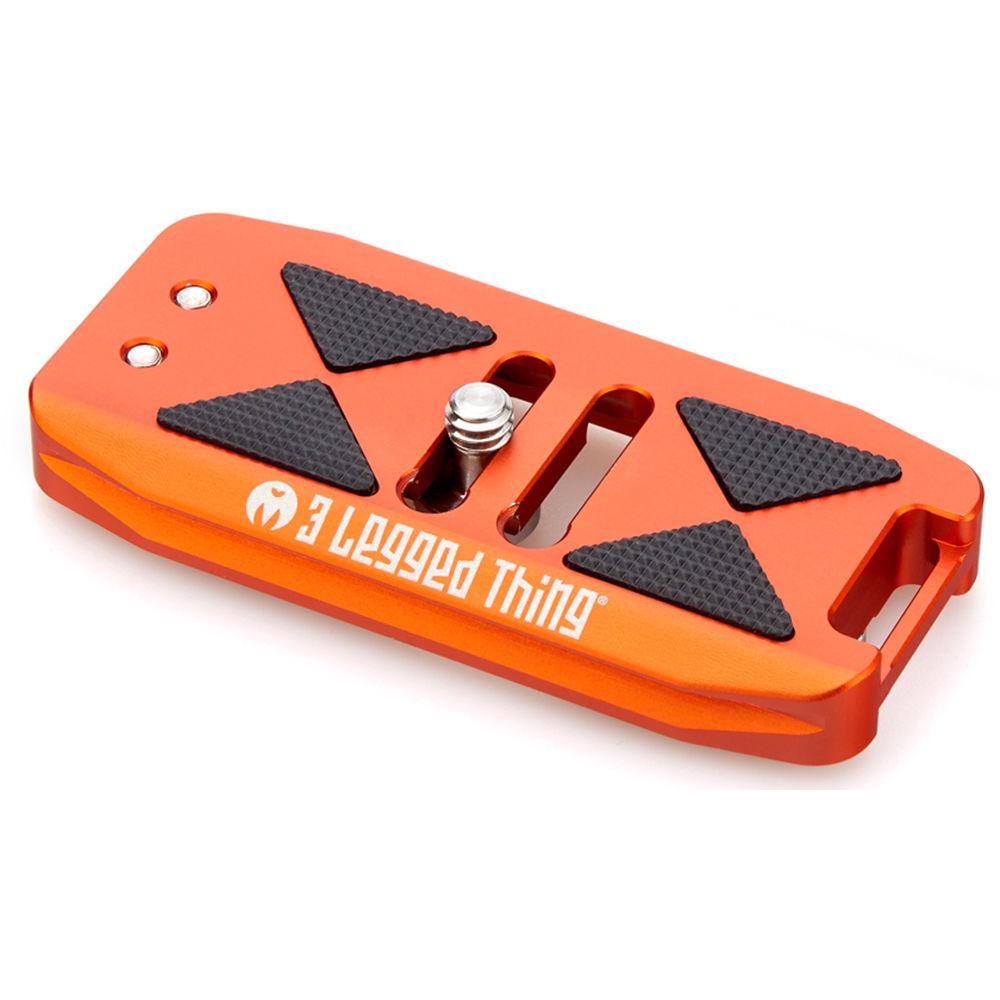

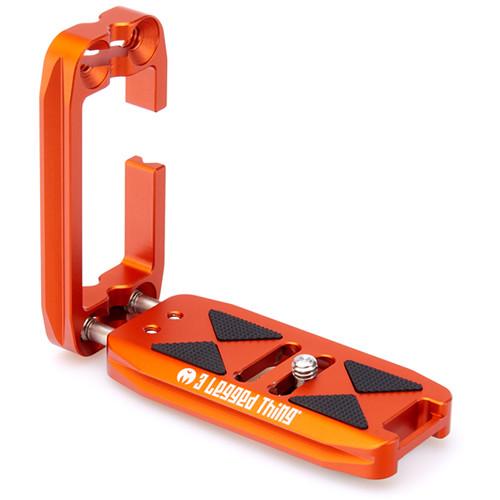

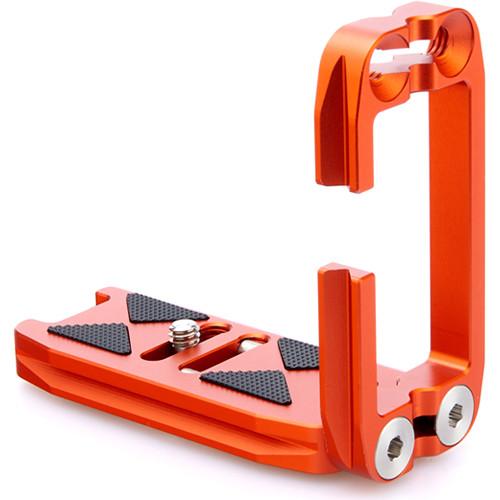

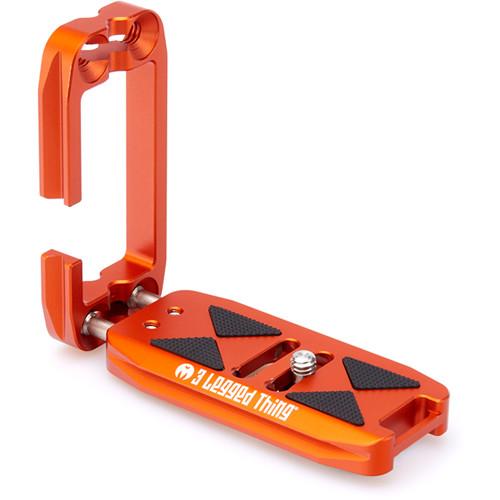

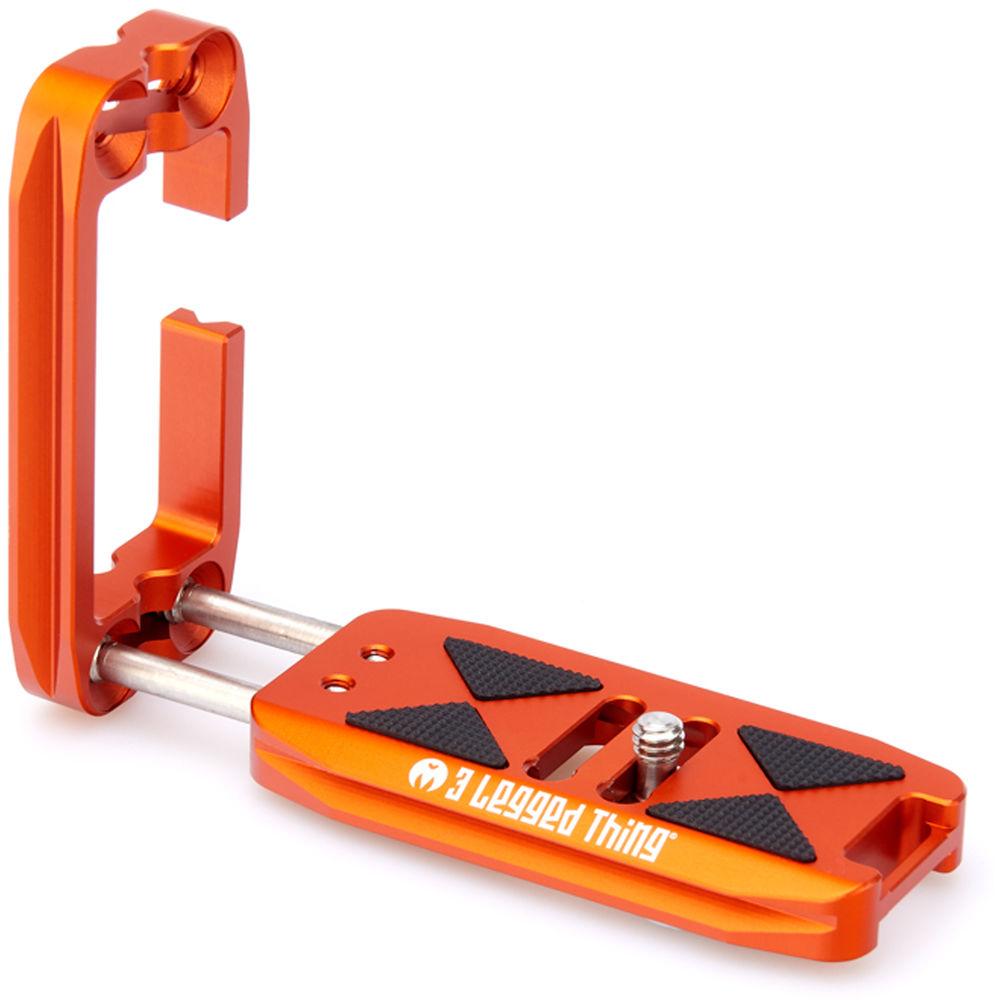

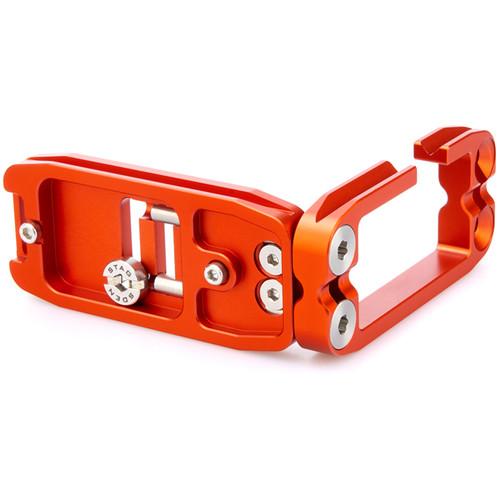

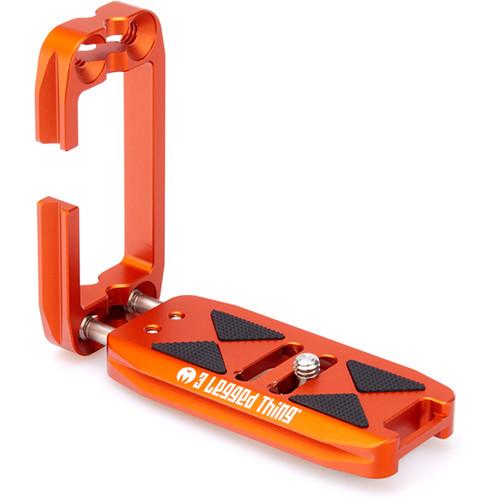

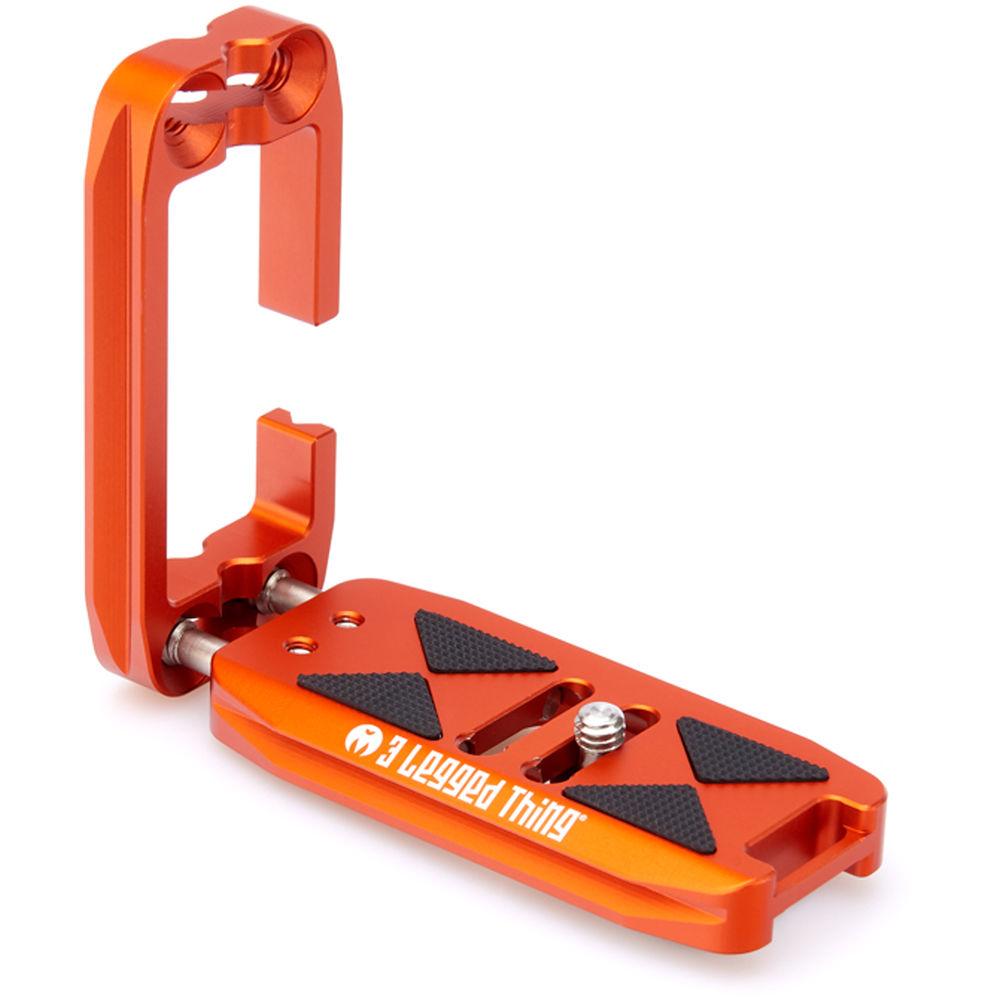

The copper orange Ellie-C Universal L-Bracket from 3 Legged Thing is Arca-type compatible with dovetail mounts on its vertical and horizontal components. Therefore, you are given the ability to switch between each axis while it maintains your center of axis. The horizontal base plate separates and adjusts from its vertical component to accommodate the length of the mirrorless or DSLR camera you are using, and there are two mounting slots to precisely position the camera on top of the base.The horizontal base's rear slopes down so mobility is still accessible for the camera's LCD monitor. The vertical component is machined to have access to the camera's ports, and the component can be mounted in the reverse to allow cables to plug in from the right or left side. At the same time, the side plate can mount upside down so it creates a rocker mount for the camera. A strap loop located on the side allows for a hand or shoulder strap to be attached. In the Box 3 Legged Thing Ellie-C Universal L-Bracket (Copper Orange) 1/4"-20 Stagsden Stainless Steel Camera Screw 2 x 2.5 mm Hex Retaining Bolts Dual-Ended Hex Mini Tool Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 3 Legged Thing Ellie-C Universal L-Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters3 Legged Thing ELLIE-C Specs | Mounting Screw | 1 x 1/4"-20 Male | | Bubble Level | No | | Strap Loop | Yes | | Quick Release Plate Type | Arca-Type | | Material of Construction | Aluminum, Steel | | Length | 3.74 to 5.04" / 95.00 to 128.00 mm | | Width | 1.50" / 38.00 mm | | Height | 3.35" / 85.00 mm | | Weight | 3.4 oz / 96 g | | | | Package Weight | 0.345 lb | | Box Dimensions (LxWxH) | 5.2 x 4.6 x 2.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
