User Manual for 3 Legged Thing Equinox Winston Carbon Fiber Tripod Click to enlarge the picture
Contents of the user manual for the 3 Legged Thing Equinox Winston Carbon
- Product category: Tripod Legs 3 Legged Thing
- Brand: 3 Legged Thing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 3 Legged Thing Tripod Legs
|
User manual for the 3 Legged Thing Equinox Winston Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 3 Legged Thing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 3 Legged Thing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 3 Legged Thing product will considerably shorten its lifespan!
|

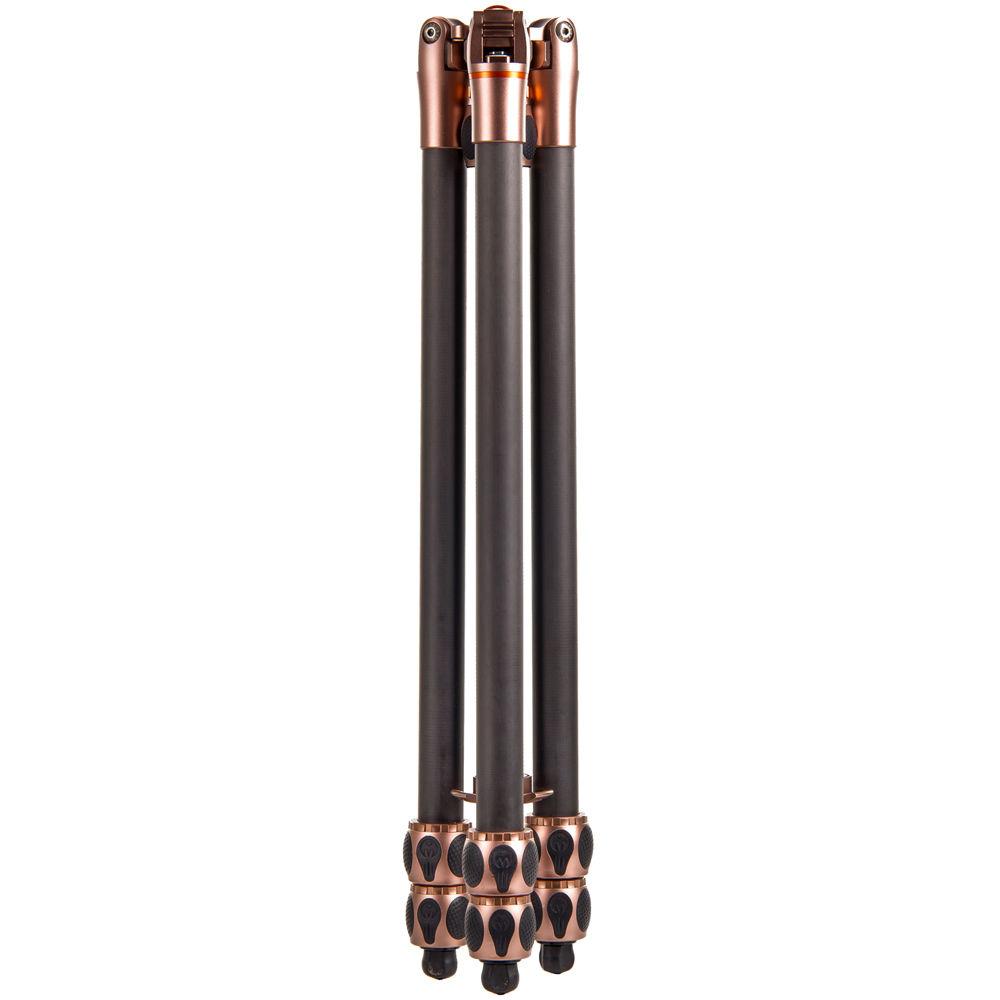

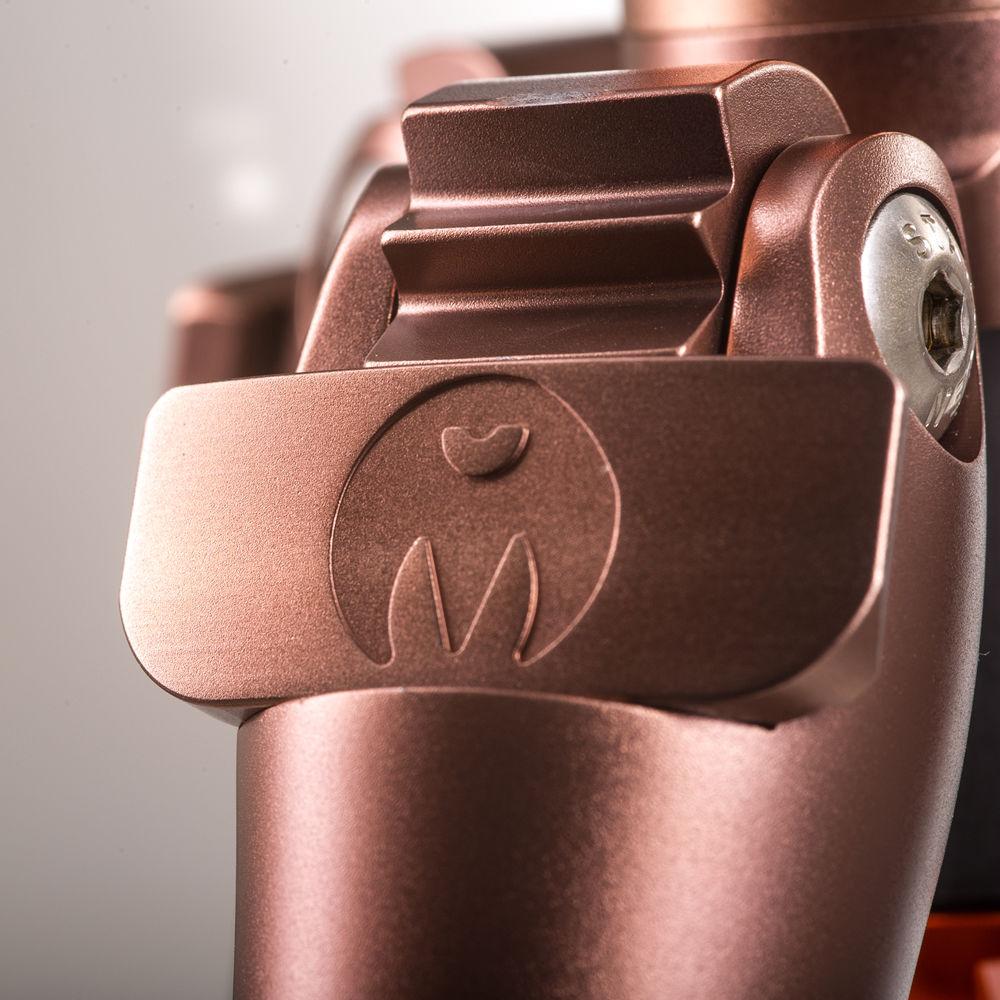

Product description The Equinox Winston Carbon Fiber Tripod from 3 Legged Thing has three leg sections that can extend to a maximum height of 73" and also go as low as 6.7". At the 23° angle leg spread, which is considered a normal stance, the tripod can support a maximum of 66 lb. (The legs have two additional wider stances, and these will support less weight.) The twist lock's Para-lock feature works by restricting the opening movement of the friction lock, preventing you from accidentally unscrewing the lock until the leg section detaches.Fold the legs 180° in reverse to make the tripod more compact for travel and storage. All 3 Legged Thing tripods have a detachable leg with standard 3/8"-16 threads at both ends. The Tri-mount plate and threaded bolt can be unscrewed and removed from the top of the center column, then screwed directly onto the leg. The detachable leg can be used as a monopod, microphone boom, and selfie stick. - 3-Position Leg Angle Stops
- The legs spread to three angles of 23°, 55°, and 80°.

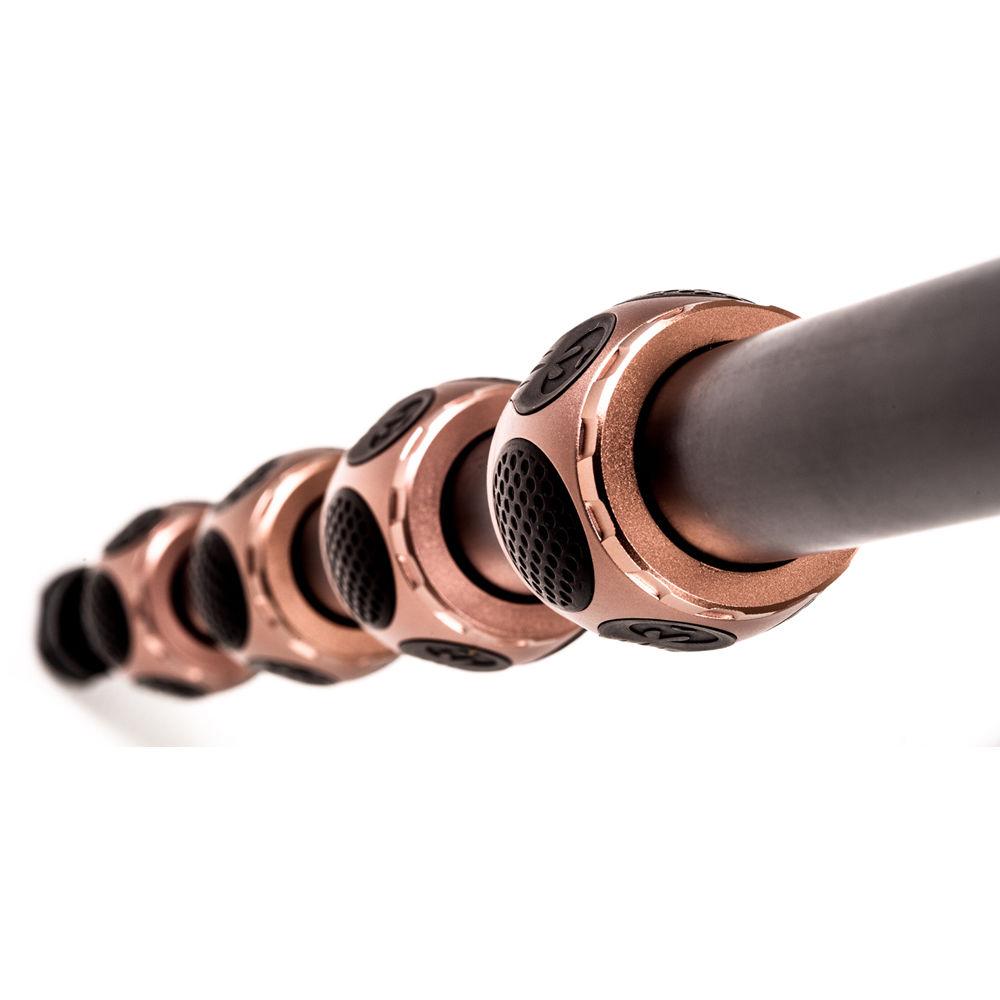

- Para-Lock Leg Locking System
- Para-locks work by restricting the opening movement of the friction lock, preventing you from accidentally unscrewing the lock until the leg section detaches.
- Reversible Folding Legs
- Fold legs 180° in reverse for compactness and storage.
- Removable Leg
- All 3 Legged Thing tripods have a detachable leg with standard 3/8"-16 female threads, which can be used as a monopod, microphone boom, and selfie stick.
In the Box 3 Legged Thing Equinox Winston Carbon Fiber Tripod Hex Key D-Ring Carabiner Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 3 Legged Thing Equinox Winston Carbon Fiber Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters3 Legged Thing WINSTON Specs | Load Capacity | 22 lb / 10 kg | Maximum Working Height | 73" / 185.4 cm | Minimum Working Height | 6.7" / 17 cm | Folded Length | 24" / 61 cm | Weight | 3.7 lb / 1.7 kg | Materials | Carbon Fiber | | Leg Lock Type | Twist Lock | Leg Positions | 3 Positions | Leg Sections | 3 | Leg Diameter | 0.9" / 22.9 mm | | Center Column Extension Type | Rapid | Center Column Diameter | 1" / 25.4 mm | Lateral / 90-Degree Center Column | No | | Package Weight | 5.8 lb | Box Dimensions (LxWxH) | 25.6 x 6.0 x 5.9" |
