Product description Time-Lapse Tips and Tools Read More - 3 Legged Thing Punks Range - Features

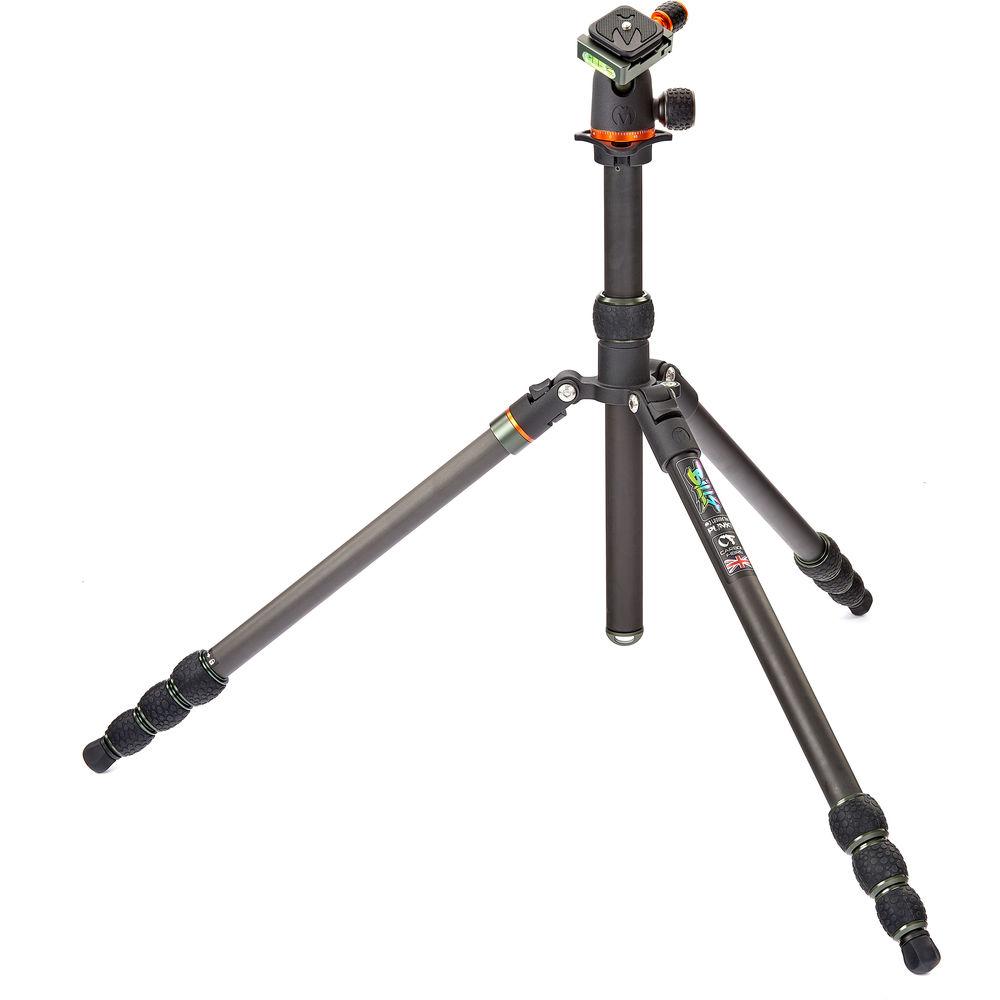

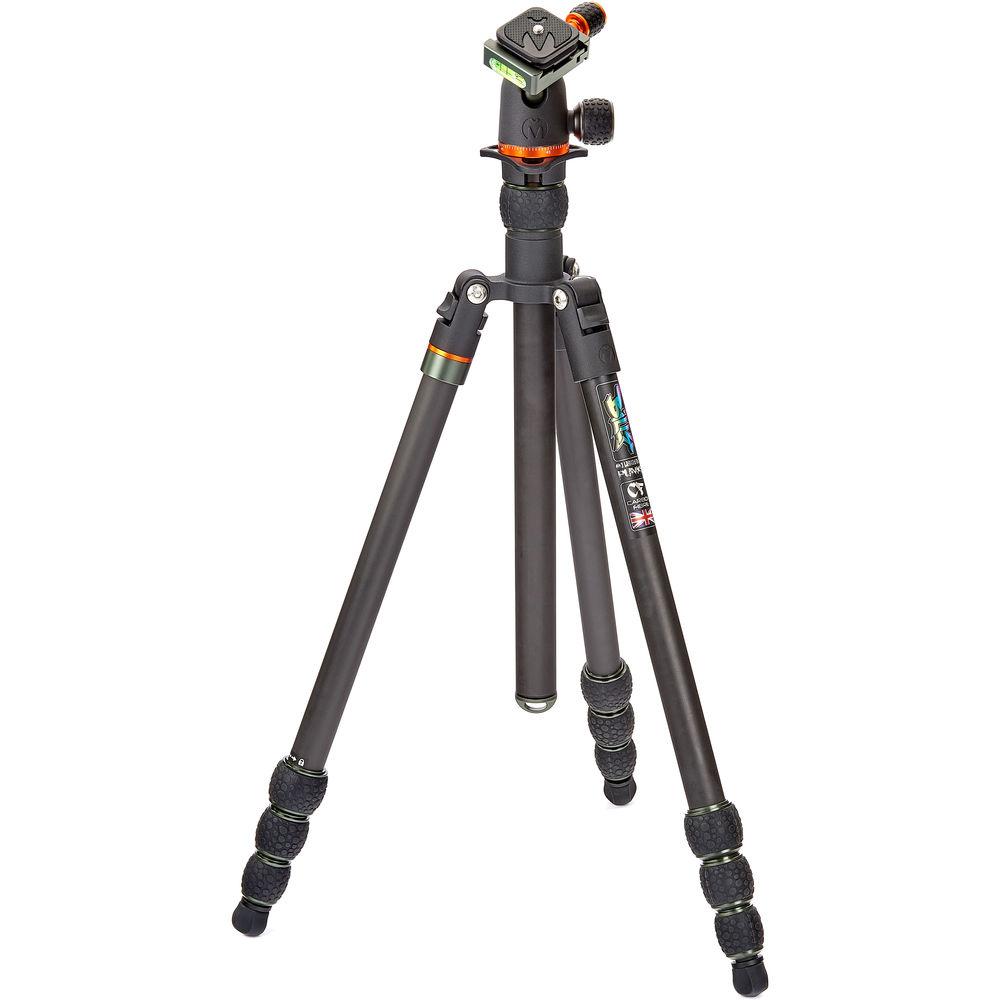

With a predominantly black color scheme, this Punks Series Billy Carbon Fiber Tripod with AirHed Neo Ball Head from 3 Legged Thing is a support system that features a tripod with a detachable leg and removable center column, which can be combined to form a monopod with a 32.5 to 67.5" adjustable height. Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the included QR4 Quick Release Plate, which is secured to the AirHed Neo Ball Head using a quick release clamp. The ball head is removable, provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement.
When configured as a tripod, it supports up to 40 lb and measures 17.7" when folded. Each of its 4-section legs features an independent spread, a 3-position angle lock, and twist locks for rapid deployment. As a tripod, it can be set at a minimum height of 17.7", or 7.8" without its removable, push-and-pull, rapid center column. Together, the three legs can be extended to obtain a maximum height of 55", or 65" when used with the center column fully raised. To further enhance stability on a wide variety of surfaces, each of the carbon fiber legs includes a rubber foot.
For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. A nylon tripod carry bag with a drawstring closure, as well as a microfiber ball head carry bag are included for storage and transport. - Use and Handling
-

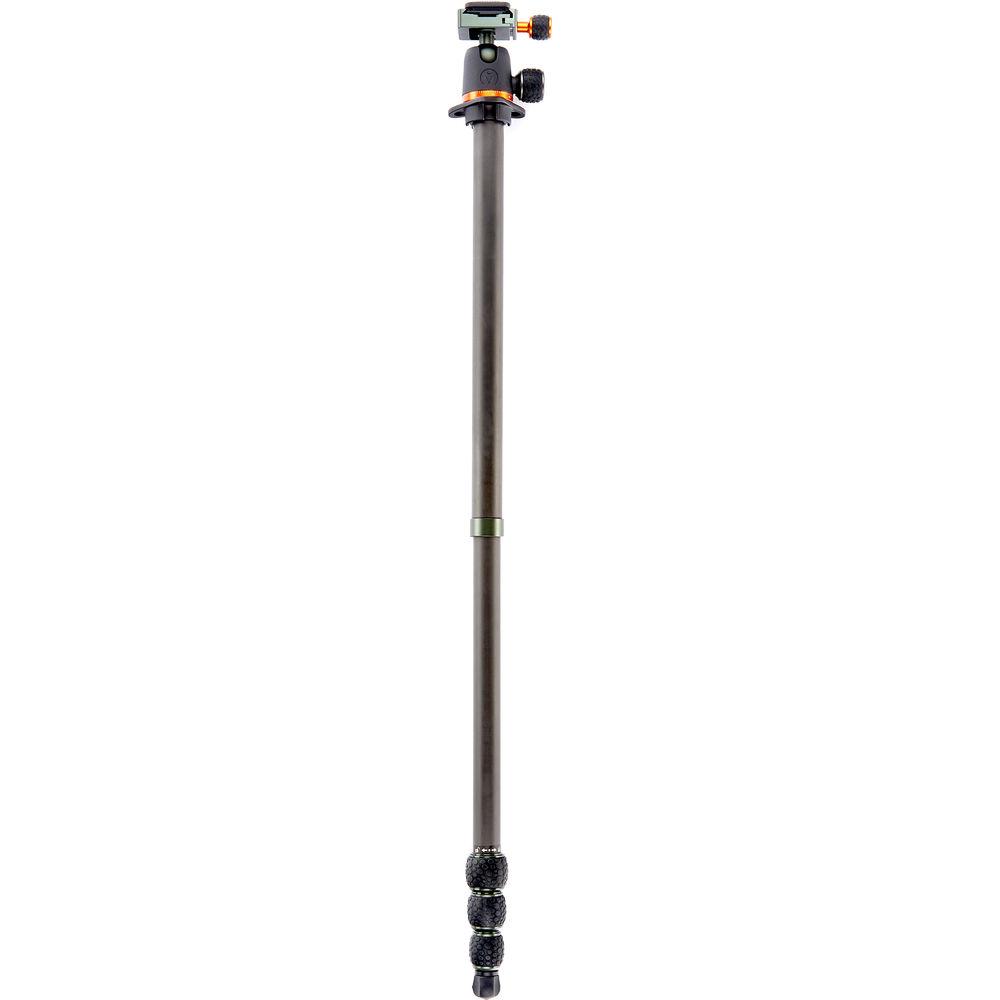

- Support system with removable ball head that features a tripod with a detachable leg and removable center column, which can be combined to form a monopod with a 32.5 to 67.5" adjustable height
- As a tripod, supports up to 40 lb
- Push-and-pull, rapid center column with ballast loop for rapid camera, lens, or sport optic positioning
- Can be set for a minimum height of 17.7", or 7.8" without the center column
- All three legs can be extended in the tripod configuration to obtain a maximum height of 55", or 65" when used with the center column fully raised

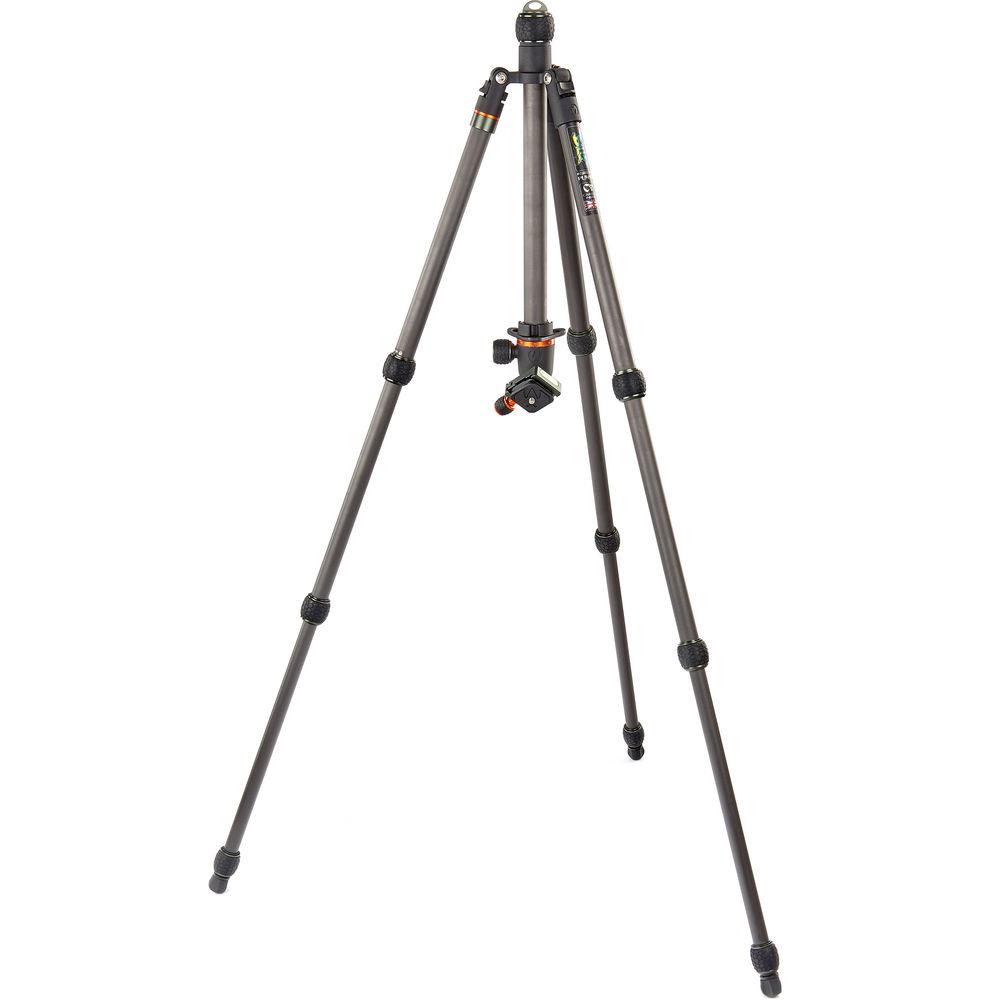

- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature 4 sections, twist locks for fast deployment, and can be independently spread

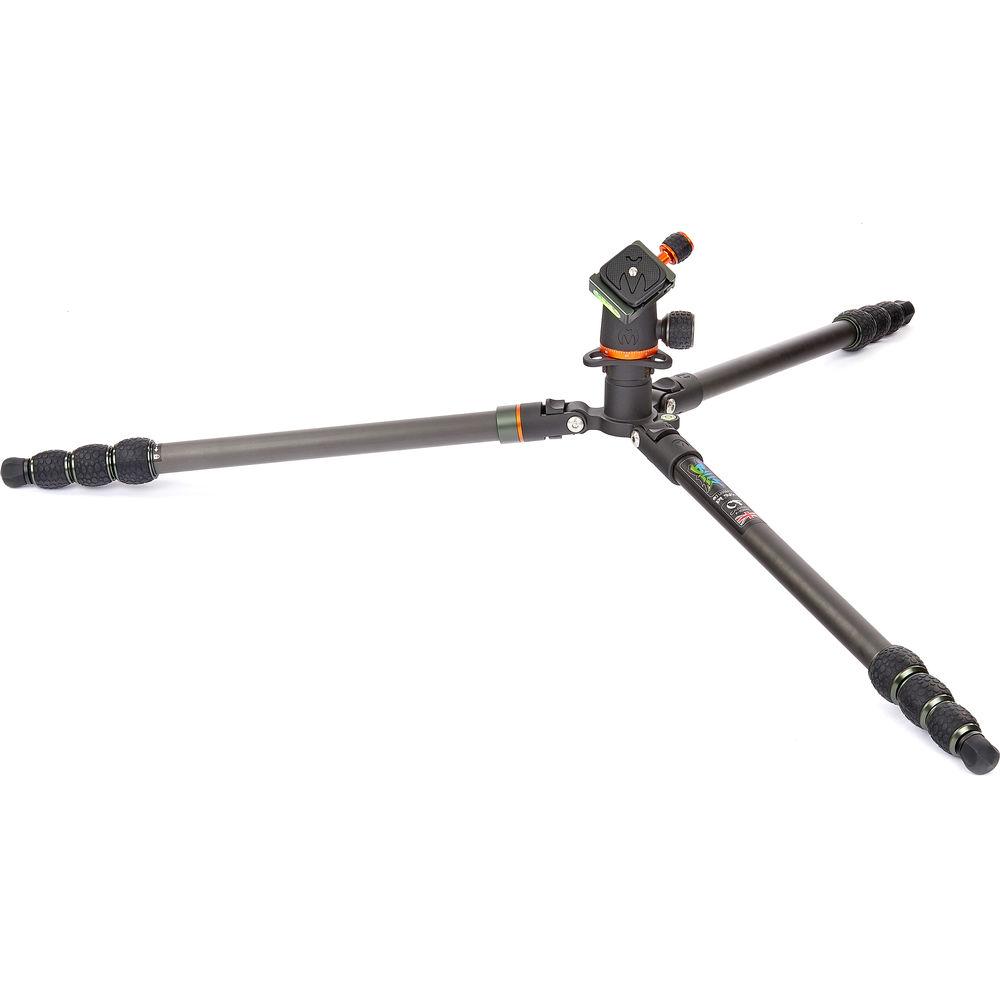

- Legs can be locked at 23°, 55°, or 80° angles
- Rubber feet help to enhance stability on a wide variety of surfaces

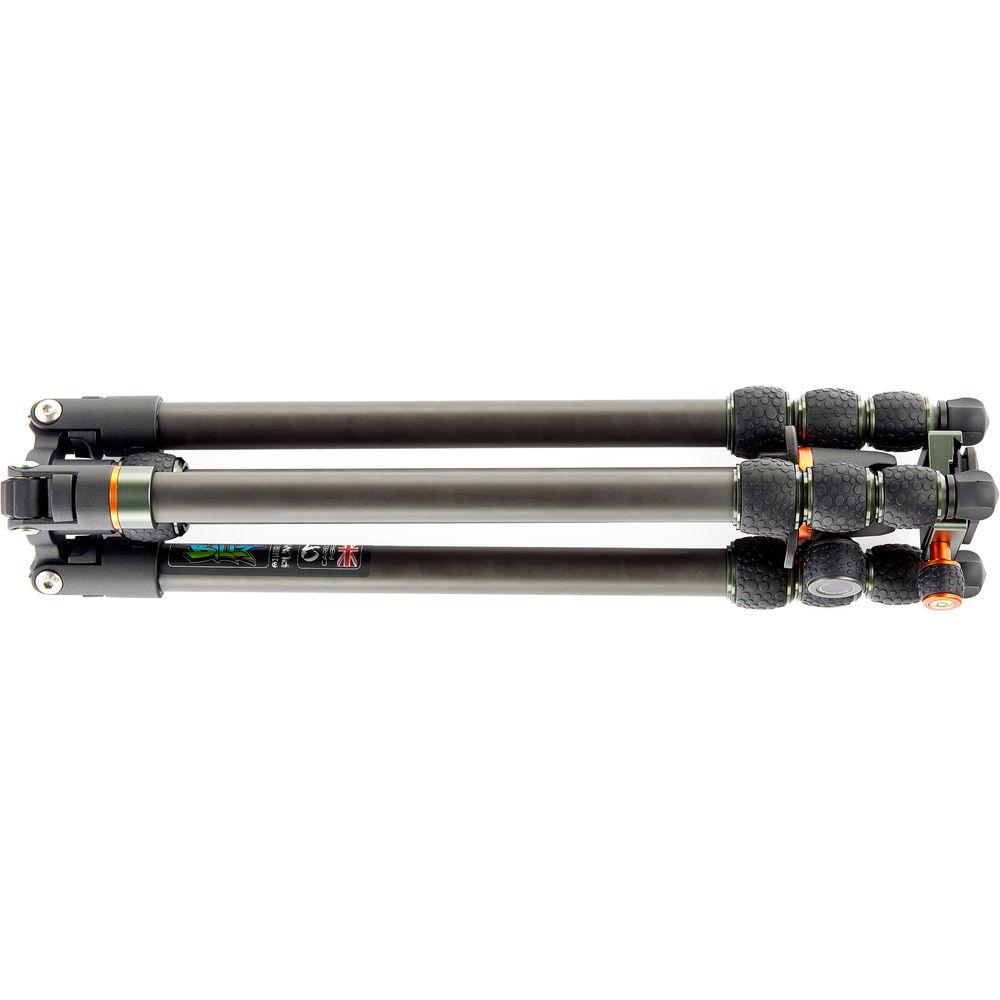

- Weighs 3 lb and measures 17.7" when all three legs are reversed 180° and folded

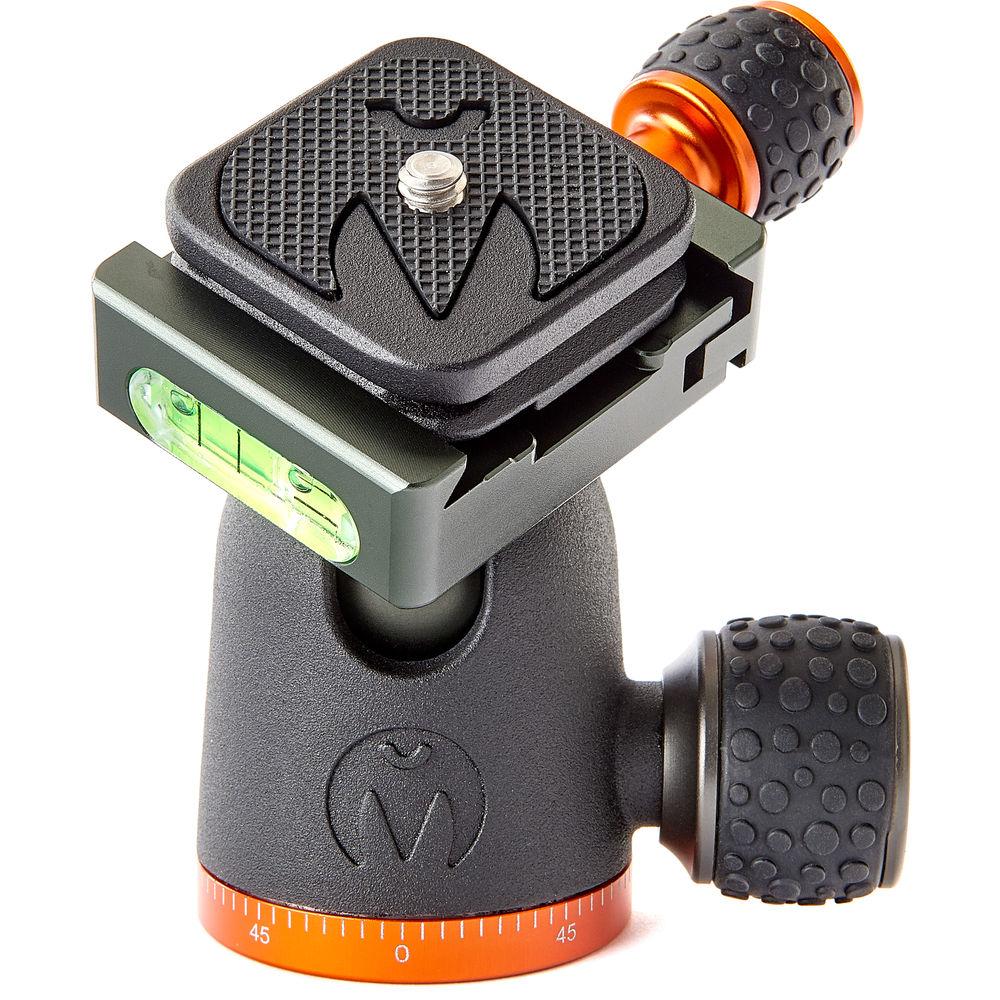

- Ball head provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement
- Arca-type clamp on ball head to secure quick release plate
- Included Toolz Multi-Tool with 4mm hex key, flat head screwdriver tip, as well as integrated carabiner and bottle opener, plus key chain
- Hex key adjusts tension on leg hinges
- Fasten or remove quick release plate from a device's accessory thread with hex key or flat head screwdriver tip
- Construction Details
-
- Carbon fiber legs with built-in bubble level

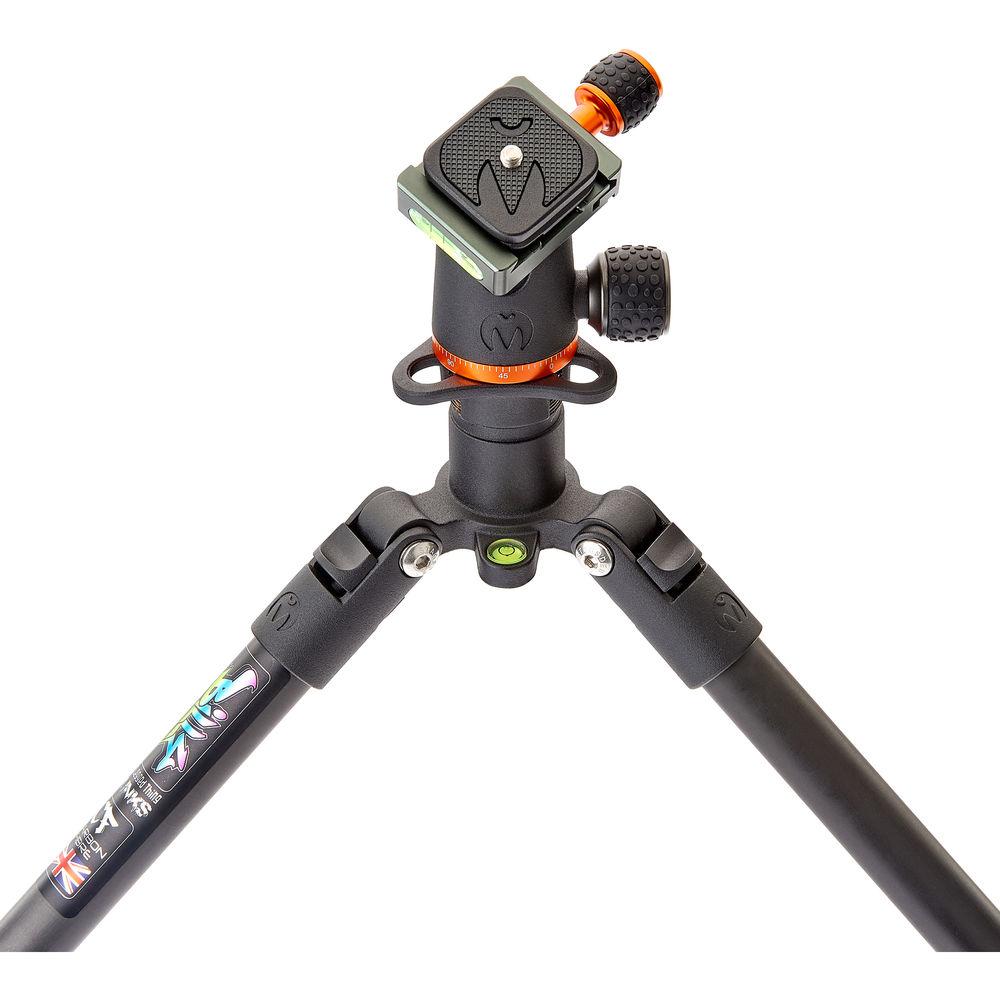

- Removable, aluminum-alloy ball head with quick release clamp and dual, built-in bubble levels
- Quick release plate with 1/4"-20 mount and rubberized, anti-slip surface

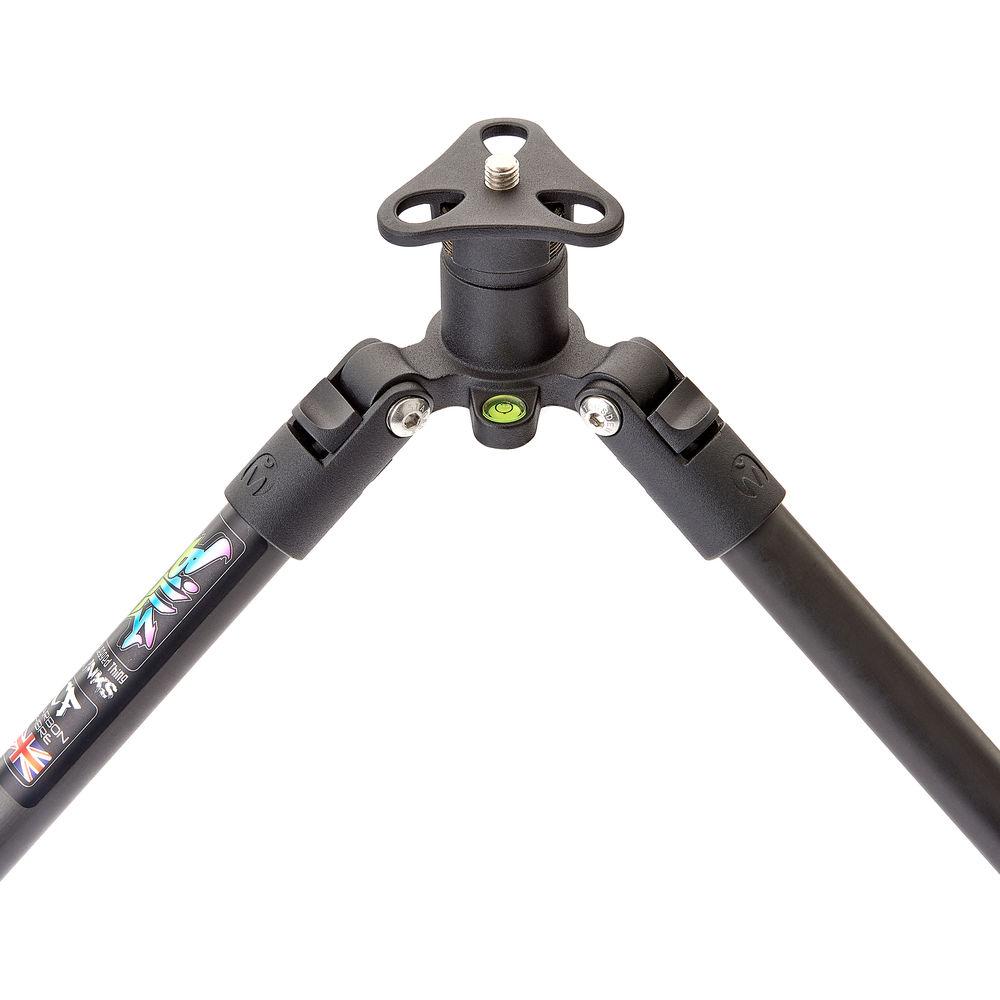

- Center column platform for ball head with three accessory eyelets as well as reversible, 3/8"-16 and 1/4"-20 mount
- Included nylon drawstring carry bag for storage and transport of the tripod
- Microfiber bag for storage and transport of the ball head
In the Box 3 Legged Thing Punks Series Billy Carbon Fiber Tripod with AirHed Neo Ball Head (Black) AirHed Neo Ball Head QR4-EQ Quick Release Plate Toolz Multi-Tool Ballast Loop Tripod Bag Ball Head Bag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 3 Legged Thing Punks Series Billy Carbon Fiber Tripod with AirHed Neo Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters3 Legged Thing Billy Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Camera Mounting Screw | 1/4"-20 Male | | Number of Bubble Levels | 2 | | | | Load Capacity | 40 lb / 18.1 kg | | Maximum Working Height | 65" / 165.1 cm | | Minimum Working Height | 7.8" / 19.8 cm | | Folded Length | 17.7" / 45 cm | | Materials | Aluminum Alloy, Carbon Fiber | | Weight | 3 lb / 1.4 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 0.91" / 2.3 cm | | Bubble Level | Yes | | | | Center Column Features | Ballast Hook | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 19.0 x 4.6 x 4.4" |
