User Manual for 3 Legged Thing Travis Aluminum Travel Tripod with AirHed Neo Ball Head Click to enlarge the picture
Contents of the user manual for the 3 Legged Thing Travis Aluminum Travel
- Product category: Tripods with Heads 3 Legged Thing
- Brand: 3 Legged Thing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 3 Legged Thing Tripods with Heads
 |
User manual for the 3 Legged Thing Travis Aluminum Travel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 3 Legged Thing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 3 Legged Thing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 3 Legged Thing product will considerably shorten its lifespan!
|

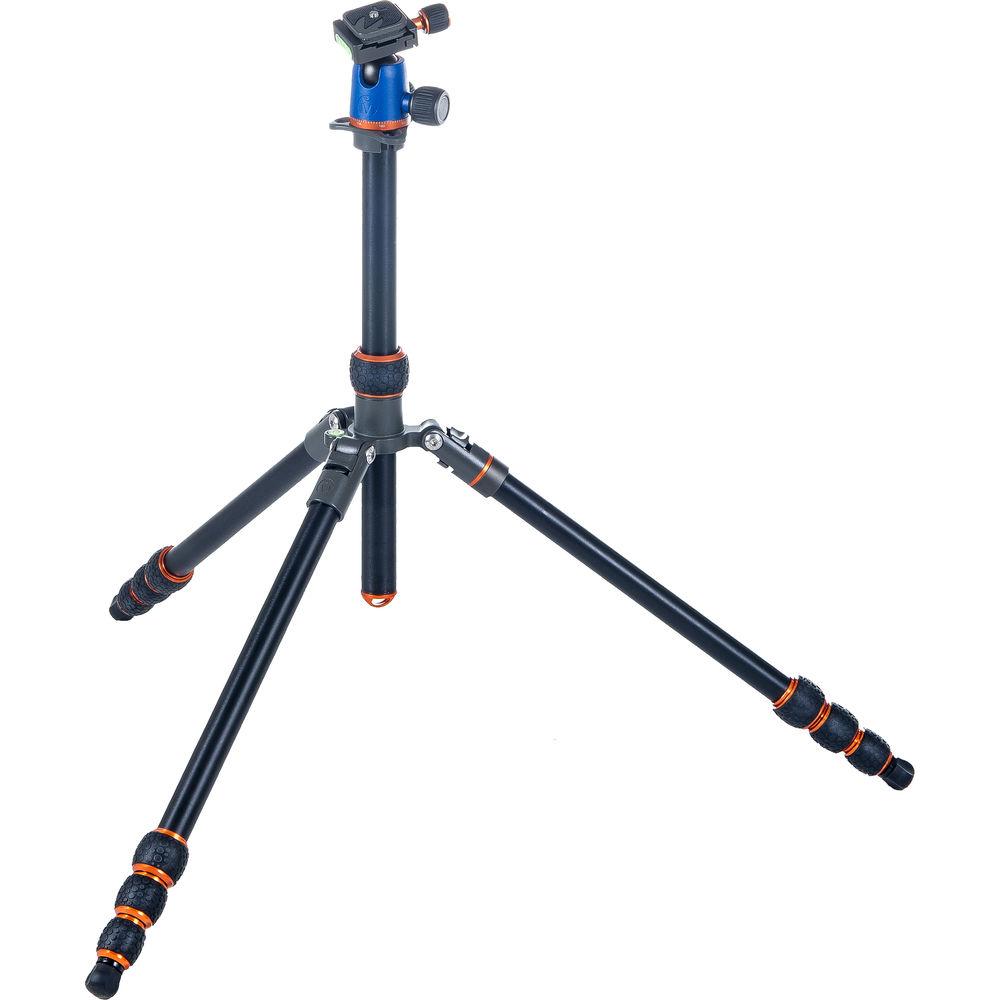

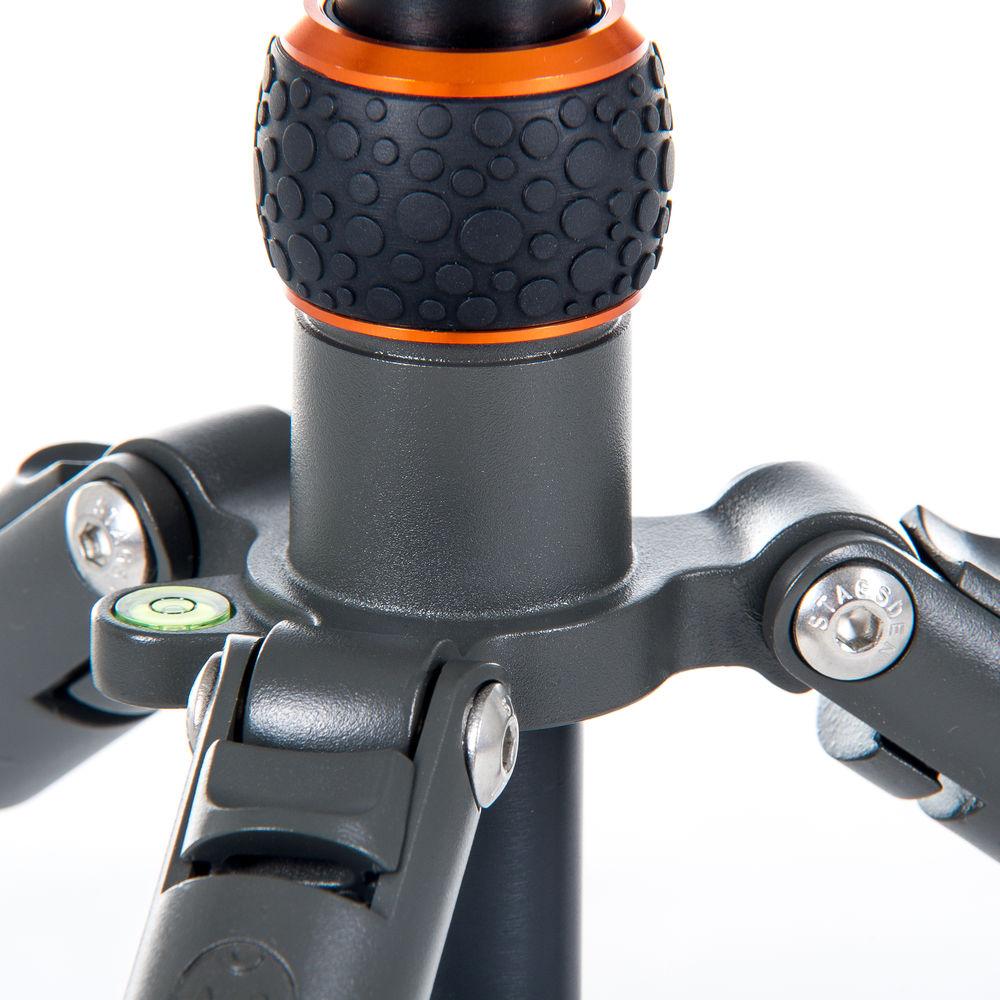

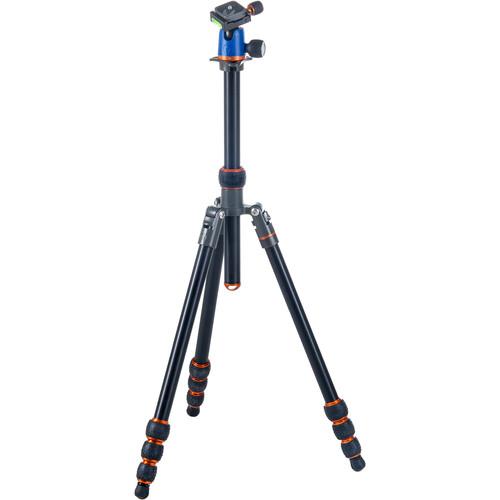

Product description Time-Lapse Tips and Tools Read More In a blue and orange color scheme, the Travis Aluminum Travel Tripod with AirHed Neo Ball Head from 3 Legged Thing is a four-section aluminum tripod which extends to a maximum height of 65" and drops as low as 4.25". At the 23° angle leg spread, which is considered a normal stance, the tripod can support a maximum of 40 lb, however, when the legs are set at the 55° and 80° stances they may support less weight. The implementation of rubber-coated twist locks is also a welcome addition, improving grip and protecting user's hands from a hot or cold aluminum surface.

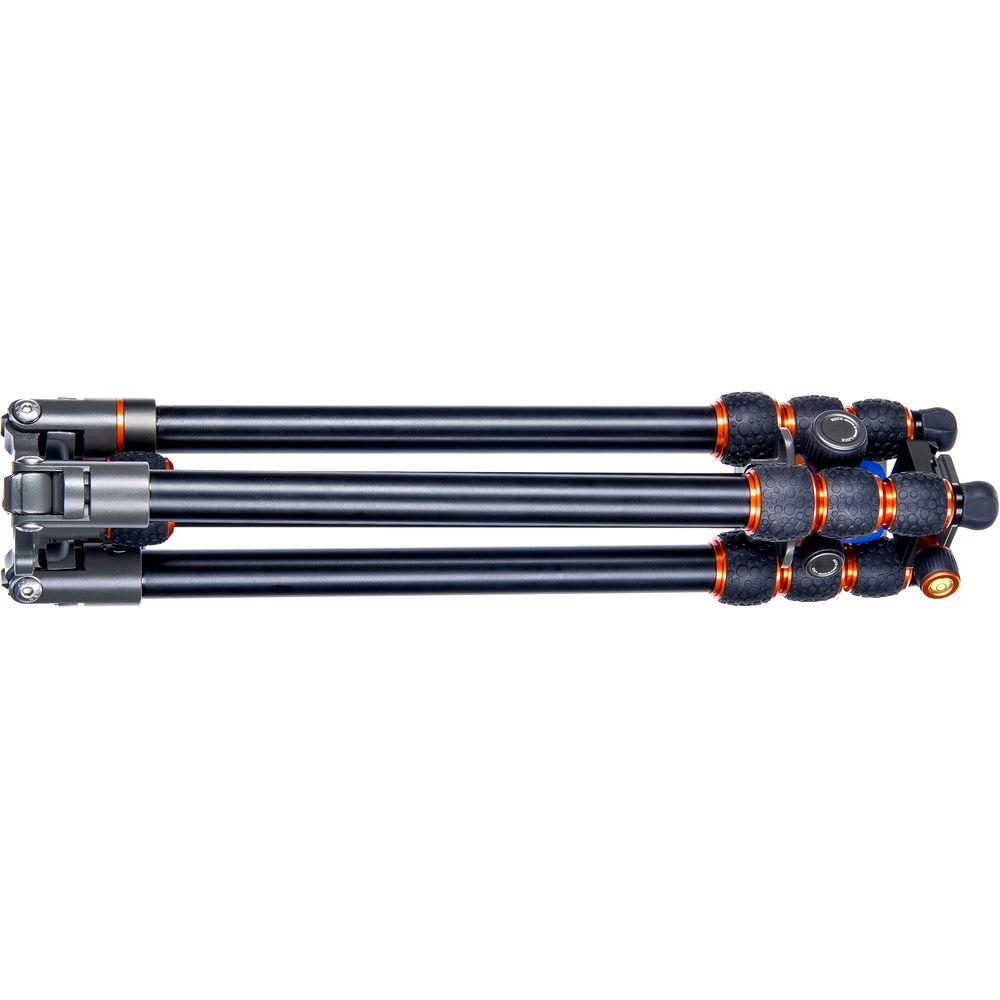

The single-section rapid center column can be used upright or inverted, enabling the user to raise the tripod to any height, while using the center column to make small adjustments. Folding the legs 180° in reverse allows the user to make the tripod more compact for travel or storage.

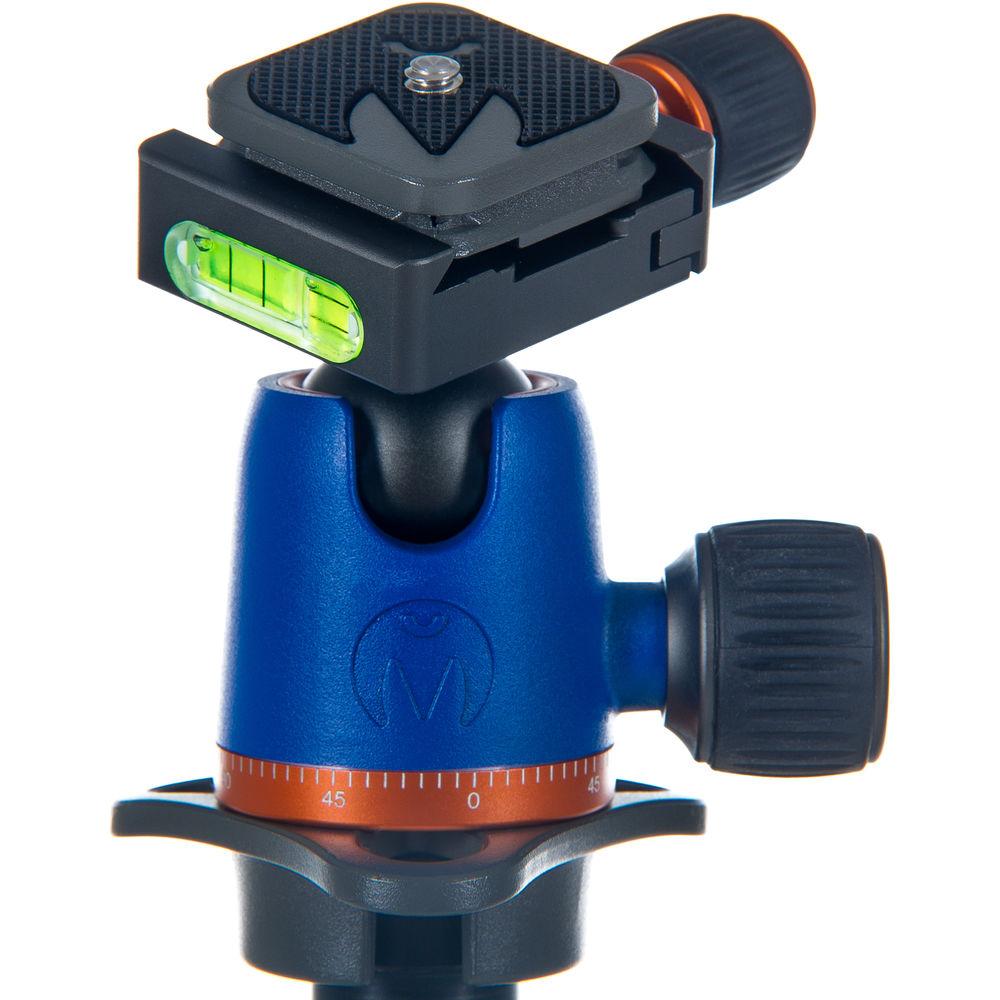

The included Neo ball head is an ultra compact, single lock head which features one knob for control of both the pan and ball. A separate knob controls the lock for the Arca-type compatible clamp which includes a basic Arca-style plate with 1/4"-20 mounting thread.
As is common with 3 Legged Thing tripods, the Travis features a detachable leg with standard 3/8"-16 threads at both ends. The Tri-mount center column plate and threaded bolt can be unscrewed and removed from the top of the center column, then screwed directly onto the leg. The detachable leg can be used as a monopod, microphone boom, or selfie stick depending on the needs of the user. - 3 Position Leg-Angle Stops
- The legs spread to three angles of 23°, 55°, and 80°
- Reversible Folding Legs
- Fold legs 180° in reverse for compactness and storage
- Arca-Type Ball Head
- Ball head utilizes an Arca-type clamp and includes an Arca-type compatible quick release plate
In the Box 3 Legged Thing Travis Aluminum Travel Tripod with AirHed Neo Ball Head (Blue and Orange) AirHed Neo Ball Head QR3P Arca-Type QR Plate Tool Set D-Ring Carabiner Bottle Opener Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 3 Legged Thing Travis Aluminum Travel Tripod with AirHed Neo Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters3 Legged Thing TRAVIS Specs | | | Head Type | Ball Head | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | Arca-Type | | Ball Sphere Diameter | 1.4" / 36 mm | | | | Load Capacity | 40 lb / 18 kg | | Maximum Working Height | 65" / 165.1 cm | | Max Height without Center Column | 55" / 139 cm | | Minimum Working Height | 7.8" / 19.8 cm | | Folded Length | 17.7" / 44.96 cm | | Materials | Aluminum Alloy | | Weight | 3.6 lb / 1.6 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Leg Sections | 4 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 18.9 x 4.4 x 4.4" |
