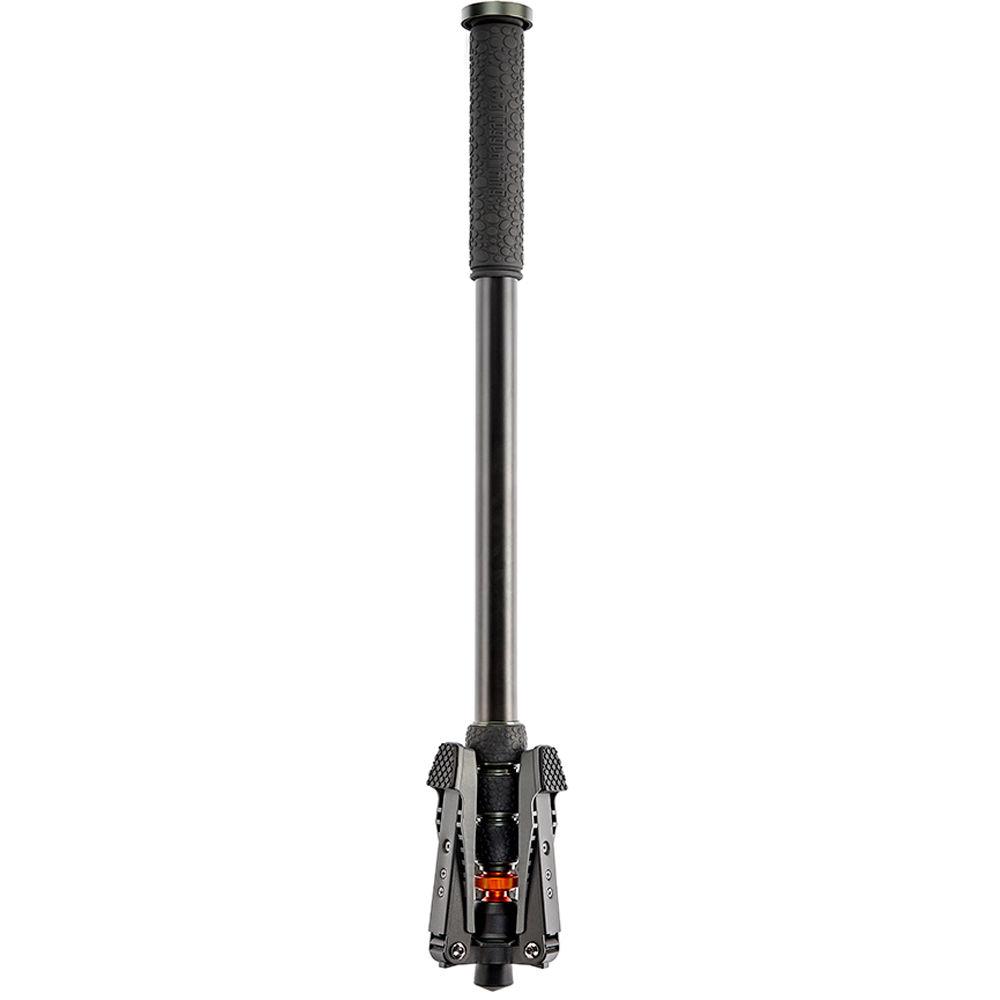

User Manual for 3 Legged Thing Trent Magnesium Alloy Monopod with DOCZ Foot Stabilizer Click to enlarge the picture
Contents of the user manual for the 3 Legged Thing Trent Magnesium Alloy
- Product category: Monopods 3 Legged Thing
- Brand: 3 Legged Thing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 3 Legged Thing Monopods
 |
User manual for the 3 Legged Thing Trent Magnesium Alloy contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 3 Legged Thing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 3 Legged Thing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 3 Legged Thing product will considerably shorten its lifespan!
|

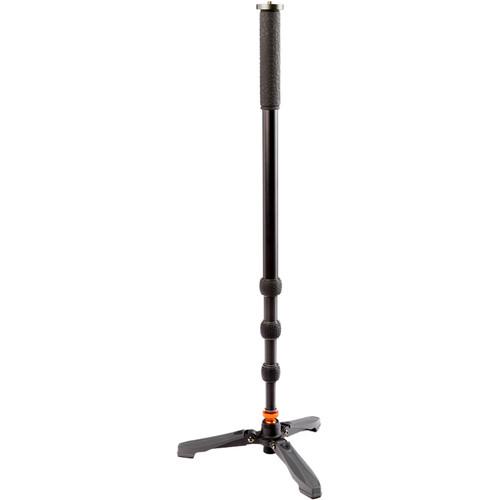

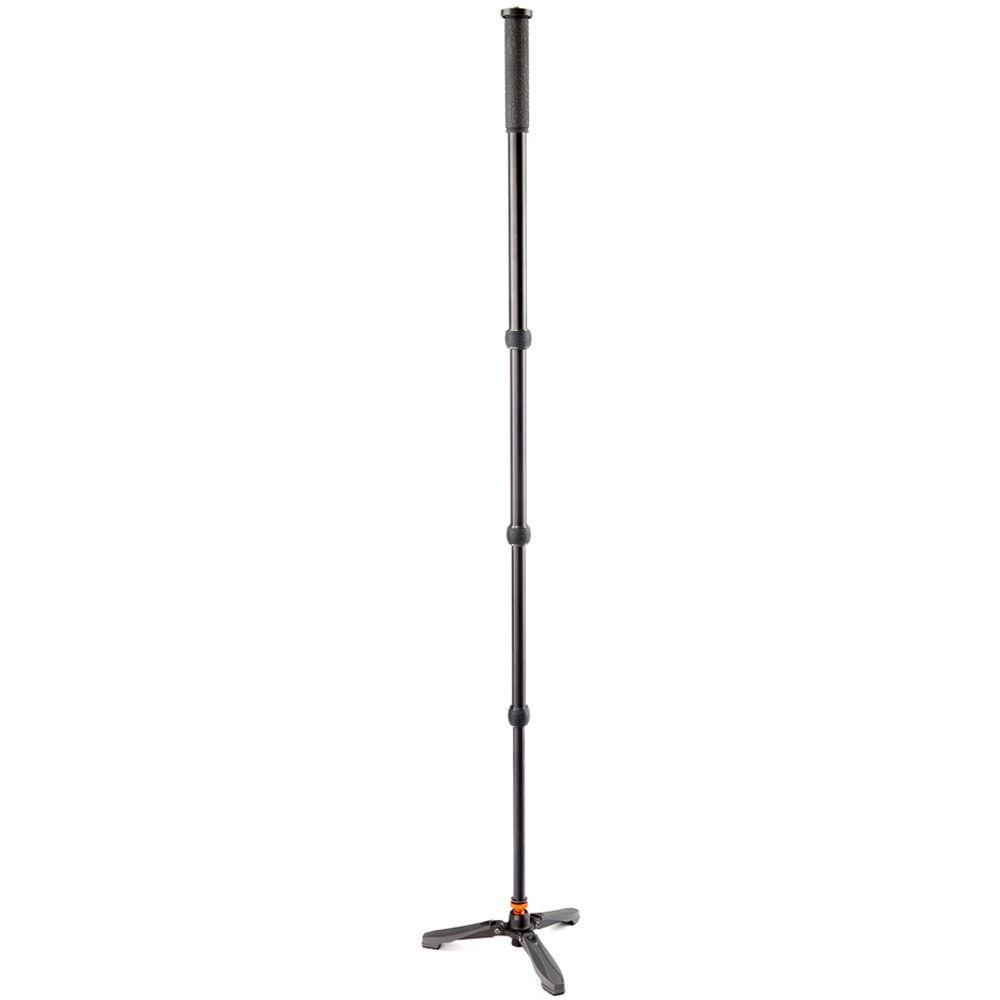

Product description 9 Alternative Camera Supports Read More The 3 Legged Thing Trent Magnesium Alloy Monopod with DOCZ Foot Stabilizer can support some of the largest telephoto lenses used in photography. With the pivoting ball with tension control found on the stabilizer, the entire monopod can smoothly swivel on the ball joint and pan to capture dramatic video footage as well. - Trent Magnesium-Alloy Monopod
- 3 Legged Thing Punks Trent Magnesium Alloy Monopod

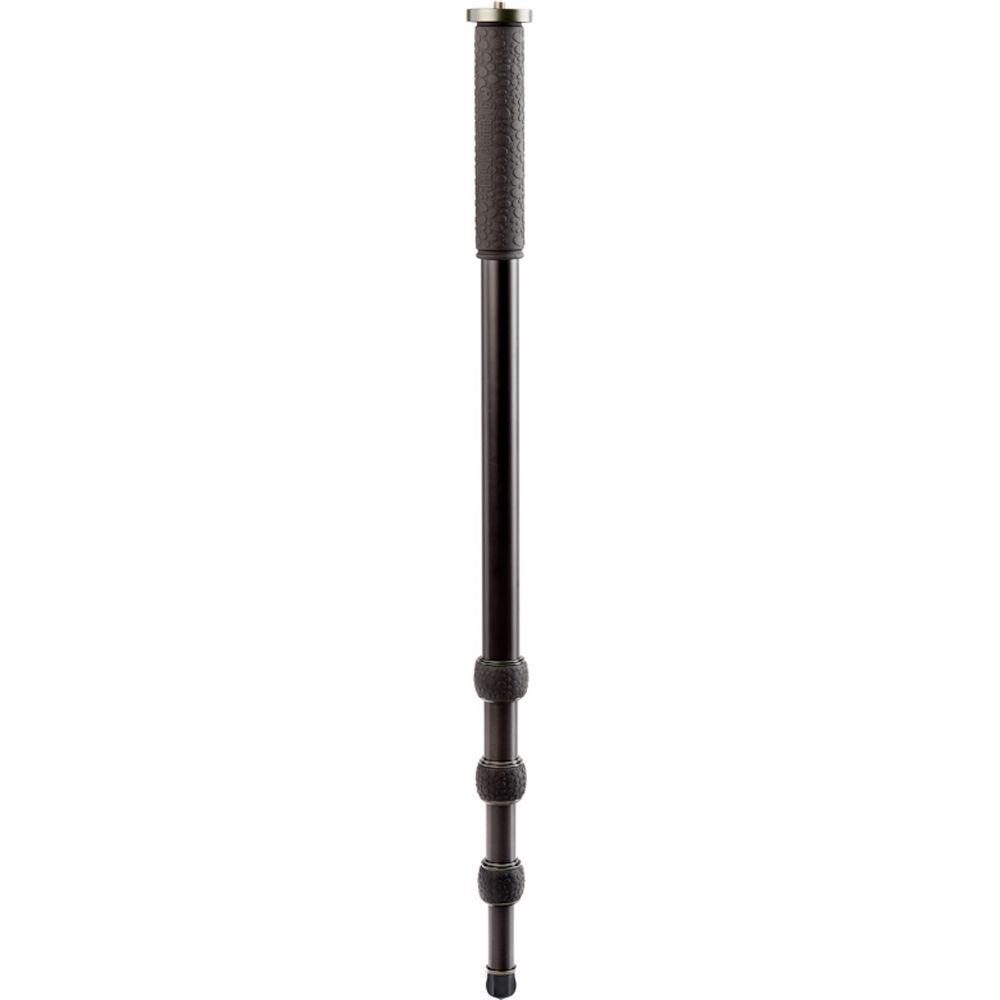

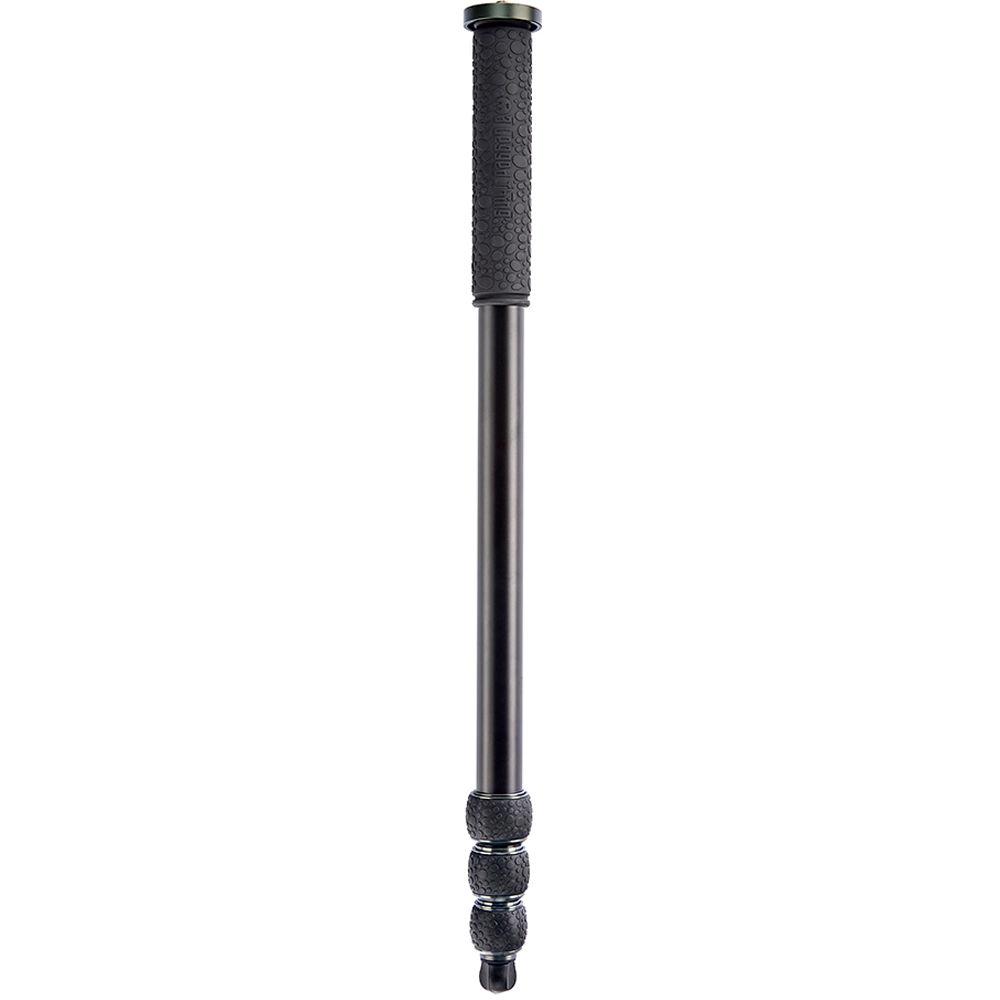

The 3 Legged Thing Trent Magnesium-Alloy Monopod is a 4-section support that can be used for videography and sports photography, and can be used in areas where tripods are not allowed or cannot travel. Each section has a twist-lock that opens with a 1/4 turn, and fully extended, the monopod reaches a maximum height of 80". To travel with the 1.4 lb monopod, it collapses to a closed length of 24". The top of the support features a spring-loaded 3/8"-16 thread that retracts to reveal a 1/4"-20 thread to mount a head, lens, or camera to the top. A 3/8"-16 socket with a 1/4"-20 adapter is located at the bottom of the monopod too, so a microphone or other accessory can attach, for using the monopod as a boom pole. Additionally, a large rubber bubble grip, which disperses moisture, helps to maintain a firm grip to the monopod. - A 4-section support with twist locks that open with a 1/4 turn.
- A height range of 24-80".
- The magnesium-alloy monopod weighs 1.4 lb and has a load capacity of 66 lb.

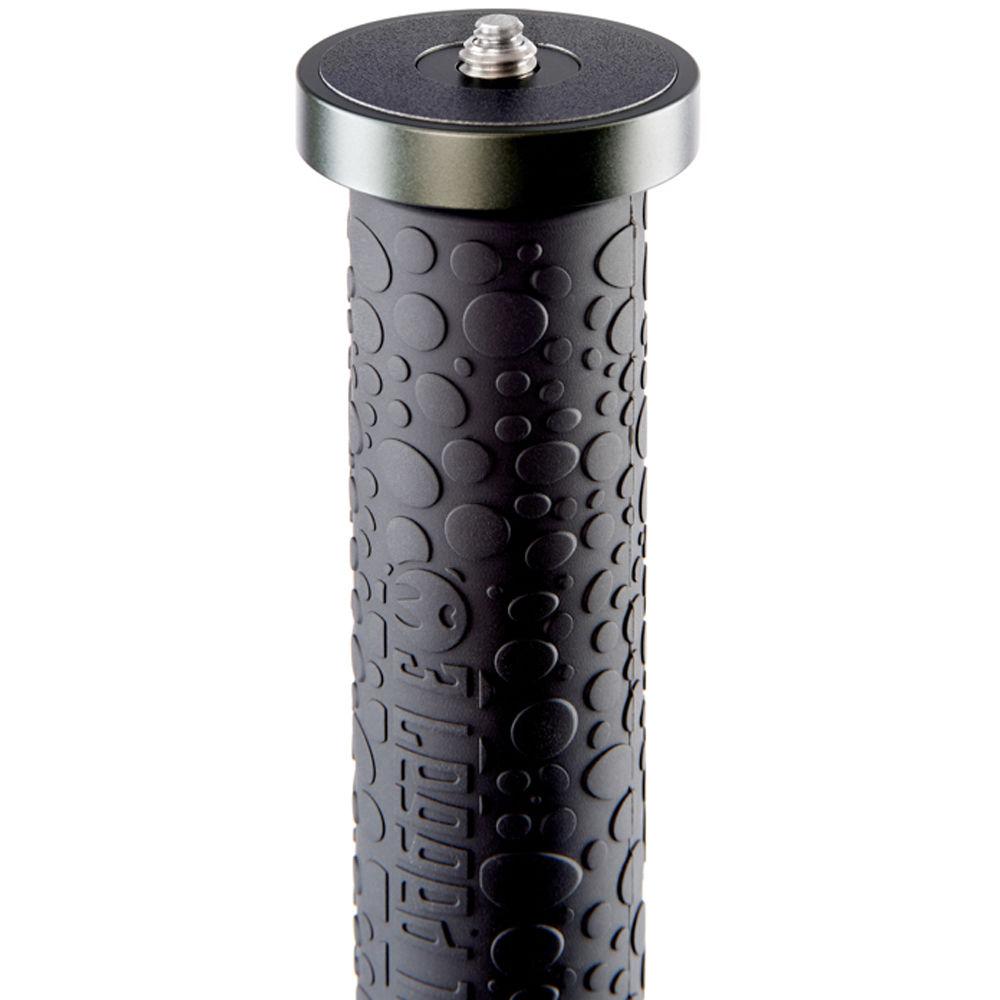

- A spring-loaded 3/8"-16 mounting thread at the top retracts to reveal a 1/4"-20 to attach a head, lens, or camera.
- Use the monopod as a boom pole with the 3/8"-16 socket and a 1/4"-20 adapter, which is located at the bottom, to attach a microphone or other accessory.

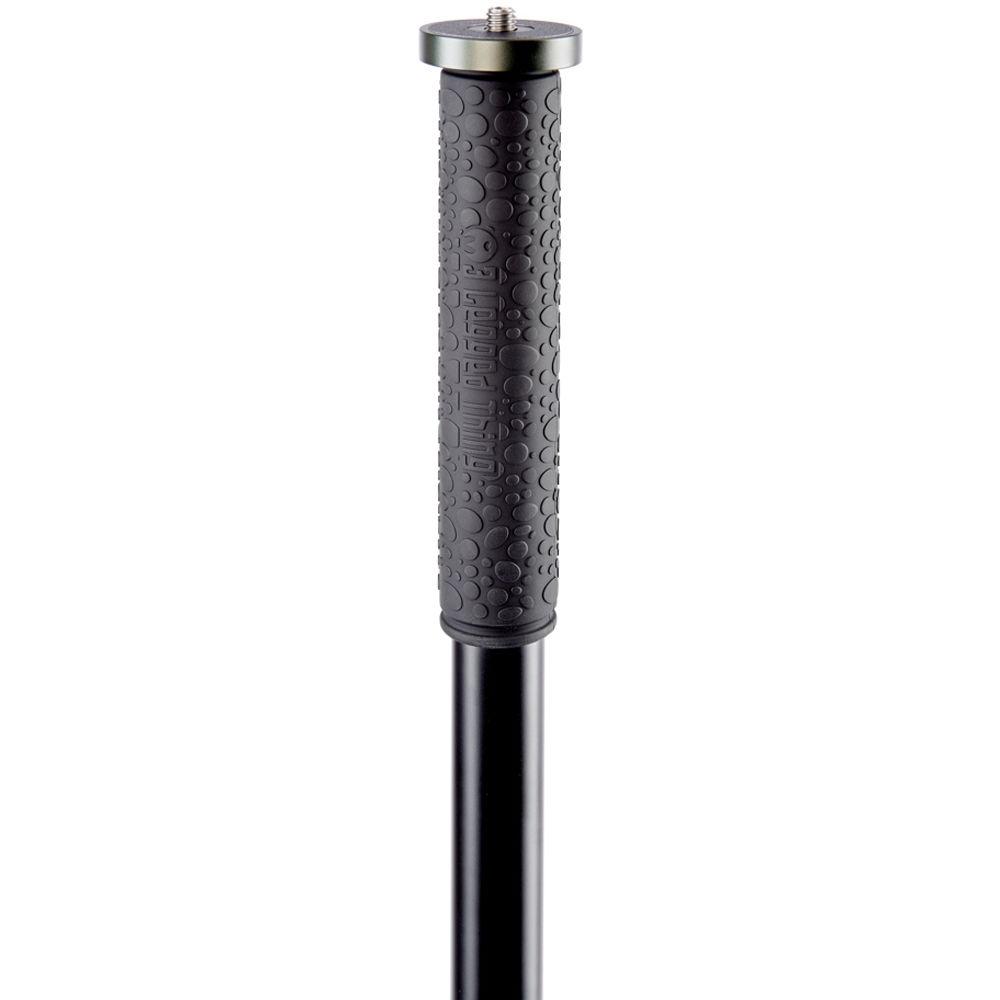

- A large rubber bubble grip, which disperses moisture, helps to maintain a firm grip to the monopod.

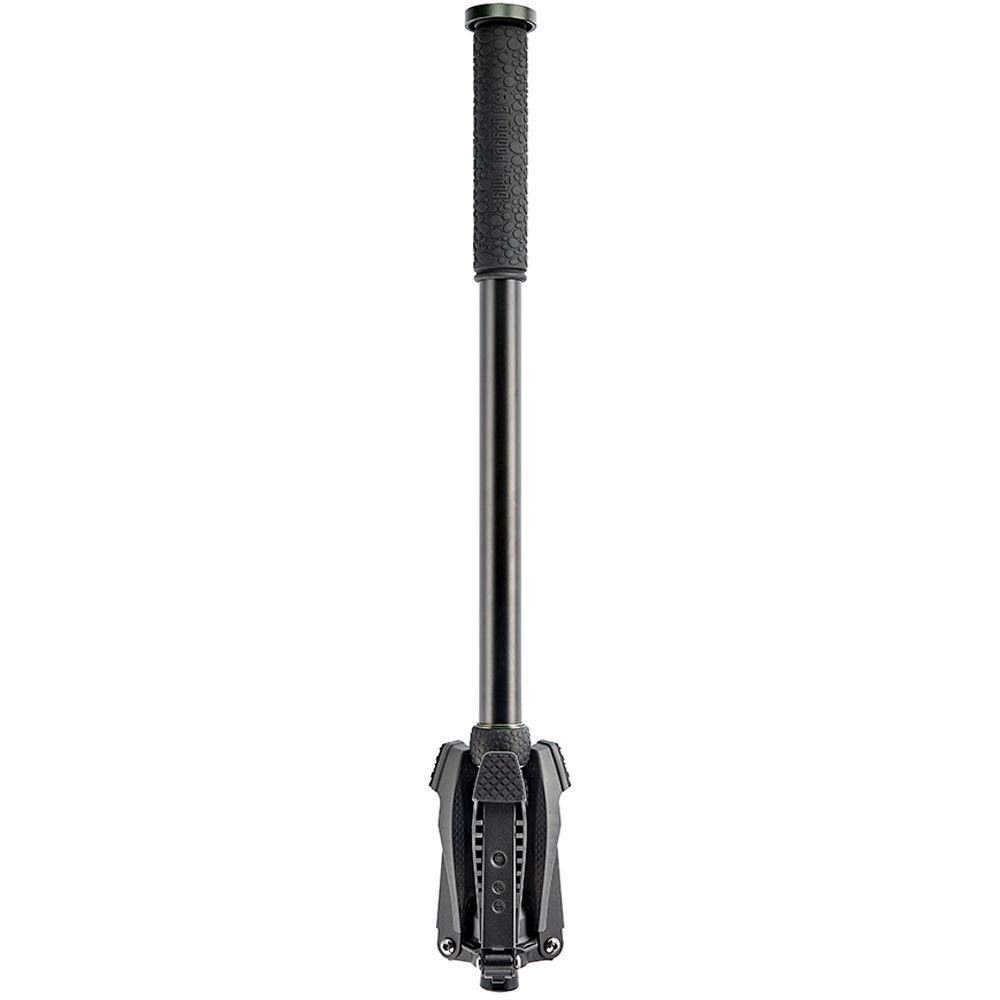

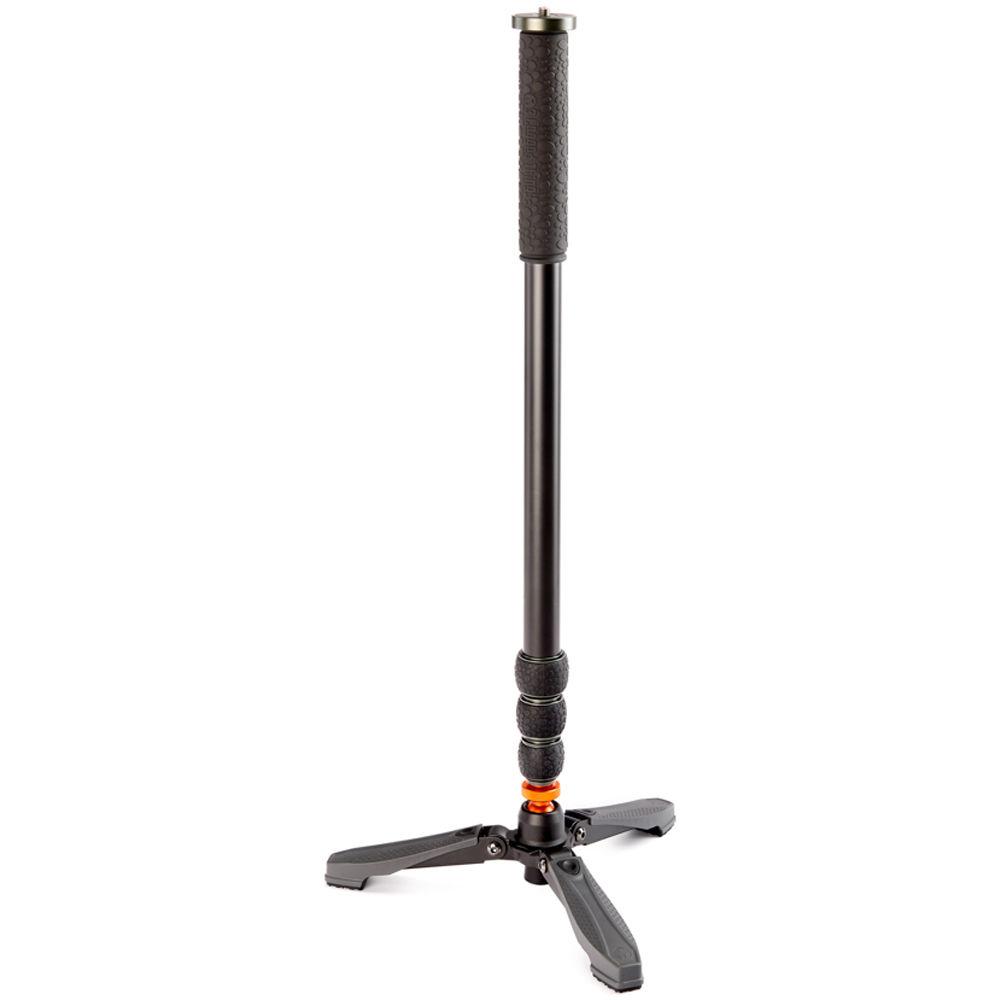

- DOCZ Foot Stabilizer Maintain a steady monopod with the 3 Legged Thing DOCZ Foot Stabilizer, which is compatible with the Alan and Trent Monopods and with monopods that have a 3/8"-16 socket. The stabilizer's ball has tension control, which adds more drag and creates a smoother pivot when shooting a video or for tracking a fast-moving subject. Also, the adjustable ball locks into place for more stability, and the foot has a load capacity of 44 lb. the upward-folding feet reveal a rubber boot under to further maintain the weight when pressure is applied to the monopod.
- Compatibility
- Alan and Trent monopods or monopods with a 3/8"-16 socket
In the Box Bundle Items Trent Magnesium-Alloy Monopod vcstsxxztcatvubdqxrwruyccbrbeueyyea DOCZ Foot Stabilizer Table of Contents
|
Upload User Manual
Have you got an user manual for the 3 Legged Thing Trent Magnesium Alloy Monopod with DOCZ Foot Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Trent Magnesium-Alloy Monopod
| | | Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Leg Lock Type | Twist Lock | | Leg Sections | 4 | | Leg Diameter | 1.14" / 28.96 mm | | Bubble Level | No | | Monopod Foot Features | Rubber, Removable | | | | Load Capacity | 66 lb / 29.94 kg | | Maximum Working Height | 80" / 203.2 cm | | Minimum Working Height | 24" / 61 cm | | Folded Length | 24" / 60.96 cm | | Materials | Magnesium Alloy | | Weight | 1.4 lb / 0.64 kg | | | | Box Dimensions (LxWxH) | 24.4 x 3.8 x 3.7" | - DOCZ Foot Stabilizer
| Load Capacity | 44 lb / 20 kg | | Material of Construction | Aluminum, ABS | | Mounting Thread | 3/8"-16 | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 3.5" |
