360fly 360° HD Video Camera

Search your instruction manual in PDF to download

User Manual for 360fly 360° HD Video Camera

Click to enlarge the picture
360fly 360° HD Video Camera Contents of the user manual for the 360fly 360° HD Video Camera
  • Product category: All 360 Video Cameras 360fly
  • Brand: 360fly
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for 360fly All 360 Video Cameras

360fly 360° HD Video Camera 360fly 360° HD Video Camera 360fly 360° HD Video Camera 360fly 360° HD Video Camera 360fly 360° HD Video Camera 360fly 360° HD Video Camera
User manual for the 360fly 360° HD Video Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any 360fly product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official 360fly user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a 360fly product will considerably shorten its lifespan!



Product description

360fly 360-Degree Cameras and Accessories Capture Spherical Video Read More
  • 360fly Demo

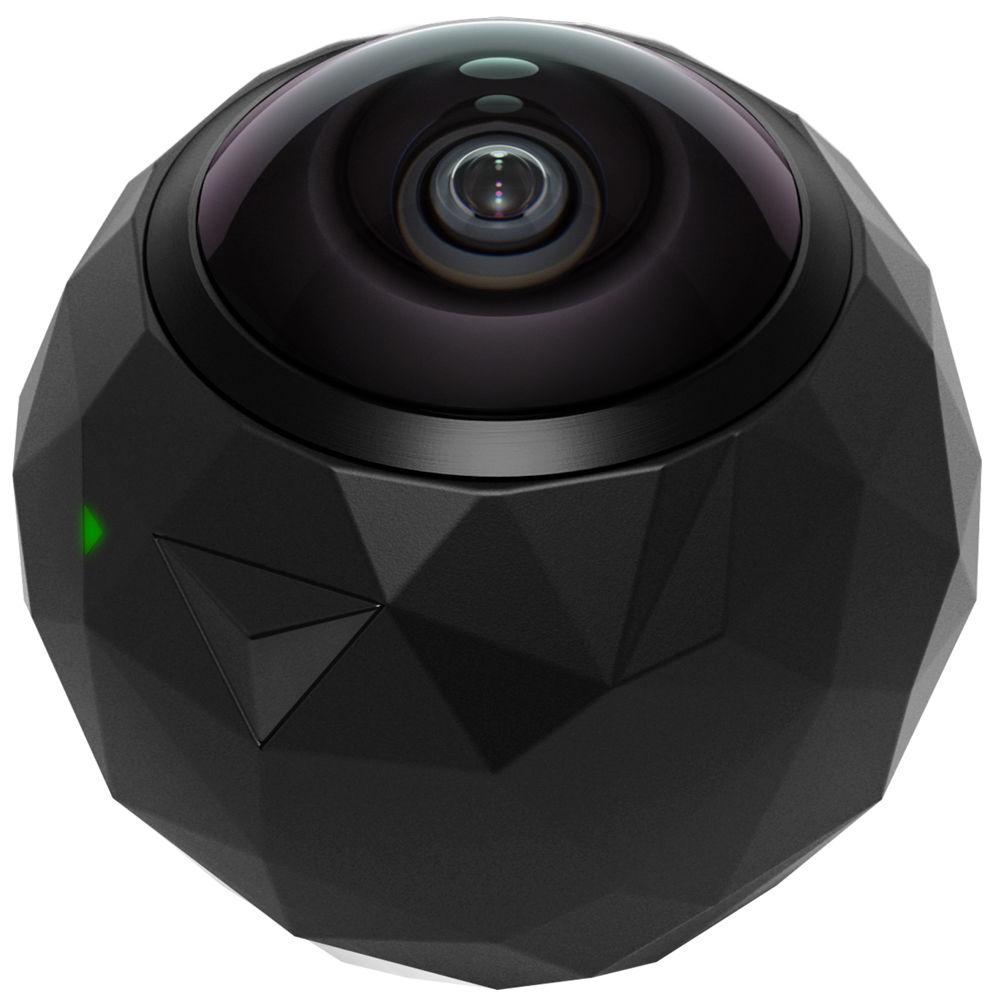

Capture and share the world around you with the 360fly 32GB 360° HD Video Camera. Featuring a single, ultra-fisheye lens that utilizes a 240-degree field of view, the camera records and streams a circular wrap-around view of its surroundings without seams or stitches. Its ruggedized body is waterproof down to one ATM (32'), dustproof, and shockproof, meaning it can stand up to the most active of lifestyles.

The camera works in concert with the free 360fly app for both iOS and Android. Once the app is installed on your phone, you'll use it as your all-in-one viewfinder, remote, and editing device. Up to 3 hours of HD-quality video can be stored on the device's 32GB of built-in storage or used for live streaming via the free Livit mobile app.

Everything you need to start capturing and sharing life comes with your camera, including mounts, mic, and baseplates. Just charge it up, connect it with your iOS or Android mobile device using the 360fly app, and you're ready to record.

Note: This camera records 360 degrees horizontally, but not vertically. As a result, there will be a blank space at the bottom of your 360-degree video.
    Go Anywhere, Mount Everywhere
  • Thanks to its curved & flat mounts and rugged design, you can mount the 360fly anywhere to capture every shot.
    240° Field of View
  • The 360fly boasts an industry leading 240° FOV, so you can capture every moment, from any angle, all at once.
    Rugged Design
  • The 360fly is resistant to sweat, rain, liquid, sand, and dust, giving your camera 360 degrees of protection for any activity or situation.
    Share Your Adventures
  • All it takes is a push of a button in the 360fly app to share immersive, interactive edits directly to Facebook and YouTube. For social media channels that aren't yet compatible with 360° video, the app has everything you need to create and share standard 16:9 edits and panoramic stills.
  • Waterproof down to 32'.

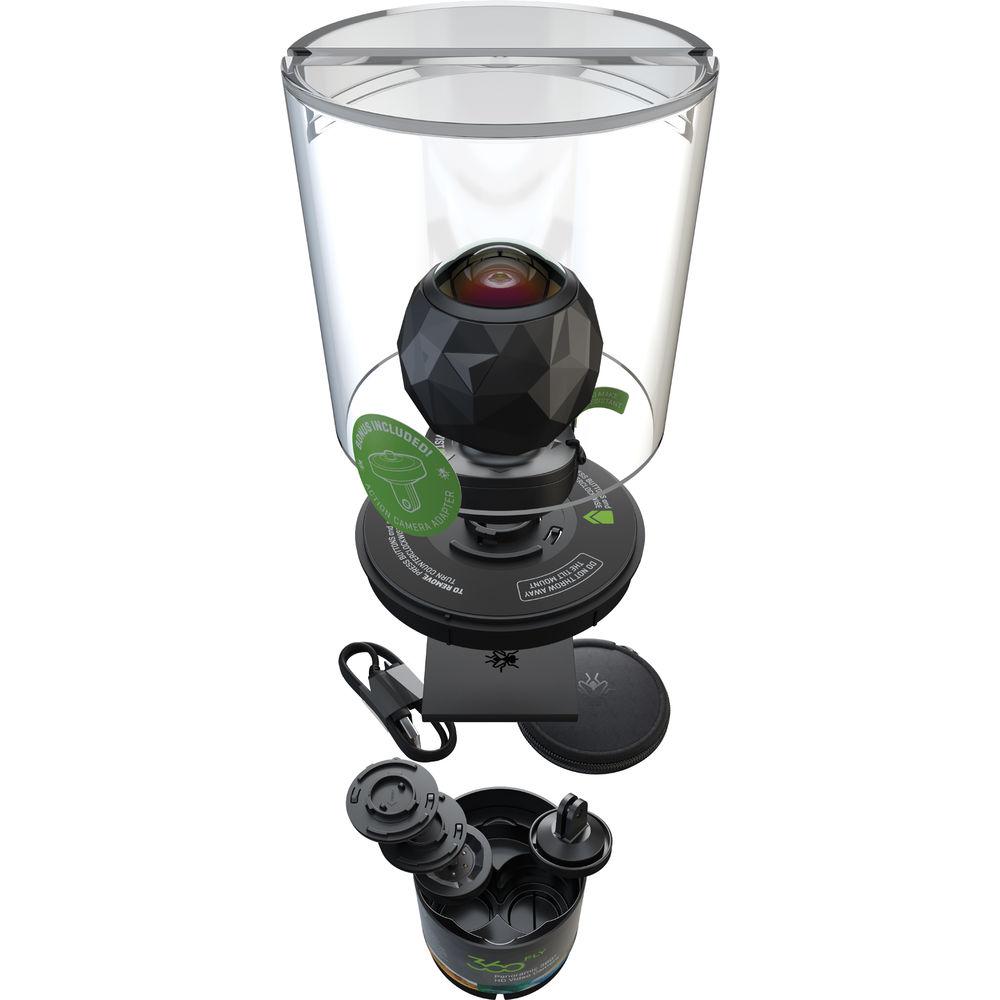

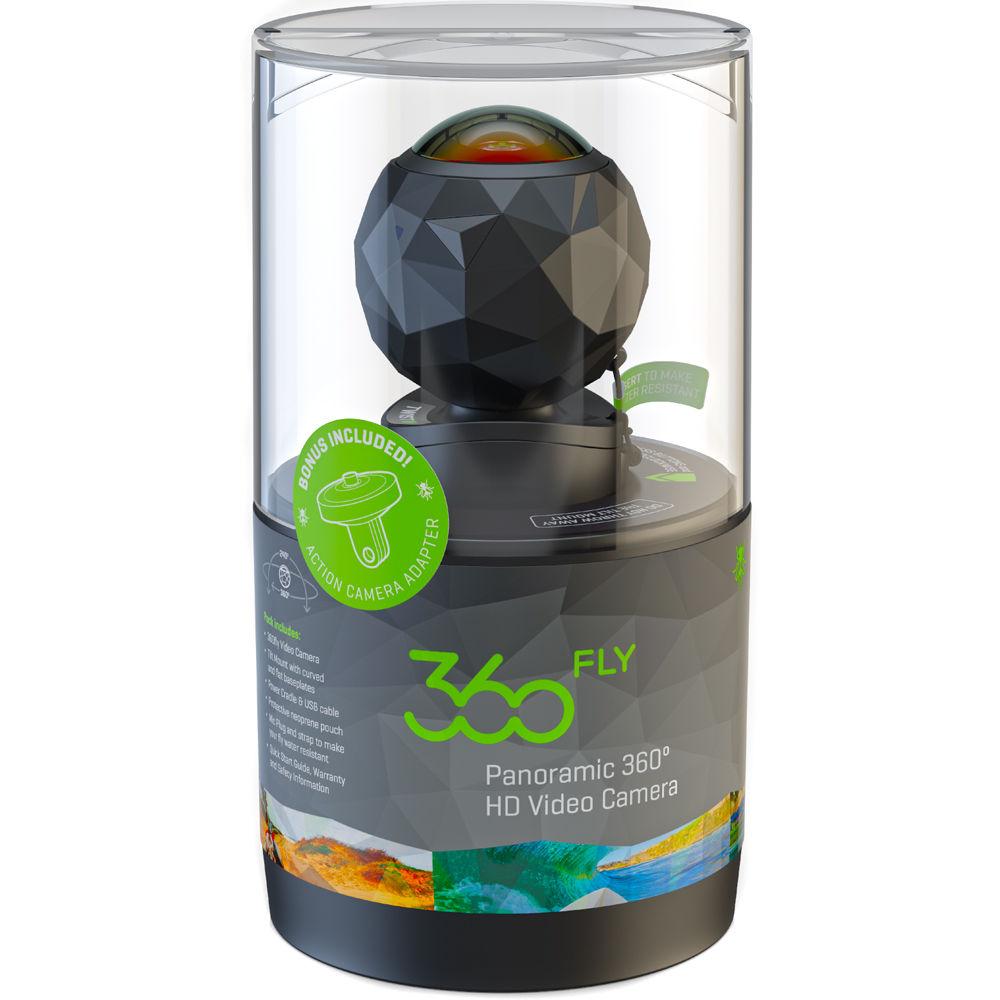

In the Box 360fly 360° HD Video Camera (First Generation)
  • Mic Plug
  • Tilt Mount
  • Flat Baseplate
  • Curved Baseplate
  • Camera Adapter

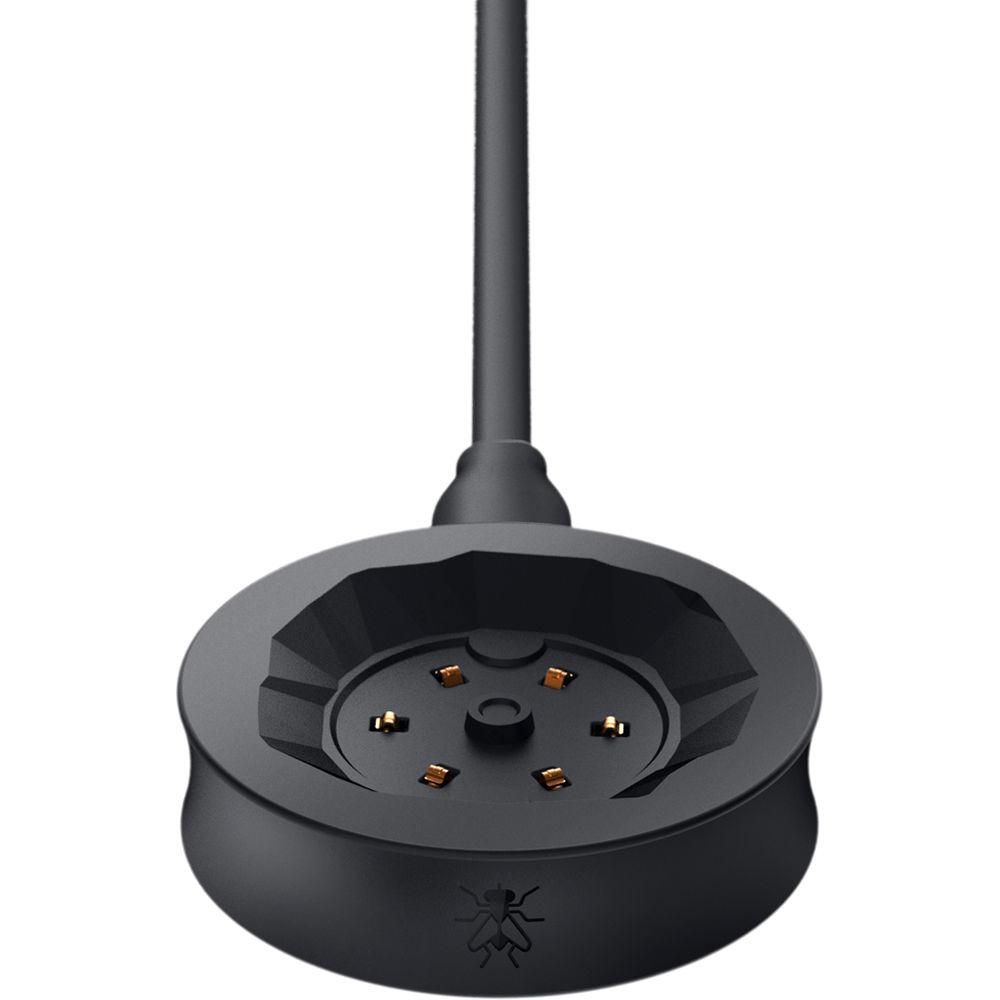

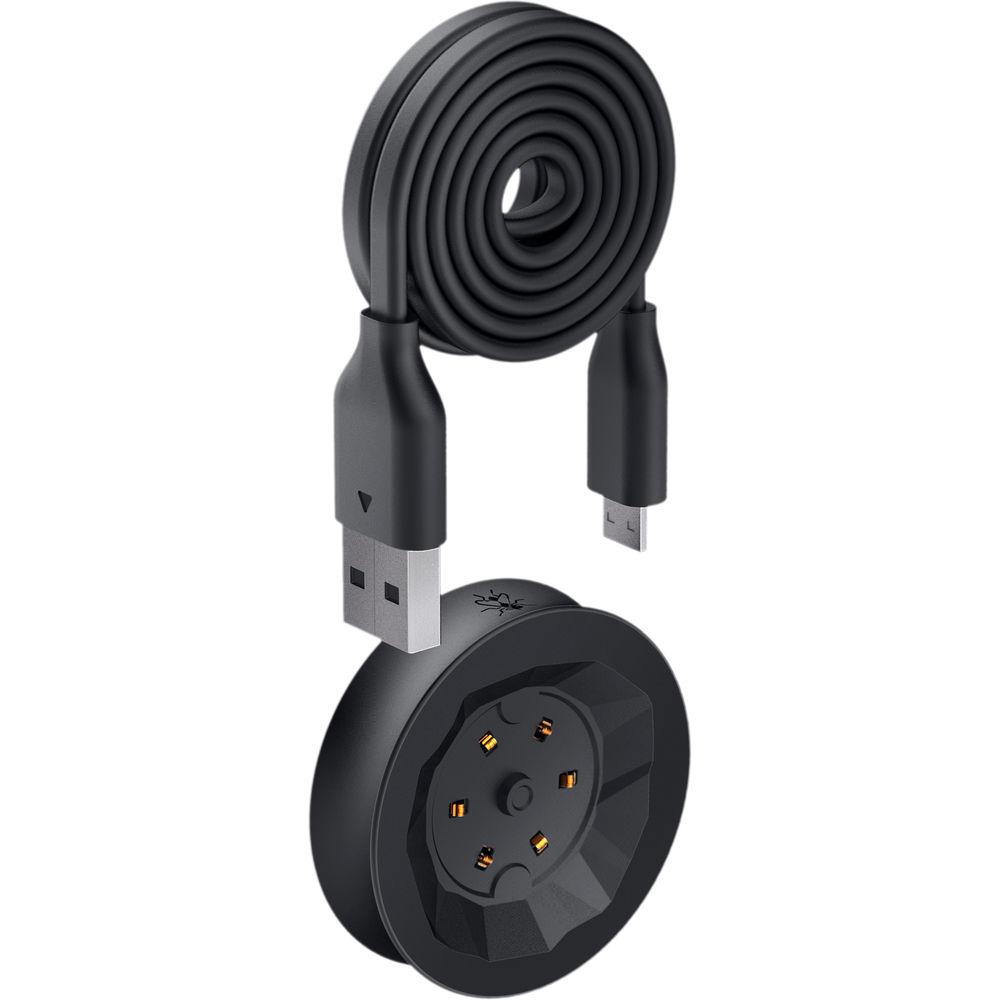

  • Power Cradle
  • USB Cable
  • Carrying Pouch
  • Limited 1-Year Warranty
  • 360fly HD Spherical VR Camera and Accessories now Available at B&H M. Brett Smith 05/11/2016 Table of Contents




    Upload User Manual

    Have you got an user manual for the 360fly 360° HD Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    360fly 360FLYBLK Specs

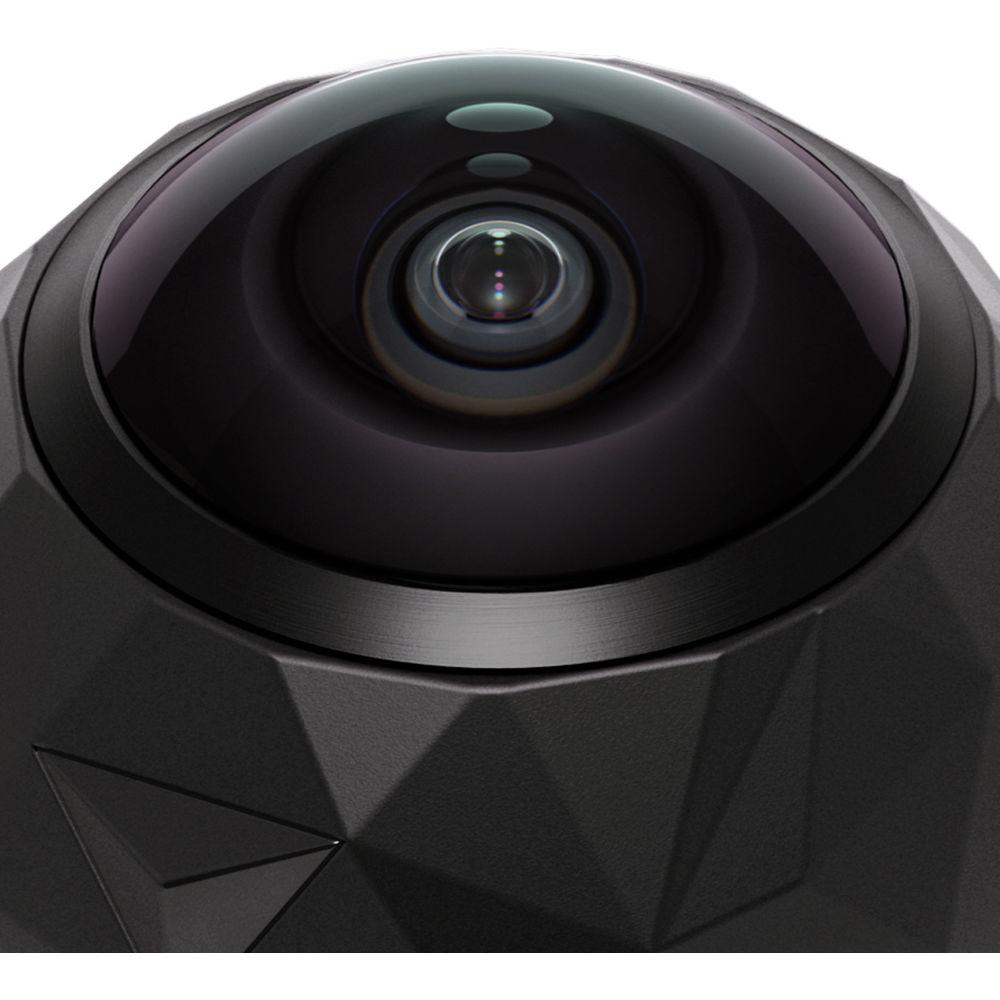

    Lens Type 1 x 8-element glass ultra-fisheye lens
    Aperture f/2.5
    Field of View 240°
    Focal Length 0.03" (0.88 mm)
    Minimum Focus Distance 11.8" (30 cm)
    Video Format H.264
    Video Resolution 1504 x 1504 @ 29.97 fps
    Recording Rate Up to 20 Mbps VBR
    Audio Format Mono AAC 48 kHz 64 kbps
    Battery Chemistry Lithium-ion polymer
    Battery Capacity 1630 mAh
    Charging Method USB cable
    Charging Time 2.5 hours with 1 A charger
    Battery Life Recording Time: 2+ hours
    Microphone Yes, built-in
    Sensors Accelerometer
    Storage 32 GB
    Wi-Fi 2.4 GHz 802.11 b/g/n
    Bluetooth Bluetooth LE
    USB Type USB 2.0
    Compatibility Mobile: iOS 9 and up; Android 4.4 and up
    PC: OS X 10.8 or later; Windows 7 or later
    Water Rating 1 ATM (with Mic Plug)
    IP Rating IP6X (without Mic Plug)
    Shock Resistance Up to 4.9' (1.5 m)
    Operating Temperature -4 to 104° F (-20 to 40° C)
    Storage Temperature -4 to 140° F (-20 to 60° C)
    Dimensions 360fly HD Camera: 2.6" sphere (61 mm)
    PowerCradle: 1.8 x 0.47" (46 x 12 mm)
    Tilt Mount: 2.0 x 1.0" (50 x 26 mm)
    Weight 4.87 oz (138 g)
    Package Weight 1.25 lb
    Box Dimensions (LxWxH) 7.3 x 4.1 x 4.1"
