Product description
360Rize 360Penguin Demo Reel 2019
Learn How To Use The 360Rize 360Penguin In 4 MInutes!!
360Penguin has Landed on the Planet
JSWilby - Tear Down House
JS Wilby Paving Parking Lot
ATV Renee

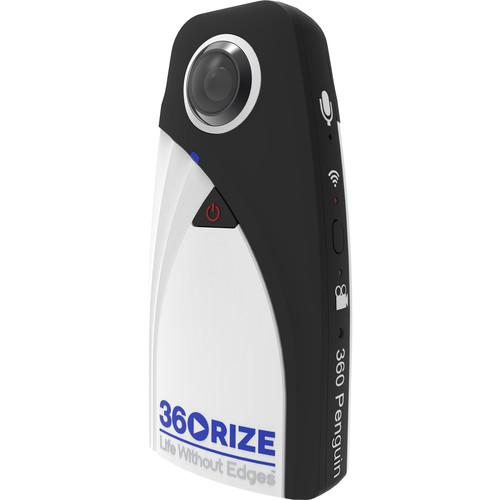

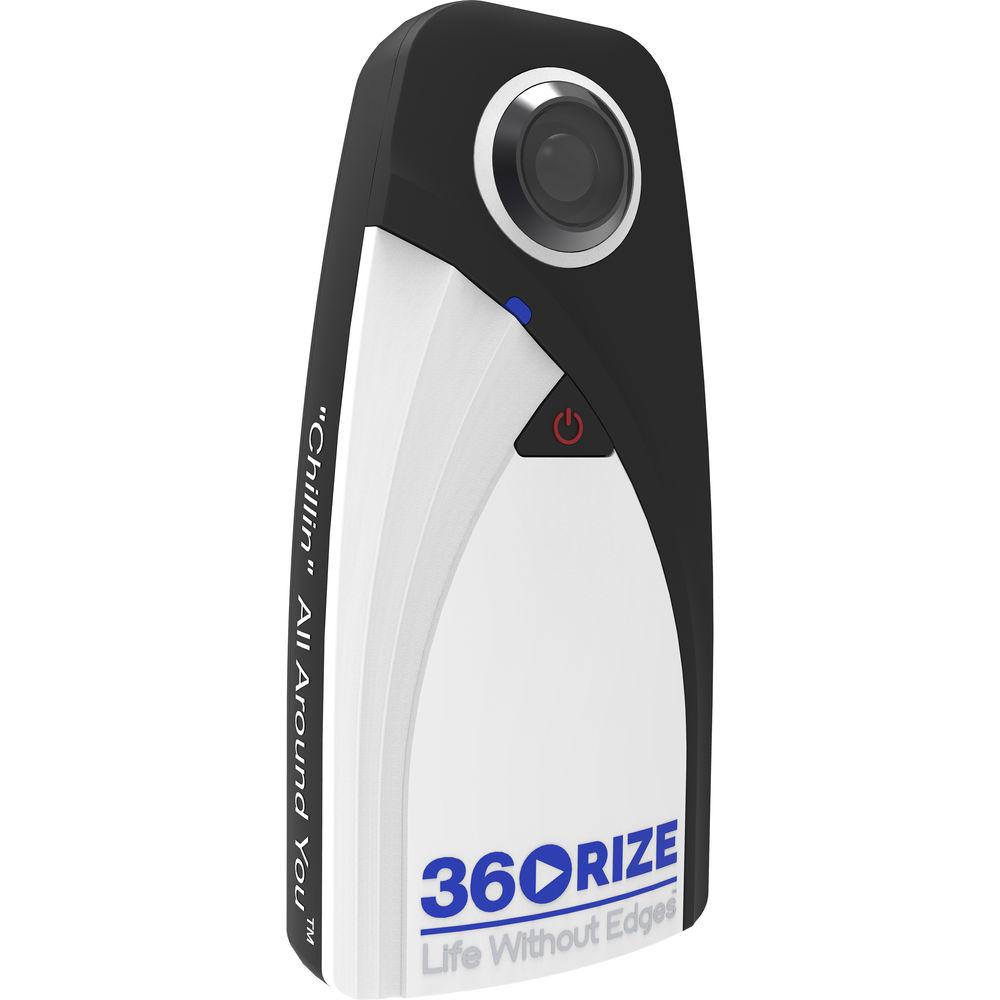

The 360Penguin Panoramic Camera from 360RIZE allows you to easily capture, share, and live stream high-resolution 360° videos, photos, and time-lapse sessions. It captures 5.7K resolution 360° video at 12 fps, 4K 360° video at real-time 30 fps, and 24MP 360° photos. The image is automatically stitched in-camera and output in 2:1 equirectangular format, so you won't have to stretch the image into a 2:1 format in editing in order to share it. (Notice how all the resolutions listed in the Specs tab are in a 2:1 ratio.) Two fixed focal length 1.5mm fisheye lenses, one on each side, each captures a 210° image and the internal stitching combines them into one immersive 360° image. The camera also records audio via a built-in microphone and has a built-in speaker.

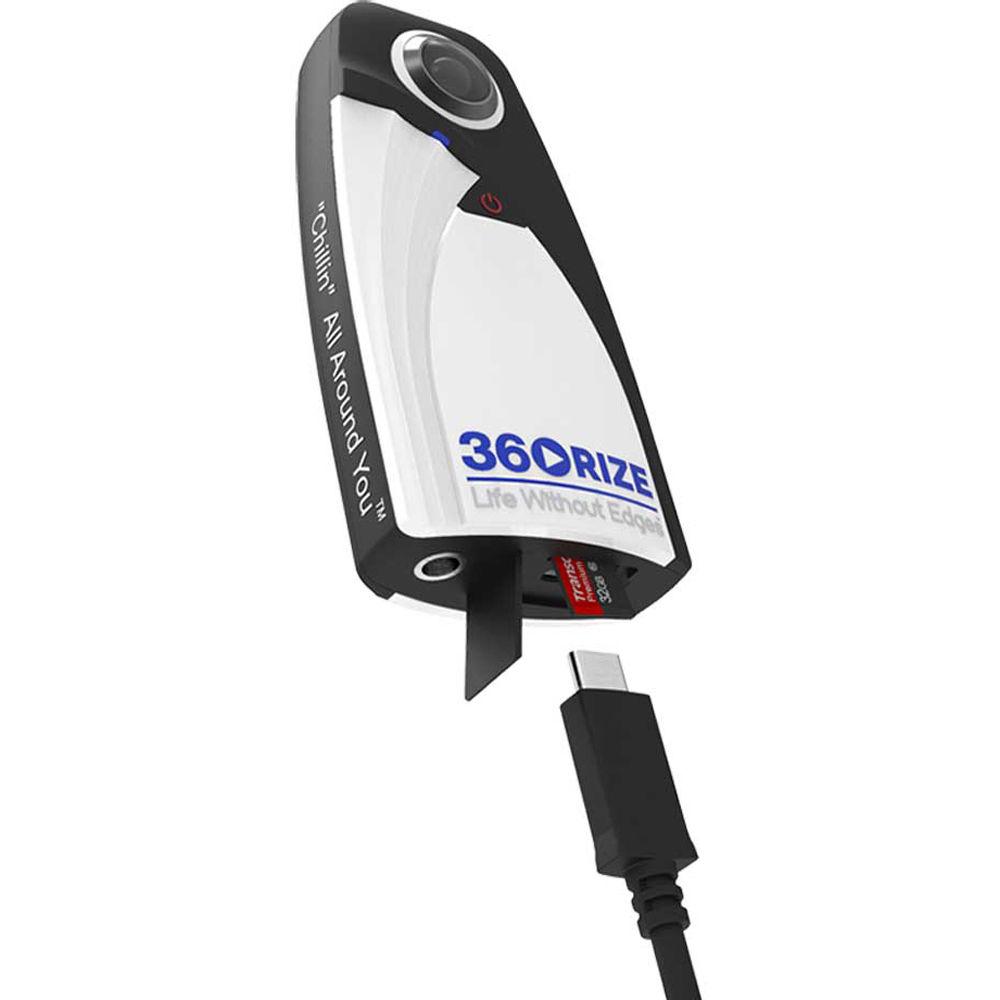

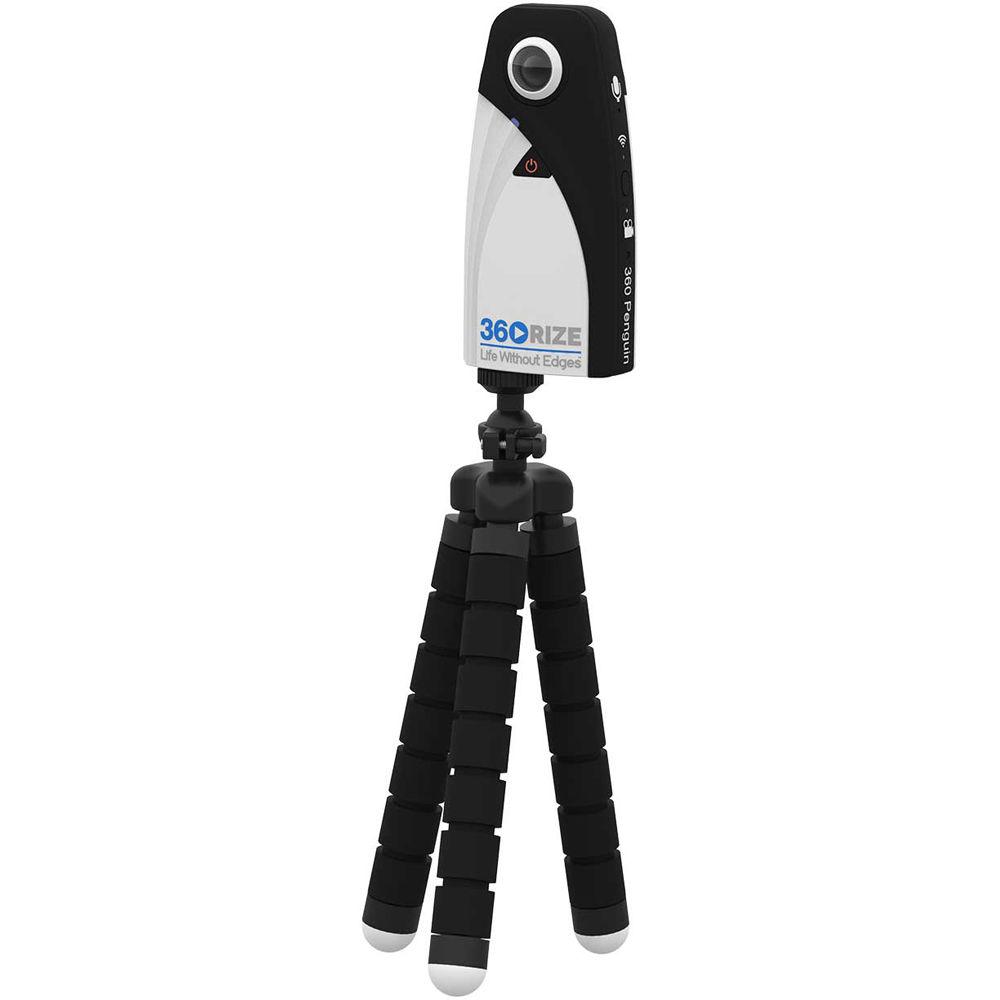

The 360Penguin has a flat bottom so it can be placed on flat surfaces. It also comes with a flexible mini tripod that can be set on uneven surfaces as well as wrapped around branches, gates, and other objects to hold the camera. A built-in battery provides about one hour of operating time. For longer runtimes, you can connect an optional power bank to the camera's USB Type-C port. A 5000mAh power bank will provide approximately 7 hours of runtime, which can be used for long time-lapse sessions and live streaming, and everything can be recorded to up to a 128GB microSD card. To connect a power bank, mount the camera on the included mini tripod, and this will allow you to open the bottom door of the camera for access to the USB Type-C port (the microSD card slot is there too). The tripod mount thread is on the bottom left of the camera. In order for the mini tripod to leave room for you to open the bottom door, the circular platform on the tripod's mounting screw needs to be removed and the camera then mounted on the screw. Alternatively, you can use an optional 360Rize Live Streaming Mount, which is all-aluminum and provides a much sturdier support. It can be used to attach the camera to any 1/4"-20 support and, thanks to its robust design, is especially useful when the camera is in motion, such as when mounted on a helmet or moving vehicle. The USB Type-C port is also used for charging the internal battery and for data transfers.
An included iOS/Android app (free download) syncs up with the Penguin over the camera's built-in Wi-Fi and allows you to control the camera, monitor your shots, set up time-lapse sessions, share images and recordings directly to social media, and live stream to social media. You can also save stitched images and recorded footage to your mobile device via the app. There are two ways to live stream from the 360Penguin. You can broadcast via the app, or you can connect the camera to a Wi-Fi network and stream directly from the camera after making a few setting selections in the app. Either way, you don't need to be connected to a computer.
Video Mode:
Standard 360° video
Time-lapse 360° video
Interval time-lapse 360° video
360° live streaming
Live Streaming:
360° live streaming to Facebook timelines, Groups, or Pages
360° live streaming to YouTube
Endless live streaming option (via optional Live Stream Mount Adapter)
AP Mode direct to your local network
4G Model direct via cell service
Battery Life:
50 minutes when using mobile app
90 minutes using only the camera
Unlimited life via Live Streaming Mount Adapter (optional)
Other Android devices with at least 2G RAM and Android 4.4 and higher
UPC: 709180940563 In the Box 360RIZE 360Penguin Panoramic Camera

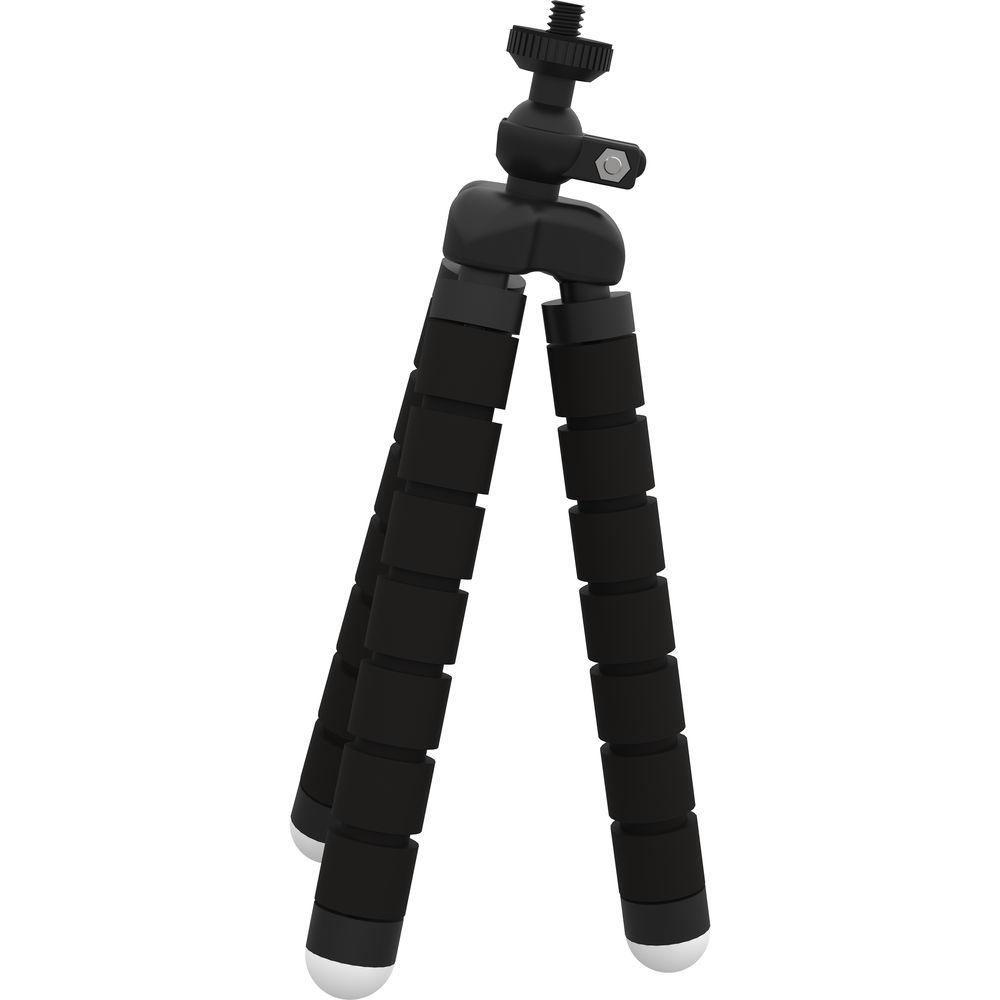

Flexible Mini Tripod
Lens Cloth
Protective Bag
USB Type-C Cable
Limited 9-Month Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the 360RIZE 360Penguin Panoramic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
360RIZE 360 Penguin Specs
Stitching Resolution
5.7K 4K
Internal/External Stitching
Internal Stitching
Supported Spherical Projection Types
Equirectangular
360 Stitched Video Format
Internal: 5760 x 2880 at 12 fps (H.265) 3840 x 1920 at 30 fps (H.264) 2880 x 1140 at 30 fps (H.264) 1920 x 960 at 30 fps (H.264)
Still Image Resolution
MJPEG: 24 Megapixel, 6912 x 3456 MJPEG: 18 Megapixel, 6112 x 3056 MJPEG: 16 Megapixel, 5760 x 2880 MJPEG: 12 Megapixel, 4896 x 2448 MJPEG: 8 Megapixel, 4000 x 2000 MJPEG: 4 Megapixel, 2880 x 1440
Number of Lenses
2
Sensor
1-Chip CMOS
Sensor Resolution
12 MP
Focal Length
1.5mm
Maximum Aperture
f/1.8
Minimum Focusing Distance
2.4" / 6.1 cm
Angle of View
Ultra Wide: 210°
Recording Media
1 x microSD (128 GB Maximum) 360Rize recommends Class 10 or higher Extreme cards.
Built-In Mic
Yes
Built-In Speaker
Yes
Wi-Fi
Yes
Tripod Mount
1/4" - 20
Inputs
None
Outputs
1 x USB 2.0 Type-C
Microphone Input
No
Headphone Jack
No
Battery
Built-In Lithium-Ion Battery, 1000 mAh
Charging Method
USB
Dimensions (W x H x D)
1.9 x 4.0 x 1.0" / 4.8 x 10.2 x 2.5 cm
Weight
2.6 oz / 74 g
Package Weight
0.56 lb
Box Dimensions (LxWxH)
6.55 x 3.25 x 2.4"
