360RIZE 360Penguin Panoramic Camera & Core

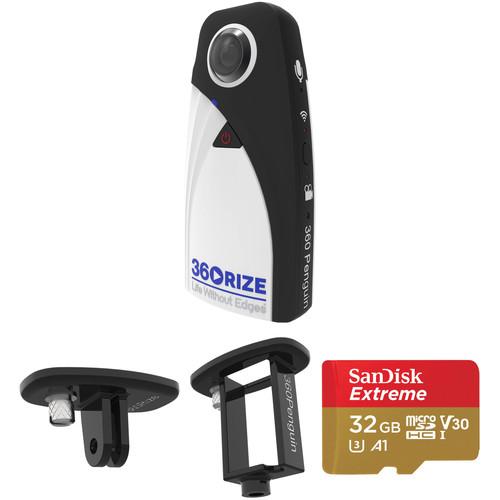

User Manual for 360RIZE 360Penguin Panoramic Camera & Core Accessories Kit

• Product category: All 360 Video Cameras 360RIZE
• Brand: 360RIZE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for 360RIZE All 360 Video Cameras

Product description

• 360RIZE 360Penguin Panoramic Camera
  • 360Rize 360Penguin Demo Reel 2019
  • Learn How To Use The 360Rize 360Penguin In 4 MInutes!!
  • 360Penguin has Landed on the Planet
  The 360Penguin Panoramic Camera from 360RIZE allows you to easily capture, share, and live stream high-resolution 360° videos, photos, and time-lapse sessions. It captures 5.7K resolution 360° video at 12 fps, 4K 360° video at real-time 30 fps, and 24MP 360° photos. The image is automatically stitched in-camera and output in 2:1 equirectangular format, so you won't have to stretch the image into a 2:1 format in editing in order to share it. (Notice how all the resolutions listed in the Specs tab are in a 2:1 ratio.) Two fixed focal length 1.5mm fisheye lenses, one on each side, each captures a 210° image and the internal stitching combines them into one immersive 360° image. The camera also records audio via a built-in microphone and has a built-in speaker.

  The 360Penguin has a flat bottom so it can be placed on flat surfaces. It also comes with a flexible mini tripod that can be set on uneven surfaces as well as wrapped around branches, gates, and other objects to hold the camera. A built-in battery provides about one hour of operating time. For longer runtimes, you can connect an optional power bank to the camera's USB Type-C port. A 5000mAh power bank will provide approximately 7 hours of runtime, which can be used for long time-lapse sessions and live streaming, and everything can be recorded to up to a 128GB microSD card. To connect a power bank, mount the camera on the included mini tripod, and this will allow you to open the bottom door of the camera for access to the USB Type-C port (the microSD card slot is there too). The tripod mount thread is on the bottom left of the camera. In order for the mini tripod to leave room for you to open the bottom door, the circular platform on the tripod's mounting screw needs to be removed and the camera then mounted on the screw. Alternatively, you can use an optional 360Rize Live Streaming Mount, which is all-aluminum and provides a much sturdier support. It can be used to attach the camera to any 1/4"-20 support and, thanks to its robust design, is especially useful when the camera is in motion, such as when mounted on a helmet or moving vehicle. The USB Type-C port is also used for charging the internal battery and for data transfers.

  An included iOS/Android app (free download) syncs up with the Penguin over the camera's built-in Wi-Fi and allows you to control the camera, monitor your shots, set up time-lapse sessions, share images and recordings directly to social media, and live stream to social media. You can also save stitched images and recorded footage to your mobile device via the app. There are two ways to live stream from the 360Penguin. You can broadcast via the app, or you can connect the camera to a Wi-Fi network and stream directly from the camera after making a few setting selections in the app. Either way, you don't need to be connected to a computer.
  Video Mode:
  • • Standard 360° video
    • Time-lapse 360° video
    • Interval time-lapse 360° video
    • 360° live streaming
  Live Streaming:
  • • 360° live streaming to Facebook timelines, Groups, or Pages
    • 360° live streaming to YouTube
    • Endless live streaming option (via optional Live Stream Mount Adapter)
    • AP Mode direct to your local network
    • 4G Model direct via cell service
  Battery Life:
  • • 50 minutes when using mobile app
    • 90 minutes using only the camera
    • Unlimited life via Live Streaming Mount Adapter (optional)
  File Output:
  • • 360° video MP4 (H.264), equirectangular format
    • 360° video MP4 (H.265), equirectangular format
    • 360° photo JPG 24MP, equirectangular format
  Compatible iOS Devices:
  • • iOS 8.0 and up
    • iPhone Xs, Xs Max, X, 8/8 Plus, 7/7 Plus, 6s/6s Plus, SE
    • iPad Pro (10.5"), iPad (2018)
  Compatible Android Devices:
  • • Android 4.4 and up
    • Samsung S9, Note 8, S8/S7/S7 Edge
    • Xiaomi Mix/Mix 2, Note 3/6/8
    • Google Pixel/Pixel 2/Pixel 3
    • Other Android devices with at least 2G RAM and Android 4.4 and higher
  UPC: 709180940563
• 360RIZE Universal Mount for 360Penguin
  • 360Rize 360Penguin Demo Reel 2019
  • Learn How To Use The 360Rize 360Penguin In 4 MInutes!!
  • 360Penguin has Landed on the Planet
  The 360RIZE Universal Mount for 360Penguin allows mounting the 360Penguin camera on standard 3-prong mounts including those worn on the body, such as 3-prong helmet mounts. The camera goes on top of the mount and is secured with a thumbscrew from underneath. UPC: 709180940587
• 360RIZE Live Streaming Mount for 360Penguin
  • 360Rize 360Penguin Demo Reel 2019
  • Learn How To Use The 360Rize 360Penguin In 4 MInutes!!
  • 360Penguin has Landed on the Planet
  It's not just for live streaming. The 360RIZE Live Streaming Mount for 360Penguin allows you to mount the 360Penguin camera onto various support gear that have a 1/4"-20 mounting screw, such as car mounts. The camera goes on top of the mount and is secured with a thumbscrew from underneath. The all-aluminum construction provides a sturdy alternative to mounting the camera on the mini tripod that's included with it, especially when the camera is in motion such as when mounted on a helmet or moving vehicle, or when you want to mount it on a full-size tripod or similar sturdy support for extended time-lapse capture. Attaching the camera directly to a full-size tripod will block its USB port door on the bottom, and the USB port is required for external power if you plan on shooting for longer than an hour. But the Live Streaming Mount allows you to fully access the door from the bottom.

  Although not solely for live streaming, this mount provides a convenient way of setting the 360Penguin up for live streaming, especially long streaming sessions. Just like for time-lapse capture, you can use it to mount the camera on full-size tripods and similar supports while getting full access to the USB port and having sturdy support thanks to the all-aluminum construction. UPC: 709180940570
• SanDisk 32GB Extreme UHS-I microSDHC Memory Card with SD Adapter
  • 360Rize 360Penguin Demo Reel 2019
  • Learn How To Use The 360Rize 360Penguin In 4 MInutes!!
  • 360Penguin has Landed on the Planet
  Designed for action cameras and mobile devices, the 32GB Extreme UHS-I microSDHC Memory Card from SanDisk features a storage capacity of 32GB and supports maximum read speeds of 100 MB/s and maximum write speeds of 60 MB/s. This card has also been designed with the V30 Video Speed Class rating, which guarantees minimum write speeds of at least 30 MB/s. All of this allows for users to immerse themselves in extreme sports videography and photography at resolutions of Ultra HD 4K (3840 x 2160) and Full HD (1920 x 1080).

  While this card has been designed for cameras that are UHS-I / V30 compatible, it may be used in devices that do not support UHS-I / V30. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U3, which also supports minimum write speeds of 30 MB/s, UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s.

  Aside from support for UHS-I, V30, and U3, SanDisk also built this card with support for the Application Performance Class 1 (A1) spec, which includes optimizations to give Android users an improved mobile experience, delivering faster mobile app performance. The A1 spec allows the card to manage random read input-output access per second (IOPS) operations so it can quickly open apps and process accompanying tasks, such as audio, graphics, saved profiles, and in-app permissions.

  As with most SanDisk media, this memory card is shockproof, X-ray proof, and waterproof, while also being able to withstand temperatures from -13 to 185°F, allowing you to take this card with you into extreme environments, such as snow, deserts, and pools. Should the card's data become compromised, you also benefit from the option to download RescuePRO Deluxe software as well as a limited lifetime warranty. Included is a microSD to SD adapter, allowing this card to be used in SD-compatible devices.

  General Features

  Designed for Your Action Camera
  • Training, planning, and gear - extreme sports require extreme readiness. To make sure you have a lasting record of the event from your own unique POV, you need the right camera and the right memory card, too. SanDisk Extreme microSD UHS-I cards deliver the speed, capacity, durability, and quality you need to make sure your adventure is captured, even if you blink on the way down.
  Shoot 4K Ultra HD Video Today
  • Pro video performance with both Class 10 and UHS Speed Class 3 (U3) ratings lets you capture 4K Ultra HD (3840 x 2160) and Full HD (1920 x 1080) video. Your videos will meet today's high resolution standards for 4K Ultra HD TV screens and monitors, making this card well-suited for your 4K Ultra HD video-enabled smartphone, tablet, or camera.
  The Speed You Need
  • Things happen quickly. With write speeds of up to 60 MB/s, SanDisk memory cards give you the speed you need to capture precise details. Fast write speeds reduce the time you're on hold while you move pictures and videos to your card. Offload big files faster with read speeds of up to 100 MB/s so you're ready to catch the next shot and enjoy smooth video playback.
  Built for Extreme Conditions
  • SanDisk Extreme microSD UHS-I Cards are waterproof, shockproof, x-ray proof, and temperature proof to help protect your memories from life's mishaps. Take your phone or tablet to the snow, to the pool, or to the desert, where this card can endure temperatures ranging from -13 to 185°F.
  SD Adapter for Versatility
  • This card comes with an SD card adapter so you can also capture and access data on the card with devices that have an SD card slot. You'll be able to use your memory card with SD enabled cameras, camcorders, tablets, and laptops.
  Support
  • The SanDisk Extreme microSD UHS-I Memory Card is backed by a limited lifetime warranty. Support also includes downloadable RescuePRO Deluxe data recovery software for bringing accidentally deleted images back to life.
  UPC: 619659155827

• 360Penguin Panoramic Camera twacsqvwzsec
• Flexible Mini Tripod
• Lens Cloth
• Protective Bag
• USB Type-C Cable
• Limited 9-Month Warranty

• Universal Mount for 360Penguin

• Live Streaming Mount for 360Penguin

• SanDisk - 32GB Extreme UHS-I microSDHC Memory Card with SD Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 360RIZE 360Penguin Panoramic Camera

  Stitching Resolution	5.7K 4K
  Internal/External Stitching	Internal Stitching
  Supported Spherical Projection Types	Equirectangular
  360 Stitched Video Format	Internal: 5760 x 2880 at 12 fps (H.265) 3840 x 1920 at 30 fps (H.264) 2880 x 1140 at 30 fps (H.264) 1920 x 960 at 30 fps (H.264)
  Still Image Resolution	MJPEG: 24 Megapixel, 6912 x 3456 MJPEG: 18 Megapixel, 6112 x 3056 MJPEG: 16 Megapixel, 5760 x 2880 MJPEG: 12 Megapixel, 4896 x 2448 MJPEG: 8 Megapixel, 4000 x 2000 MJPEG: 4 Megapixel, 2880 x 1440
  Number of Lenses	2

  Sensor	1-Chip CMOS
  Sensor Resolution	12 MP

  Focal Length	1.5mm
  Maximum Aperture	f/1.8
  Minimum Focusing Distance	2.4" / 6.1 cm
  Angle of View	Ultra Wide: 210°

  Recording Media	1 x microSD (128 GB Maximum) 360Rize recommends Class 10 or higher Extreme cards.
  Built-In Mic	Yes

  Built-In Speaker	Yes
  Wi-Fi	Yes
  Tripod Mount	1/4" - 20

  Inputs	None
  Outputs	1 x USB 2.0 Type-C
  Microphone Input	No
  Headphone Jack	No

  Battery	Built-In Lithium-Ion Battery, 1000 mAh
  Charging Method	USB
  Dimensions (W x H x D)	1.9 x 4.0 x 1.0" / 4.8 x 10.2 x 2.5 cm
  Weight	2.6 oz / 74 g

  Box Dimensions (LxWxH)	6.55 x 3.25 x 2.4"

• 360RIZE Universal Mount for 360Penguin

  Material of Construction	Aluminum
  Weight	3 oz / 85 g

  Box Dimensions (LxWxH)	5.8 x 3.35 x 1.2"

• 360RIZE Live Streaming Mount for 360Penguin

  Material of Construction

  Aluminum

  Box Dimensions (LxWxH)	3.85 x 3.4 x 1.25"

• SanDisk 32GB Extreme UHS-I microSDHC Memory Card with SD Adapter

  Card Type	microSDHC
  Storage Capacity	32 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Application Performance Class	A1
  Data Transfer	Read Speed: 100 MB/s Maximum (Burst) Write Speed: 60 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Durability	Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Built-in Write-Protect Switch	No
  Wireless Capability	None

  Box Dimensions (LxWxH)	5.0 x 2.7 x 0.2"
