3D Astronomy 8x42 Space Walker 3D

Search your instruction manual in PDF to download

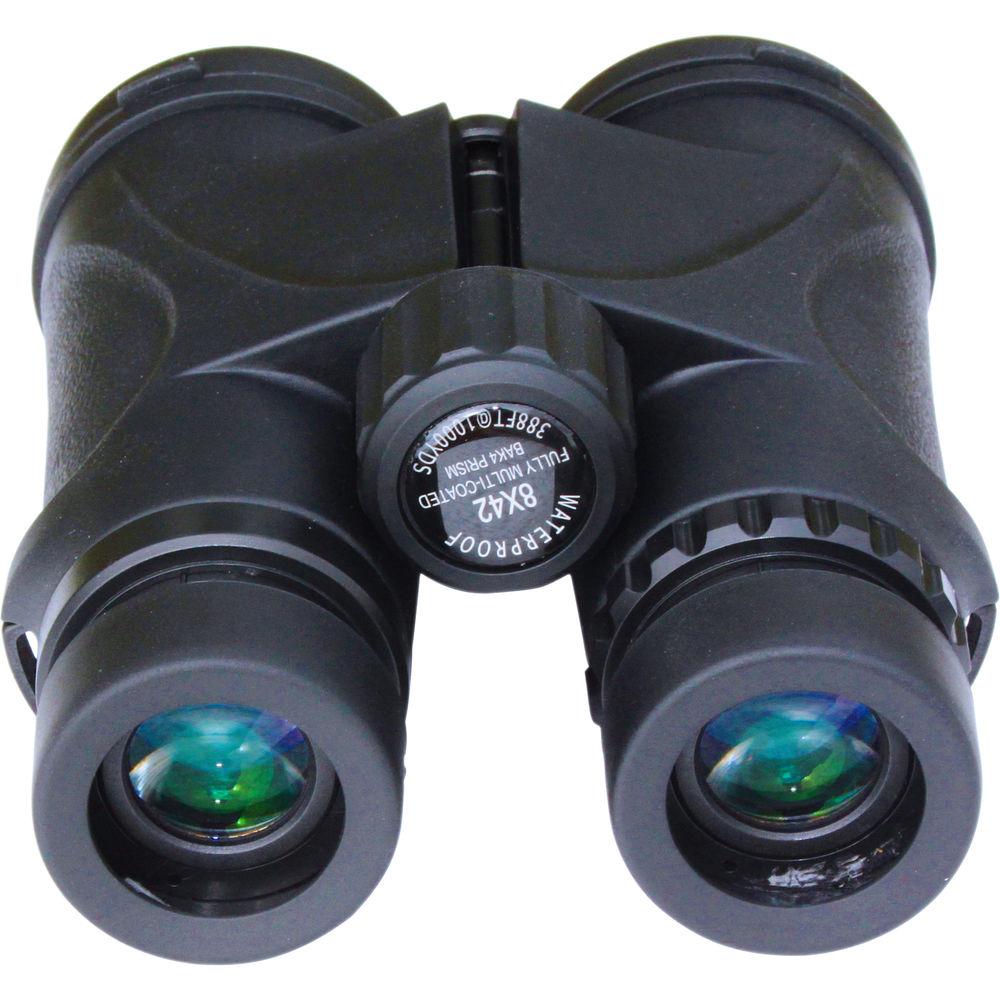

User Manual for 3D Astronomy 8x42 Space Walker 3D Binocular

Click to enlarge the picture
3D Astronomy 8x42 Space Walker 3D Binocular Contents of the user manual for the 3D Astronomy 8x42 Space Walker 3D
  • Product category: Binoculars 3D Astronomy
  • Brand: 3D Astronomy
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for 3D Astronomy Binoculars

3D Astronomy 8x42 Space Walker 3D Binocular 3D Astronomy 8x42 Space Walker 3D Binocular 3D Astronomy 8x42 Space Walker 3D Binocular
User manual for the 3D Astronomy 8x42 Space Walker 3D contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any 3D Astronomy product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official 3D Astronomy user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a 3D Astronomy product will considerably shorten its lifespan!



Product description

In the Field: 3D Astronomy Space Walker 3D Binoculars for Star Gazing Read More Built with the proprietary Lederman Optical Array (LOA) to reproduce the true stereoscopic depth of field of human sight, 3D Astronomy's 8x42 Space Walker 3D Binocular yields views of the night sky that normal binoculars cannot offer. The LOA duplicates the physiological process that allows humans to see with depth perception and eliminates the flat depth of field common when viewing through binoculars focused at infinity. The LOA is complemented by phase-corrected and dielectric coated BAK4 roof prisms and fully multi-coated optics that work together to improve light transmission throughout the optical path, reduce internal light scattering, and increase color rendition, image clarity, and overall contrast. Rounding out the optical performance is a wide angle of view, long eye relief, and comfortable exit pupil. A pair of removable angled eyecups is provided to block peripheral light and eliminate ambient light interference with your viewing experience.
    Optical Performance
    • 8x magnification
    • 42mm objective lenses
    • Compact BAK4 roof prisms
    • Phase-correcting prism coatings reduce internal light scattering while aligning light waves to improve contrast and clarity
    • Dielectric prism coatings reduce light loss for brighter images
    • Fully multi-coated optics reduces light loss and increases color rendition, contrast, and clarity
    • Wide 60° apparent angle of view
    • 388' field of view at 1000 yards
    • Long 17.5mm eye relief
    • Wide 5.25mm exit pupil
    Lederman Optical Array
    • Optical array integrated into one eyepiece
    • Duplicates the physiological process that allows humans to see with depth perception
    • Eliminates the flat view typical when viewing through binoculars focused at infinity to produce a rich depth of field more like natural human vision
    • Produces the angular offset required for true stereoscopic vision no matter how far the field being viewed is located
    Use and Handling
    • Closed-bridge configuration
    • Large knurled center focusing knob
    • 54-75mm interpupillary adjustment range
    • Right-eye dioptric correction allows for eye prescription
    • Twist-up rubber eyecups for comfortable use with or without eyewear
    • Removable angled eyecups block stray peripheral light making images clearer and brighter
    Construction Details
    • Lightweight and strong magnesium alloy chassis
    • Slip-resistant protective rubber armoring
    • Nitrogen-filled for water and fogproof performance
    • Weight: 22 ounces

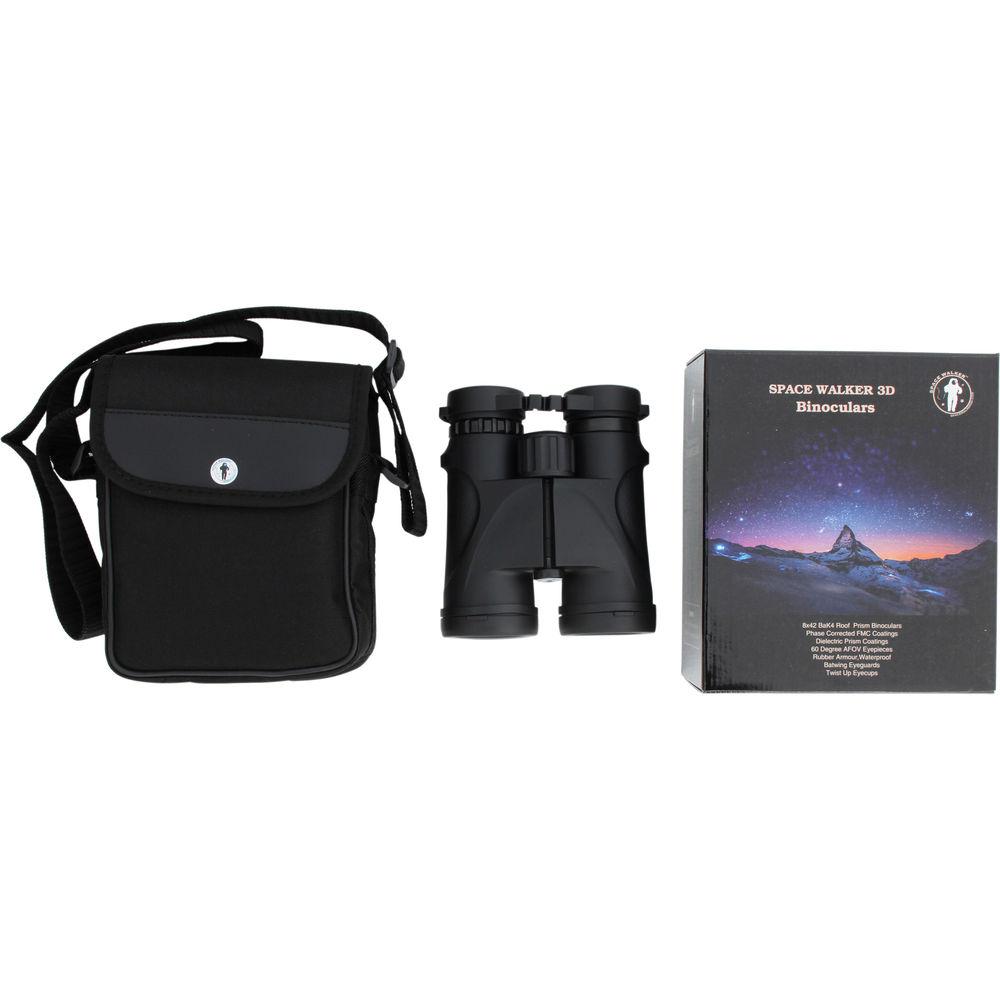

UPC: 700645823698 In the Box 3D Astronomy 8x42 Space Walker 3D Binocular
  • Neck Strap
  • 2 x Angled Eyecups
  • 2 x Ocular Lens Caps
  • 2 x Objective Lens Caps
  • Carrying Case
  • Limited 1-Year Warranty
  • The B&H Binocular Buying Guide Christopher Witt 12/13/2018 becbrqbawdxdfzft Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 becbrqbawdxdfzft A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents




    Upload User Manual

    Have you got an user manual for the 3D Astronomy 8x42 Space Walker 3D Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    3D Astronomy SW-8X42-3D Specs

    Prism Type Roof
    Magnification 8 x
    Objective Lens Diameter 42 mm
    Angle of View 7.5° (Actual)
    Field of View 393.7' @ 1000 yd / 131.2 m @ 1000 m
    Minimum Focus Distance 7' / 2.1 m
    Exit Pupil Diameter 5.25 mm
    Eye Relief 17.5 mm
    Interpupillary Adjustment 54 to 75 mm / 2.1 to 3"
    Focus Type Center
    Tripod Mount None
    Dimensions 5.8 x 4.8" / 14.7 x 12.2 cm
    Weight 22.0 oz / 623.7 g
    Package Weight 2.05 lb
    Box Dimensions (LxWxH) 7.3 x 6.3 x 3.2"
