3D Systems Cube 3 Printer

Search your instruction manual in PDF to download

User Manual for 3D Systems Cube 3 Printer

Click to enlarge the picture
3D Systems Cube 3 Printer Contents of the user manual for the 3D Systems Cube 3 Printer
  • Product category: 3D Printers 3D Systems
  • Brand: 3D Systems
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for 3D Systems 3D Printers

3D Systems Cube 3 Printer 3D Systems Cube 3 Printer 3D Systems Cube 3 Printer 3D Systems Cube 3 Printer 3D Systems Cube 3 Printer 3D Systems Cube 3 Printer
User manual for the 3D Systems Cube 3 Printer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any 3D Systems product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official 3D Systems user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a 3D Systems product will considerably shorten its lifespan!



Product description

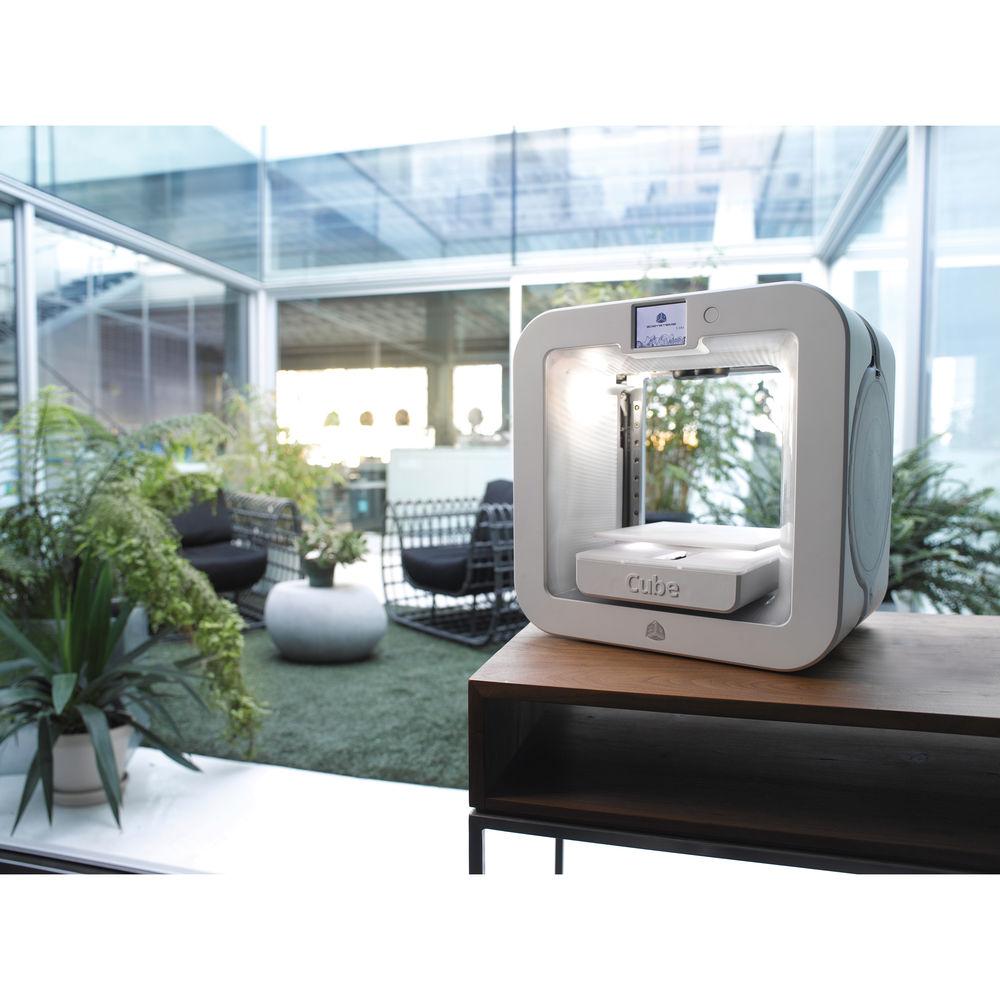

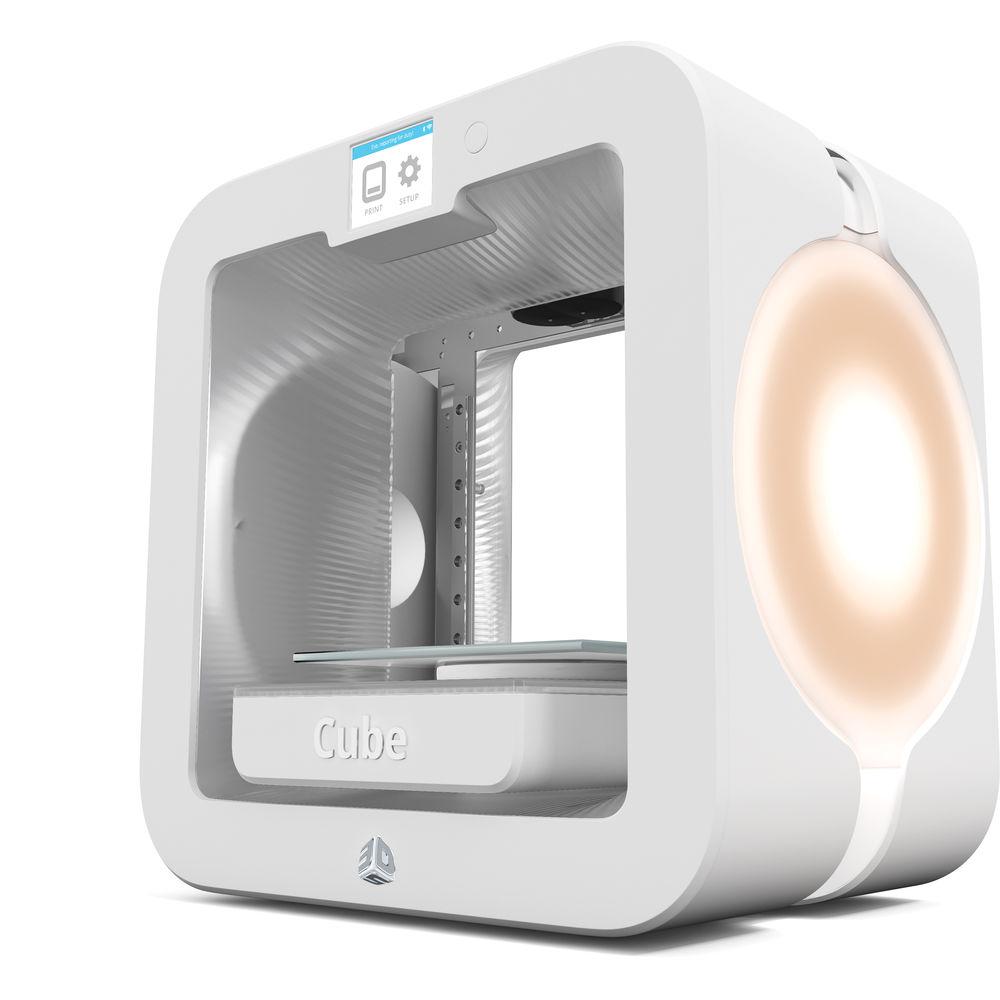

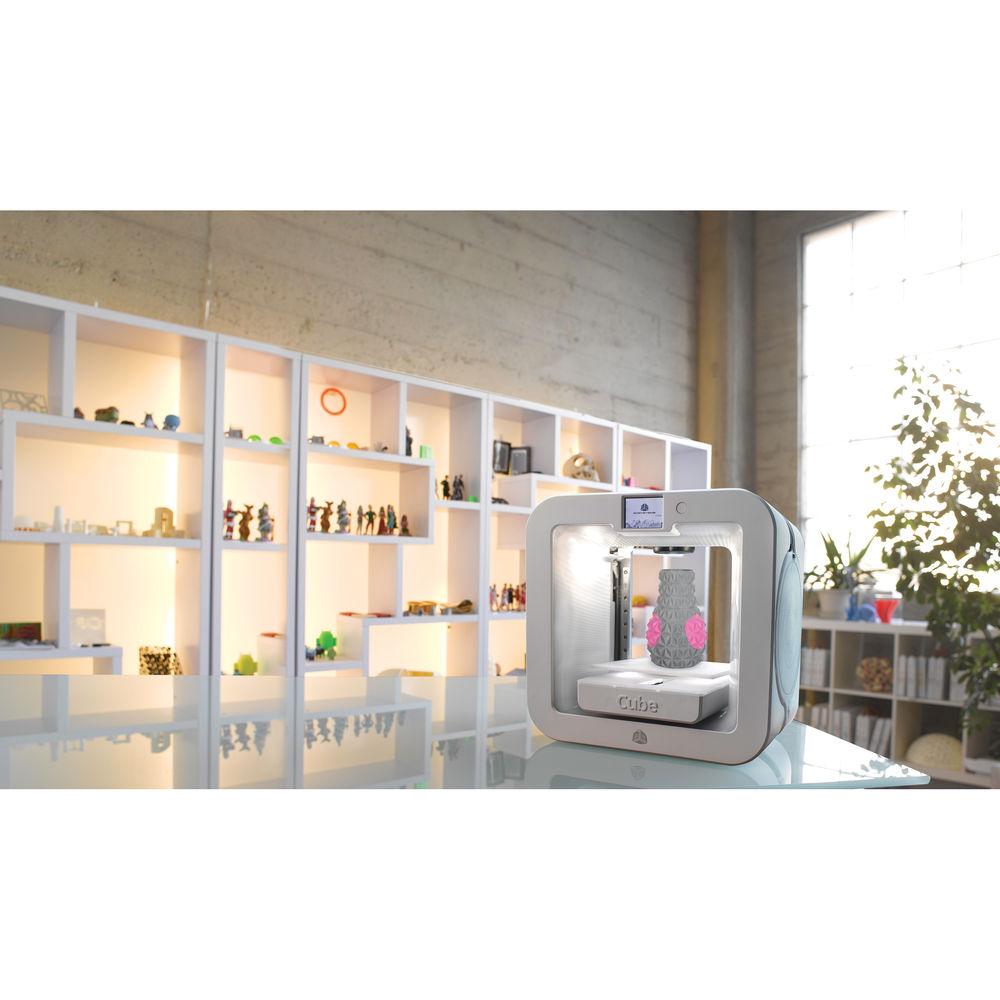

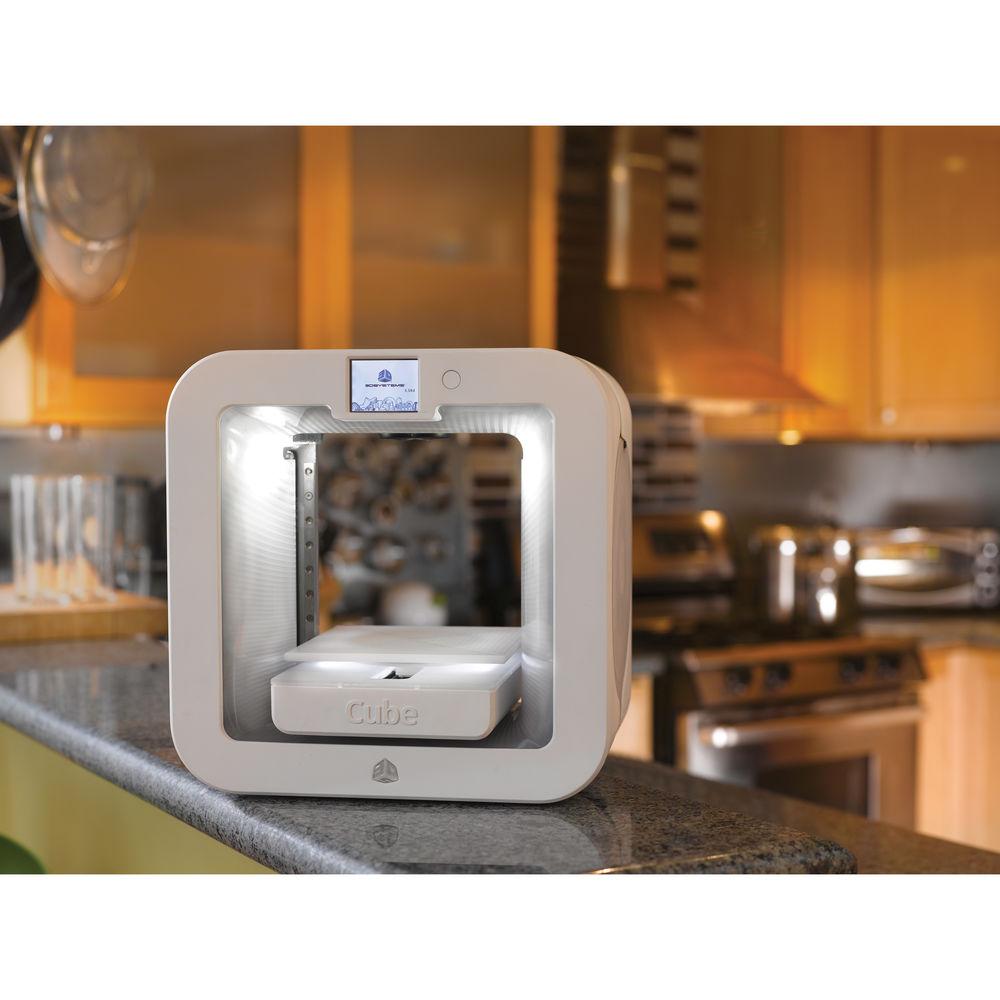

The white Cube 3 from 3D Systems is a desktop 3D printer capable of two-color printing in both ABS and PLA plastics, at resolutions as fine as 70 microns. Design models up to 6 x 6 x 6" in volume, and the Cube 3 will build them by melting plastic in thin sheets, depositing layer upon layer until they form a three-dimensional object.

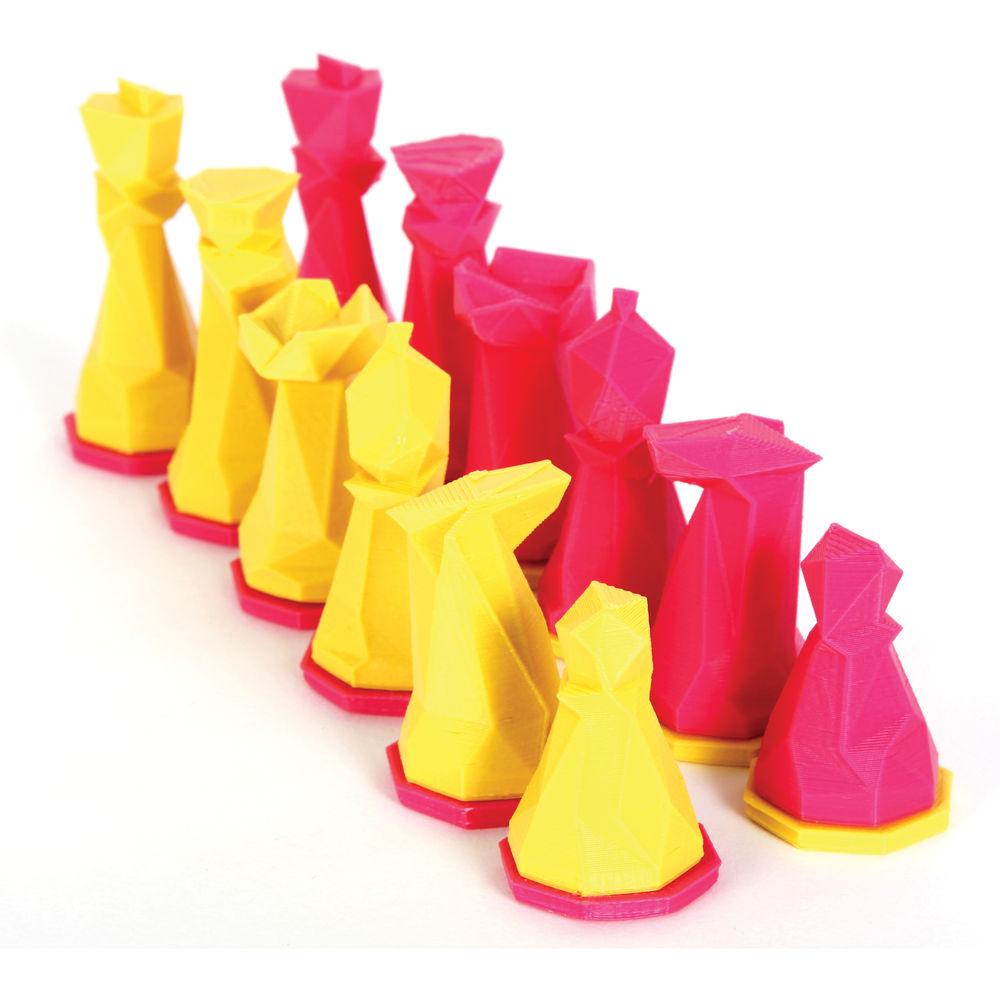

Filament for the Cube 3 comes in redesigned smart cartridges that detect the type and quantity of material in the cartridge, which prompts the Cube to adjust printing settings accordingly. Cube 3 cartridges come in over 20 colors, which can be blended in several hundred combinations when using the dual-jet capability.

Design your model in virtually any CAD software, and convert it to an .stl file for compatibility with the Cubify software. After the Cubify software converts your design to .cube3 format, transfer it onto the included USB stick and insert directly into your Cube, or send it wirelessly via Wi-Fi from your desktop or smartphone.

The Cube 3 Printer is recommended for children 8+ and meets IEC Home Printer Certification 60953 (TUV). When printing with ABS, ensure adequate ventilation, as the oil-based plastic gives off fumes when melted.

The fully-assembled Cube 3 comes with two PLA cartridges, typically neon green and white, but colors may vary. Also included are 25 free designs and a USB stick to help you start printing right out of the box.
    Smart, Moisture-Lock Cartridges
  • 3D Systems redesigned their filament cartridges expressly for the Cube 3. Instant-load cartridges with non-clog technology and moisture-lock construction preserve the life and quality of the materials. The printer detects material type automatically based on the cartridge, eliminating the need to change print settings.
    Cubify Software
  • The Cubify software is a free download that converts .stl and .creation files into .cube3 format, which is the only format your Cube will print. Most CAD software can create .stl files, but if you have .obj or other file formats, you'll need to convert them to .stl before using Cubify to convert them further into .cube3 format. The Cube software works on both Windows and Mac OS X.

    Although the Cubify software lets you orient, scale, and add supports to your 3D model, it is not a design tool.
    Wired & Wireless Printing
  • Transfer your completed designs to your 3D printer with the provided USB stick or via Wi-Fi from your desktop software.
    Precision & Print Mode
  • The Cube 3 features an auto-leveling print pad that eliminates the human error possible with manual calibration. Your printer is also capable of very fine, precise printing at a 70-micron resolution - thinner than a piece of paper. Of course you can always choose faster printing, at 200 microns, when such detail isn't necessary.

    The print modes determine how much plastic is used to make the part, how long it will take to print, and how strong it will be. Cube 3 can print in three different print modes: lines, diamonds and honeycomb.
    • Lines mode is appropriate for building parts that do not require internal structural strength.
    • Diamonds mode is geared for self-supporting parts that require minimal internal structural strength and lower requirement for flat top surfaces.
    • Honeycomb works when you need both great internal structural strength and optimum flat top surfaces.
UPC: 840846100256 In the Box 3D Systems Cube 3 Printer (White)
  • 2 x PLA Cartridges
  • USB Stick
  • 25 Free Designs
  • Bottle of 3D Systems CubeStick
  • Limited 90-Day Warranty
  • Guides & Manuals atzdtyyvuvsceecyffwxufwxtczfvfevw Table of Contents




    Upload User Manual

    Have you got an user manual for the 3D Systems Cube 3 Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    3D Systems 392200 Specs

    Print Technology Fused Filament Fabrication (FFF) (Marketed as Plastic Jet Printing (PJP))
    Build Volume 6 x 6 x 6" / 15.2 x 15.24 x 15.2 cm Using 2 Extruders
    Layer Resolution (XY Axis) 70 micron / 0.07 mm
    200 micron / 0.2 mm
    Number of Extruders 2
    Filament Diameter 1.75 mm
    Filament Compatibility ABS, PLA
    Build Area Open
    Filament Spool Storage Proprietary Cartridge
    Camera No
    3D Scanner No
    Heated No
    Leveling Self-Leveling
    Mobile App Connectivity Yes
    Mac OS X Compatibility 10.8 and Above
    Windows Compatibility 7 and Above
    Linux Compatibility No
    Dimensions (W x H x D) 13.2 x 13.5 x 9.5" / 33.53 x 34.29 x 24.13 cm
    Weight 17.00 lb / 7.71 kg
    Package Weight 30.8 lb
    Box Dimensions (LxWxH) 26.0 x 20.0 x 16.0"
