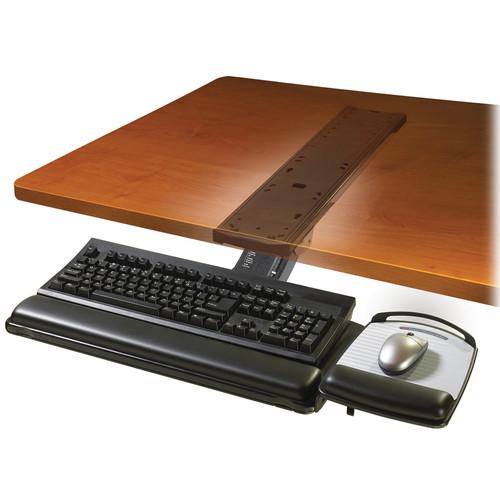

User Manual for 3M AKT180LE Adjustable Keyboard Tray with Sit Stand Easy-Adjust Arm

Click to enlarge the picture
3M AKT180LE Adjustable Keyboard Tray with Sit Stand Easy-Adjust Arm Contents of the user manual for the 3M AKT180LE Adjustable Keyboard Tray with
  • Product category: Keyboard Drawers 3M
  • Brand: 3M
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for 3M Keyboard Drawers

User manual for the 3M AKT180LE Adjustable Keyboard Tray with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any 3M product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official 3M user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a 3M product will considerably shorten its lifespan!



Product description

The AKT180LE Adjustable Keyboard Tray with Sit/Stand Easy-Adjust Arm from 3M lets you position your keyboard and mouse in an ergonomically correct position for maximum comfort and productivity. The easy adjustment system and wide range of arm height positions allow you to move between sitting and standing positions, providing ergonomic benefit and helping avoid repetitive stress injuries. The included WR310LE and WR305LE anti-microbial gel wrist rests with Dual Lock Attachment System add comfort and minimize pressure points. The keyboard tray is compatible with corner workstations, where the mounting depth is greater than 23.25". The mouse platform is a separate platform that is separately adjustable.
    Included Gel Wrist Rests with Anti-Microbial Protection
  • The included WR310LE and WR305LE gel wrist rests with anti -microbial protection add comfort by minimizing pressure points

    Anti-microbial product protection inhibits the growth of microorganisms, such as bacteria, on the product surface. This prevents stains, odors, and product degradation
    Dual Lock Attachment System
  • The dual lock attachment system holds wrist rests in place and allows easy removal for re-positioning or replacement
    Easy Adjust Sit/Stand Arm
  • You can switch between sitting and standing positions without adjusting levers or knobs. Arm raises platform up to 10" above the mounting surface
    Adjustable Platform for Mouse and Keyboard
  • Adjustable keyboard platform can be moved left and right to achieve the exact position of the keyboard

    Platform slides left and right over the keyboard

    The mouse platform is a separate platform that is separately adjustable. The AKT180LE also accepts a second mouse platform (sold separately).

    Features tilt and height indicators. Tilt can be adjusted by turning the knob to dial in the desired angle. For situations where there is an obstruction beneath the work surface, forcing the track to be mounted off-center from its ideal location, simply loosen red knob and adjust

    Lever-free lift and lock adjustment for height

    Compatible with ergonomic keyboards
UPC: 051131946712 In the Box 3M AKT180LE Adjustable Keyboard Tray with Sit/Stand Easy-Adjust Arm
  • WR310LE and WR305LE Gel Wrist Rests
  • Limited 1-Year Warranty on Wrist Rest
  • Limited Lifetime Warranty on Keyboard Tray
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the 3M AKT180LE Adjustable Keyboard Tray with Sit Stand Easy-Adjust Arm in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    3M AKT180LE Specs

    Platform Type KP200LE Adjustable platform for keyboard and mouse
    Arm Type Sit/stand easy adjust
    Track Length 23.0" (58.4 cm)
    Tilt Range Forward: +10°
    Backward: -15°
    Swivel Range 360°
    Compatibility Ergonomic keyboards
    Corner workstations
    Platform Width 19.5" (495.0 mm)
    Platform Depth 10.6" (270.0 mm)
    Height/Tilt Indicator Yes
    Required Length for Diagonal Corner Minimum: 17.0" (432.0 mm)
    Required Radius for Curved Corner Minimum: 12.0" (305.0 mm)
    Height Above Mounting Surface 10.0" (25.4 cm)
    Depth Below Mounting Surface 4.0" (10.2 cm)
    Required Width Below Mounting Surface 24.0" (61.0 cm)
    Required Depth Below Mounting Surface 23.2" (591.0 mm)
    Standard BIFMA Specifications (x 5.5-1998)
    Package Weight 20.0 lb
    Box Dimensions (LxWxH) 23.9 x 13.0 x 9.7"
