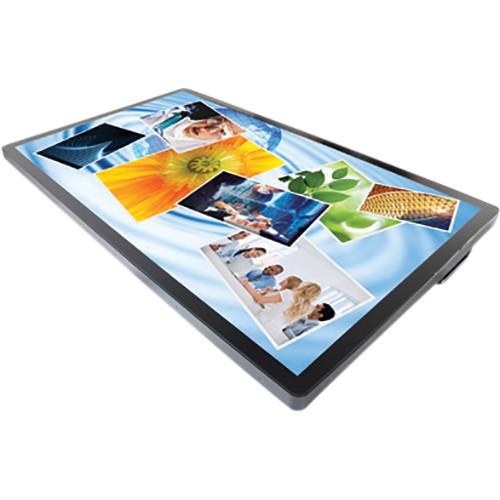

User Manual for 3M C5567PW 55" Full HD Multi-Touch Commercial LED Monitor Click to enlarge the picture
Contents of the user manual for the 3M C5567PW 55" Full HD Multi-Touch
- Product category: Commercial Monitors 3M
- Brand: 3M
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 3M Commercial Monitors
 |
User manual for the 3M C5567PW 55" Full HD Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 3M product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 3M user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 3M product will considerably shorten its lifespan!
|
Product description The C5567PW 55" Multi-Touch Display from 3M features 3M's Projected Capacitive (3M PCT) multi-touch technology and bezel-free display design to create, deliver, and experience engaging multi-user applications. This easy-to-integrate commercial display can be used as an interactive digital signage, a slim interactive table, or a kiosk. It delivers 60 simultaneous touches over 1,200 in2 of interactive surface area, at a fast 10 ms response time for a more natural, intuitive and user-responsive interface. In addition, this display features a built-in palm rejection algorithm to ensure that unintended contact with the screen is ignored and does not interfere with the user's intended action. The design of the projected capacitive sensor has more than 18,600 touch sensing points in close proximity, making it precise and accurate across the entire touchscreen. The durable 4mm tempered glass touch surface provides an anti-glare surface for image clarity in environments with bright ambient light. Its anti-stiction properties provide finger glide capability, allowing users' fingers to effortlessly glide across the display for easy gesture functions. The 55" LED-backlit panel displays Full HD (1920 x 1080) video content and wide viewing angles of 178° ensure no color deviation or distortion from virtually any angle. It features a thermal management system with replaceable 3M air filters, which ensures the touch surface is maintained at a comfortable temperature for the user, even in a horizontal table implementation. The all-steel construction and durable glass surface is suitable for unattended public installations. It supports landscape as well as portrait orientations. 3M PCT Multi-Touch Technology - 60-touch multi-touch input enables intuitive on-screen collaboration
- Fast <10 ms touch response creates a natural, intuitive, and responsive interface
- Palm rejection algorithms help prevent unintended touches that commonly occur in table applications
- Anti-stiction surface enhances the user experience for simple and advanced gestures
Durable Design - Flat front surface design built in for elegant modern aesthetics
- Slim 2.9" thickness provides sleek low-profile appearance while enabling easy integration on wall, table, or enclosure
- All-metal construction provides rugged frame for public use environments
- Thermal management system designed to keep display cool to the touch in tabletop and enclosure installations
- Active cooling system with replaceable 3M air filters ensures a cool touching surface, regardless of orientation and all but eliminates dust from entering the display
Display for Multi-Touch Applications - Anti-glare coating to maintain image quality under harsh ambient lighting
- Full HD resolution (1920 x 1080) with a fine pixel pitch to maintain sharp image quality while performing up-close interactions
- Wide viewing angle presents a brilliant image at most angles
- LED backlights deliver a long lasting, bright, uniform image regardless of integrated orientation
- Support for remote display controls through RS-323 ports
- Supports active pens and conductive styli
- Suitable for interactive digital signage, retail product selector, point of information, training and simulation, command and control, transportation, ticketing/vending, wayfinding, pro audio/visual, geospatial, tele-presence, and broadcast applications

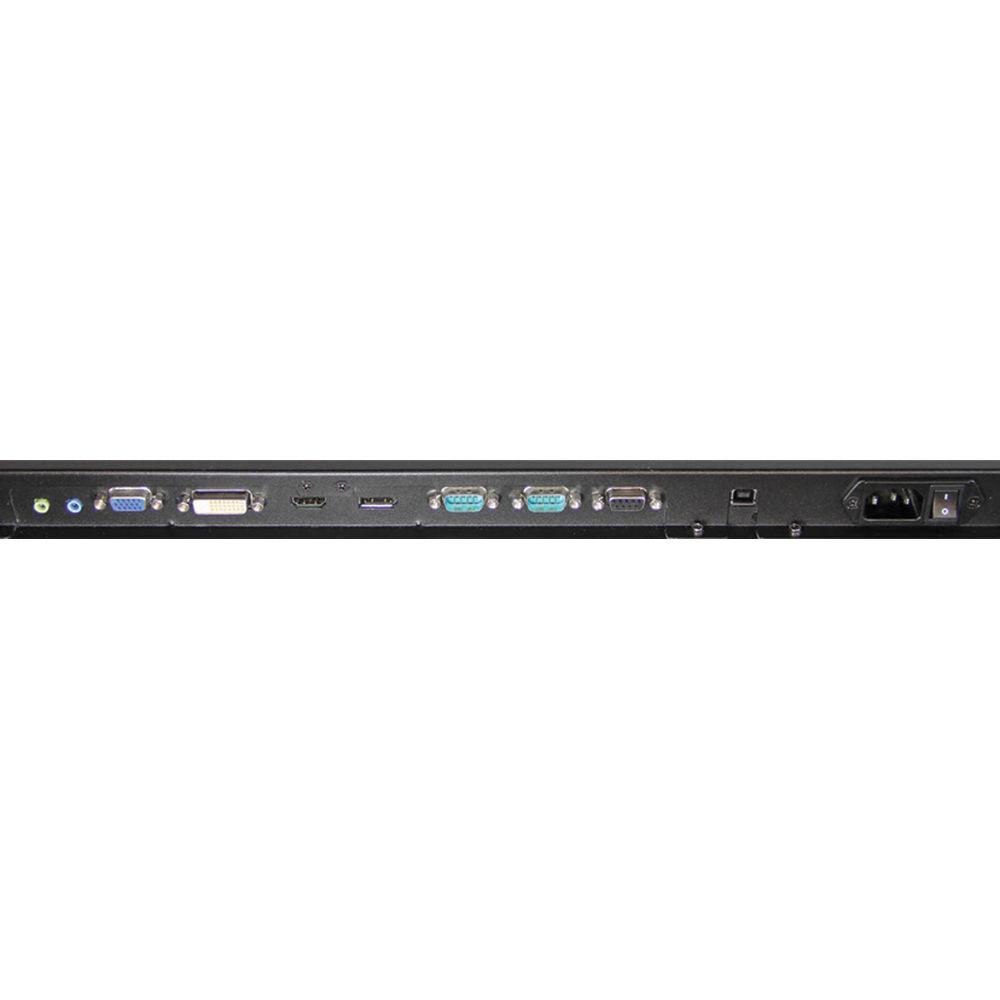

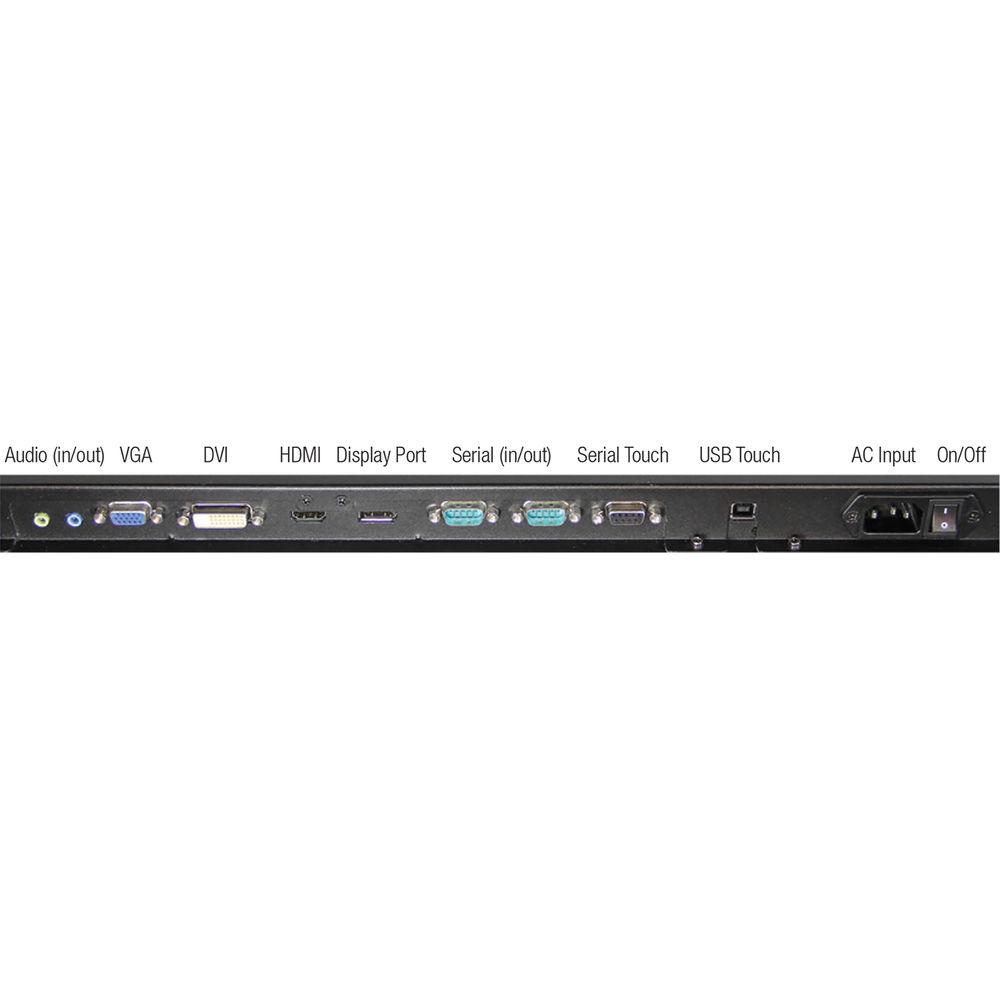

In the Box 3M C5567PW 55" Full HD Multi-Touch Commercial LED Monitor VGA Cable HDMI Cable DisplayPort Cable DVI Cable USB Cable RS-232 Cable Audio Cable US Power Cable Touch Control CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 3M C5567PW 55" Full HD Multi-Touch Commercial LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters3M C5567PW Specs | | | Resolution | 1920 x 1080 | | Panel Type | VA LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
