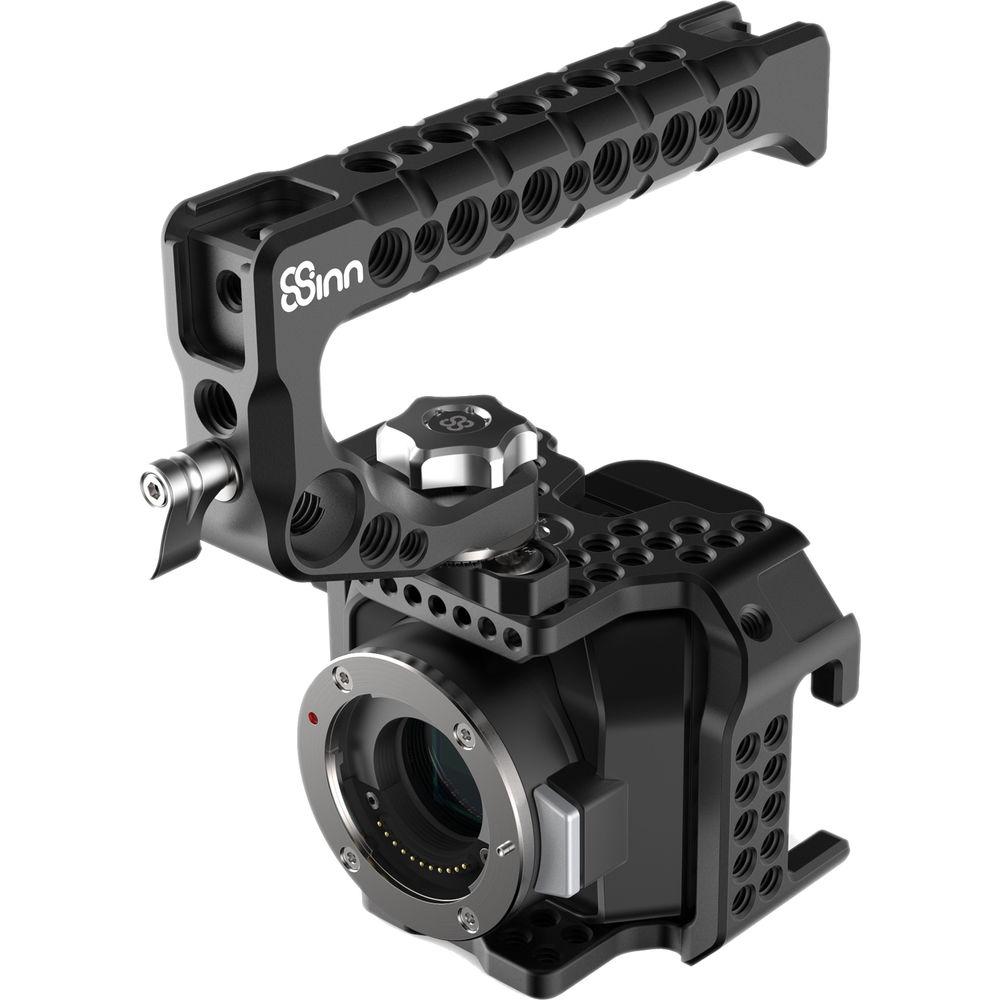

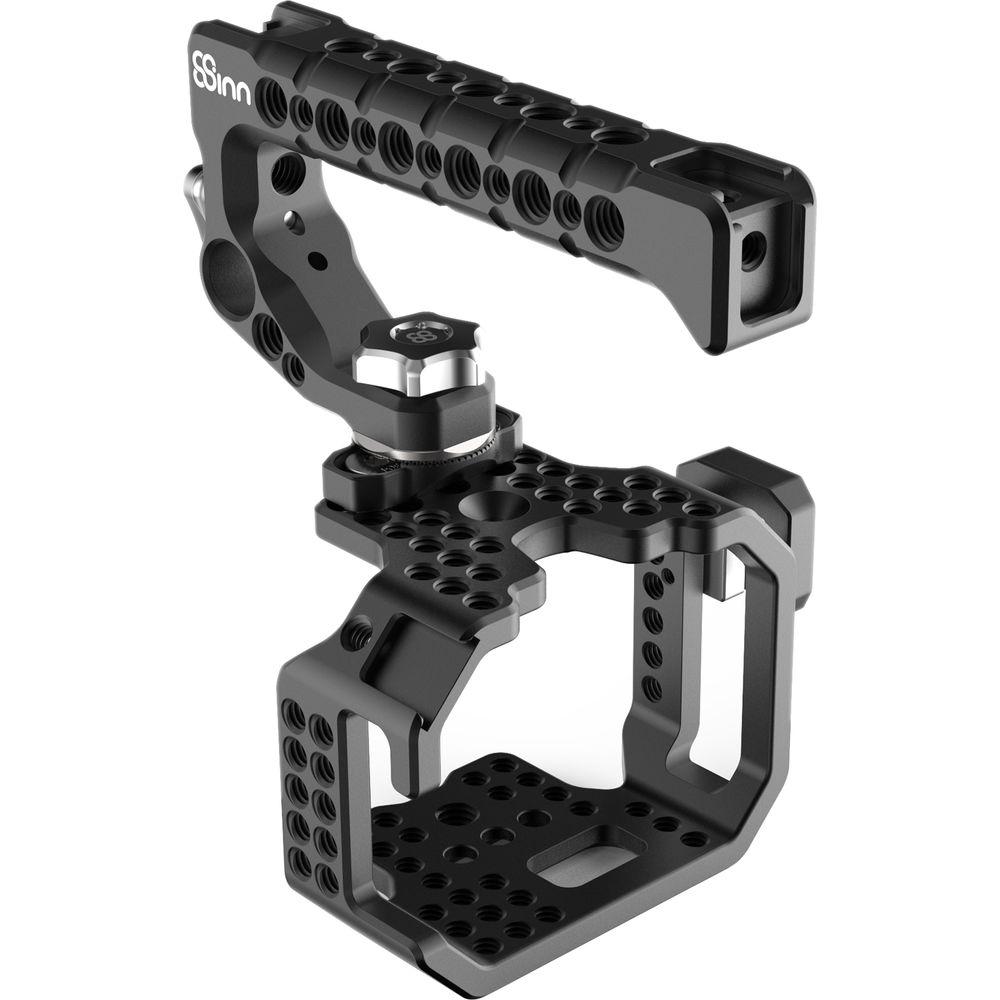

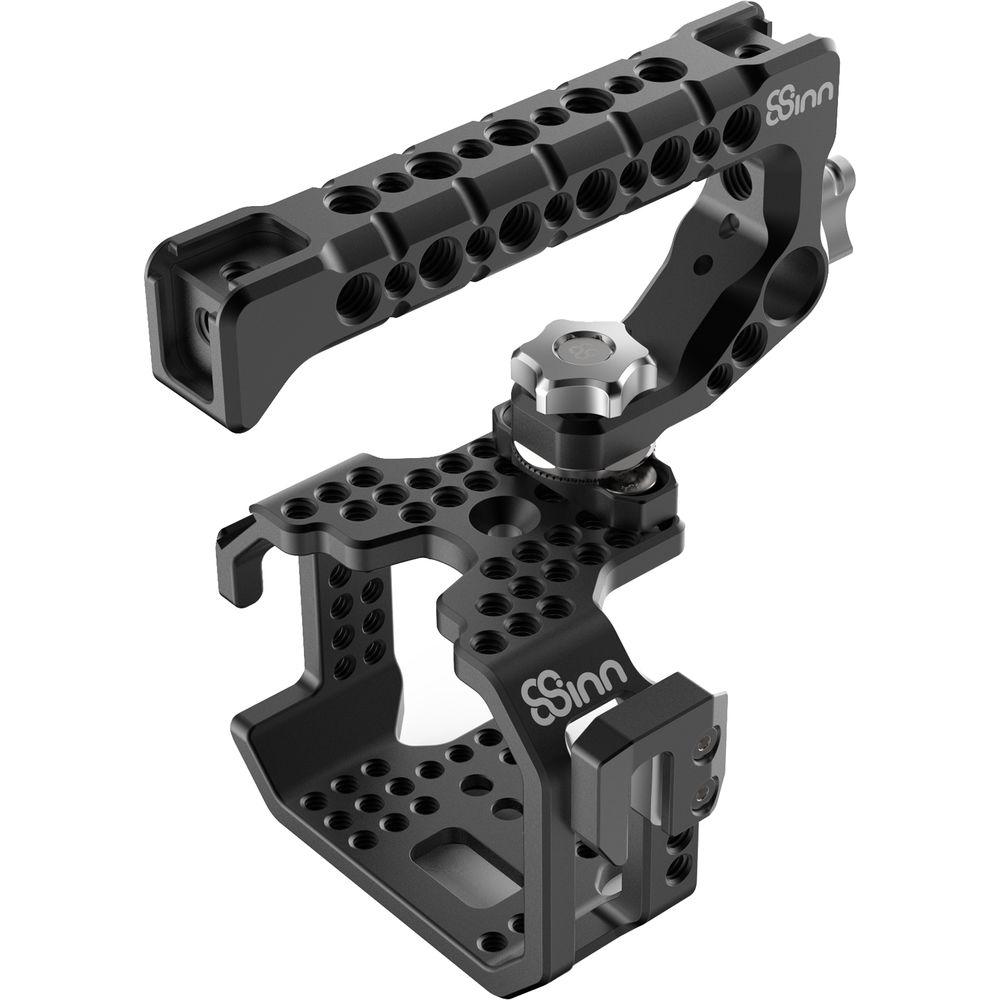

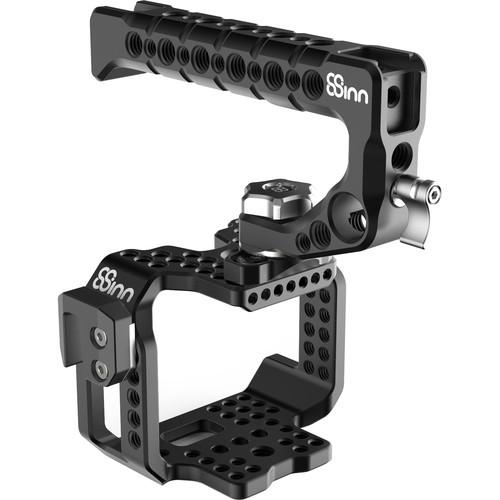

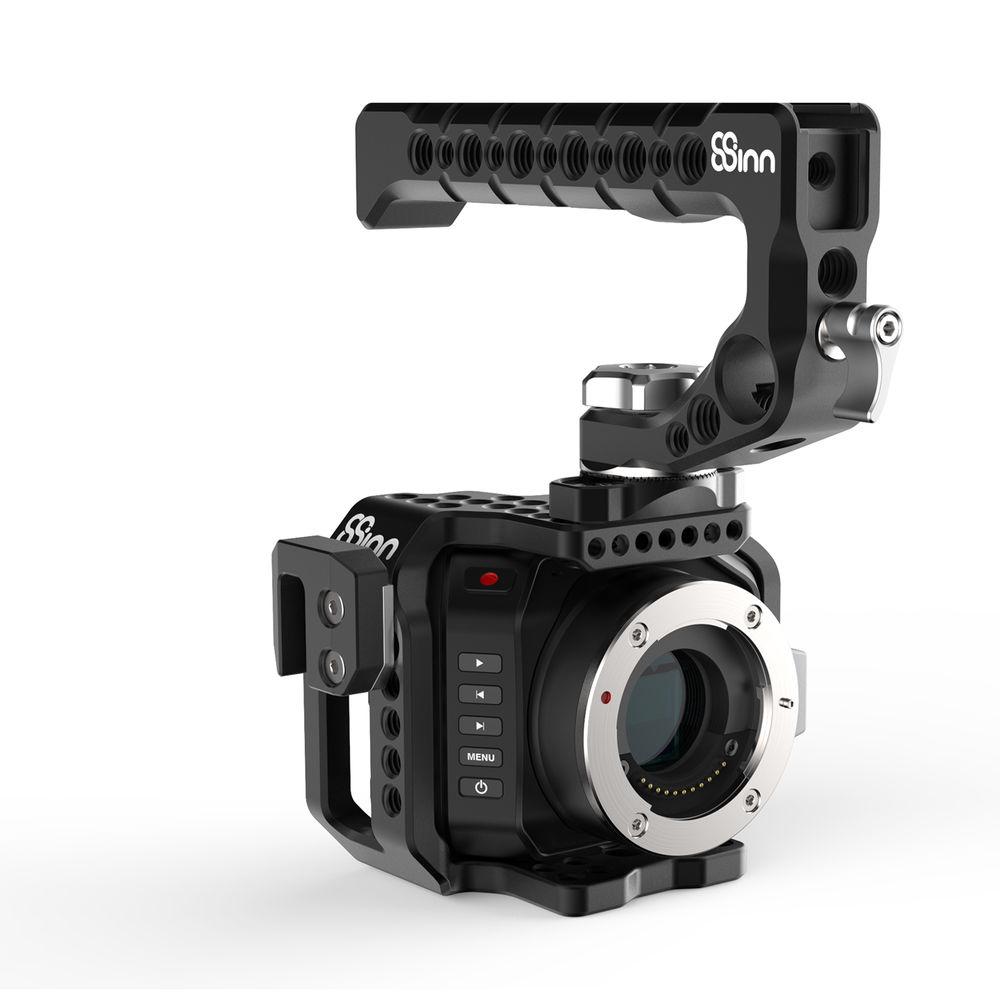

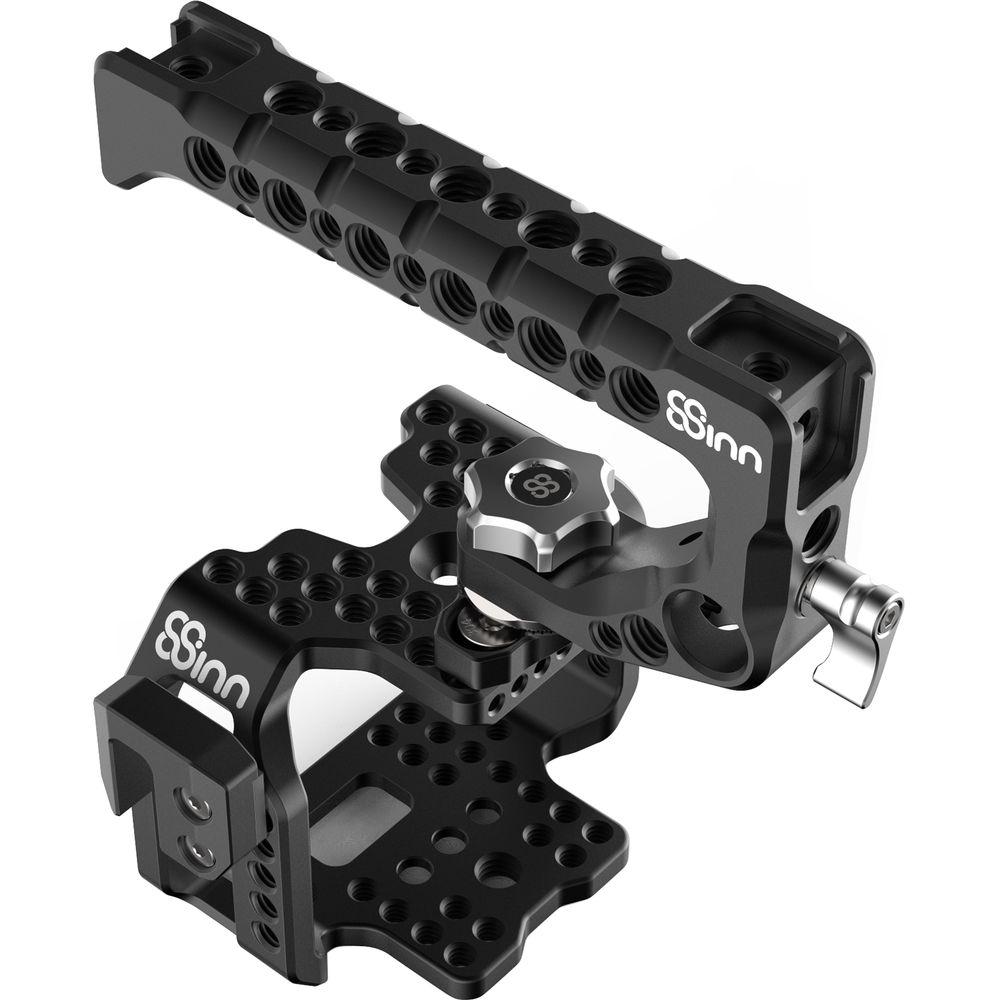

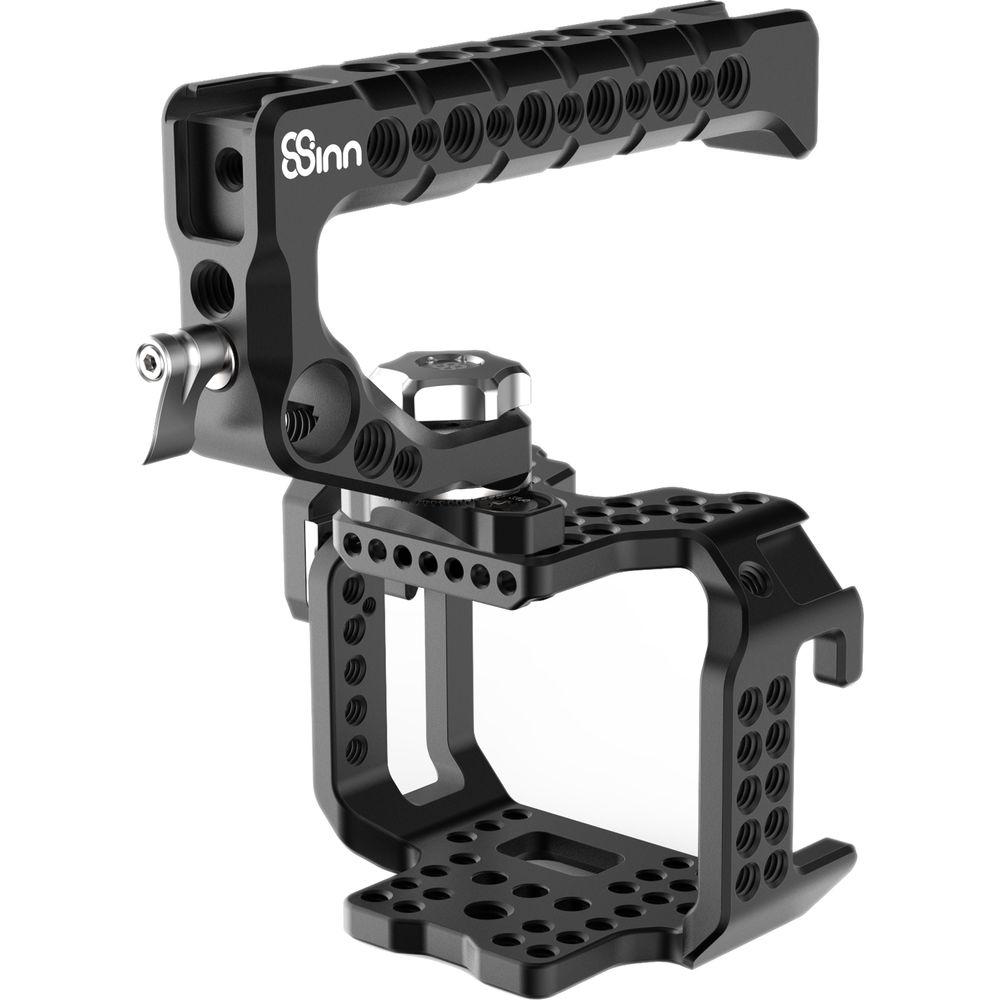

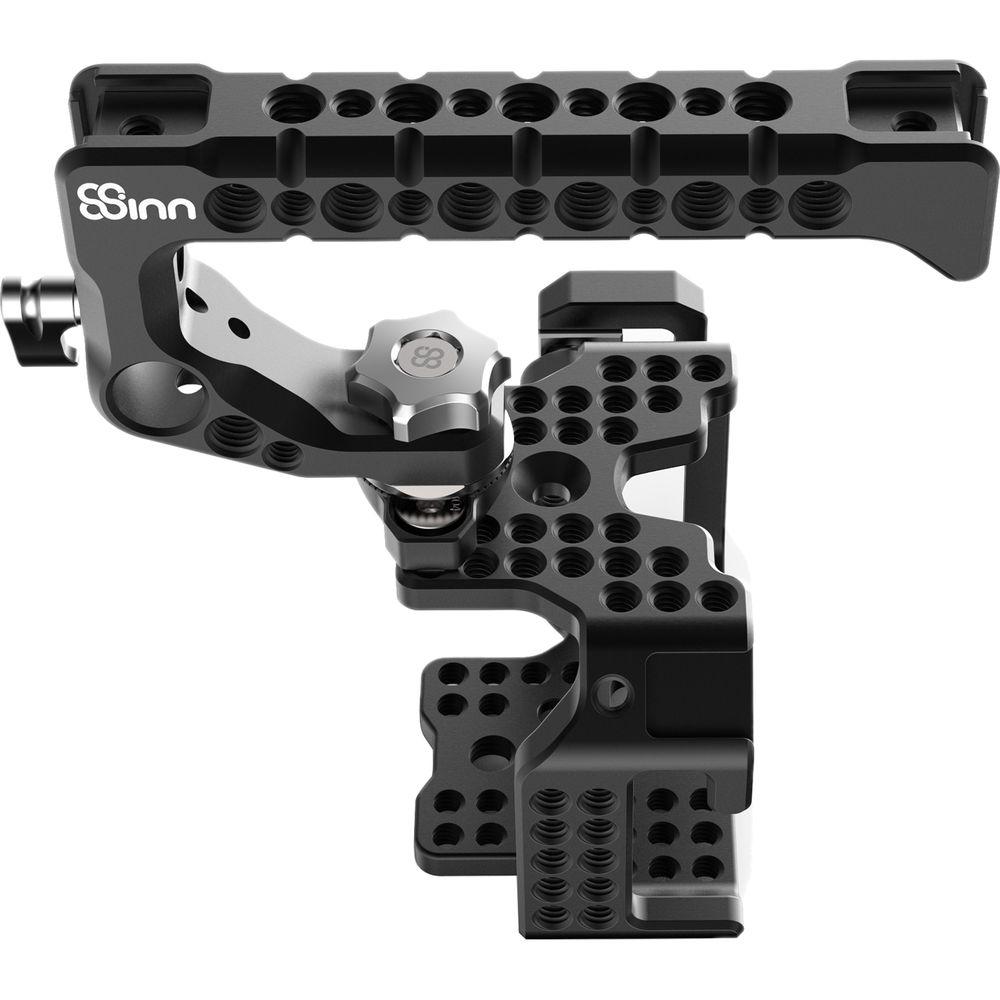

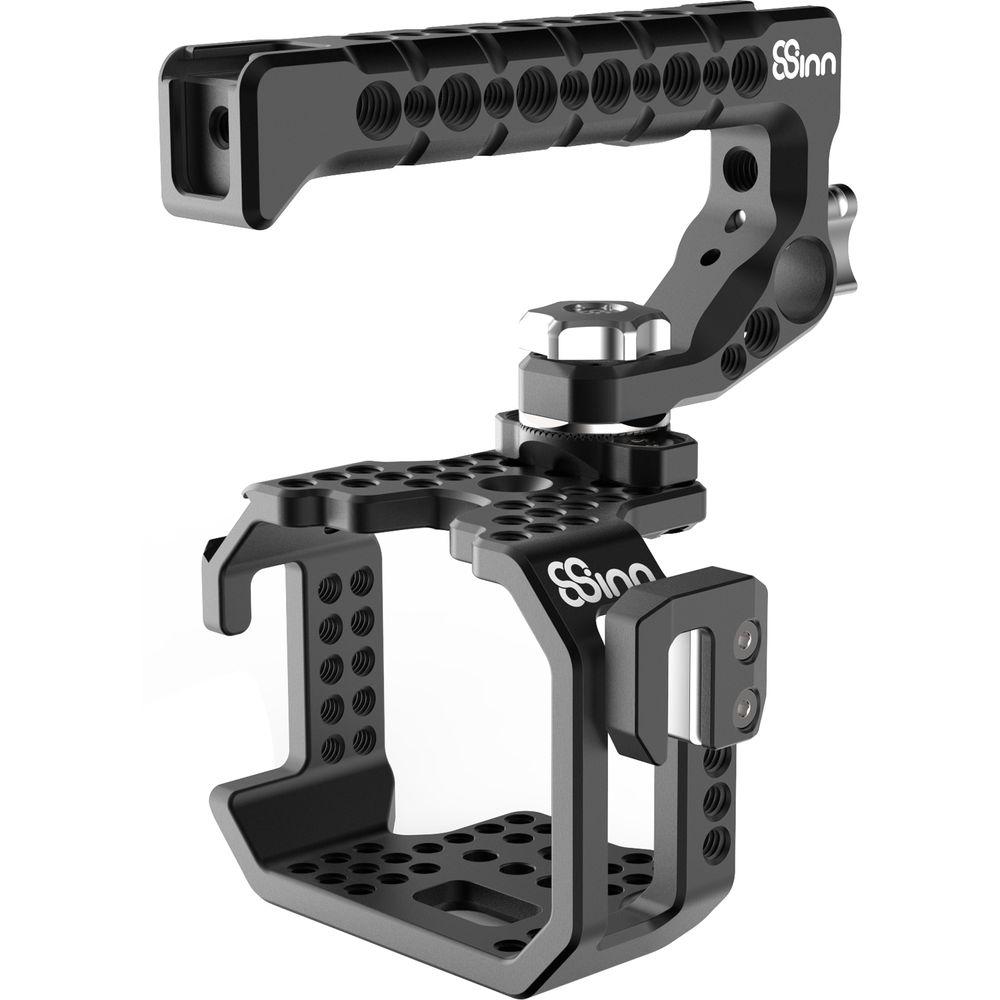

User Manual for 8Sinn Cage & Top Handle Scorpio with 28mm Rosette for Blackmagic Micro Cinema Studio Click to enlarge the picture
Contents of the user manual for the 8Sinn Cage & Top Handle Scorpio
- Product category: Camcorder Supports & Rigs 8Sinn
- Brand: 8Sinn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 8Sinn Camcorder Supports & Rigs
 |
User manual for the 8Sinn Cage & Top Handle Scorpio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 8Sinn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 8Sinn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 8Sinn product will considerably shorten its lifespan!
|
Product description The 8Sinn Cage & Top Handle Scorpio with 28mm Rosette for Blackmagic Micro Cinema/Studio is a CNC Machined, anodized aluminum full-armored cage with integrated accessory mounting holes and orientable top handle system. The cage is suitable for use with either the Micro Cinema or Micro Studio camera, and features a built-in cold shoe. The camera nestles within the cage, which features holes that line up with the top and bottom threaded holes on the camera to securely mount it and prevent it from twisting within the cage. Threaded 1/4"-20, 3/8"-16, and M4 mounting holes allow you to attach accessories without stressing your camera's body. Access to all camera functions, as well as battery and media doors, is maintained. An included HDMI cable clamp mounts on the side of the cage and is adjustable to fit your HDMI cable.
The top handle attaches via a 28mm rosette system, which allows the top handle to be mounted in multiple orientations and not just forward- or rear-facing. It features four cold shoe mounts and multiple 1/4"-20 and 3/8"-16 threaded mounting holes. - The formfitting cage prevents the camera from twisting.
- The cage features a variety of 1/4"-20, 3/8"-16, and M4 threaded accessory mounting holes. This allows you to mount accessories without stressing your camera's body.
- The Scorpio Top Handle features two sets of top- and forward-mounted cold shoe mounts. It also features 1/4"-20 and 3/8"-16 threaded mounting holes.
- The Scorpio Top Handle also integrates a 15mm rod clamp that secures an optional 15mm rod perpendicular to the handle, providing additional accessory mounting opportunities.
- The included HDMI cable clamp helps prevent accidental kick outs of an attached HDMI cable.
In the Box 8Sinn Cage & Top Handle Scorpio with 28mm Rosette for Blackmagic Micro Cinema/Studio Cage for Blackmagic Design Micro Cinema/Studio urrzdzqsbqvssryafwfsdxrezzvbyxdfwzwfyr Scorpio Top Handle ARRI Rosette 28mm Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the 8Sinn Cage & Top Handle Scorpio with 28mm Rosette for Blackmagic Micro Cinema Studio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters8Sinn 8-BMMCC C+THS Specs | Material of Construction | Anodized CNC Machined 6061 aluminum | | Mounting | Cage
Threaded Mounting Holes: 1/4"-20, 3/8"-16, M4
Top Handle
Threaded Mounting Holes: 1/4"-20, 3/8"-16
Cold Shoes
Cage: 1
Top Handle: 4 | | Dimensions | Cage: 3.95 x 3.17 x 2.36" / 10.04 x 8.04 x 6.0 cm
Top Handle: 5.71 x 2.8 x 0.98" / 14.5 x 7.1 x 2.5 cm | | Weight | Cage: 5.54 oz / 157 g
Top Handle: 7.7 oz / 218 g | | | | Package Weight | 1.305 lb | | Box Dimensions (LxWxH) | 9.35 x 5.85 x 3.05" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
