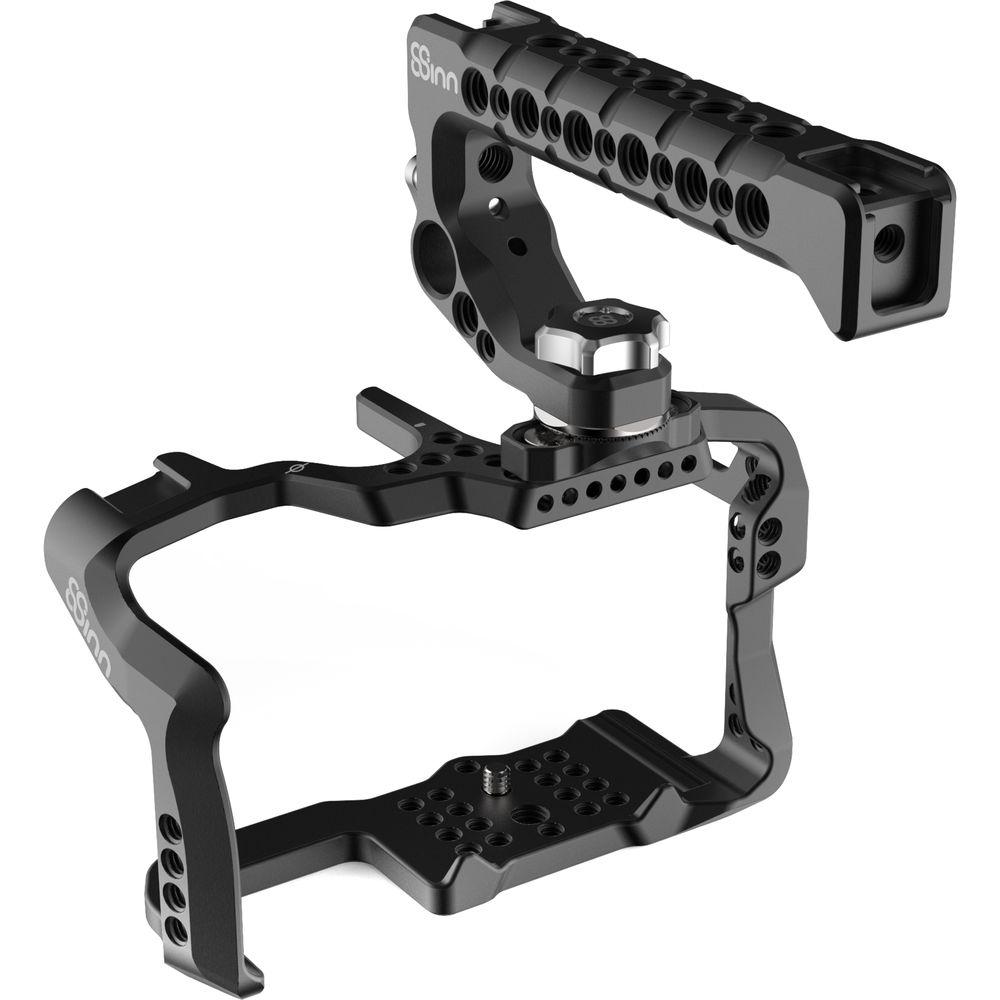

User Manual for 8Sinn GH5 GH5S Cage Top Handle Scorpio with 28mm Rosette Mount Click to enlarge the picture
Contents of the user manual for the 8Sinn GH5 GH5S Cage Top Handle
- Product category: DSLR Video Supports & Rigs 8Sinn
- Brand: 8Sinn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 8Sinn DSLR Video Supports & Rigs
 |
User manual for the 8Sinn GH5 GH5S Cage Top Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 8Sinn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 8Sinn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 8Sinn product will considerably shorten its lifespan!
|

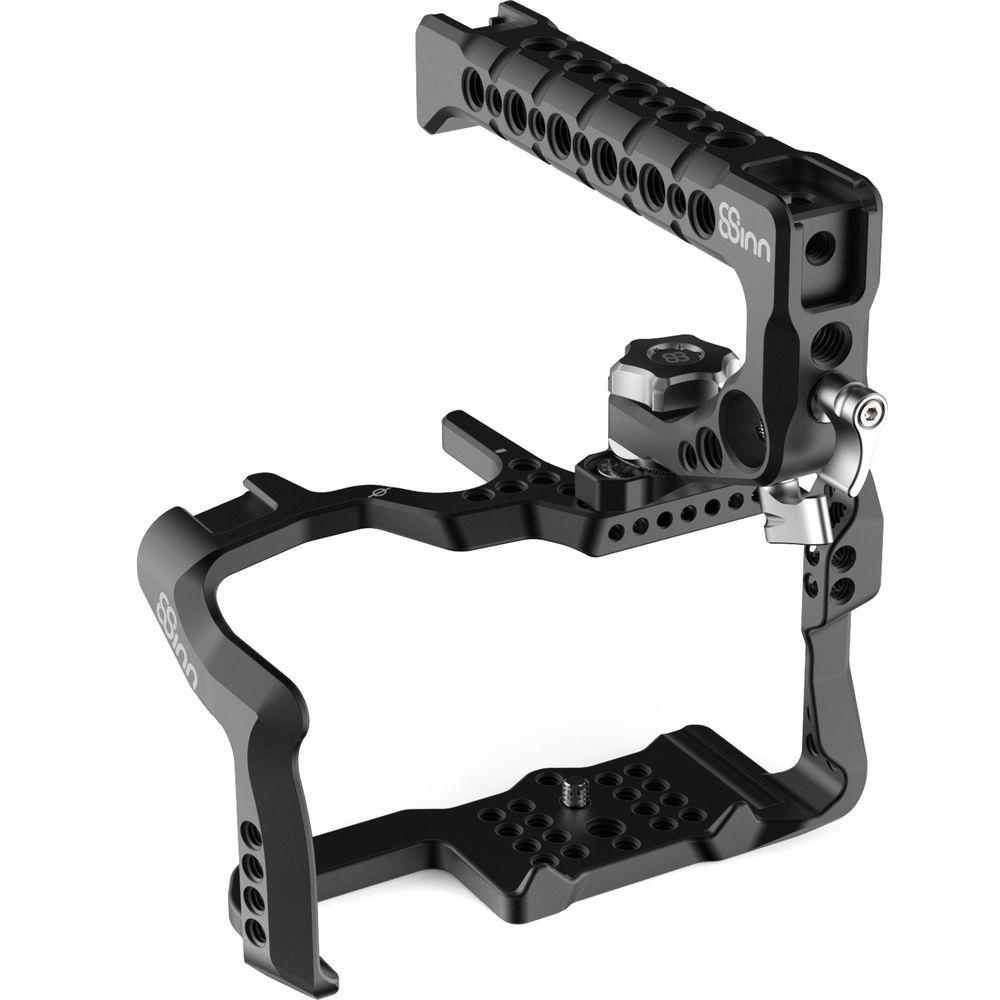

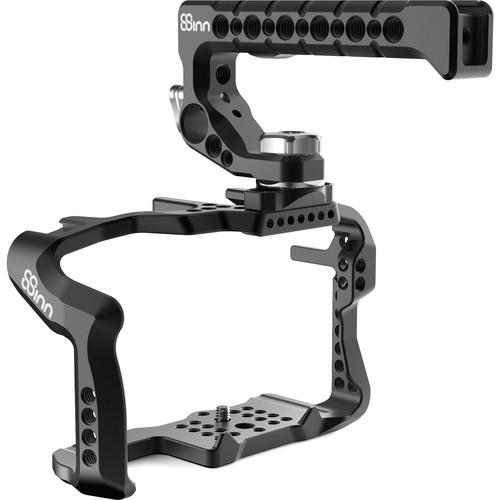

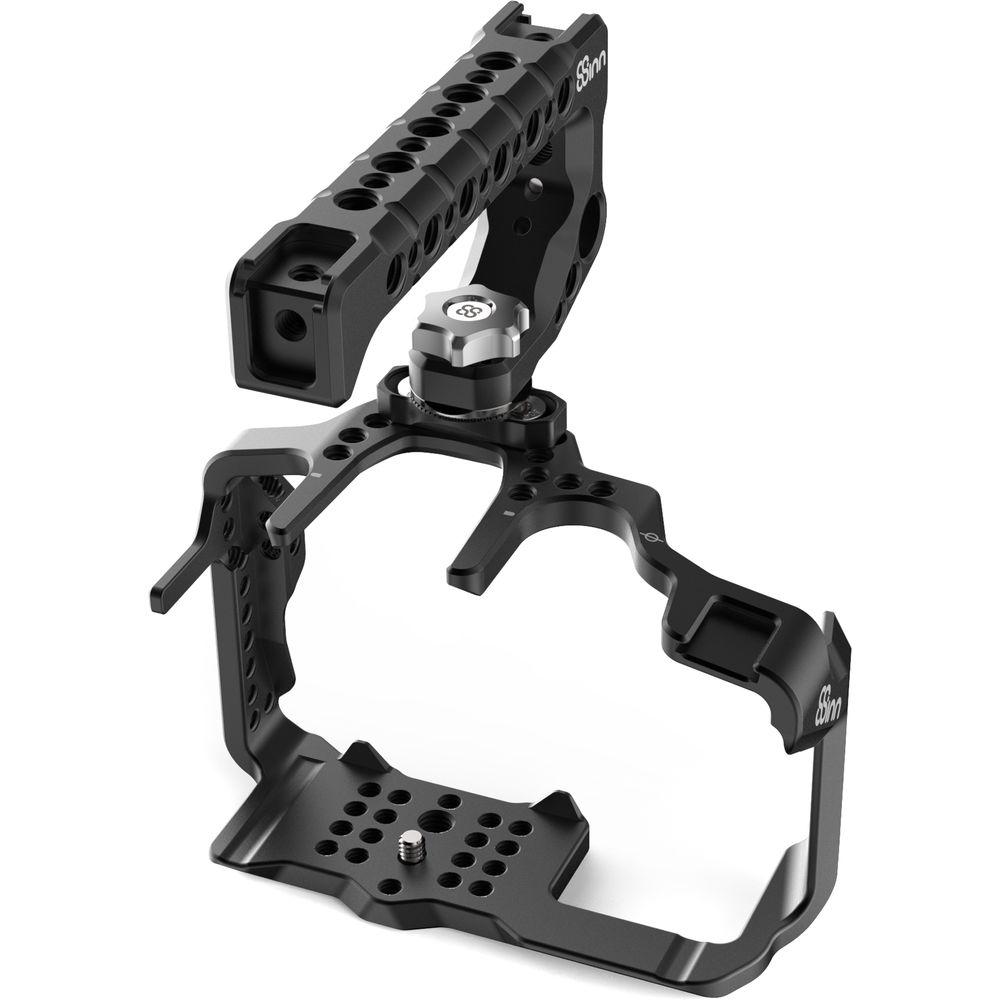

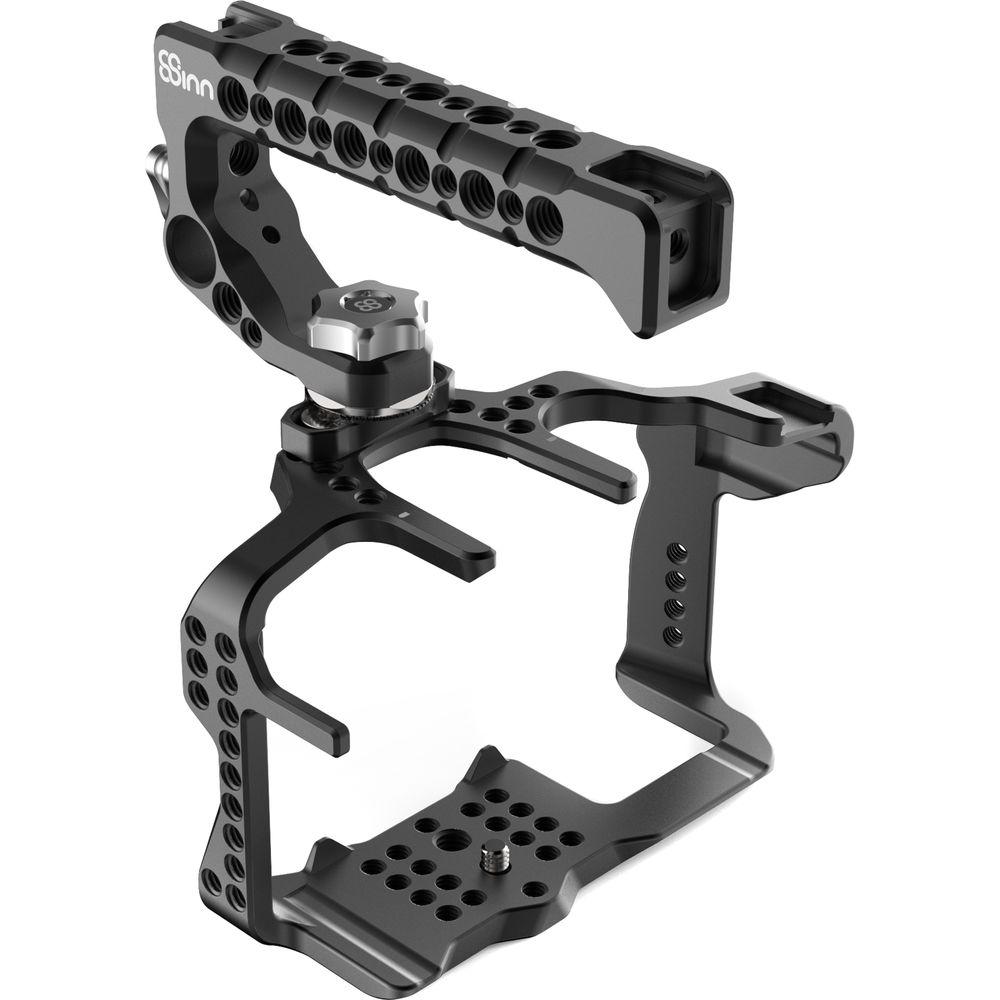

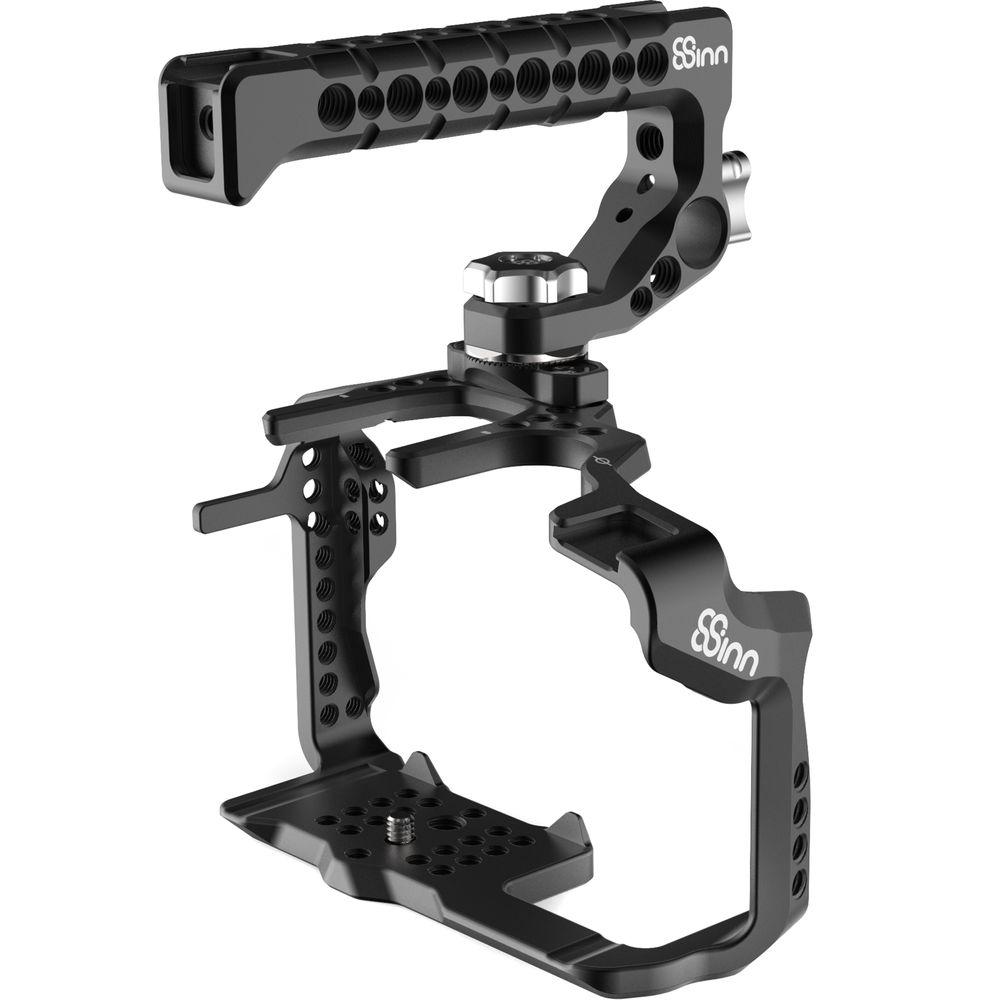

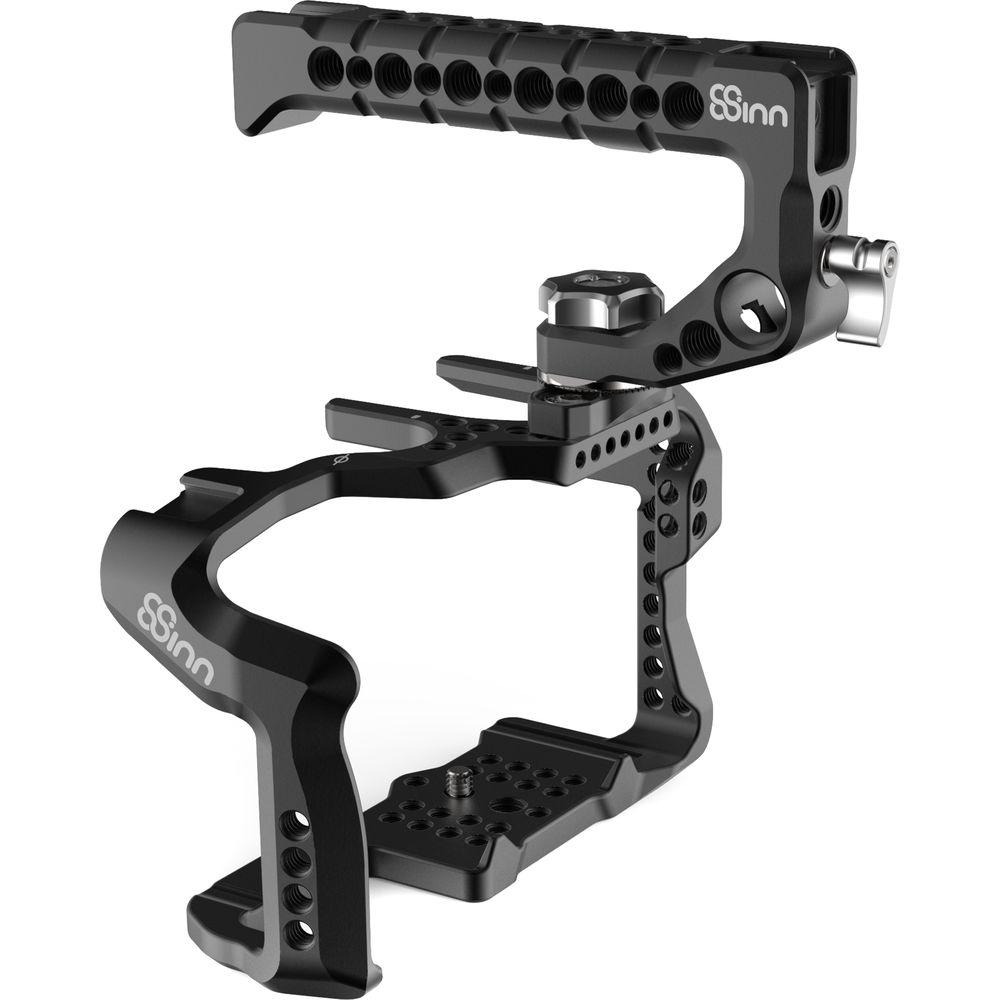

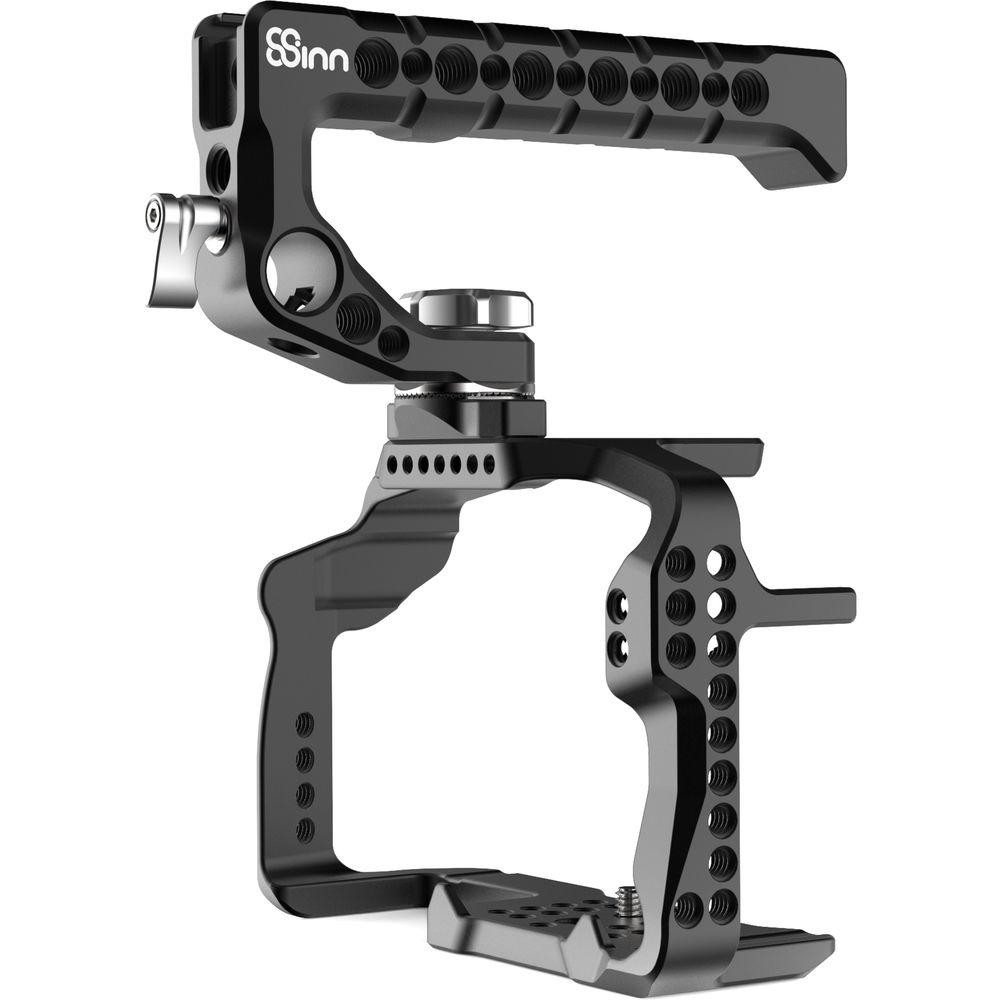

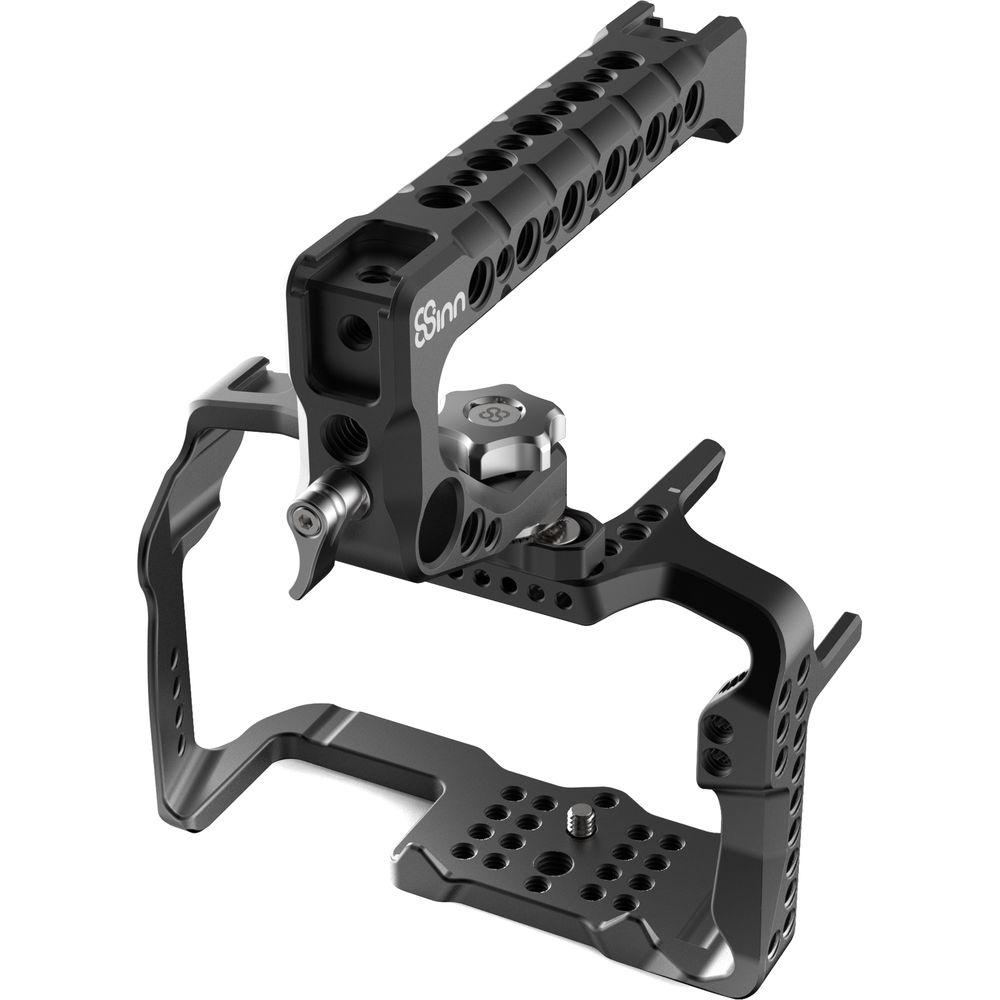

Product description The 8Sinn GH5/GH5S Cage + Top Handle Scorpio with 28mm Rosette Mount is a CNC Machined, anodized aluminum full-armored cage with integrated accessory mounting holes and an orientable top handle system. The cage prevents your camera from twisting once mounted and features an integrated cold shoe mount and slots for a carry strap (not included), as well as 1/4"-20, 3/8"-16, and M4 threaded mounting holes that allow you to mount accessories without stressing your camera's body.
The top handle attaches via a 28mm rosette system, which allows the top handle to be mounted in multiple orientations and not just forward or rear facing. It features four cold shoe mounts and both 1/4"-20 and 3/8"-16 threaded mounting holes. The design of the cage offers two small raised tabs that hold the camera in place and prevent it from twisting. Access to all camera functions, battery, and media doors is maintained. - The formfitting cage incorporates front tabs that prevent the camera from twisting in the cage.
- The cage features a variety of 1/4"-20, 3/8"-16, and M4 threaded accessory mounting holes. This allows you to mount accessories without stressing your camera's body.
- The top handle features two sets of top- and forward-mounted cold shoe mounts. It also features 1/4"-20 and 3/8"-16 threaded mounting holes.
- The Scorpio Top Handle also integrates a 15mm rod clamp that secures an optional 15mm rod perpendicular to the handle, providing additional accessory mounting opportunities
- The optional Audio XLR unit for the GH5 can work with the cage, but will require the addition of an optional extension adapter when using the cage and top handle together.
In the Box 8Sinn GH5/GH5S Cage + Top Handle Scorpio with 28mm Rosette Mount Aluminum Cage for Panasonic GH5 wuxtwvrfasfcstfxrscxvdeacvy Scorpio Top Handle ARRI Rosette 28mm Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 8Sinn GH5 GH5S Cage Top Handle Scorpio with 28mm Rosette Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters8Sinn 8-GH5 C+THSV2 Specs | Material of Construction | Anodized CNC Machined 6061 aluminum | | Mounting | Cage
1/4"-20
3/8"-16
M4
Top Handle
1/4"-20
3/8"-16
Cold Shoes
Cage: 1
Top Handle: 4 | | Dimensions | Cage: 6.22 x 4.17 x 2.52" / 15.8 x 10.6 x 6.4 cm
Top Handle: 5.71 x 2.8 x 0.98" / 14.5 x 7.1 x 2.5 cm | | Weight | Cage: 6.74 oz / 191 g
Top Handle: 7.7 oz / 218 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.2 x 5.7 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
