User Manual for 8Sinn Half Cage with Top Handle Scorpio for Blackmagic Design Pocket Cinema Camera 4K Click to enlarge the picture
Contents of the user manual for the 8Sinn Half Cage with Top Handle
- Product category: Camcorder Supports & Rigs 8Sinn
- Brand: 8Sinn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 8Sinn Camcorder Supports & Rigs
 |
User manual for the 8Sinn Half Cage with Top Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 8Sinn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 8Sinn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 8Sinn product will considerably shorten its lifespan!
|

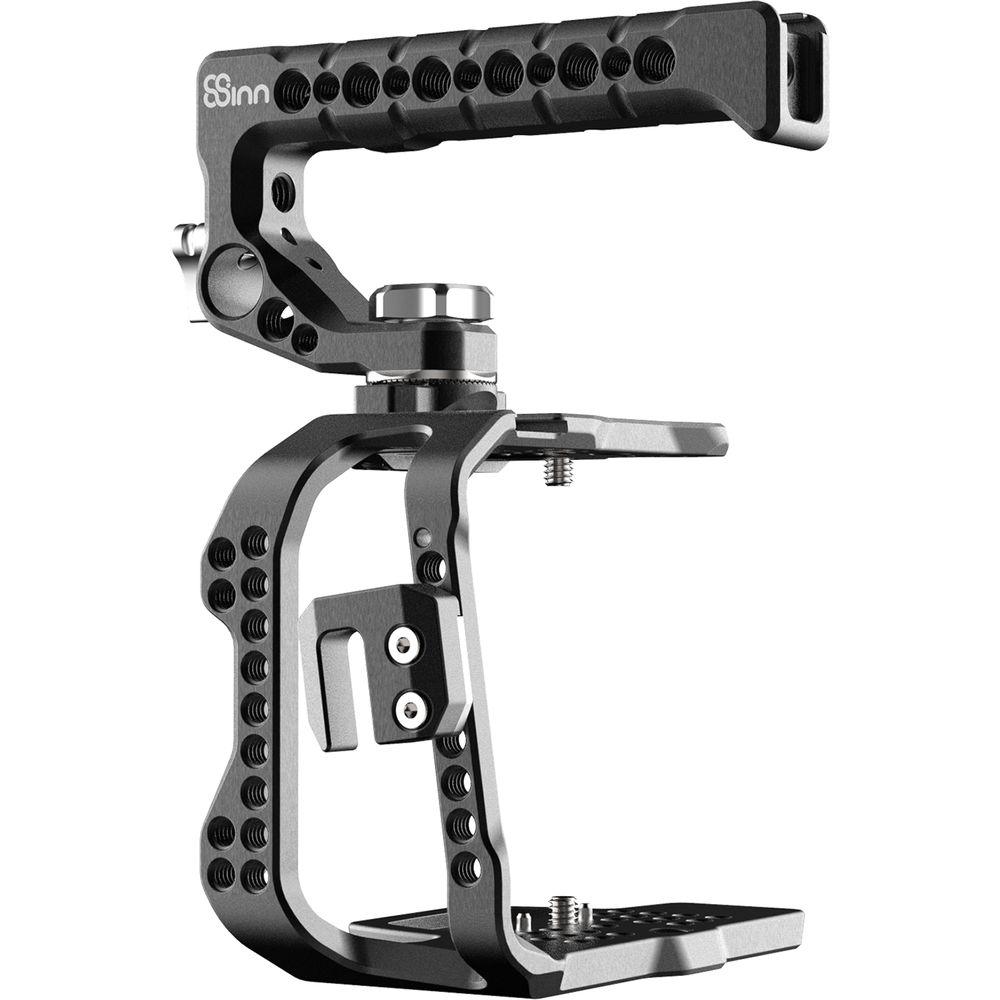

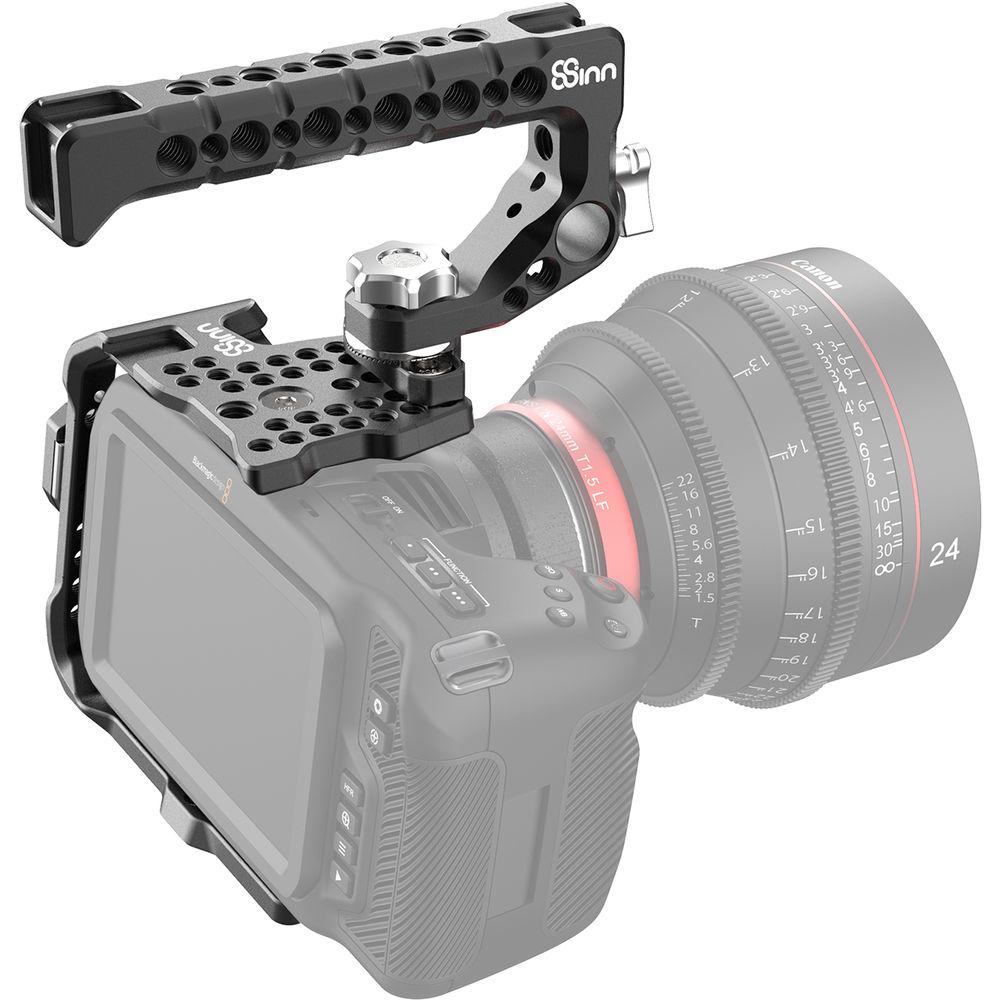

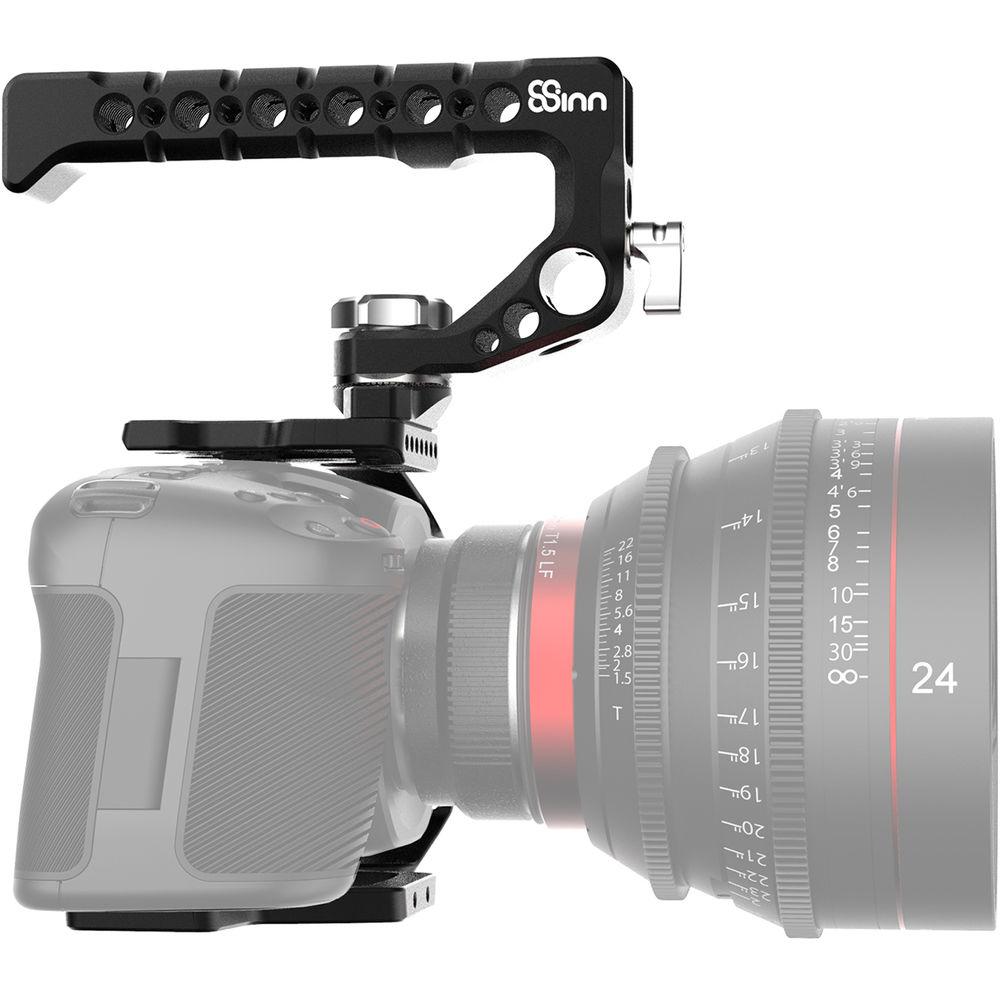

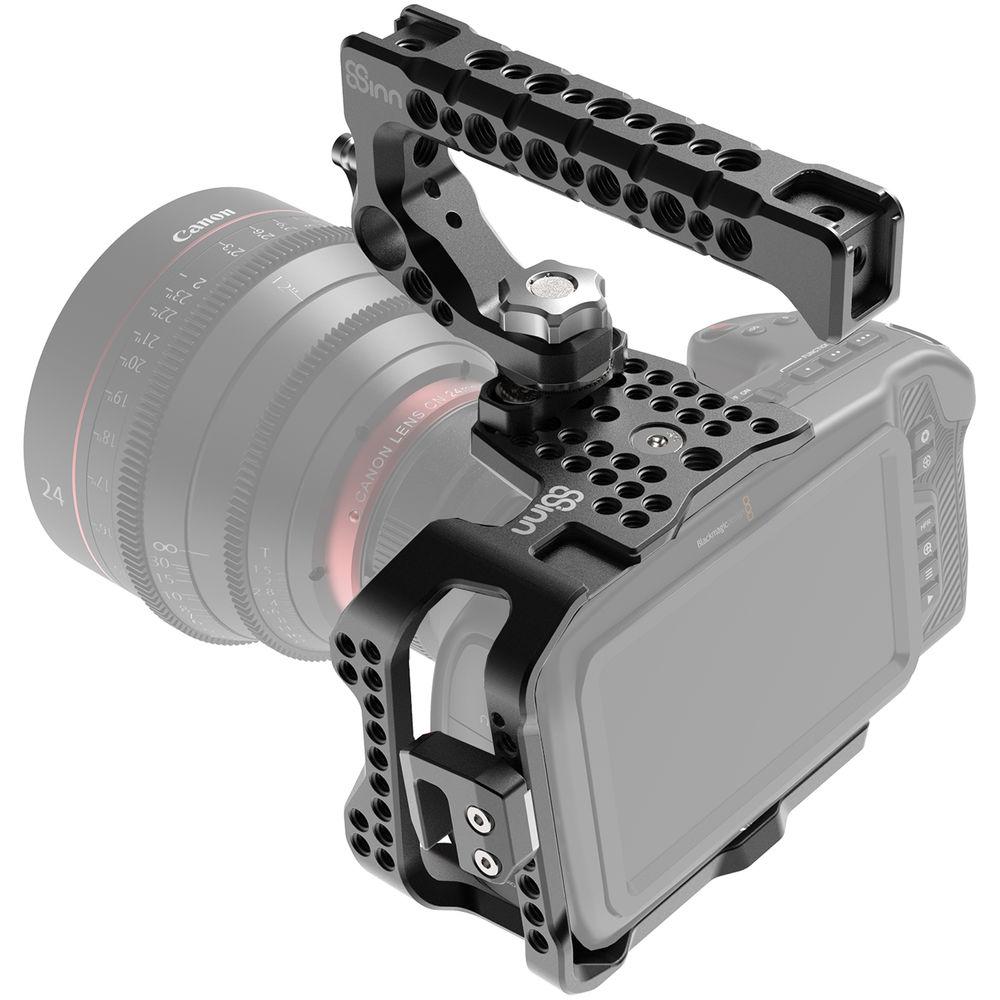

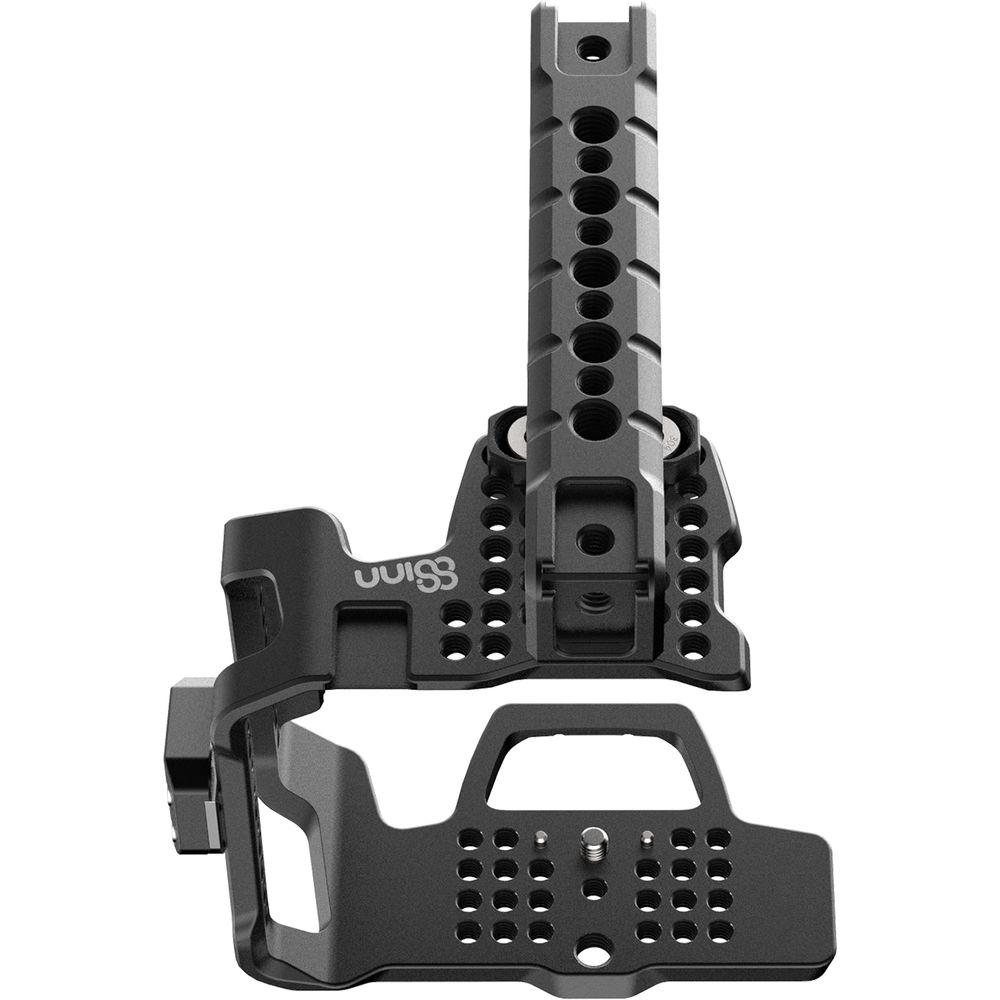

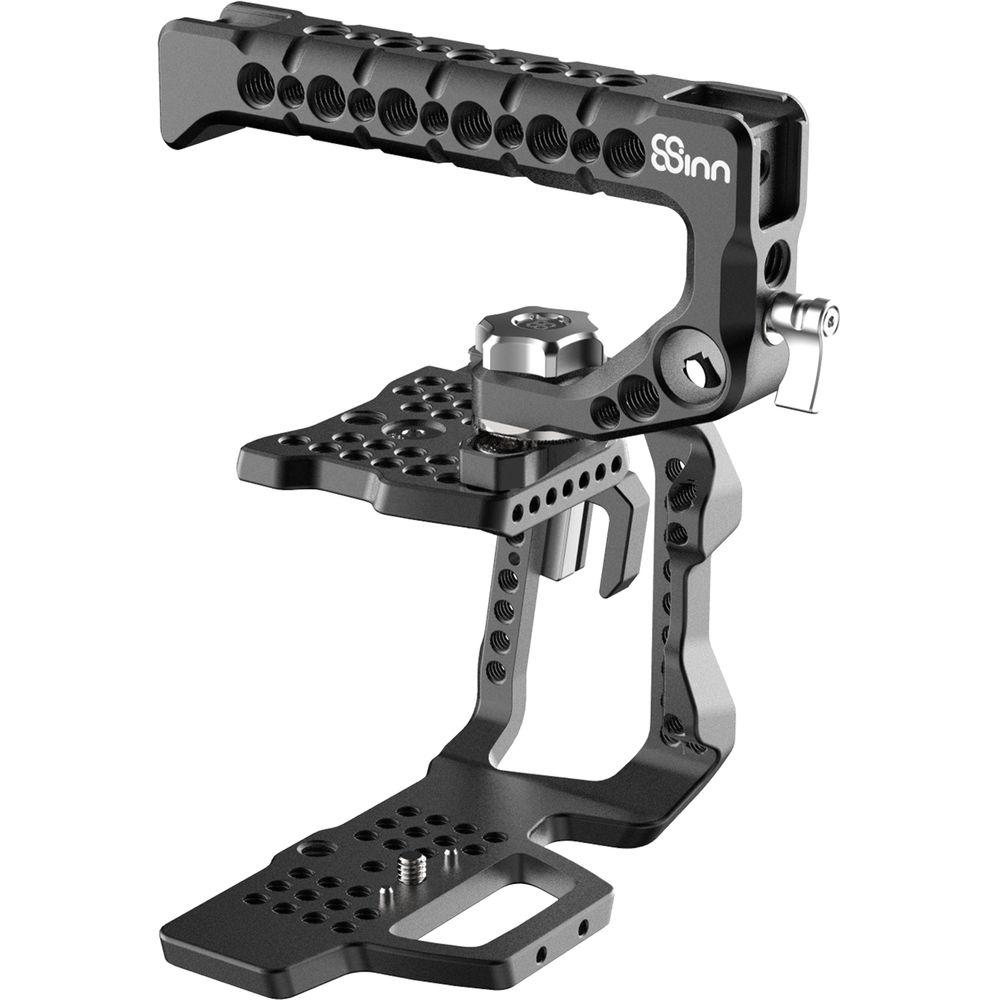

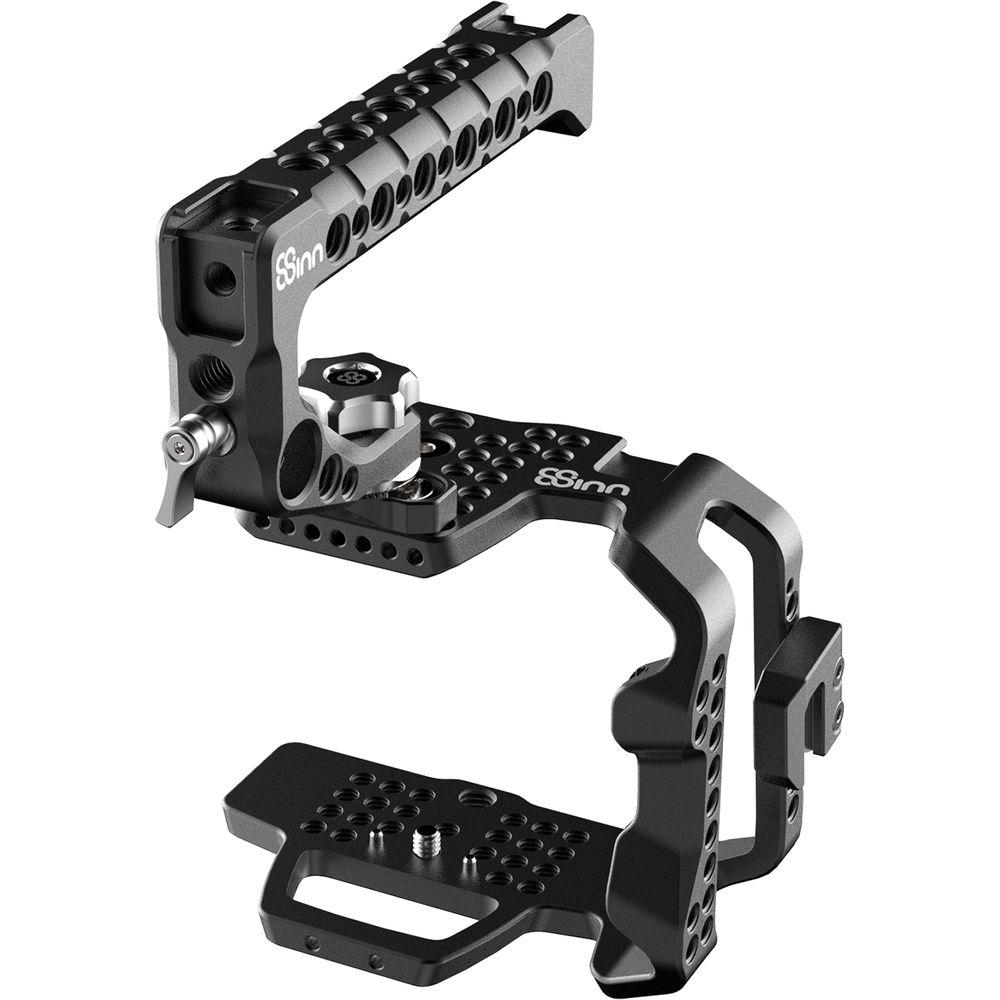

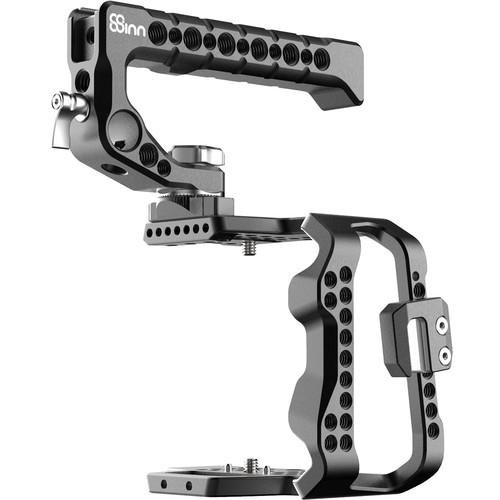

Product description The 8Sinn Half Cage with Top Handle Scorpio for Blackmagic Design Pocket Cinema Camera 4K consists of a CNC Machined, anodized aluminum half cage with integrated accessory mounting holes specifically designed for the Pocket Cinema Camera 4K, plus the Top Handle Scorpio. The half cage features mounting holes on the top and bottom that align with your camera's top and bottom 1/4"-20 mounting points, as well as two locating pins that help prevent the camera from twisting in the half cage. A built-in cold shoe and threaded 1/4"-20 mounting holes allow you to mount accessories without stressing your camera's body.
Access to all camera functions, as well as battery and media doors, is guaranteed as the half cage leaves the right side of the camera exposed. In addition to the 1/4"-20 mounting holes, a single 3/8"-16 threaded hole is included on the top of the half cage for additional accessory mounting, and multiple M4 threaded holes are tapped into the front of the top plate. An included HDMI cable clamp mounts on the side of the cage and is adjustable to fit your HDMI cable.
The Top Handle Scorpio attaches via a 28mm rosette system which allows the top handle to be mounted in multiple orientations and not just forward- or rear-facing. It features four cold shoe mounts and multiple 1/4"-20 and 3/8"-16 threaded mounting holes. - Your camera is secured in the cage by the top and bottom 1/4"-20 mounting points.
- The half cage features a variety of 1/4"-20, 3/8"-16, and M4 threaded accessory mounting holes. This allows you to mount accessories without stressing your camera's body.
- The included HDMI cable clamp helps prevent accidental kick-outs of an attached HDMI cable.
- The Top Handle Scorpio features two sets of top- and forward-mounted cold shoe mounts. It also features 1/4"-20 and 3/8"-16 threaded mounting holes.
- The Top Handle Scorpio integrates a 15mm rod clamp that secures an optional 15mm rod perpendicular to the handle, providing additional accessory mounting opportunities.
In the Box 8Sinn Half Cage with Top Handle Scorpio for Blackmagic Design Pocket Cinema Camera 4K Half Cage for Blackmagic Design Pocket Cinema Camera 4K Scorpio Top Handle ARRI Rosette 28mm Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 8Sinn Half Cage with Top Handle Scorpio for Blackmagic Design Pocket Cinema Camera 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters8Sinn 8-BMPCC4K HALF C+THSV2 Specs | Material of Construction | Anodized CNC Machined 6061 aluminum | | Mounting | Cage
Threaded Mounting Holes: 1/4"-20, 3/8"-16, M4
Top Handle
Threaded Mounting Holes: 1/4"-20, 3/8"-16
Cold Shoes
Cage: 1
Top Handle: 4 | | Dimensions | Cage: 5.2 x 4.41 x 2.95" / 13.2 x 11.2 x 7.5 cm
Top Handle: 5.71 x 2.8 x 0.98" / 14.5 x 7.1 x 2.5 cm | | Weight | Cage: 7 oz / 199 g
Top Handle: 7.7 oz / 218 g | | | | Package Weight | 1.42 lb | | Box Dimensions (LxWxH) | 9.3 x 5.7 x 3.1" |
