User Manual for 8Sinn Top Plate for Panasonic EVA1 Click to enlarge the picture
Contents of the user manual for the 8Sinn Top Plate for Panasonic EVA1
- Product category: Misc. Components 8Sinn
- Brand: 8Sinn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 8Sinn Misc. Components
 |
User manual for the 8Sinn Top Plate for Panasonic EVA1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 8Sinn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 8Sinn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 8Sinn product will considerably shorten its lifespan!
|

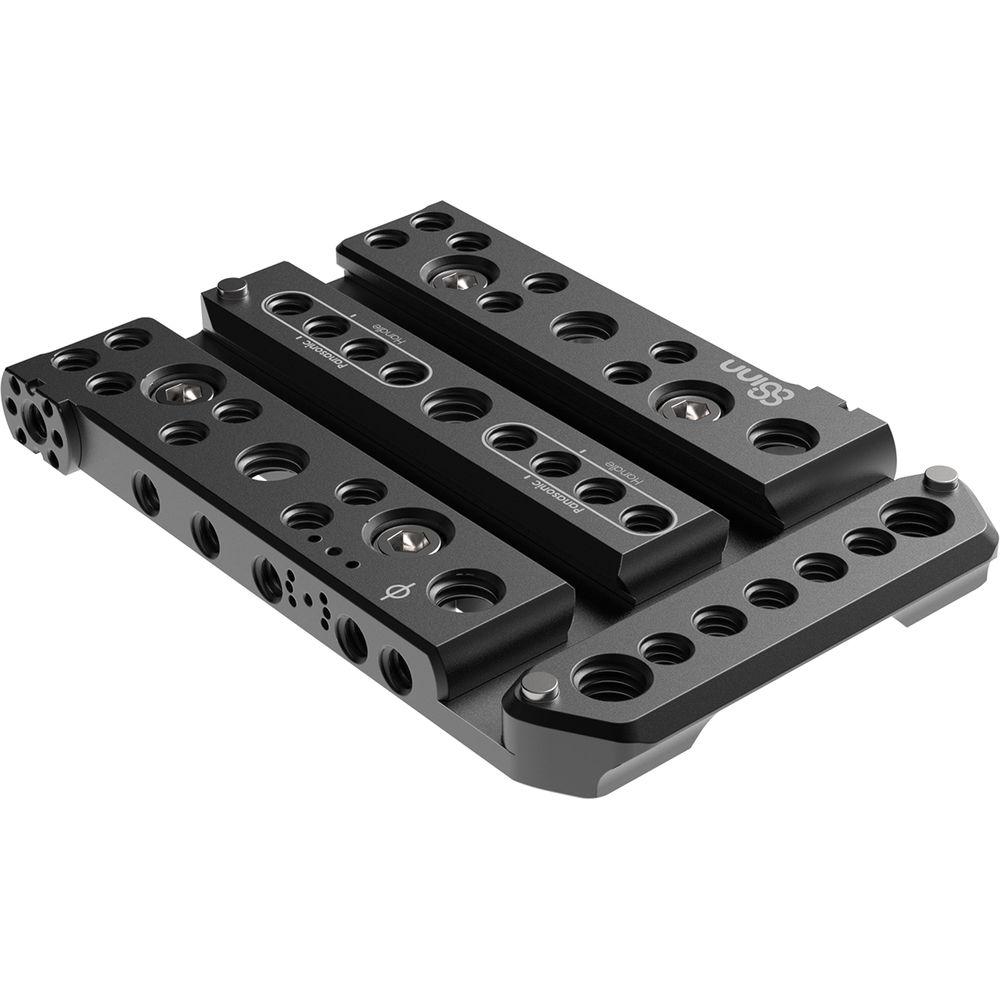

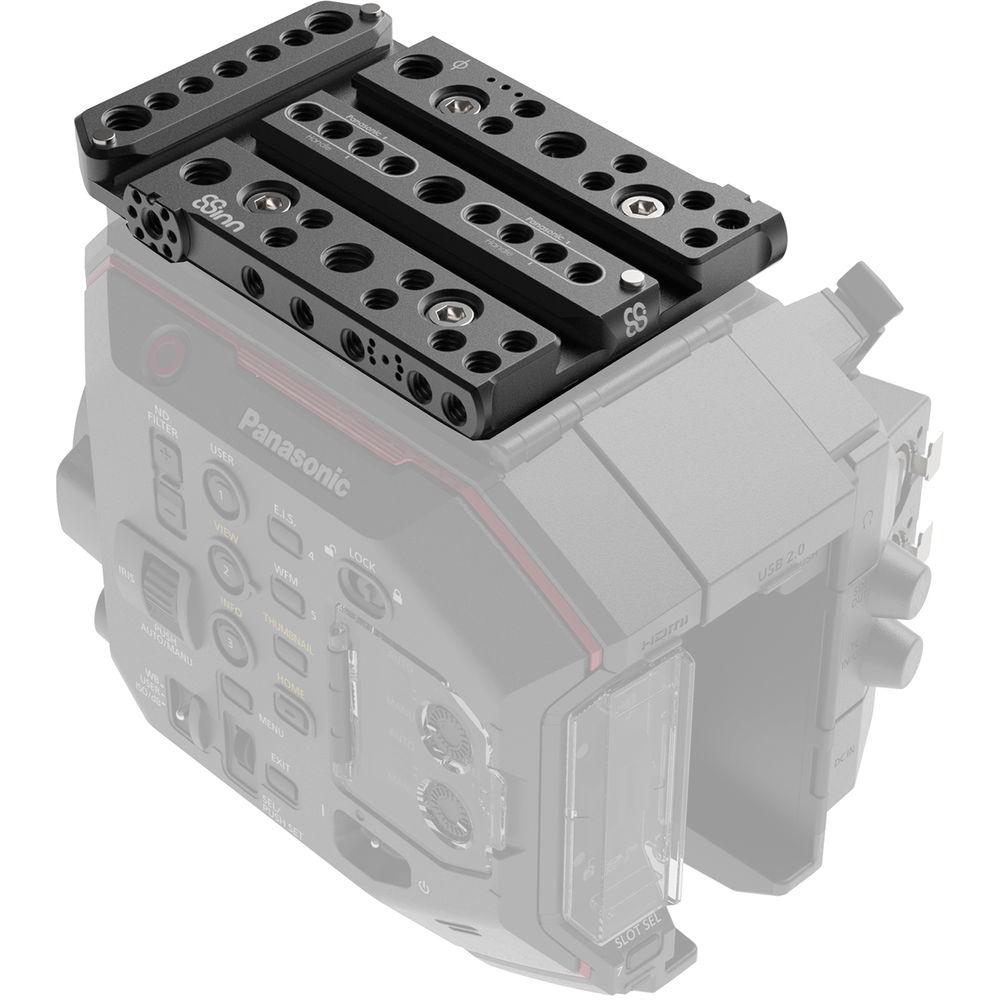

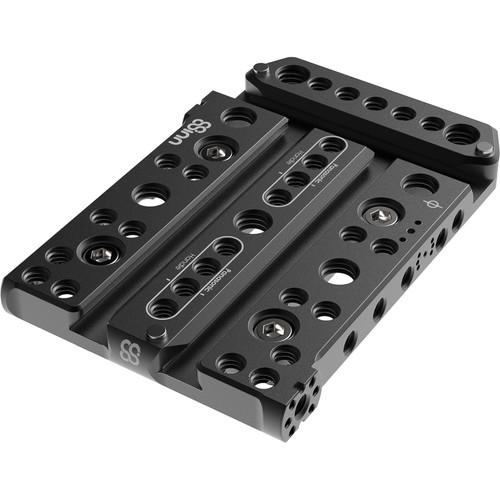

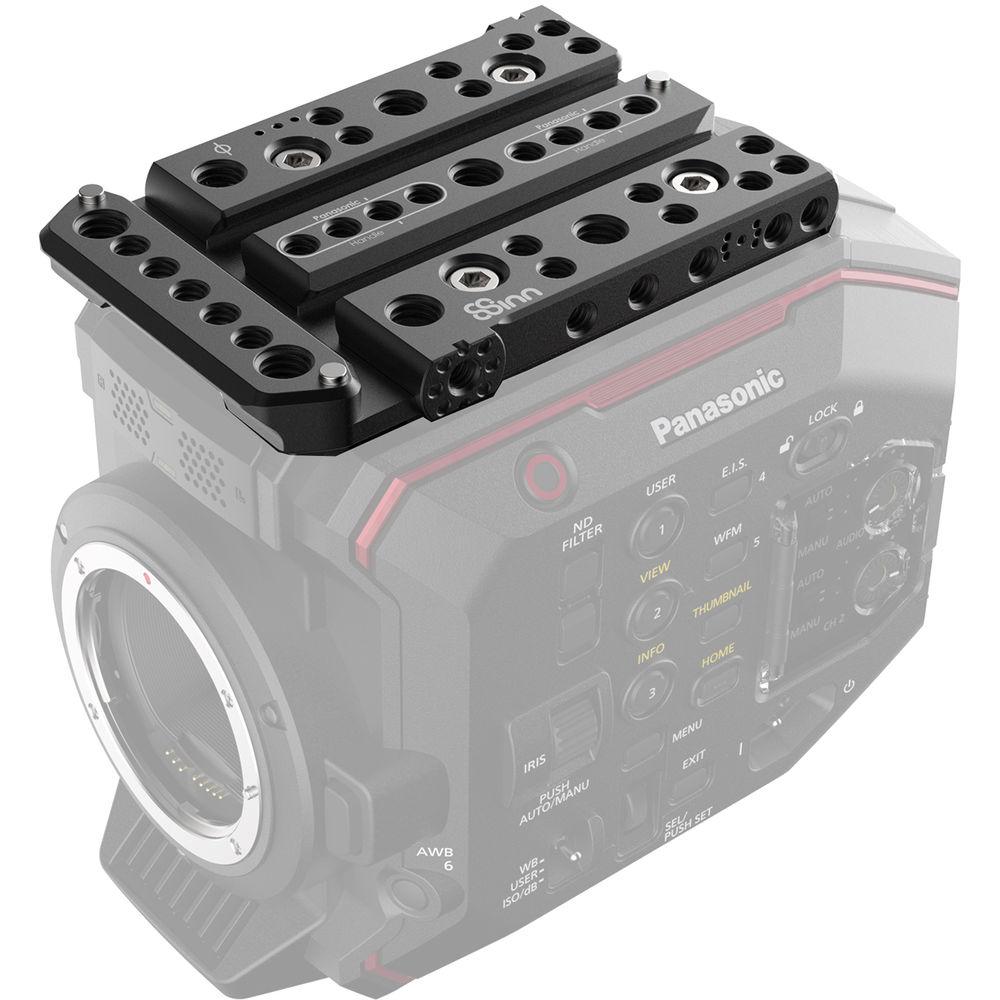

Product description Provided by third party: 8Sinn Top Plate for Panasonic EVA-1 is designed for users that value high quality and innovation. Unique design has huge influence on its versatility. Top Plate has variety of mountings located in such a way that standard accessories as well as original EVA-1 additions can be easily attached to it. The shape of the plate is perfectly adjusted to the top of Panasonic camera. As far as the plate is made from one piece of high-quality air-aluminum, its structure is free from week points, being at the same time exceptionally lightweight and damage-resistant.
- Key Features
-
- Built-in Safety NATO Rails
- Mounting points for original EVA-1 accessories
- Panasonic EVA-1 handle mounting
- Variety of mounting points
- Built-in Safety NATO Rails
- Two significant built-in elements of 8Sinn's Top Plate are Safety NATO Rails, which work well for all standard camera accessories. Location of the Safety NATO Rails provides the user with possibility of attaching the additions in two axes - transversely and longitudinally in relation to the camera core.
- Mounting points for original EVA-1 accessories
- Specific mounting points located on the right front edge and the left back edge of the plate are designed to attach EVA1 monitor bracket and camera cable holder.
- Panasonic EVA-1 handle mounting

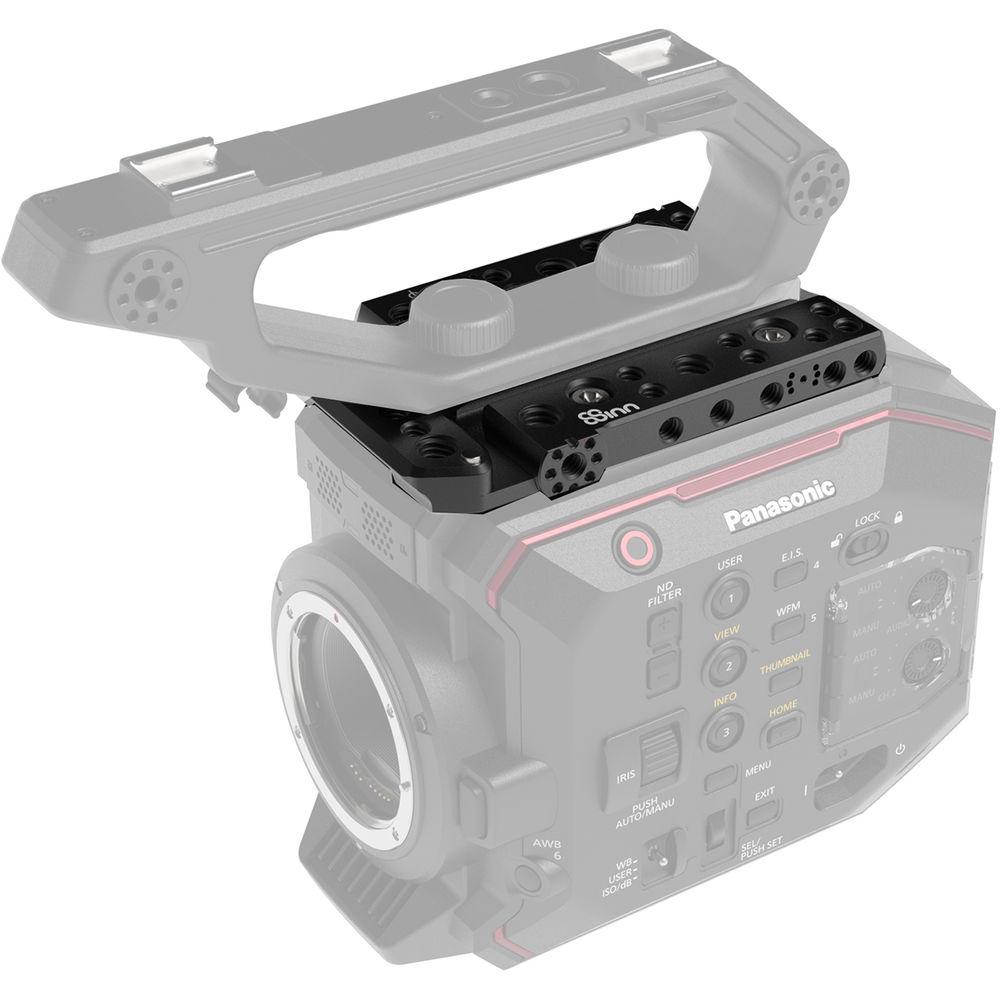

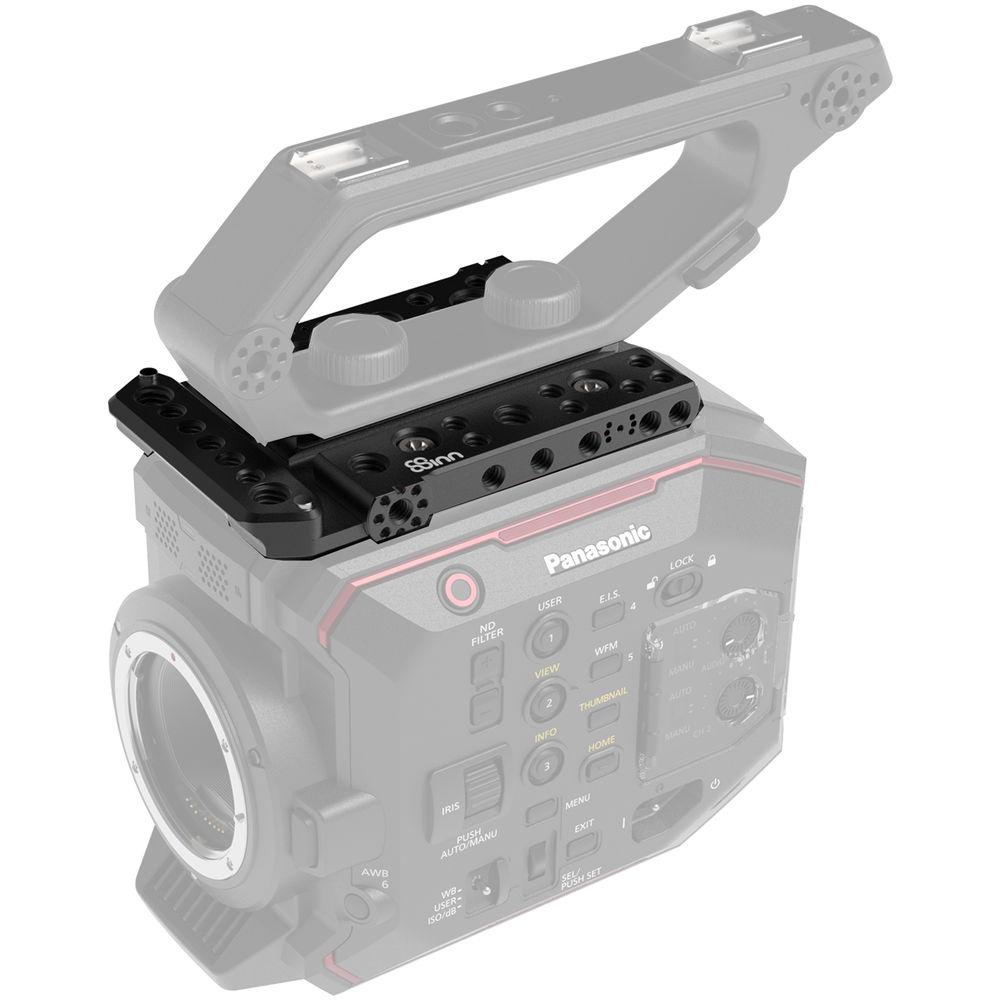

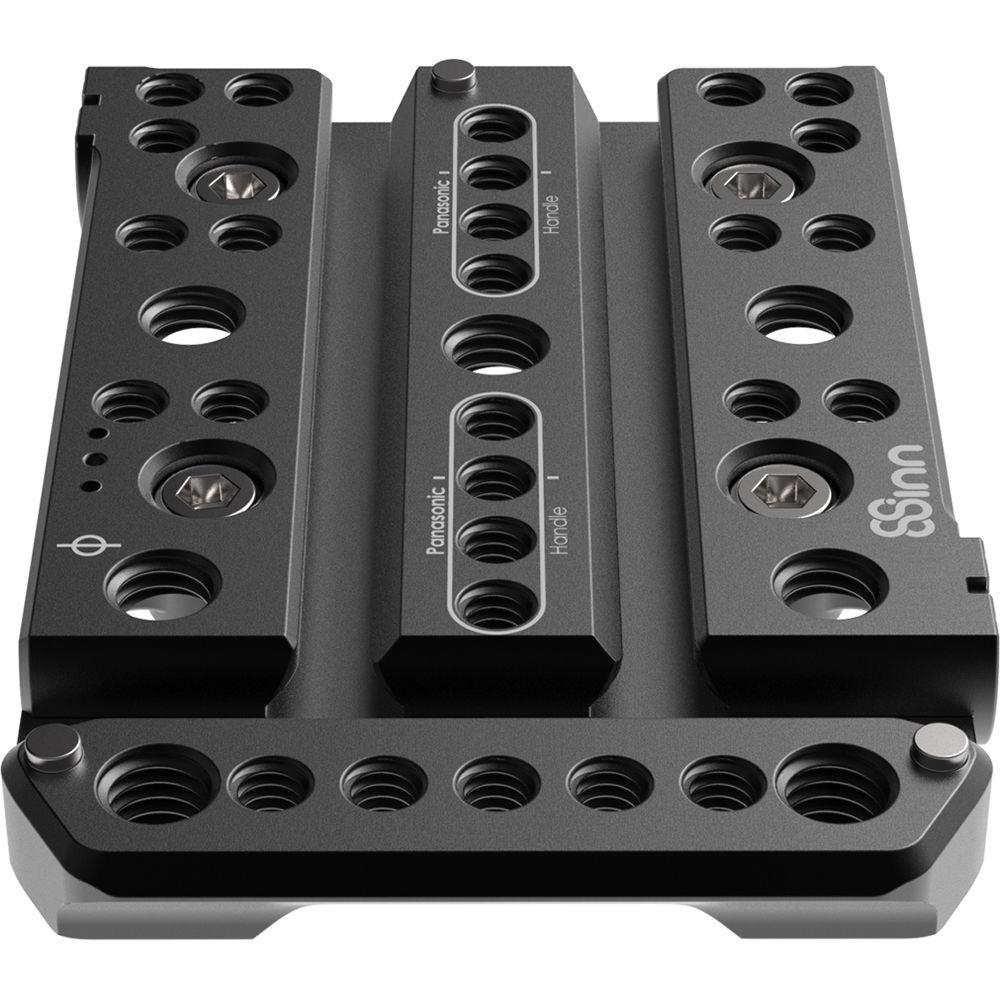

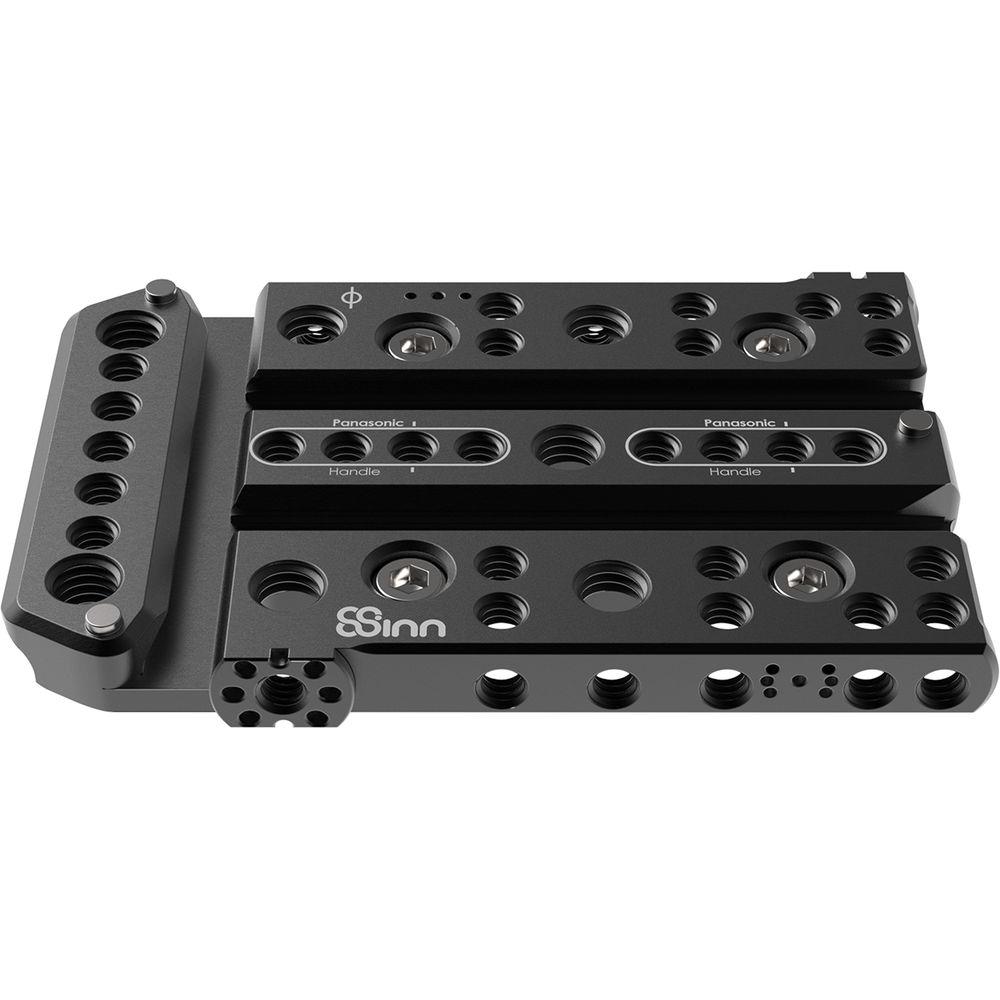

- The top plate central section is adapted for the Original Panasonic EVA-1 Handle mounting - forward / backward movability is guaranteed by eight mounting points.
- Variety of mounting points
- 8Sinn Top Plate for Panasonic EVA1 is attached safely to the camera by four 1/4" screws. The top plate surface is covered with threaded mounting holes: 1/4" and 3/8" - which is a standard set of mounting points applied on most camera accessories.
Table of Contents
|
Upload User Manual
Have you got an user manual for the 8Sinn Top Plate for Panasonic EVA1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters8Sinn 8-PEVA1 TP Specs | | | Accessory Type | Top plate | | Width | 3.3 in | | Depth | 4.9 in | | Height | 0.6 in | | Weight | 5.61 oz | | | | Intended For | Camcorder | | Features | 3/8"-16 thread, NATO rail system, 1/4"-20 thread, 2 built-in cold shoes | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.5 x 3.0 x 0.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
