User Manual for 8Sinn VCT Universal Shoulder Base Plate Click to enlarge the picture
Contents of the user manual for the 8Sinn VCT Universal Shoulder Base Plate
- Product category: Camcorder Accessories 8Sinn
- Brand: 8Sinn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for 8Sinn Camcorder Accessories
 |
User manual for the 8Sinn VCT Universal Shoulder Base Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any 8Sinn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official 8Sinn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a 8Sinn product will considerably shorten its lifespan!
|

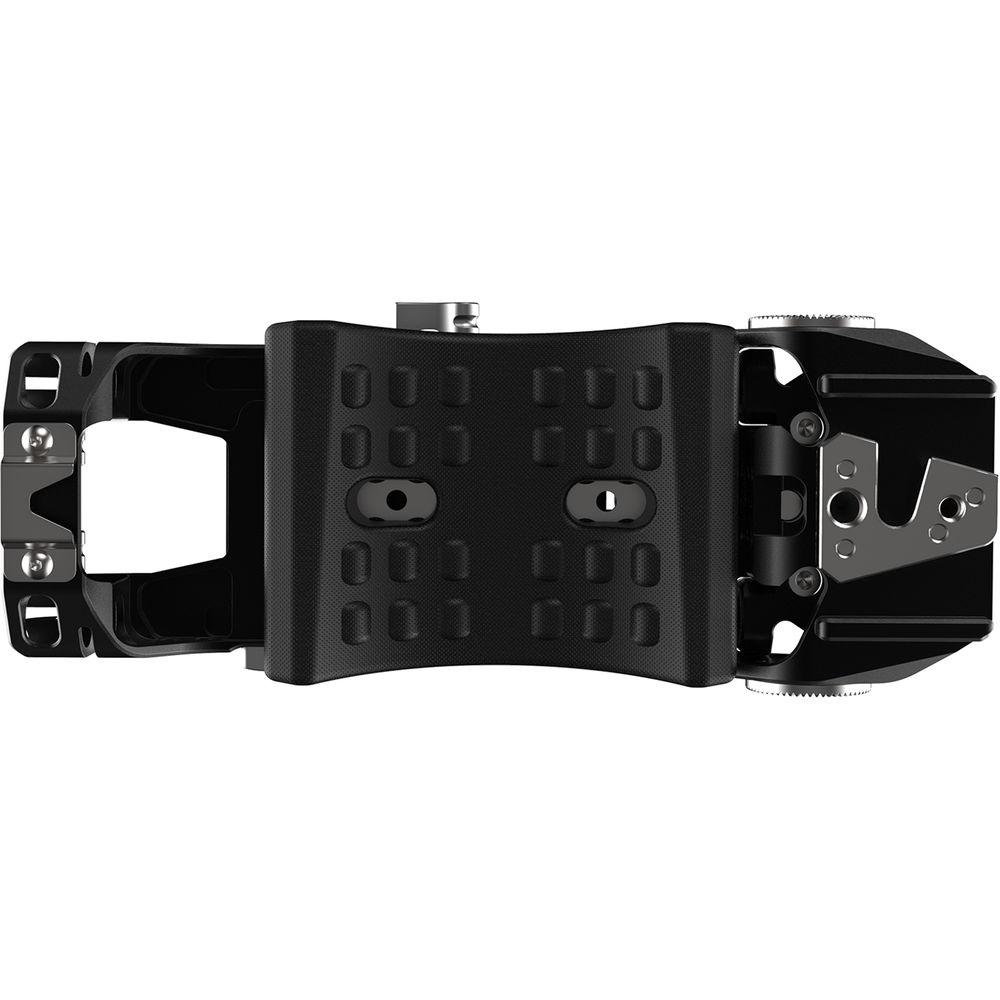

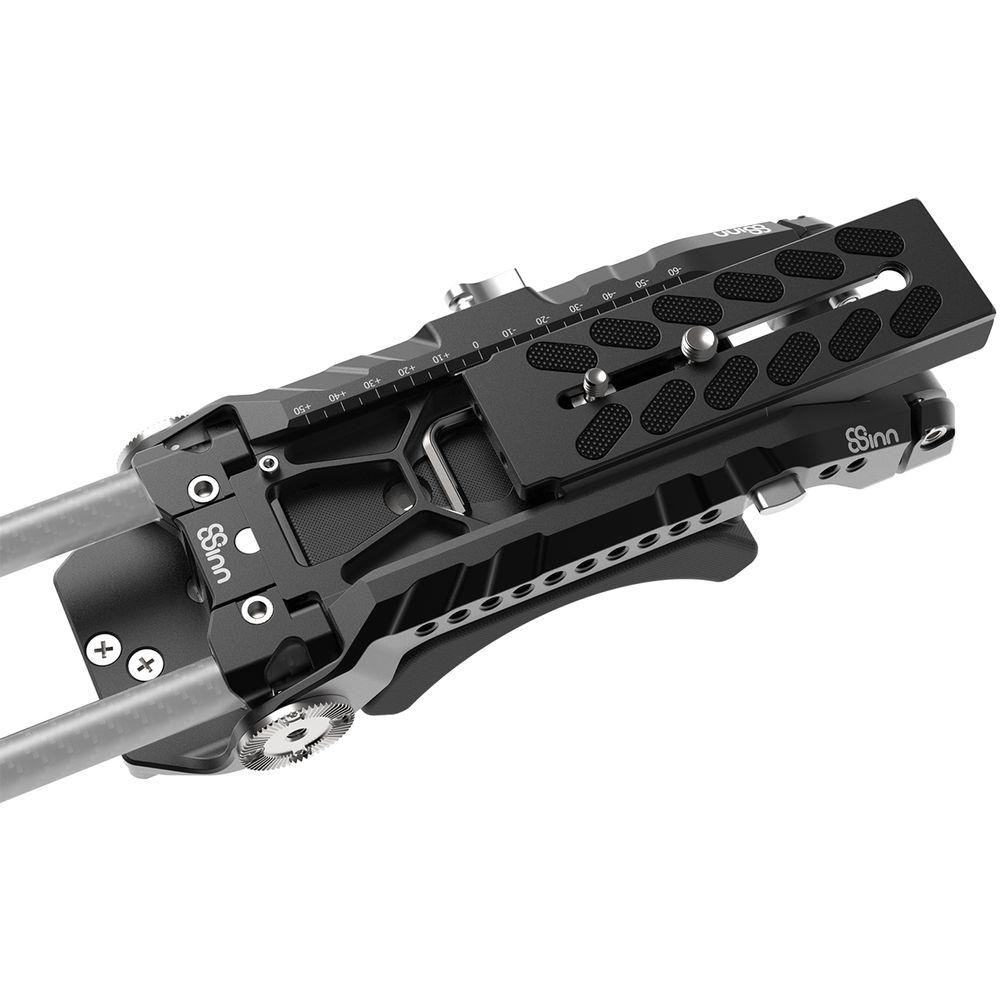

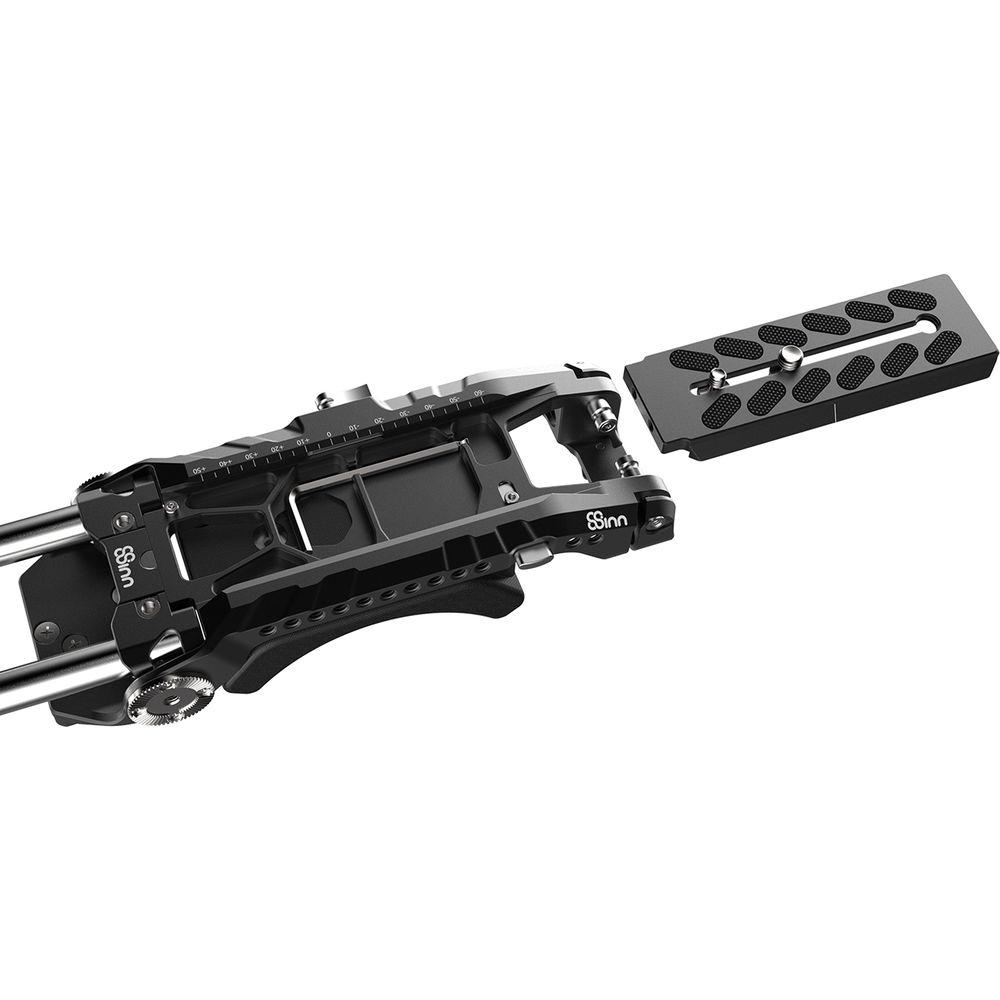

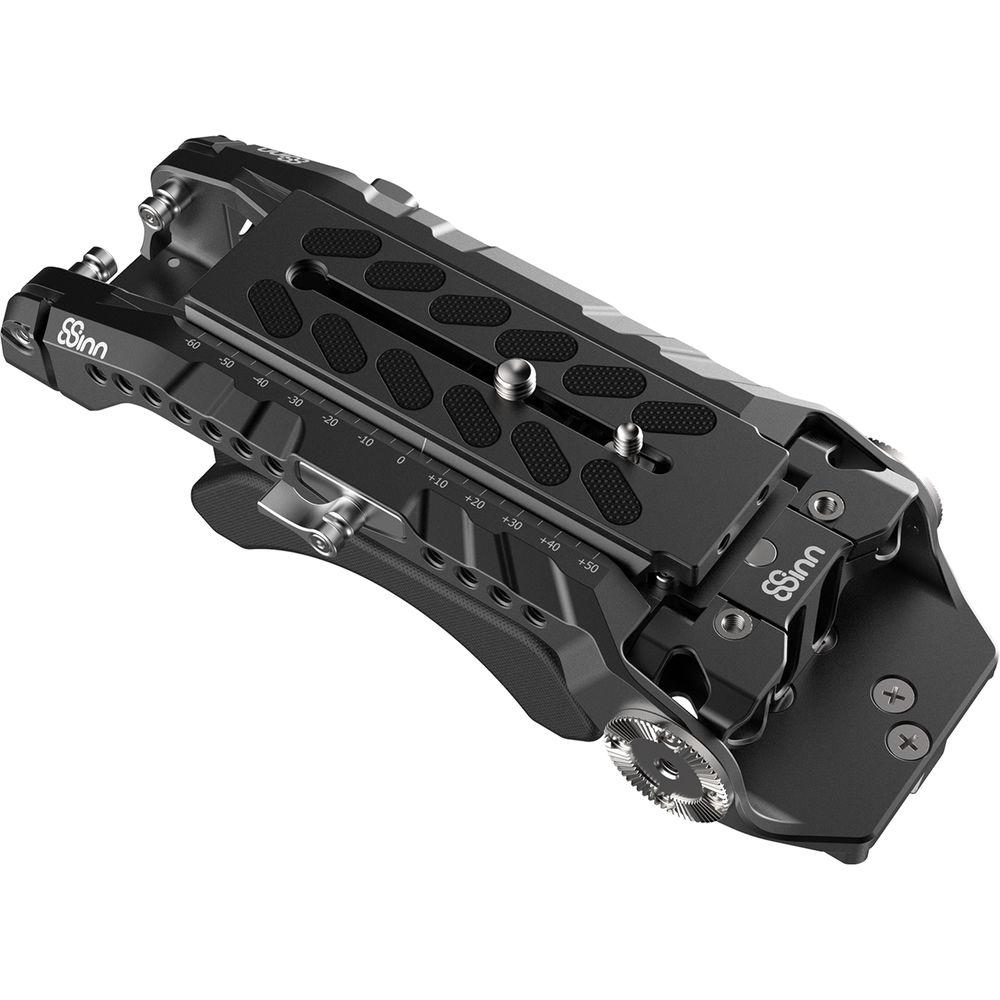

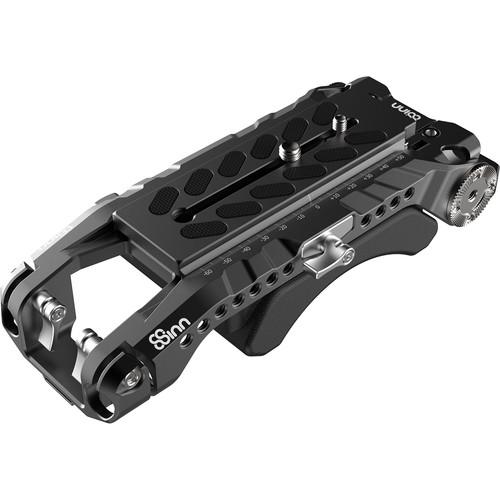

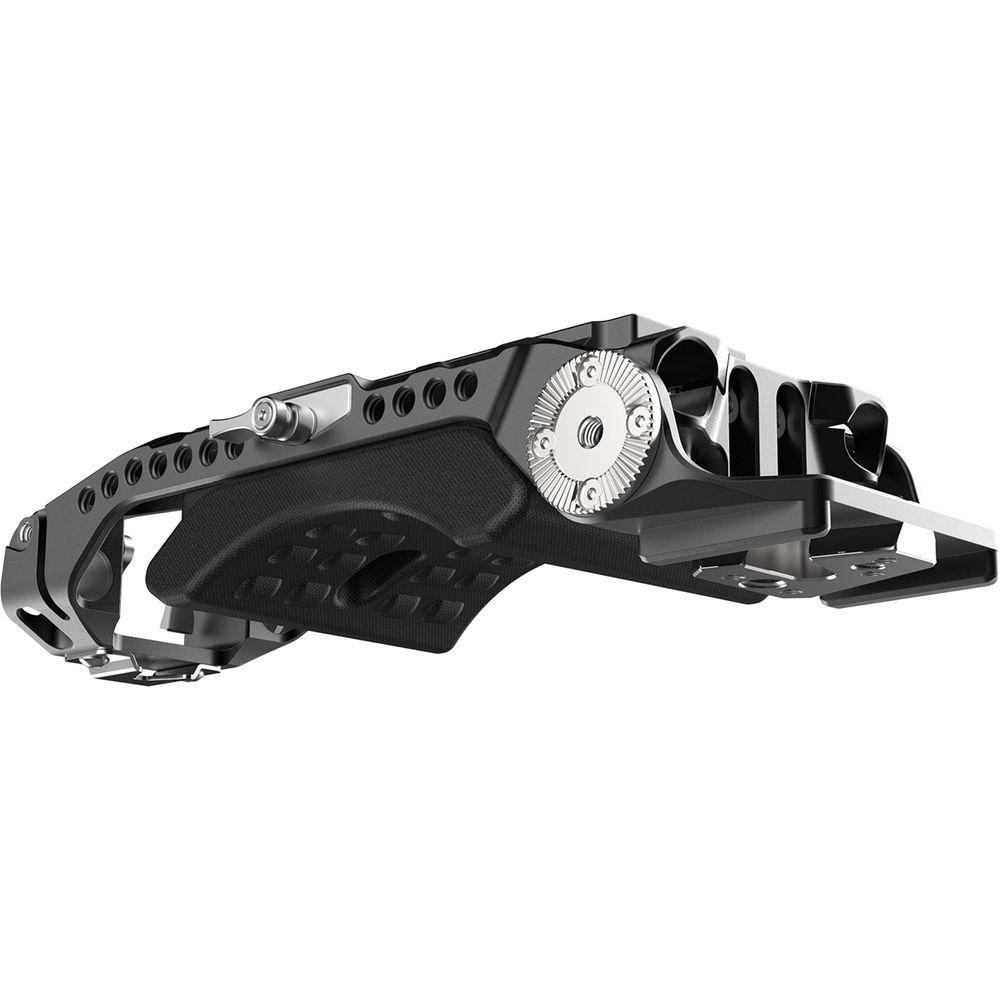

Product description The VCT Universal Shoulder Baseplate from 8Sinn features a sliding camera plate on top and a VCT-style tripod interface on the bottom. Compatible with almost any HD cinema camera, this versatile baseplate enables you to easily balance the weight of your setup on your shoulder, and to transfer quickly to a tripod-based configuration. Attach the Manfrotto 501PLONG-type plate to your camera using the 1/4"-20 or 3/8"-16 screws, then slide it onto the shoulder plate. Independent 15mm LWS rod clamps at the front and rear of the baseplate enable you to mount rod-based accessories such as a matte box, a follow focus, lens motors, a lens support, battery plate, or external recorder. The front rod mount features 1.3" of vertical adjustment to accommodate various lens sizes. Grips or handles can be mounted to the ARRI standard rosettes on either side of the plate. Shoulder pad features include magnetic mounting and four-position adjustment. Space is provided for storing an Allen key under the sliding camera plate. - Features
-
- Sliding 501PLONG-type camera plate on top, VCT-style interface on bottom
- Independent 15mm LWS rod clamps at the front and rear of the baseplate
- The front rod mount accommodates various lens sizes with 1.3" of vertical adjustment
- Magnetic, contoured shoulder pad
- Standard ARRI rosettes on both sides of the plate
- Storage is provided for an Allen key under the sliding camera plate
In the Box 8Sinn VCT Universal Shoulder Base Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the 8Sinn VCT Universal Shoulder Base Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters8Sinn 8-VCT14SS Specs | Dimensions (LxWxH) | 9.6 x 3.7 x 2.2" / 244 x 94 x 56 mm | | Weight | 1.8 lb / 810 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.6 x 5.7 x 2.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
