A-Designs EM-EQ2 - Dual Mono Solid-State

Search your instruction manual in PDF to download

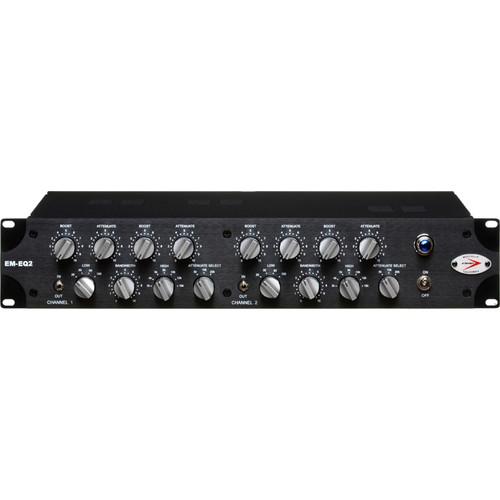

User Manual for A-Designs EM-EQ2 - Dual Mono Solid-State 3-Band Inductor Equalizer

Click to enlarge the picture
A-Designs EM-EQ2 - Dual Mono Solid-State 3-Band Inductor Equalizer Contents of the user manual for the A-Designs EM-EQ2 - Dual Mono Solid-State
  • Product category: Equalizers A-Designs
  • Brand: A-Designs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for A-Designs Equalizers

User manual for the A-Designs EM-EQ2 - Dual Mono Solid-State contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any A-Designs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!



Product description

The EM-EQ2 from A-Designs is a dual-mono, solid-state, 3-band inductor EQ modeled after the Pultec EQP-1, well suited for tracking, mixing, and mastering. Each channel of the EQ features the same frequency settings and inductors as the original Pultec design, but with fully-balanced, noise-free performance and modern impedance specs.

The EM-EQ2 utilizes Cinemag custom-wound tapped inductors, a proprietary Cinemag nickel-core output transformer, and Wima capacitors. Other features include a large jewel power indicator lamp with a heavy-duty Carling power toggle switch and true hard-bypass. The 2U metal housing offers a custom-milled face-plate with brushed aluminum control knobs. The EM-EQ2 ships with a standard IEC power cord.
    EQ Functions
    • Boost: 0 to +10 dB
    • Attenuate: 0 to –10 dB
    • Attenuate High Band: 5, 10, 20 kHz
    • Variable Bandwidth/Boost Mid to High Band: 3, 4, 5, 6, 10, 12, 16 kHz
    • Boost/Attenuate Low Band: 20, 30, 60, or 100 Hz
    General Features
    • Dual mono, three-band band, Pultec-style EQ
    • Faithfully preserves the EQ section design, controls, and musicality of the Pultec EQP-1
    • Eminently suited for tracking, mixing, or mastering
    • Same frequency settings and inductors as original Pultec make it a must-have for capturing bottom end
    • Fully balanced, noise-free performance and modern impedance specs
    • Quick and easy studio integration
    • Wima capacitors
    • True hard bypass
    • A-Designs proprietary, custom-wound tapped inductor
    • A-Designs proprietary nickel-core output transformer
    • Rugged 2U metal housing with custom-milled faceplate and control knobs
    • Big jewel power indicator lamp with heavy duty Carling power toggle switch
In the Box A-Designs EM-EQ2 - Dual Mono Solid-State 3-Band Inductor Equalizer
  • IEC Power Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the A-Designs EM-EQ2 - Dual Mono Solid-State 3-Band Inductor Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    A-Designs EM-EQ2 Specs

    Number of Channels 2
    Input & Output Input
    2 x XLR balanced

    Output
    2 x XLR balanced
    Frequency Response Not specified by manufacturer
    Equalizer Boost: 0 to +10 dB
    Attenuate: 0 to -10 dB
    Attenuate High Band: 5, 10, 20 kHz
    Variable Bandwidth/Boost Mid to High Band: 3, 4, 5, 6, 10, 12, 16 kHz
    Boost/Attenuate Low Band: 20, 30, 60, or 100 Hz
    Rackmountable 2 U
    Power Supply 120 VAC
    Fuse: 1 A
    Dimensions (W x H x D) Not specified by manufacturer
    Weight Not specified by manufacturer
