A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style

Search your instruction manual in PDF to download

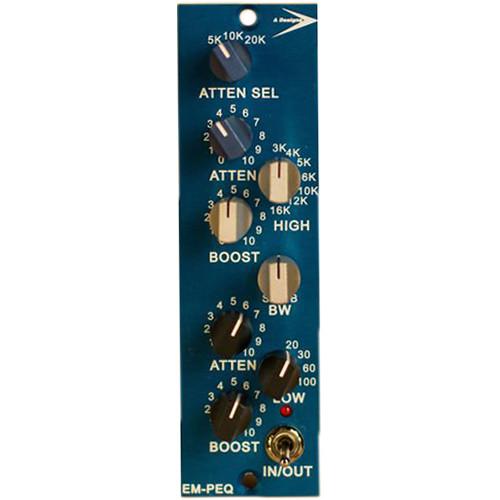

User Manual for A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style 3-Band Equalizer

Click to enlarge the picture
A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style 3-Band Equalizer Contents of the user manual for the A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style
  • Product category: Equalizers A-Designs
  • Brand: A-Designs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for A-Designs Equalizers

User manual for the A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any A-Designs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!



Product description

The 500 Series Guide to Equalizers Read More The A Designs EM-PEQ is a single-channel 500 series 3-band equalizer that faithfully reproduces the Pultec EQP-1A, a legendary studio piece revered for its distinct tonal characteristcs and unique controls. It's great for tracking and mixing, and two EM-PEQs can be used together for mastering as well.

The EM-PEQ preserves the EQ section design, control layout, and musicality of the original Pultec. It also has the same frequency settings and inductors that made the Pultec a must-have for accurately capturing and shaping the sound spectrum, especially the bottom end. The high band is attenuated at 5k, 10k, 20kHz; bandwidth and boost can be varied mid to high band at 3, 4, 5, 6, 10, 12, 16kHz; and the low band can be boosted and/or attenuated at 20, 30, 60, or 100Hz. Boost and attenuation can be adjusted from 0 to ±10dB.

Additional features of the EM-PEQ include a nickel-core Cinemag output transformer, gold Grayhill rotary switches, Wima capacitors, and a true hard-wired bypass; plus, instead of using common off-the-shelf chokes, A-Designs uses a custom tapped Cinemag inductor wound to precisely the same values as the original Pultec.

Along with the classic EQ circuitry, layout, and exceptionally musical sound of the EQP-1A, the EM-PEQ offers fully balanced, noise-free performance and modern impedance specs for easy operation and fast studio integration. Makeup amplification is achieved through the use of the same discrete Class AB amplifier found in A-Designs Audio's solid-state Pacifica mic preamp, putting a slightly unique and modern twist on this classic design.
    • Faithfully reproduces the EQP-1A in a 500 Series format
    • Three-band EQ with the same control layout as original Pultec
    • Fully balanced, noise-free performance and modern impedance specs
    • Same frequency settings and inductors as original Pultec make it a must-have for capturing bottom end
    • Excels at tracking and mixing. Use two EM-PEQs together for mastering as well
    • Perfectly compatible with API lunchbox (or A-Designs 500HR rack)
    • True hard-wired bypass
    • A-Designs proprietary-wound tapped Inductor
    • A-Designs proprietary nickel alloy output transformer
    • Quick and easy studio integration
    • Wima capacitors
    • Approved API VPR Alliance product and (requires 48V to operate, please check your power rack for this feature before purchasing)
In the Box A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style 3-Band Equalizer
  • Limited-1Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the A-Designs EM-PEQ 500 Series Pultec EQP-1A-Style 3-Band Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    A-Designs EM-PEQ Specs

    Number of Channels 1
    Number of Bands 3
    EQ Controls High-band can be attenuated at 5, 10, 20 kHz; bandwidth and boost can be varied mid to high band at 3, 4, 5, 6, 10, 12, 16 kHz
    Low band can be boosted and/or attenuated at 20, 30, 60, or 100 Hz
    Boost and attenuation can be adjusted from 0 dB to ±10dB

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3 of 5

    This product has already been rated by 49 owners. Add your rating and experience with the product.
