A-Designs Hammer 2 EQ Equalizer

Search your instruction manual in PDF to download

User Manual for A-Designs Hammer 2 EQ Equalizer

Click to enlarge the picture
A-Designs Hammer 2 EQ Equalizer Contents of the user manual for the A-Designs Hammer 2 EQ Equalizer
  • Product category: Equalizers A-Designs
  • Brand: A-Designs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for A-Designs Equalizers

User manual for the A-Designs Hammer 2 EQ Equalizer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any A-Designs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!



Product description

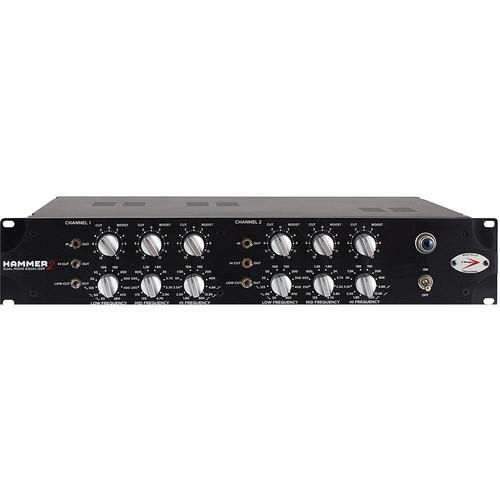

The Hammer 2 EQ Equalizer from A-Designs is a dual-mono, 3-band equalizer. Its filtering system passes musical 2nd order tube harmonics while eliminating unwanted noise. Hammer 2 EQ's overall frequency range covers 30 Hz to 40 kHz. Each channel features six detented rotary controls; three frequency selector knobs (Lo, Mid, Hi) which are stepped switches for easy recall, each with an accompanying gain knob providing continuously variable boost or cut of 12 dB. Each band has a selectable center frequency, and overlaps with the other bands in such a way that makes for a clean transition throughout the entire spectrum. Each channel also features individual toggle switches for EQ In/Out as well as Lo Cut (84 Hz) and Hi Cut (8 kHZ) filters that allow engineers to perform utilitarian EQ chores while still being able to bring the full power. Mainly intended as a broad stroke equalizer, the HM2EQ's bandwidth (Q) is self-adjusting (floating), based on a combination of the amount of gain applied and the dynamics and frequency content of the program material. Hammer 2 EQ Equalizer features tube-harmonic filtering circuit, a pair of 12AT7 tubes, and a custom heavy-duty toroidal power transformer. It also features a black, custom-milled, brushed faceplate sporting custom-milled aluminum control knobs, a heavy-duty Carling toggle power switch, and a big blue jewel power indicator lamp.
  • 3-band, dual-mono tube/hybrid equalizer
  • Smooth, super-fidelity EQ
  • Broad EQ-shaping across several octaves with no adverse effect on tone
  • Clean and airy high end
  • Detented boost and cut controls
  • Fixed frequency settings with highly musical overlapping bands and floating Q
  • Low-cut and high-cut filters and bypass
  • Transformer-less 12AT7 output tubes
In the Box A-Designs Hammer 2 EQ Equalizer
  • Limited 1-Year Warranty on Parts
  • Limited 30-Day Warranty on Labor and Tubes
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the A-Designs Hammer 2 EQ Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    A-Designs HAMMER 2 Specs

    Frequency Response -3 dB points @ 5 Hz and 40 kHz
    Noise Floor -94 dbm with 30 kHz bandwidth
    Boost and Cut Boost: 12 dB
    Cut: -12 dB
    Switch Low-Frequency:
    30 / 50 / 100 / 150 / 200 / 300 / 400 / 470 / 560 Hz
    Shelving @ 30/60/125

    Mid-Frequency:
    125 / 175 / 250 / 500 / 800 Hz; 1.2 / 1.6 / 2 / 2.7 / 3.3 / 3.9 / 4.7 kHz

    High-Frequency:
    1.8 / 2.5 / 3.5 / 5 / 7.5 / 10 / 15 / 20 / 40 kHz
    Shelving @ 4.8 / 12.5 / 30 kHz
    Filter Low-Cut Filter: 84 Hz
    High-Cut Filter: 8 kHz
    Bandwidth Floating
    THD >0.08 @ 1 kHz
    Power Requirements 120/230 VAC; 42 W
    Dimensions 19.0 x 3.5 x 10" (48.3 x 8.9 x 25.4 cm)
    Weight 10 lb (4.5 kg)
