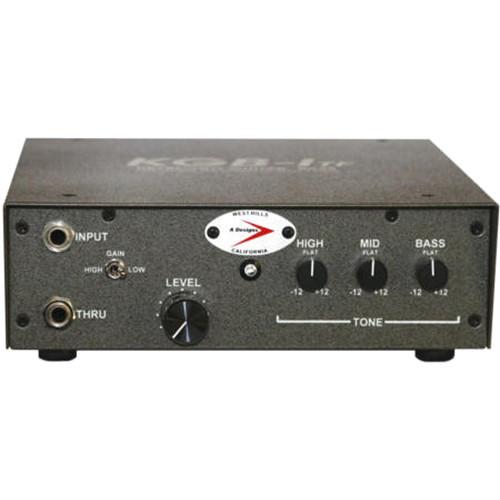

User Manual for A-Designs KGB-1tf Single-Channel Solid-State Instrument Preamp and Tone Filter Click to enlarge the picture
Contents of the user manual for the A-Designs KGB-1tf Single-Channel Solid-State Instrument Preamp
- Product category: Microphone Preamps A-Designs
- Brand: A-Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Designs Microphone Preamps
|
User manual for the A-Designs KGB-1tf Single-Channel Solid-State Instrument Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!
|
Product description The KGB-1tf from A Designs is a single-channel solid-state instrument preamp with a 3-band tone filter, ideal for connecting high-impedance, unbalanced outputs, such as electric guitar and bass, direct to mixing consoles, A/D converters and power amps. It also features a ground lift, phase flip, and a thru output that can be used for connecting to additional equipment such as an on-stage guitar or bass amp. -
- Single discrete input with thru
- Gain select switch - high/low
- Phase reverse switch
- Ground lift switch
- External power transformer for a low noise floor
- 3-band fixed frequency tone filter with 12db cut/boost - high/mid/low
- Balanced, line-level +4 dB output, which allows you to forgo use of the typical DI box
- All-metal chassis
- Milled aluminum knobs
- Balanced XLR gold pin Neutrik outputs
- Switchcraft 1/4" input jacks
- Bipolar electrolytic capacitors
- 1% metal resistors
- Blue LED power indicator
- 4 rubber feet
- Heat vents
In the Box A-Designs KGB-1tf Single-Channel Solid-State Instrument Preamp and Tone Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Designs KGB-1tf Single-Channel Solid-State Instrument Preamp and Tone Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Designs KGB-1TF Specs | S/N | Better than 90 dB (shorted input) | | Output | XFMR balanced +4 @ 600 ohms | | Power | 20VAC (rated) 22-27VAC (unloaded) external, +/-24VDC internal | | Gain | Low = 70 dB, High = 90 dB (2 kHz source @ .775V)
Low = 35 dB, High = 60 dB (2 kHz source @ .09mV) | | Sensitivity | Lower than .09mV |
