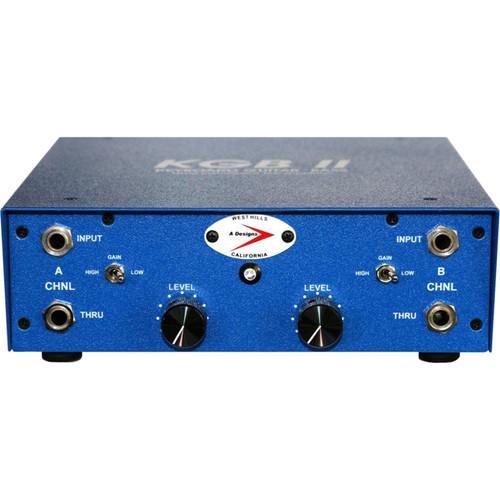

User Manual for A-Designs KGB-II Dual-Channel Solid-State Instrument Preamp Click to enlarge the picture
Contents of the user manual for the A-Designs KGB-II Dual-Channel Solid-State Instrument Preamp
- Product category: Microphone Preamps A-Designs
- Brand: A-Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Designs Microphone Preamps
|
User manual for the A-Designs KGB-II Dual-Channel Solid-State Instrument Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!
|
Product description The KGB-II from A Designs is a dual-channel solid-state instrument preamp, ideal for connecting high-impedance, unbalanced outputs, such as electric guitars, basses or keyboards, directly to mixing consoles, A/D converters and power amps. It also features per channel ground lift and phase flip switches, as well as thru outputs that can be used for connecting to additional equipment such as on-stage guitar or bass amps. -
- Two discrete inputs with thru
- Gain select switches for each channel high/low
- Phase reverse switch for each channel
- Ground lift switch
- External power transformer for low noise floor
- All-metal chassis
- Milled aluminum knobs
- Balanced XLR gold pin Neutrik outputs
- Switchcraft 1/4" input jacks
- Bipolar electrolytic capacitors
- 1% metal resistors
- Blue LED power indicator
- 4 rubber feet
- Heat vents
In the Box A-Designs KGB-II Dual-Channel Solid-State Instrument Preamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Designs KGB-II Dual-Channel Solid-State Instrument Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Designs KGB-II Specs | S/N | Better than 90 dB (shorted input) | | Output | XFMR balanced +4 @ 600 ohms | | Power | 20 VAC (rated) 22-27 VAC (unloaded) external, +/-24 VDC internal | | Gain | Low = 70 dB, High = 90 dB (2 kHz source @ .775V)
Low = 35 dB, High = 60 dB (2 kHz source @ .09mV) | | Sensitivity | Lower than .09mV |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
