Product description

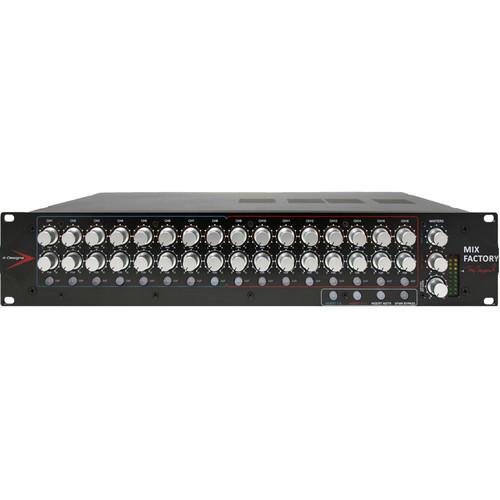

The Mix Factory from A-Designs is a 2 RU, 16-channel, solid-state summing mixer designed to impart analog tone when combining signals sent from a DAW, making it ideal for mix engineers who want to use a "hybrid" (digital and analog) mixing workflow.Each of the Mix Factory's 16 channels offers controls for gain, pan, and mute. Each channel's mute switch has an audio-sensitive LED that glows green when signal is present. The 16 channels are summed to two stereo groups (1-8 Sum and 9-16 Sum), then sent to the main stereo bus. Gain controls are provided for each stereo group and the master stereo bus. 10-segment LED meters for the stereo bus allow you to keep track of your output levels.The Mix Factory features custom-made Cinemag output transformers that can be switched in or out of the mix bus. This provides a significant tonal change at the push of a button. Integration of outboard compressors and equalizers is simple, due to the XLR insert points for the two groups and main stereo mix. Insert switches are provided for easy A/B comparison.There are 16 balanced analog line inputs via two DB-25 connectors. All outputs are balanced, analog line level on XLR jacks. Main outputs are available pre- and post-master gain. Connect the pre-master outputs to your monitoring system. Record the post-master outputs to print the mix.The Mix Factory offers a stereo external input for linking multiple summing mixers. The included external power supply is switchable, enabling use around the world.
    • Solid-state design with selectable custom-made Cinemag output transformers
    • 16 inputs via two DB-25 connectors
    • All outputs are balanced, analog line level on XLR connectors
    • Two stereo groups (1-8 Sum and 9-16 Sum) and main stereo mix output
    • Insert points are available for the two stereo groups and the main stereo mix
    • Pre-master stereo outputs for monitoring purposes
    • Post-master stereo outputs for recording purposes
    • Custom-made Cinemag output transformers are selectable via a front-panel switch
    • Each channel offers gain, pan, and mute controls
    • Each channel’s mute switch features an audio-sensitive LED that glows green when signal is present
    • 10-segment LED meters for the stereo output
    • Gain controls for groups (1-8 Sum and 9-16 Sum) and main stereo output
    • 2 RU
    • External input for linking multiple summing mixers
    • Switchable external power supply can be used internationally
In the Box A-Designs Mix Factory 16-Channel Stereo Summing Mixer
  • External Power Supply
  • IEC Power Cable
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the A-Designs Mix Factory 16-Channel Stereo Summing Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    A-Designs MIX FACTORY Specs

    Type Solid-state
    Inputs 2 x DB-25 (1-8, 9-16)
    2 x XLR (external input)
    Outputs 2 x XLR Monitor outputs (pre-master)
    2 x XLR Main Mix outputs (post-master)
    Inserts 2 x XLR 1-8 Sum insert sends
    2 x XLR 1-8 Sum insert returns
    2 x XLR 9-16 Sum insert sends
    2 x XLR 9-16 Sum insert returns
    2 x XLR Main Sum insert sends
    2 x XLR Main Sum insert returns
    Gain Control Continuous on each channel
    Gain Range Unity gain (for channels 1-16)
    Unity gain to full attenuation (total)
    Maximum Input Level +27 dBu
    Power Requirements 100, 120, or 230 VAC via external power supply
    Dimensions (W x H x D) 19 x 3 x 10" / 482.6 x 76.2 x 254.0 mm
    Weight 16.4 lb / 7.4 kg
