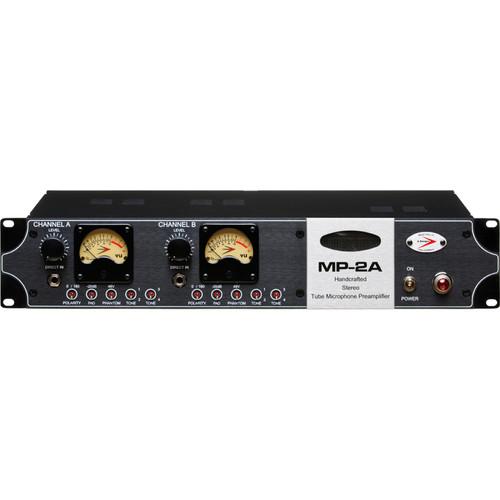

User Manual for A-Designs MP-2A Stereo Tube Microphone Preamplifier and DI Click to enlarge the picture
Contents of the user manual for the A-Designs MP-2A Stereo Tube Microphone Preamplifier
- Product category: Microphone Preamps A-Designs
- Brand: A-Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Designs Microphone Preamps
|
User manual for the A-Designs MP-2A Stereo Tube Microphone Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!
|
Product description The stereo, all-tube MP-2A from A-Designs is a dual-channel audiophile-quality microphone preamplifier that is designed to be versatile and sonically flexible. The preamp will work with any ribbon, condenser, or dynamic microphone, as well as instruments such as guitars, bass, and keyboards via the DI input. The MP-2A uses no integrated circuits and relies solely on discrete components such as EF86 input tubes, 6N1-P output tubes, Audience capacitors, custom-wound Cinemag output transformers, and hand-crafted point-to-point wiring.
Each channel provides up to 60 dB of clean, low-noise gain, a -20 dB pad, and two Tone switches that provide four distinctive possible sonic signatures. Additional features include Neutrik XLR connectors, true VU metering, 48V phantom power, polarity reverse switches, and front panel Hi-Z input jacks. The preamp's fixed-gain amplifier/output attenuator topology provides a wide "sweet-spot" for any microphone or instrument and captures material with clarity and transparency. The MP-2A ships with a standard IEC power cord. -
- All-tube design
- Selectable tone switches offer four sounds per channel
- 60 dB gain allows use of next-generation ribbon mics
- EF86 input tubes / 6N1-P output tubes
- Cinemag input transformers and custom-wound output transformers
- True VU meters
- Dual level controls
- -20 dB pad switch (per channel)
- Polarity switch (per channel)
- Toroidal power transformer
- Balanced XLR I/O and 1/4” direct injects
- Custom-milled faceplate, solid vented-metal frame (2U rack size)
In the Box A-Designs MP-2A Stereo Tube Microphone Preamplifier and DI IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Designs MP-2A Stereo Tube Microphone Preamplifier and DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Designs MP-2A Specs | Number of Channels | 2 | | Inputs | 2x balanced XLR
2x 1/4" / 6.35 mm direct inject (instrument input) | | Output | 2x balanced XLR | | Phantom Power | Switchable 48 V | | Gain Range | 60 dB | | Frequency Response | 20 Hz to 60 kHz | | Noise | EIN: -128 dB | | Input Impedance | Mic: 1.4 kOhms
Instrument: >100 kOhms | | Output Impedance | 600 ohms, switchable to 10 kOhms | | Phase Reversal | Switchable 0 - 180° | | Distortion | < 0.08 % | | Power | 100/120/230 VAC, 42 W | | Dimensions (W x H x D) | 19.0 x 3.5 x 10.0" / 48.3 x 8.9 x 25.4 cm | | Weight | 18 lb / 8.2 kg |
