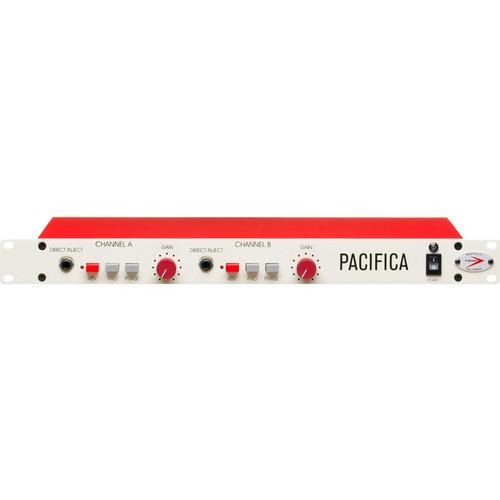

User Manual for A-Designs Pacifica Solid-State Stereo Microphone Preamplifier and D.I. Click to enlarge the picture
Contents of the user manual for the A-Designs Pacifica Solid-State Stereo Microphone Preamplifier
- Product category: Microphone Preamps A-Designs
- Brand: A-Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Designs Microphone Preamps
|
User manual for the A-Designs Pacifica Solid-State Stereo Microphone Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!
|
Product description The Pacifica from A-Designs is a stereo, solid-state microphone preamplifier that captures the sound of the legendary Quad Eight Pacifica console, offering a big, warm tone without being dark and a sweet, open top end. The preamp features two channels with a unique DI signal path that utilizes two transformers for added depth and a richer tone. The custom wound Cinemag transformers are of a proprietary design by A-Designs.The Pacifica offers an ultra-wide bandwidth of 9 Hz to 101 kHz with less than 1% distortion, resulting in rich, harmonic content, while reducing in-band phase shifts for more realism. Each channel features a phase reversal switch, -20 dB pad, and 48V phantom power, while the 72 dB of quiet gain is more than enough for ribbon microphones. The Pacifica is handmade in the USA and ships with a standard IEC power cord. -
- Two-channel, solid state preamp with two front-panel Hi-Z inputs
- Captures the sound quality of the legendary Quad Eight Pacifica console with even more presence and high-end
- Very warm and full tone without being dark; wide bandwidth with a sweet top end
- Custom-wound Cinemag input and output transformers
- Input transformer: A-Designs proprietary input transformer with unique winding
- Output Transformer: A-Designs proprietary alloy using the same massive design as the original Quad Eight
- 72 dB of quiet gain, great for use with ribbon mics
- Unique DI design sends signal through the input transformer for two transformers in the signal path
- Balanced XLR I/O
- Phase reversal (each channel)
- -20 dB pad (each channel)
- +48V phantom power (each channel)
- Solid construction, handmade in the USA
In the Box A-Designs Pacifica Solid-State Stereo Microphone Preamplifier and D.I. IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Designs Pacifica Solid-State Stereo Microphone Preamplifier and D.I. in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Designs PACIFICA Specs | Number of Channels | 2 | | Inputs | 2x balanced XLR
2x 1/4" / 6.35 mm direct inject (instrument input) | | Output | 2x balanced XLR | | Phantom Power | Switchable 48 V | | Gain Range | 72 dB | | Frequency Response | 9 Hz to 101 kHz | | Noise | EIN: -128 dB | | Input Impedance | 1500 ohms | | Phase Reversal | Switchable 0 - 180° | | Distortion | < 1 % | | Power | 100/120/230 VAC, 23 W | | Dimensions (W x H x D) | 19.0 x 1.8 x 10.0" / 48.3 x 4.4 x 25.4 cm | | Weight | 12.5 lb / 5.7 kg | | | | Box Dimensions (LxWxH) | 28.0 x 18.0 x 10.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
