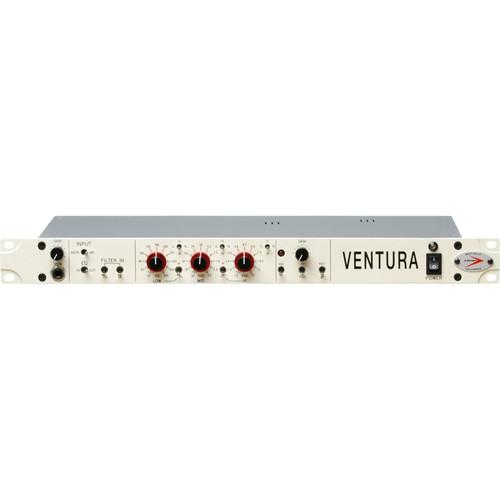

User Manual for A-Designs VENTURA Solid-State Microphone Preamplifier and 3-Band EQ

Click to enlarge the picture
A-Designs VENTURA Solid-State Microphone Preamplifier and 3-Band EQ Contents of the user manual for the A-Designs VENTURA Solid-State Microphone Preamplifier and
  • Product category: Microphone Preamps A-Designs
  • Brand: A-Designs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for A-Designs Microphone Preamps

User manual for the A-Designs VENTURA Solid-State Microphone Preamplifier and contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any A-Designs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official A-Designs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a A-Designs product will considerably shorten its lifespan!



Product description

The VENTURA from A-Designs is a solid-state microphone preamplifier and EQ that captures the sound of the legendary Quad Eight Pacifica console, offering a big, warm tone without being dark, and a sweet, open top end. Designed to be a front end for DAW setups, the VENTURA provides crystal clear and transparent audio with dimensionality, air, and extended bass. Drive the unit a little harder, and it provides a more aggressive sound, while still retaining full bandwidth tonal clarity.

At the heart of the VENTURA lies the specially designed discrete transistor operational amplifier that's powered off of a ±30 VDC rail. The op-amp offers high-gain, fast-slew, and a stable audio block with virtually no DC offset over the audio spectrum. The circuit is capable of driving a 50 ohm load at 50 Hz with extremely low current draw. Additionally, the VENTURA utilizes audiophile-quality components, silver-contact toggle switches, and gold Neutrik XLR connectors.

The mic pre uses Cinemag input and output transformers in a single stage design and features phase reverse, -20 dB pad, +48V phantom power, and a gain control. The preamp simultaneously feeds the EQ section and a dedicated preamp output. The 3-band parametric EQ features 33 frequencies grouped into three bands of overlapping ranges from 50 Hz to 15 kHz, while the dual concentric knobs also offer ±12 dB of boost or cut. Each band also offers a Q switch for fixed positions: Sharp, Wide, Normal. Additionally, the low and high bands are switchable from peak to shelving filters. Another set of switches set the specially tuned 2nd order high and low pass filters that are available independent of the EQ.

The front-panel DI input feeds a dedicated instrument preamp that is separate from the mic pre and is designed to counteract the undesirable effects of guitar/bass pick loading. The instrument preamp also feeds the EQ and preamp output simultaneously. The VENTURA ships with an IEC power cord.
    • Transparent, solid-state mic preamplifier with 72 dB gain; instrument preamp; and true, 3-band parametric EQ with high- and low-pass filters
    • Mic preamp, EQ, and instrument preamp can be used together or independently
    • Three specially designed discrete C12X operational amplifiers
    • Cinemag input and output transformers
    • Toroidal power transformer
    • Balanced TRS insert return/EQ input
    • Separate gain controls for mic and instrument inputs
    • -20 dB pad, +48 VDC phantom power with red LED indicator, phase switch, and on/off switch with blue LED indicator
    • Balanced gold Neutrik XLR input, direct, and main output connectors
    • Silver-contact, high-durability toggle switches with no relays
    • Hand-built in the USA with audiophile-quality components including high-tolerance metal film resistors and high-quality polystyrene, polypropylene, COG, and bi-polar capacitors
    • Single rackspace steel chassis
In the Box A-Designs VENTURA Solid-State Microphone Preamplifier and 3-Band EQ
  • IEC Power Cord
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the A-Designs VENTURA Solid-State Microphone Preamplifier and 3-Band EQ in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    A-Designs VENTURA Specs

    Number of Channels 1
    Inputs 1x balanced XLR
    1x 1/4" / 6.35 mm direct inject (instrument input)
    1x 1/4" / 6.35 mm balanced TRS input for EQ only or FX return
    Output Mic/Instrument Output: 1x balanced XLR (+4 level)
    Main: 1x balanced XLR (+4 level)
    Phantom Power Switchable 48 V
    Gain Range Microphone: -62 to +30 dBV
    Instrument: 70 dB
    Insert / EQ Input: 0 to +26 dBV
    Frequency Response Better than 20 Hz to 20 kHz
    Noise EIN: -120 dBm
    Input Impedance Microphone: 1.4 kOhms (typical)
    Instrument: 20 MOhms (nominal)
    Insert / EQ Input: 15 kOhms
    Output Impedance Balanced XLR Outputs: 600 ohms (nominal)
    Phase Reversal Switchable 0 - 180°
    Distortion 0.01%
    Power 120/230 VAC, 23 W
    Dimensions (W x H x D) 19.0 x 1.8 x 10.0" / 48.3 x 4.4 x 25.4 cm
    Weight 14.0 lb / 6.4 kg
