User Manual for A&J PRO Moving Dolly Track Camera Slider Click to enlarge the picture
Contents of the user manual for the A&J PRO Moving Dolly Track Camera
- Product category: Camera Sliders A&J PRO
- Brand: A&J PRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A&J PRO Camera Sliders
 |
User manual for the A&J PRO Moving Dolly Track Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A&J PRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A&J PRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A&J PRO product will considerably shorten its lifespan!
|

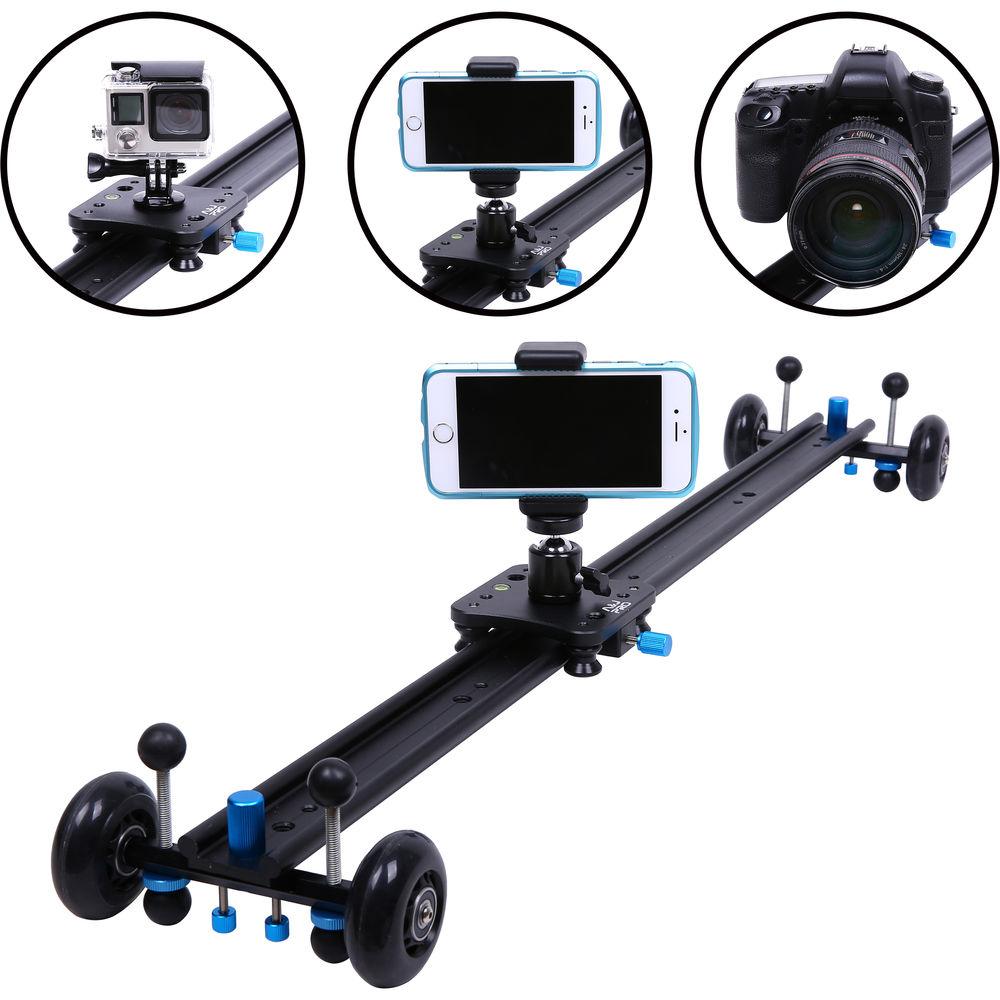

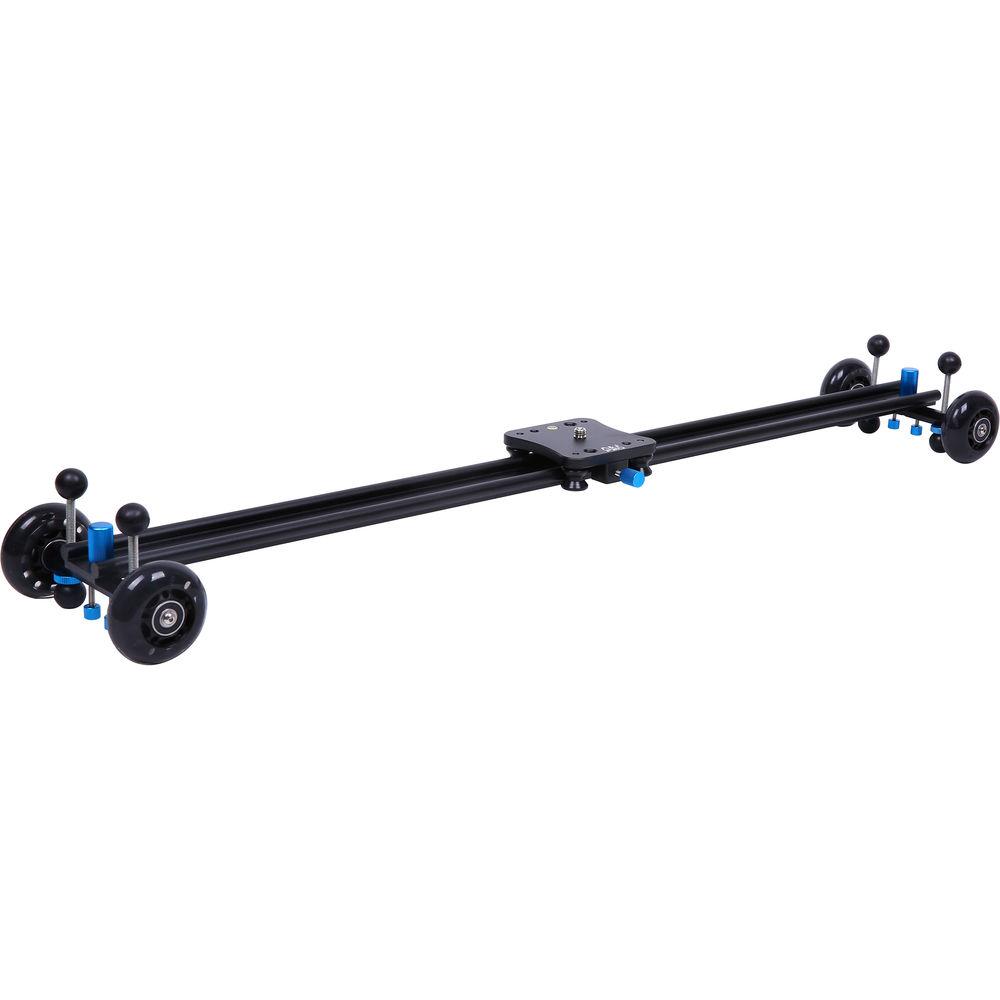

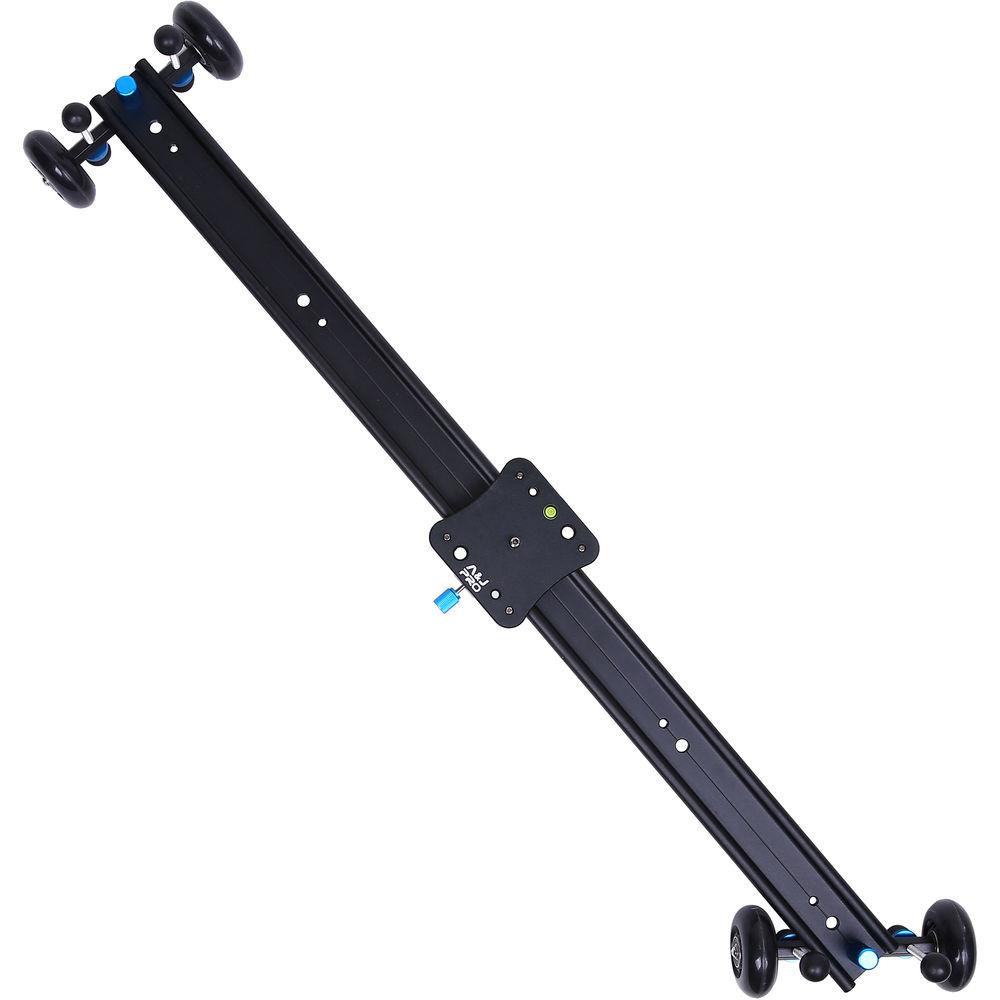

Product description This 31.8" A&J Moving Dolly Track Camera Slider features five tripod mounting positions, adjustable-height feet, and wheels for creating freeform dolly or tracking shots. The track consists of a single-piece construction of the track bed and rails, with removable track stops/ends that incorporate the adjustable height feet and wheels. The carriage glides on roller bearings along the track rails and has up to 29" of travel.

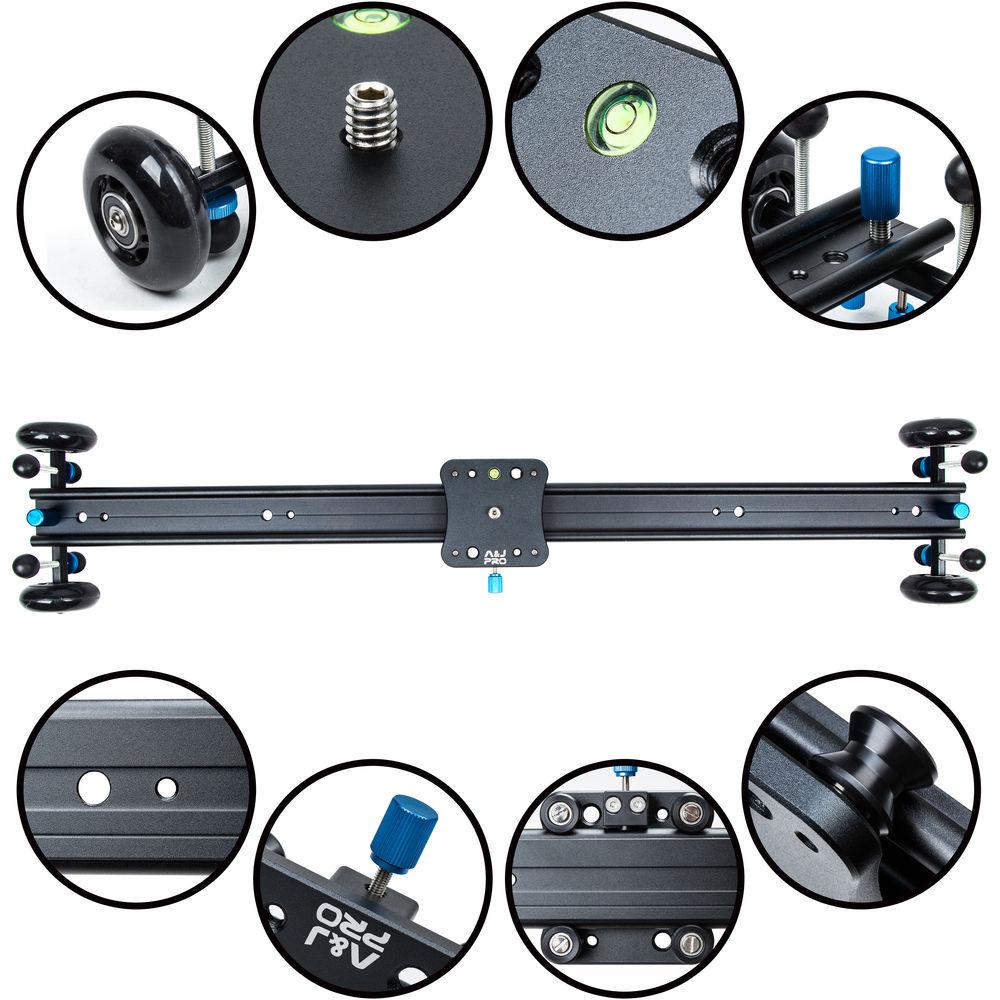

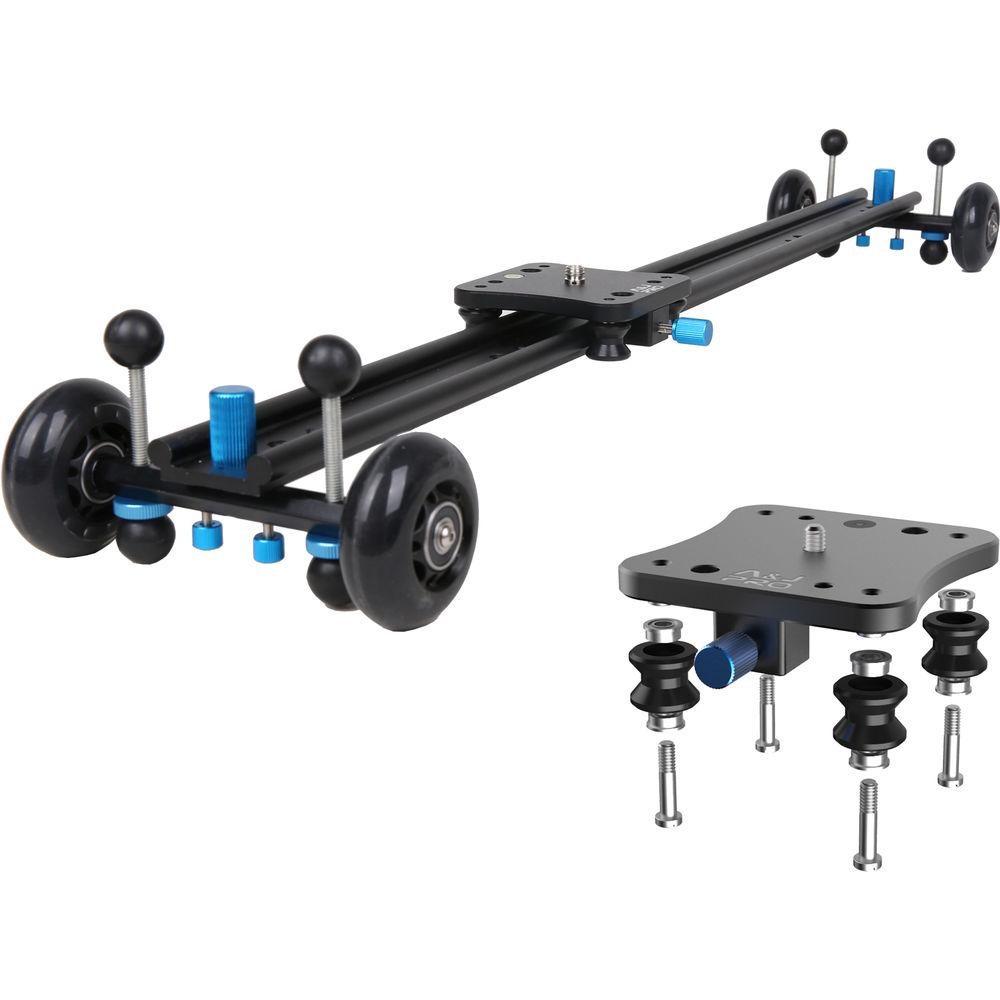

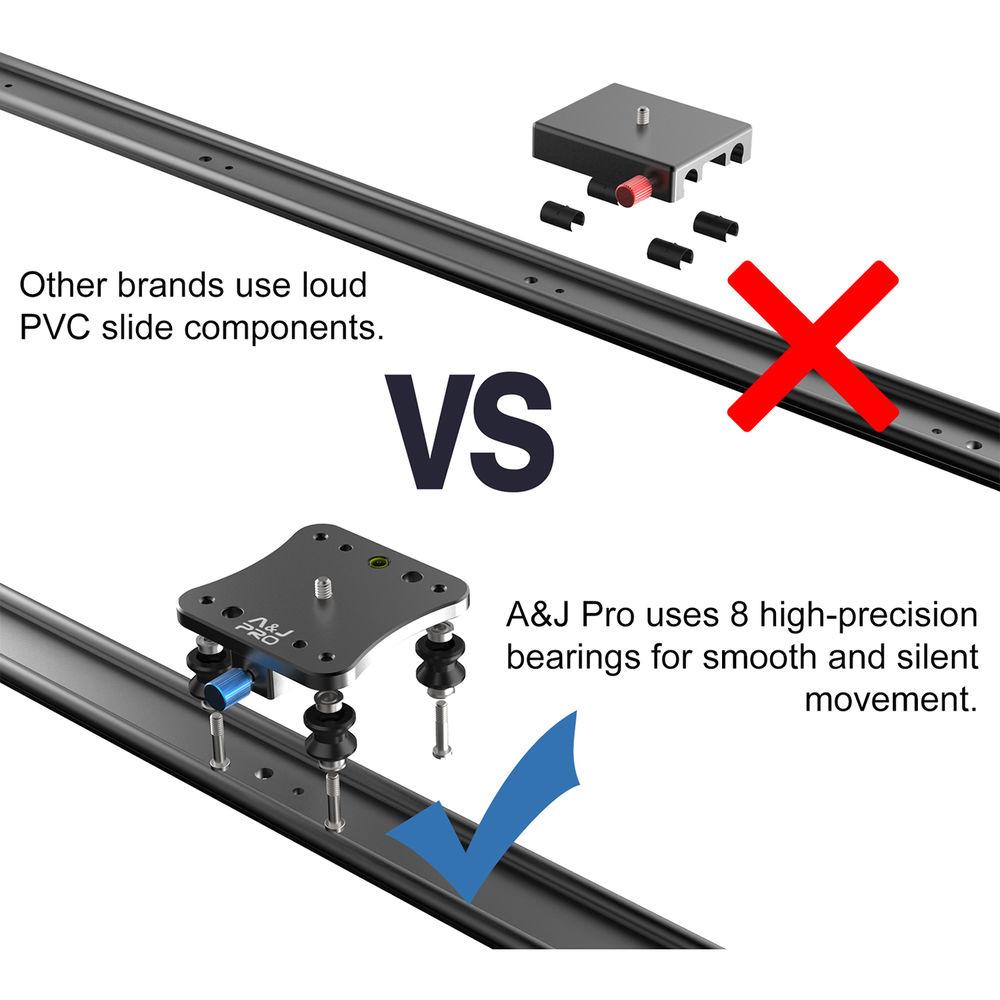

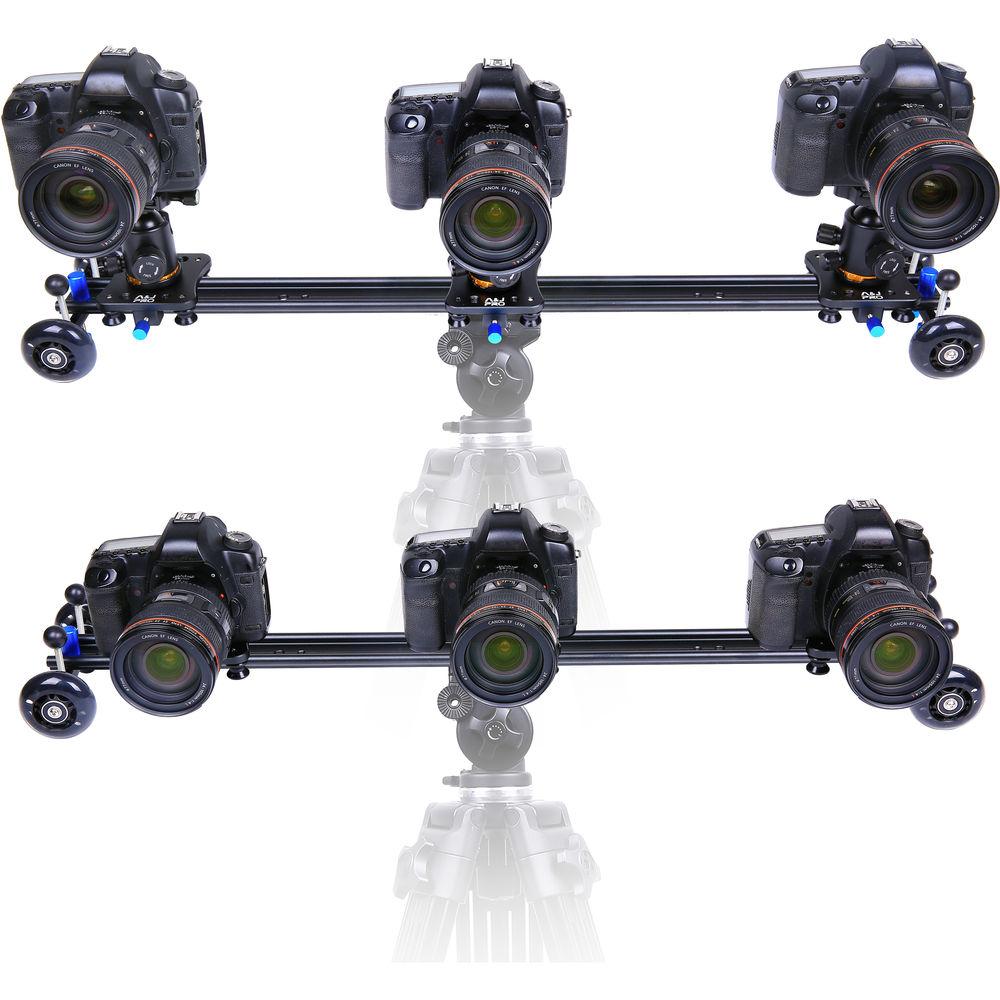

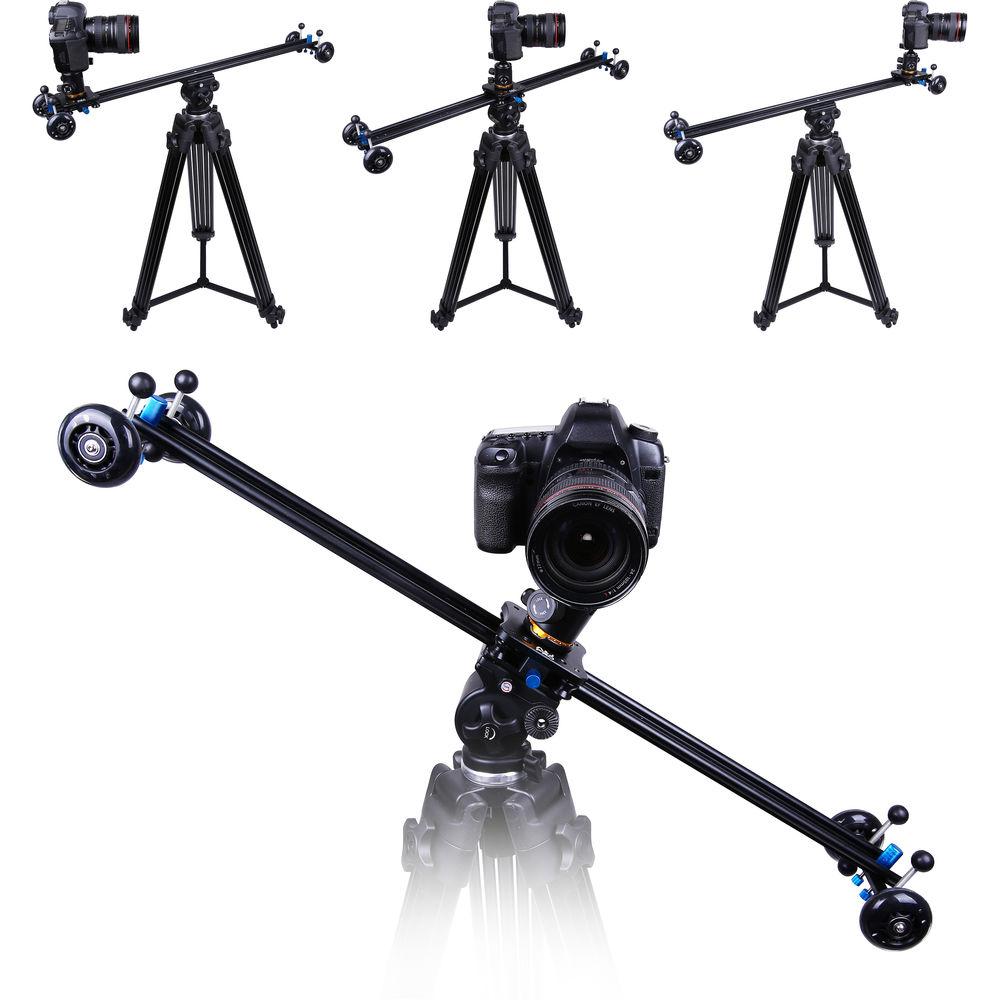

The carriage features eight roller bearings, and a friction brake that holds the position of the carriage on the track. The carriage also incorporates a bubble level, enabling you to confirm the level of the system. The track bed features five sets of 1/4"-20 and 3/8"-16 threaded mounting holes, enabling you to mount the track to a tripod head and providing additional mounting possibilities and angles. - The track bed features five distinct 1/4"-20 and 3/8"-16 threaded tripod mounting holes. This enables mounting the slider onto a tripod and then using the head to create shots that can vary from horizontal to vertical.
- The feet enable setting up the slider track on a surface; the height of each foot can be adjusted to level the track.
- The wheels are removable from the track, and can be used to create curved moves on a flat and smooth surface.
- The carriage features a 1/4"-20 threaded stud for mounting your camera directly to the carriage. You can also mount a ball head, or use the included 1/4"-20 to 3/8"-16 bushing for mounting larger accessories to the carriage.
- The carriage also incorporates a bubble level and two each 1/4"-20 and 3/8"-16 threaded accessory mounting holes.
UPC: 755082764066 In the Box A&J PRO Moving Dolly Track Camera Slider (29" Sliding Length, 22 Pound Payload) Carriage 1/4"-20 to 3/8"-16 Bushing 2 x Removable Track Ends with Feet 2 x Pairs of Wheels Soft-Sided Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A&J PRO Moving Dolly Track Camera Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA&J PRO ANJMVSL80 Specs | | | Load Capacity | 22 lb / 10 kg | | Travel Distance | 29" / 73.66 cm | | Bubble Level | Yes | | | | Accessory Mounting | 2 x 1/4"-20 Female
2 x 3/8"-16 Female | | Tripod Mounting | 5 x 1/4"-20 Female Thread
5 x 3/8"-16 Female Thread | | | | Track Length | 31.8" / 80.77 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 35.0 x 8.0 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
