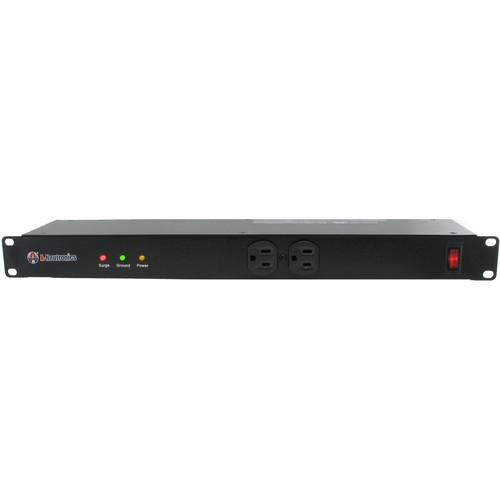

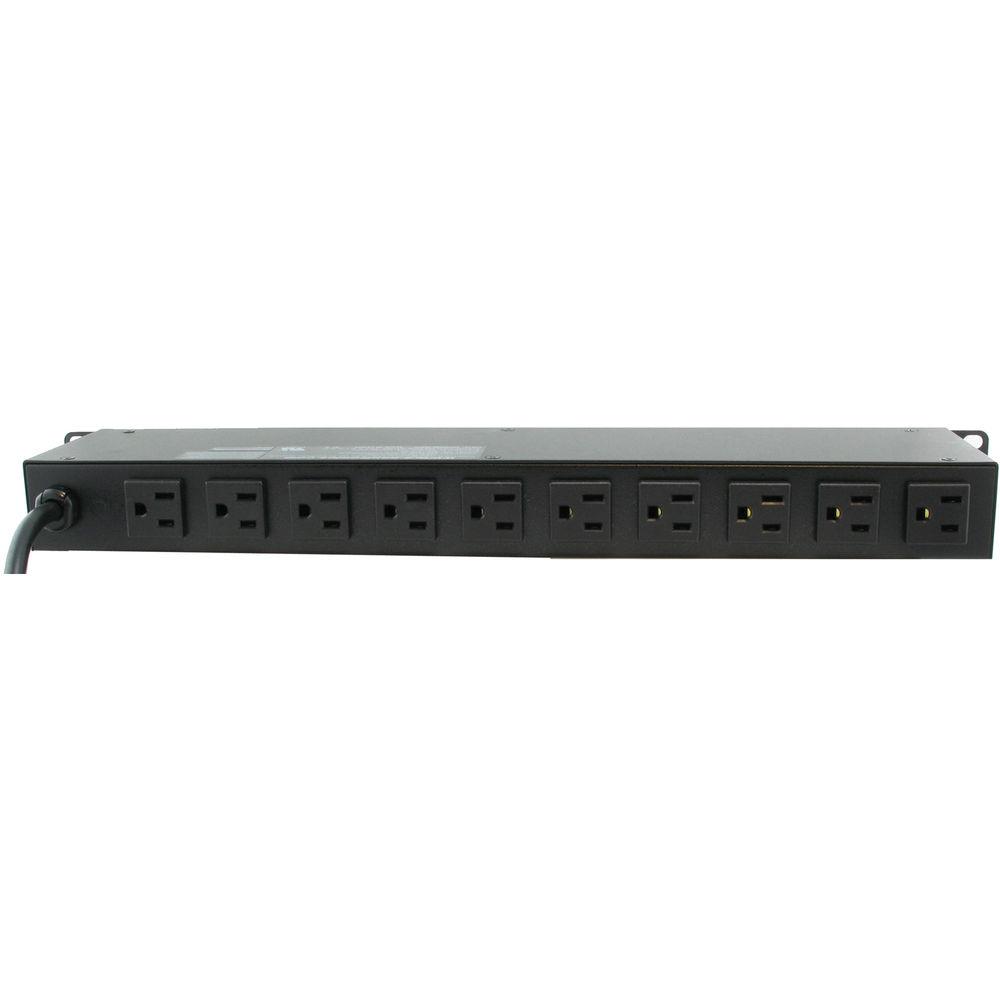

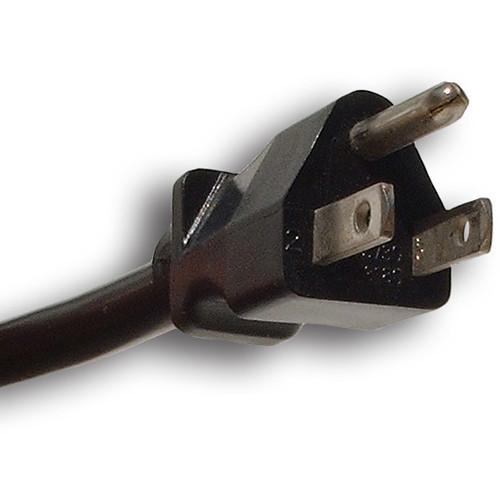

Product description The 12-Outlet / 19" Surge-Protected Rackmount Power Strip from A-Neutronics provides network-grade AC surge suppression and noise filtering with a rating of 120 VAC RMS clamping, 1800 joules, and 60,000A. It is equipped with 12 total NEMA 5-15R outlets (15A / 125V), with 2 front-mounted outlets and 10 rear-mounted ones, and connects to a wall outlet using its integrated 15' power cord with a NEMA 5-15P plug. Built using an all-steel housing, this rackmount power strip has a 1 RU form factor and will fit in most 19" EIA standard racks, with fixed mounting flanges to help make installations more user-friendly. Also featured is an integrated 15A circuit breaker. Protection is provided by a limited lifetime warranty and please bear in mind that rackmount screws are not included. UPC: 857391003154 In the Box A-Neutronics 12-Outlet / 19" Surge-Protected Rackmount Power Strip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neutronics 12-Outlet 19" Surge-Protected Rackmount Power Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

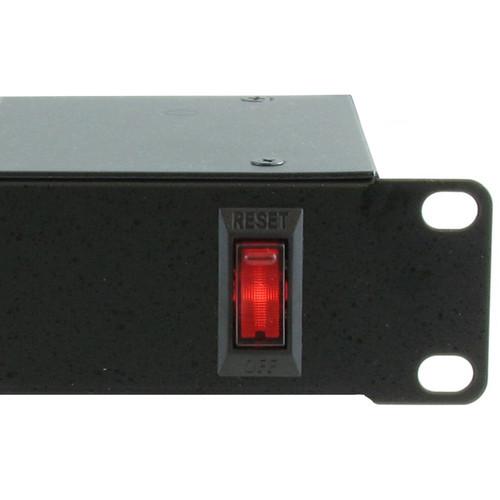

Technical parametersA-Neutronics MS-1215-S6 Specs | Overall Length | 19.0" / 48.3 cm | | Number of Receptacles | 12 (2 front, 10 rear) | | Type of Receptacle | NEMA 5-15R (15 A, 125 V) | | Surge Suppression | 120 VAC RMS Clamping / 1800 joules / 60,000 A | | Maximum Rating | 60 Hz, 15 A, 120 V | | Circuit Breaker | 15 A | | Type of Plug | NEMA 5-15P (15 A, 125V) | | Cord Length | 15.0' / 4.6 m | | Cord Type | 14/3 SJT | | Mounting Type | Flange (rack mounting screws not provided) | | Approvals | UL Approved | | Housing | Steel | | Unit Color | Black | | Color of Cord | Black | | Cord Location | Exits the rear of the housing | | Switch | Backlit | | Dimensions | 17.25 x 3.25 x 1.75" / 43.82 x 8.26 x 4.45 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 20.25 x 10.0 x 2.5" |
