User Manual for A-Neutronics 12-Outlet 48" Metal Rackmount Surge-Protected Power Strip Click to enlarge the picture
Contents of the user manual for the A-Neutronics 12-Outlet 48" Metal Rackmount Surge-Protected
- Product category: Power Strips A-Neutronics
- Brand: A-Neutronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neutronics Power Strips
 |
User manual for the A-Neutronics 12-Outlet 48" Metal Rackmount Surge-Protected contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neutronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neutronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neutronics product will considerably shorten its lifespan!
|

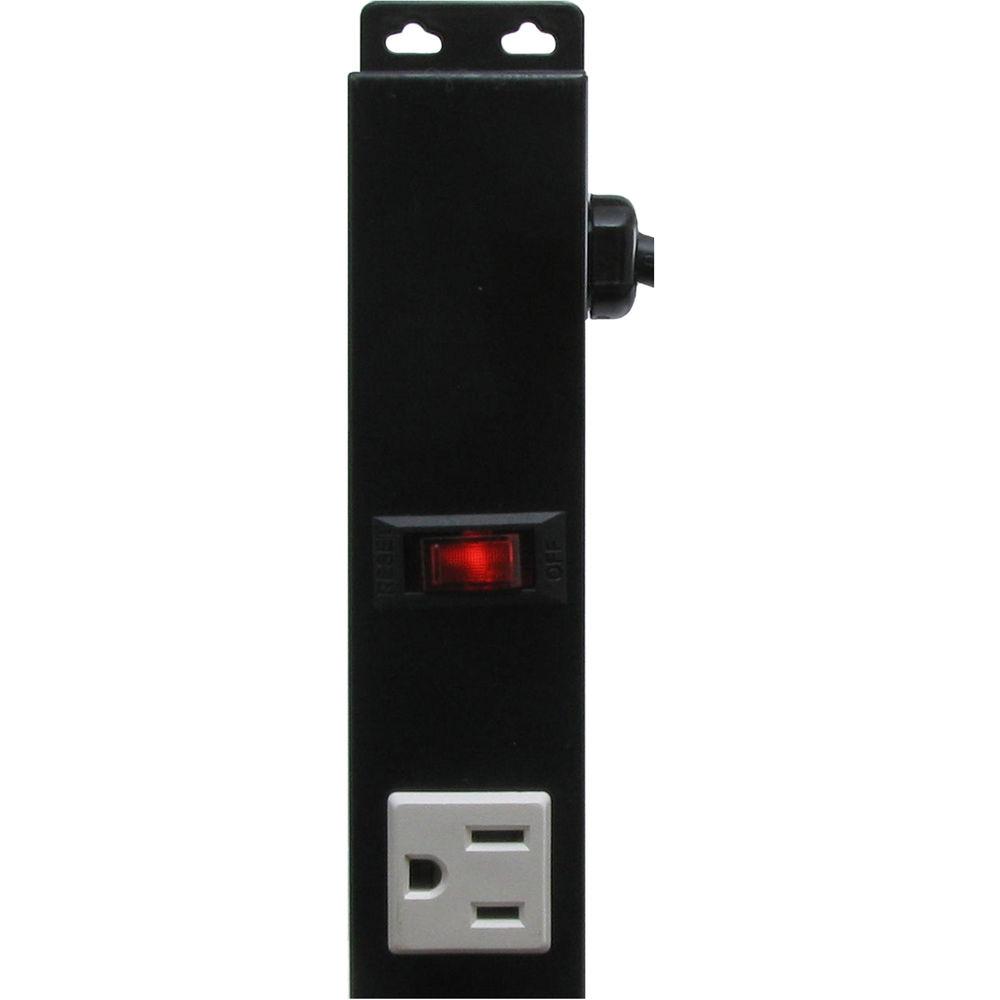

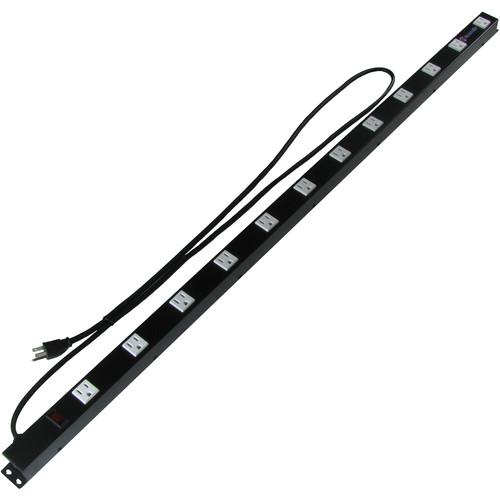

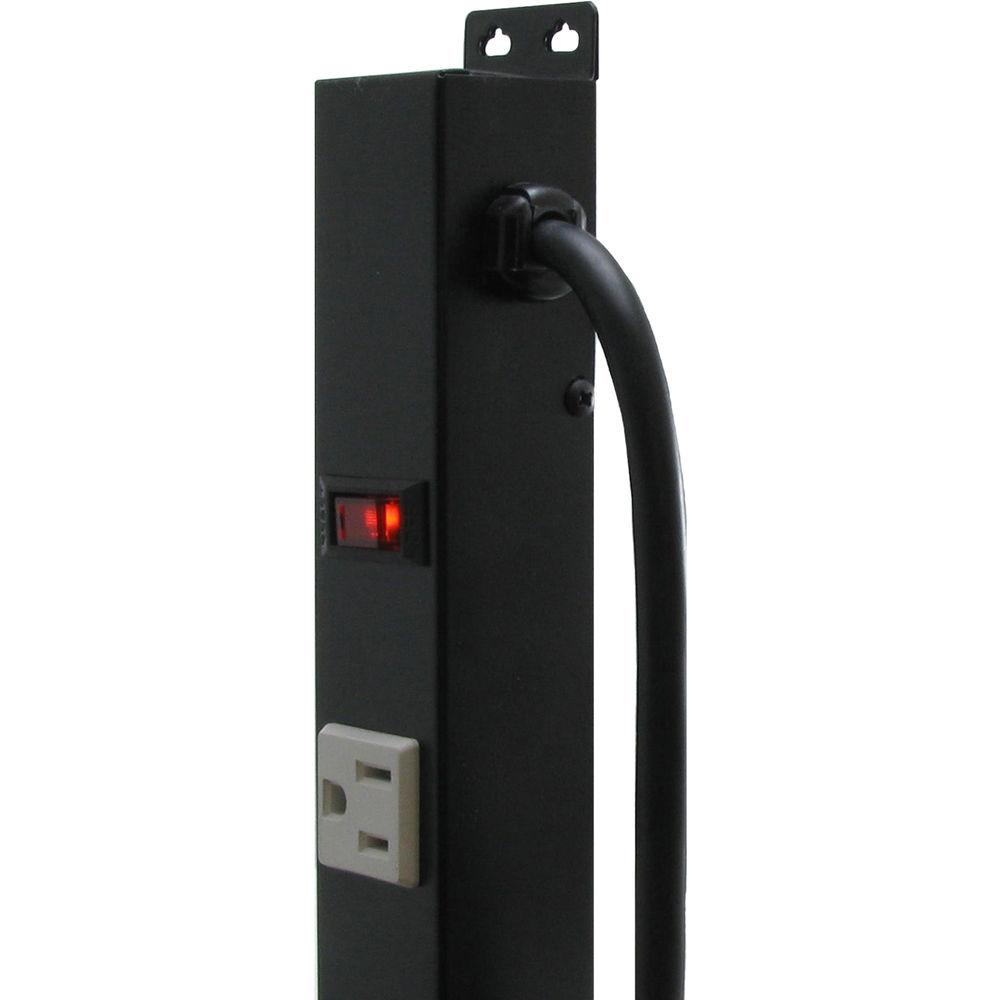

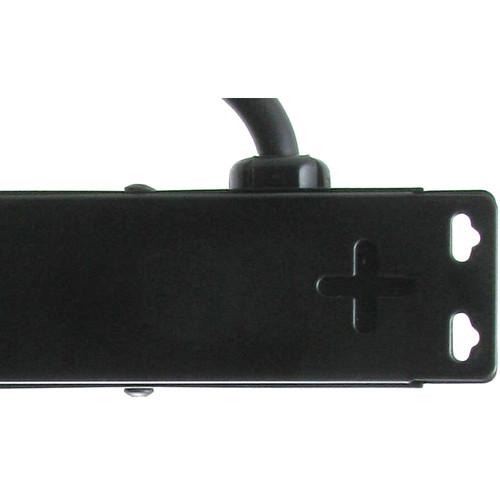

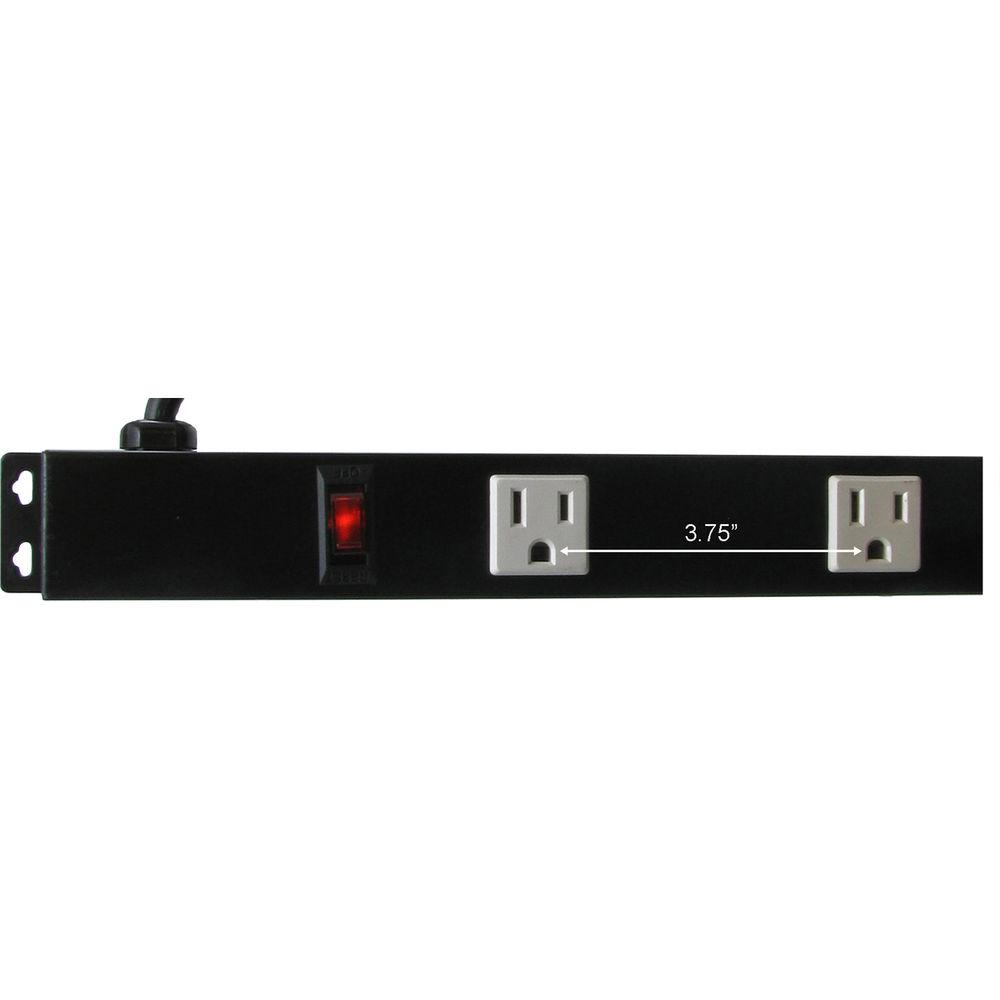

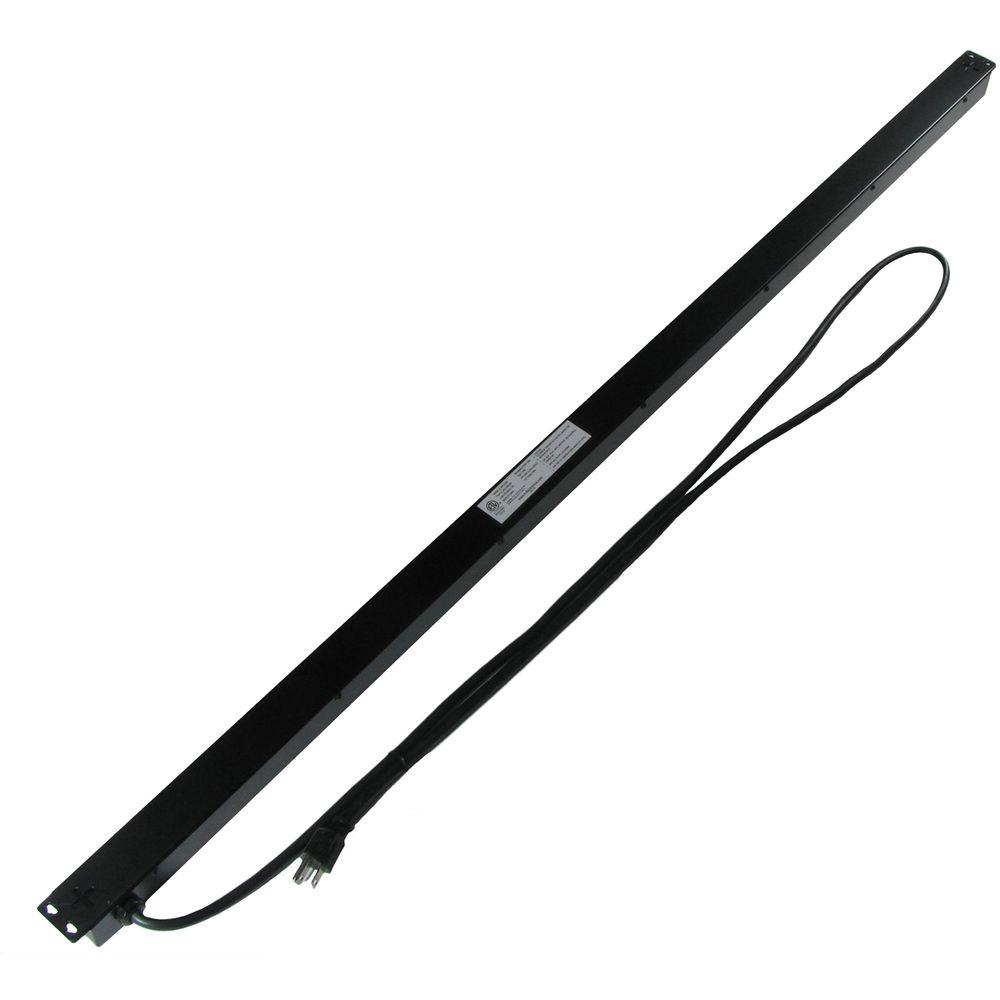

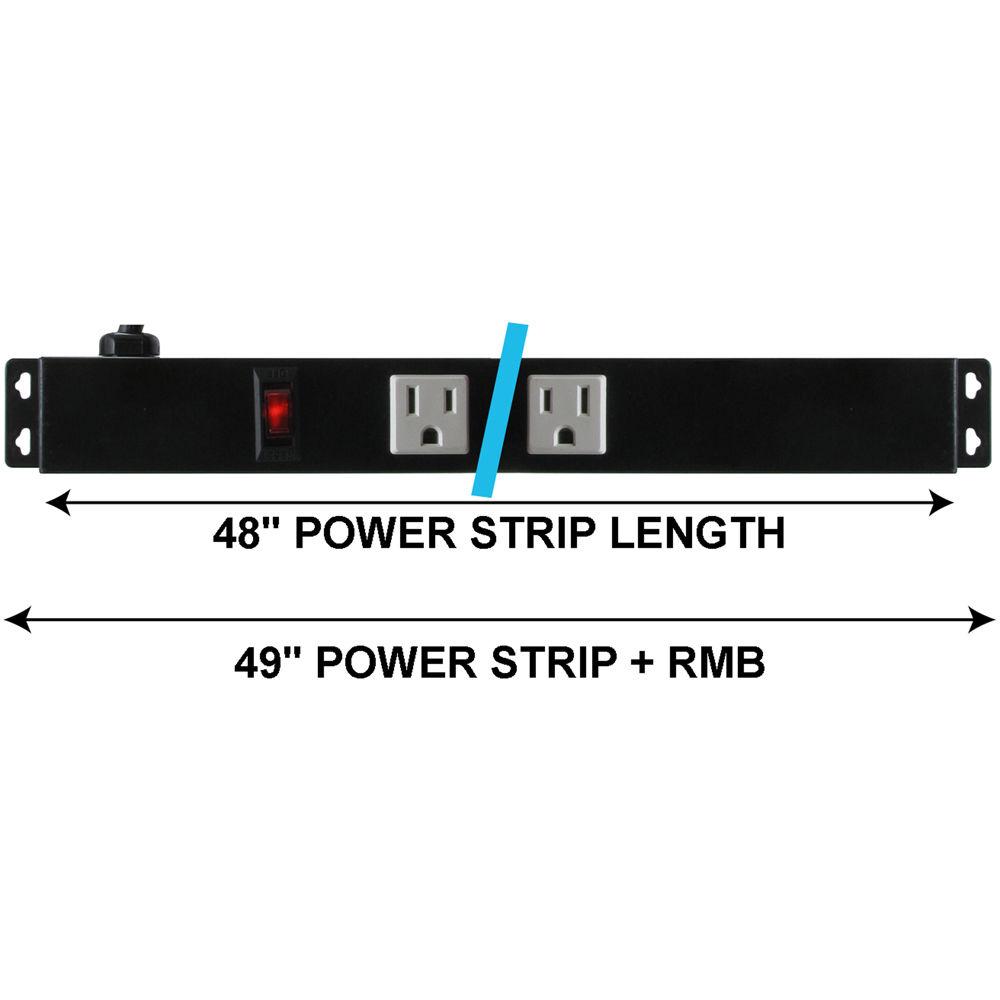

Product description The 12-Outlet / 48" Metal Rackmount Surge-Protected Power Strip from A-Neutronics offers 15A, 120 VAC multi-outlet power distribution in a 48" mountable housing. It orients itself horizontally for rackmount, raceway, or workbench applications. Built into this power strip are 12 NEMA 5-15R outlets that are spaced 3.75" apart from center-to-center. Also provided is 1140 joules of surge protection, a voltage input/output of 110-125V @ 60 Hz, and a full load rating of 1875 VA. Built using an all-steel housing, this rackmount power strip will endure demanding network, laboratory, and factory environments. The power strip also has a 6' power cord and a 15A circuit breaker. Protection is provided by a limited lifetime warranty. General Features - 12 white US standard outlets in a horizontal orientation
- The orientation allows for easy use of wall-warts (plug-in transformers)
- Master on/off switch with 15A resettable circuit breaker
- Surge protection up to 1140 joules
UPC: 857391003277 In the Box A-Neutronics 12-Outlet / 48" Metal Rackmount Surge-Protected Power Strip Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neutronics 12-Outlet 48" Metal Rackmount Surge-Protected Power Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neutronics ANI-1248SUR Specs | Outlets | 12 | | Outlet Orientation | Horizontal | | Plug/Receptacle Type | NEMA 5-15P/5-15R | | Outlet Spacing | 3.75" / 9.53 cm (center-to-center) | | Power Cord | 6.0' / 1.8 m, 14/3 AWG, SJT Heavy Duty | | Voltage Input/Output | 110-125 V / 60 Hz | | Current Input | 15 A | | Full Load | 1875 VA | | On/Off Switch | Yes | | Circuit Breaker | Built-in and resettable | | Surge Protection | Up to 1140 joules | | Lines Protected | (L-N) (L-G) (N-G) | | Response Time | Less than 5 ns | | Noise Filter | EMI/RFI | | Mounting On Back | Yes | | Mounting Tabs | Yes, each end | | Approvals | ETL (Conforms to UL Std. 1363 and CAN/CSA Std. C22.2 No. 14) | | Dimensions | 48.0 x 1.50 x 1.50" / 122 x 3.81 x 3.81 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 50.5 x 3.5 x 2.5" |
