User Manual for A-Neutronics 17-Outlet 19" Rackmount Power Strip with LCD Click to enlarge the picture
Contents of the user manual for the A-Neutronics 17-Outlet 19" Rackmount Power Strip
- Product category: Power Strips A-Neutronics
- Brand: A-Neutronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neutronics Power Strips
 |
User manual for the A-Neutronics 17-Outlet 19" Rackmount Power Strip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neutronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neutronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neutronics product will considerably shorten its lifespan!
|

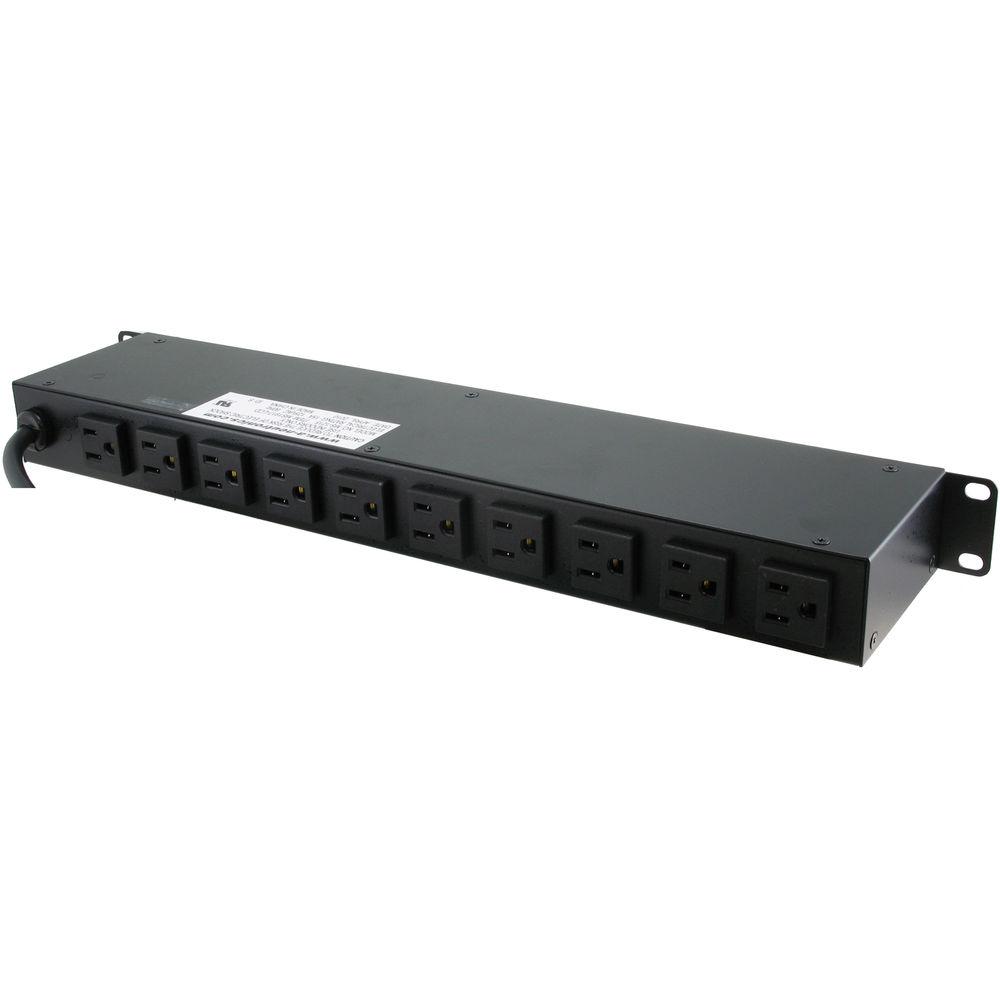

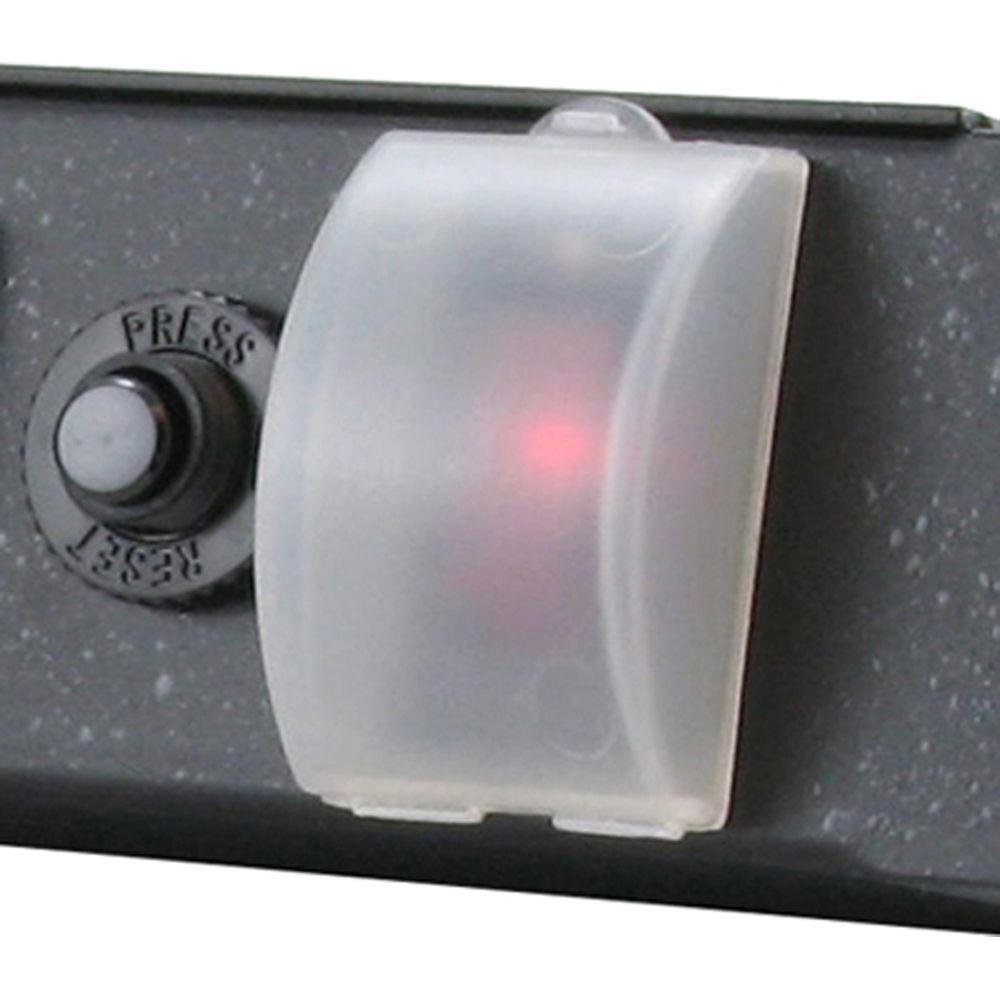

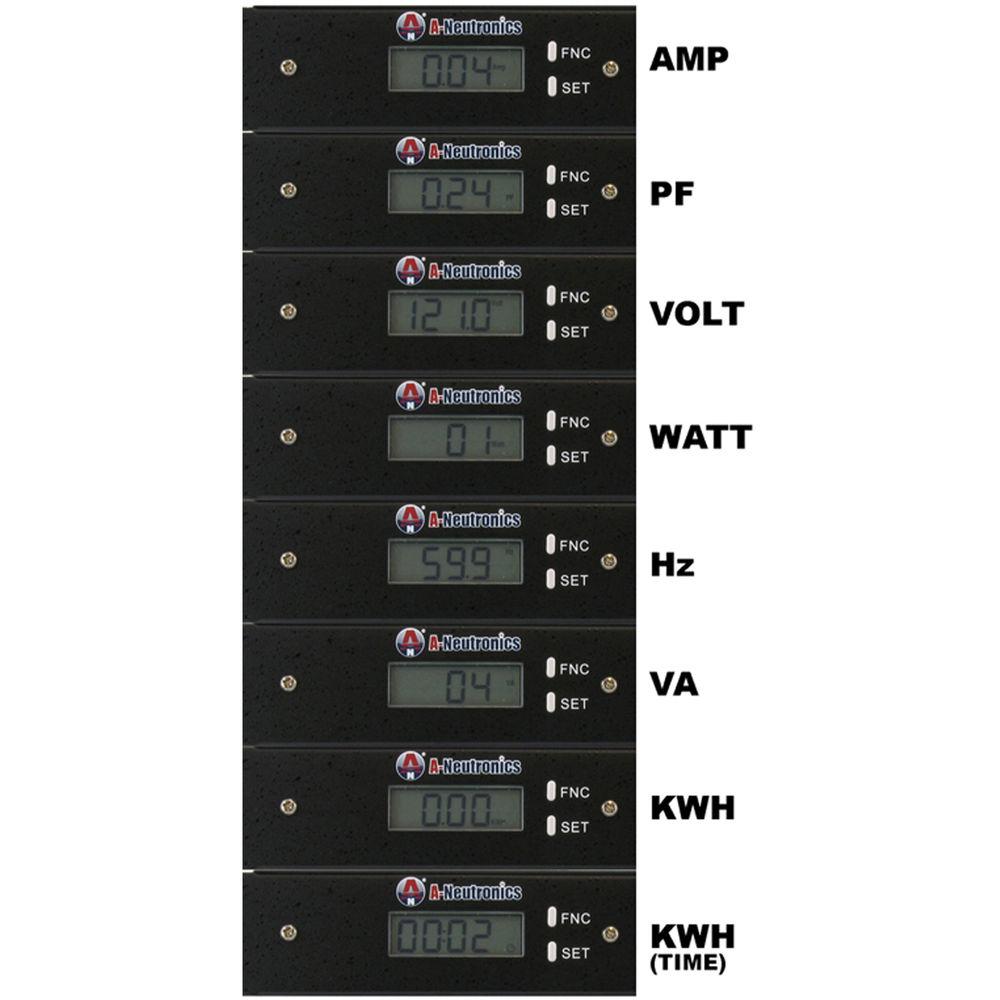

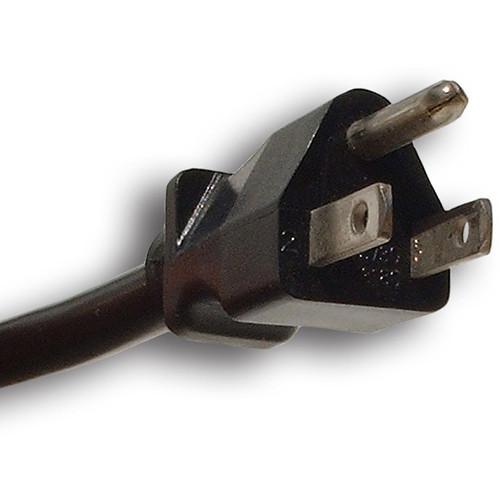

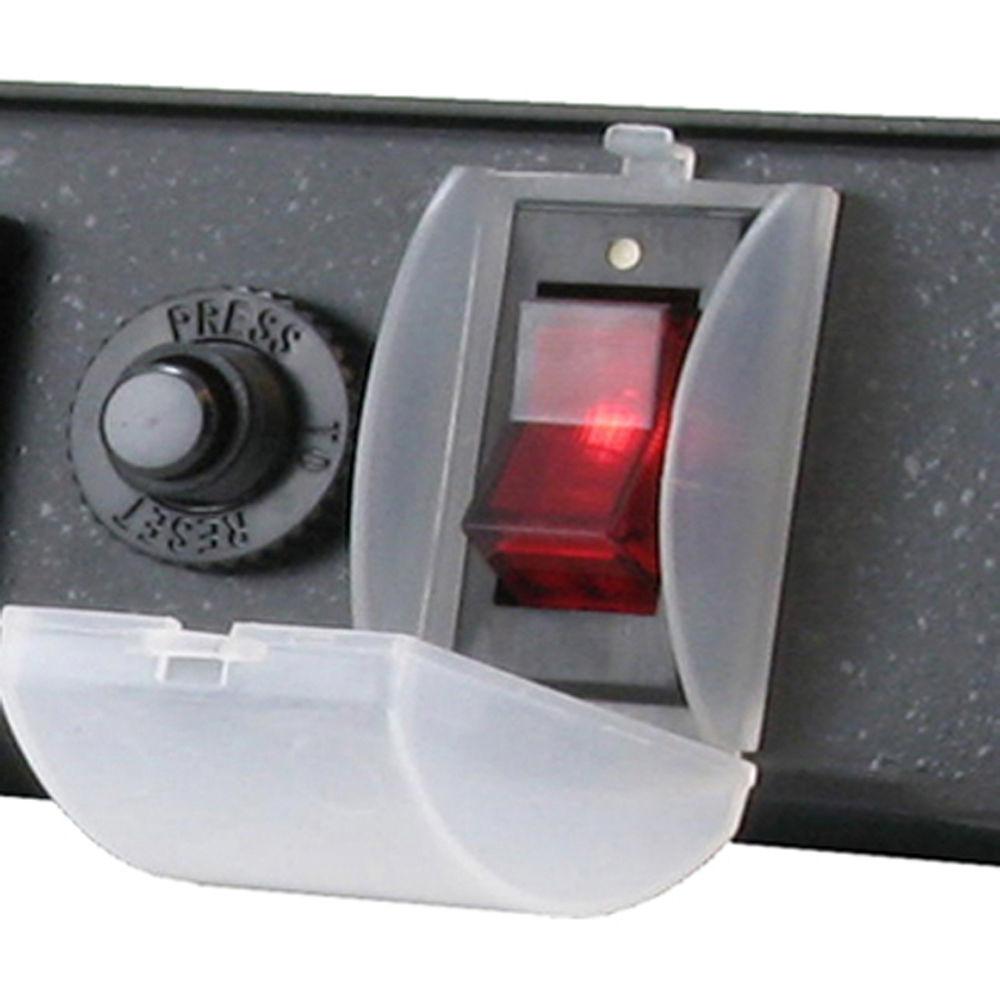

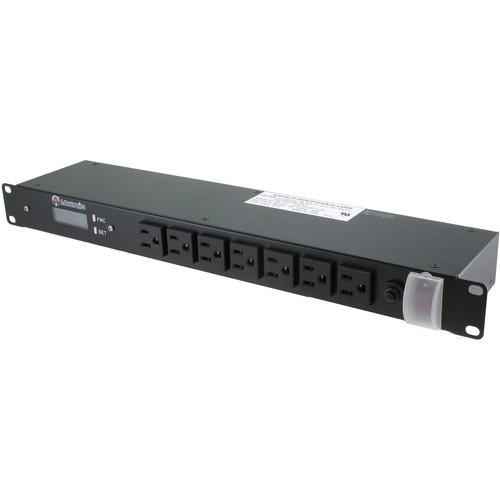

Product description This 17-Outlet / 19" Rackmount Power Strip from A-Neutronics is well-suited for distributing alternate waveform UPS or generator power in 1 RU / 19" rack enclosures, network closets, and more. It provides a maximum rating of 15A, 125V, and 60 Hz, and is equipped with 17 total NEMA 5-15R outlets (15A / 125V), with 7 front-mounted outlets and 10 rear-mounted ones, and connects to a wall outlet using its integrated 15' power cord with a NEMA 5-15P plug (15A / 125V). Built using an all-steel housing, fixed mounting flanges help make installations more user-friendly, while an LCD has eight different settings that shows volts (V), amps (A), watts (W), volt-ampere (VA), frequency (Hz), power factor, kilowatts (kW), and kilowatt hours (kWh). Also featured is an integrated 15A circuit breaker, unfiltered electrical pass-through, and a lit switch with a latching safety cover that helps prevent the unit from being accidentally turned off. Protection is provided by a limited 3-warranty. LCD Display Volts Amps Watts Volt-Ampere Frequency Power Factor Kilowatts Kilowatt Hours UPC: 857391003086 In the Box A-Neutronics 17-Outlet / 19" Rackmount Power Strip with LCD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neutronics 17-Outlet 19" Rackmount Power Strip with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neutronics MS1917-LCD Specs | Overall Length | 19.0" / 48.3 cm | | Maximum Rating | 60 Hz, 15 A, 125 V | | Number of Receptacles | 17 (7 front, 10 rear) | | Type of Receptacle | NEMA 5-15R (15 A, 125 V) | | Type of Plug | NEMA 5-15P (15 A, 125 V) | | Circuit Breaker | 15 A | | Mounting Type | Flange, removable (rackmount screws not provided) | | Switch | Lit with locking cover | | Display | LCD with backlight | | Approvals | UL Approved | | Housing | Steel | | Cord Type | 12/3 SJT | | Cord Length | 15' / 4.6 m | | Color of Cord | Black | | Cord Location | Exits the rear of the housing | | Unit Color | Black | | Dimensions | 17.25 x 3.75 x 1.75" / 43.82 x 9.53 x 4.45 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 20.4 x 9.8 x 2.2" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
