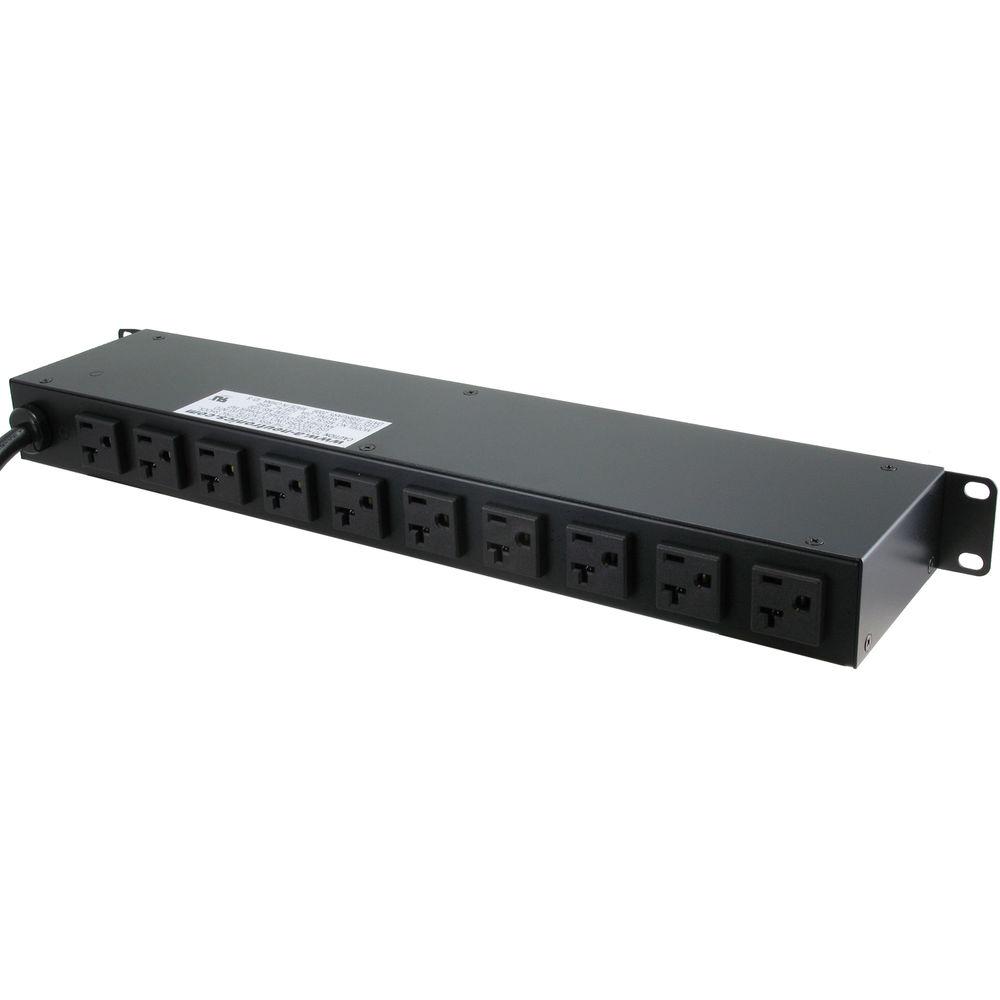

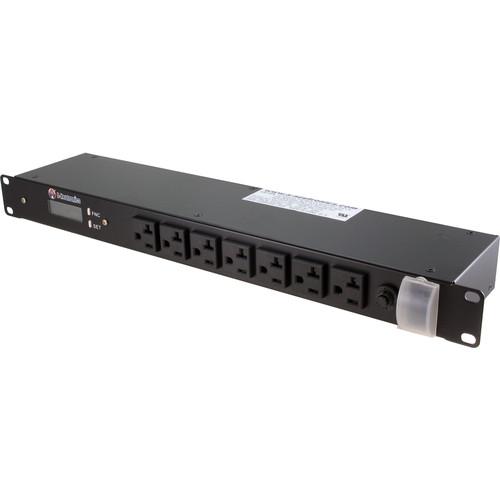

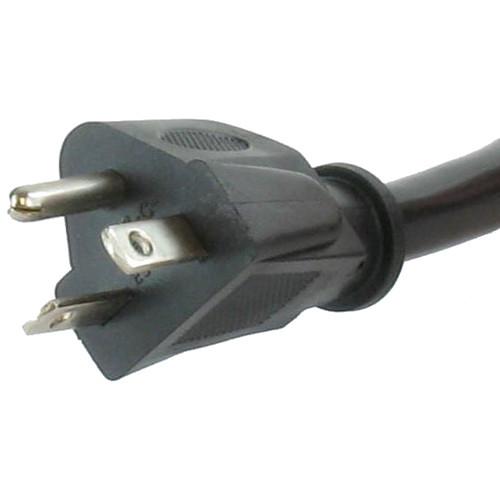

Product description This 17-Outlet / 19" Rackmount Power Strip from A-Neutronics is well-suited for distributing alternate waveform UPS or generator power in 1 RU / 19" rack enclosures, network closets, and more. It provides a maximum rating of 20A, 120V, and 60 Hz, and is equipped with 17 total NEMA 5-20R outlets (20A / 125V), with 7 front-mounted outlets and 10 rear-mounted ones. It connects to a wall outlet using its integrated 15' power cord with a NEMA 5-20P plug (20A / 125V).

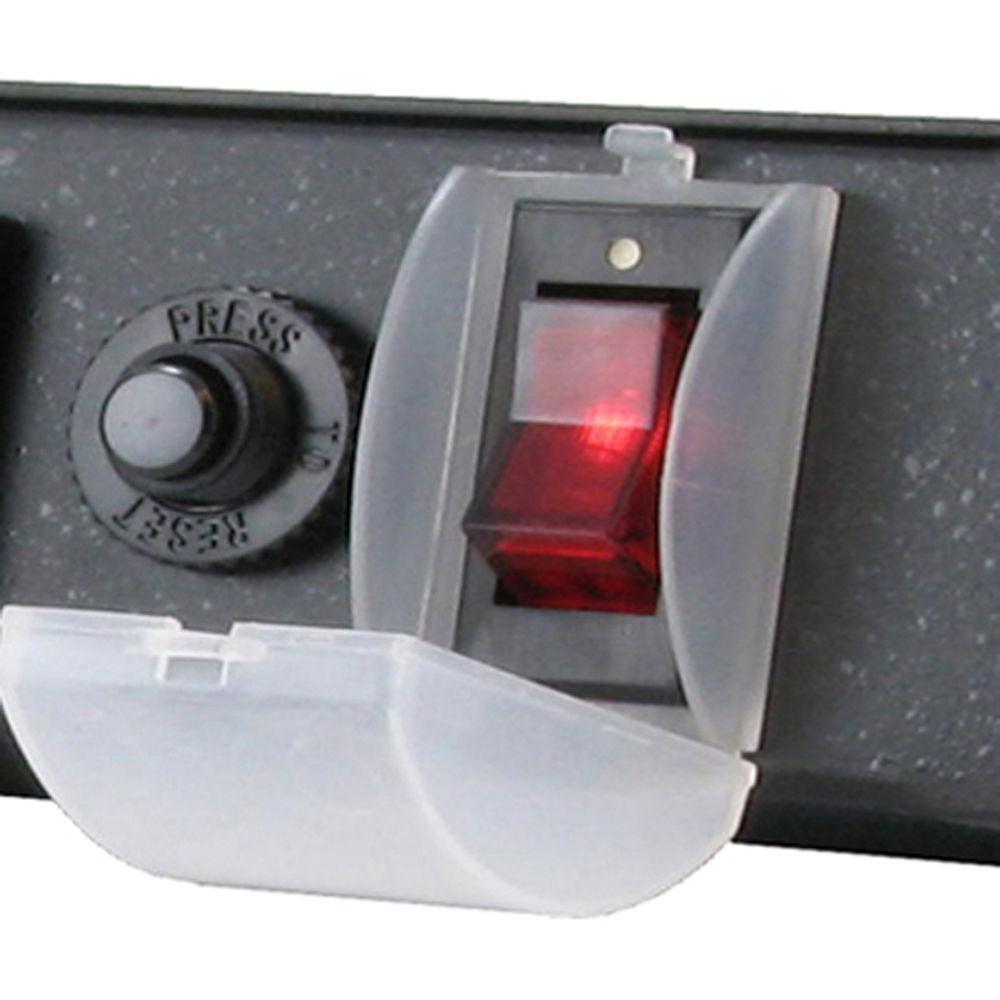

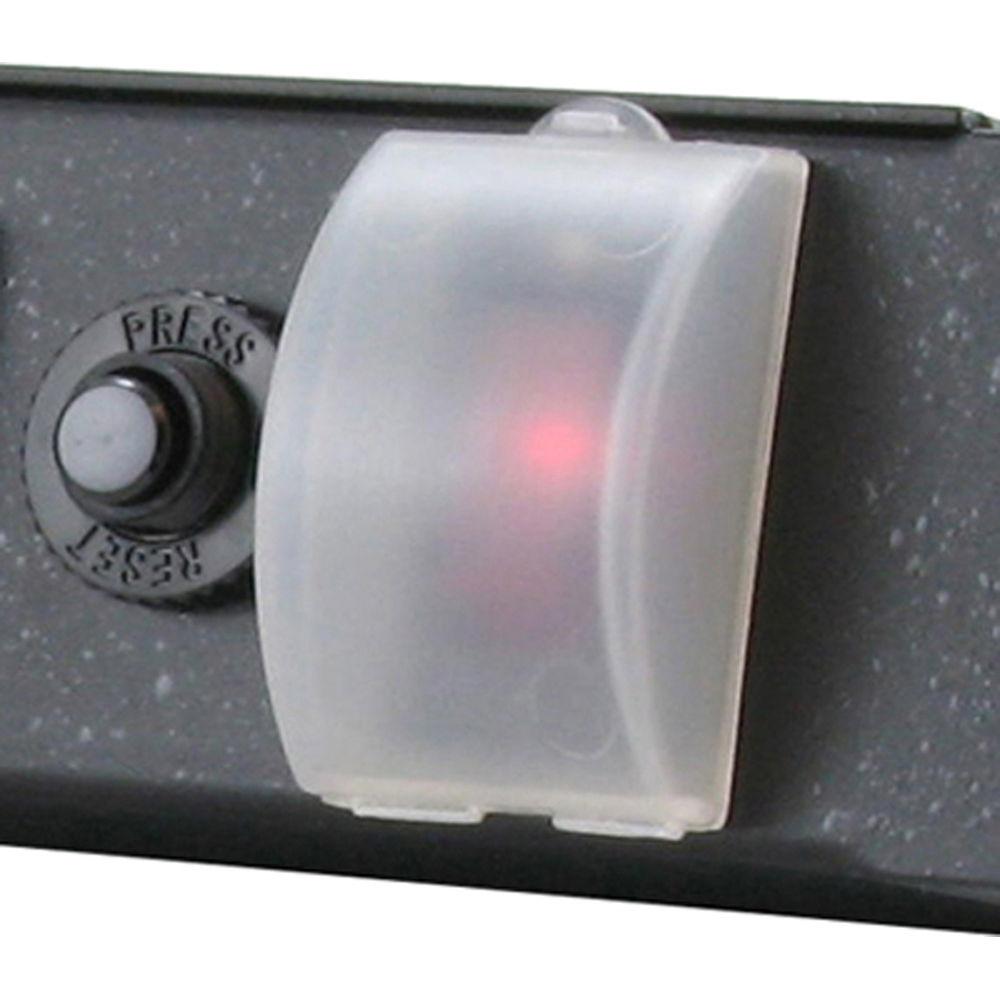

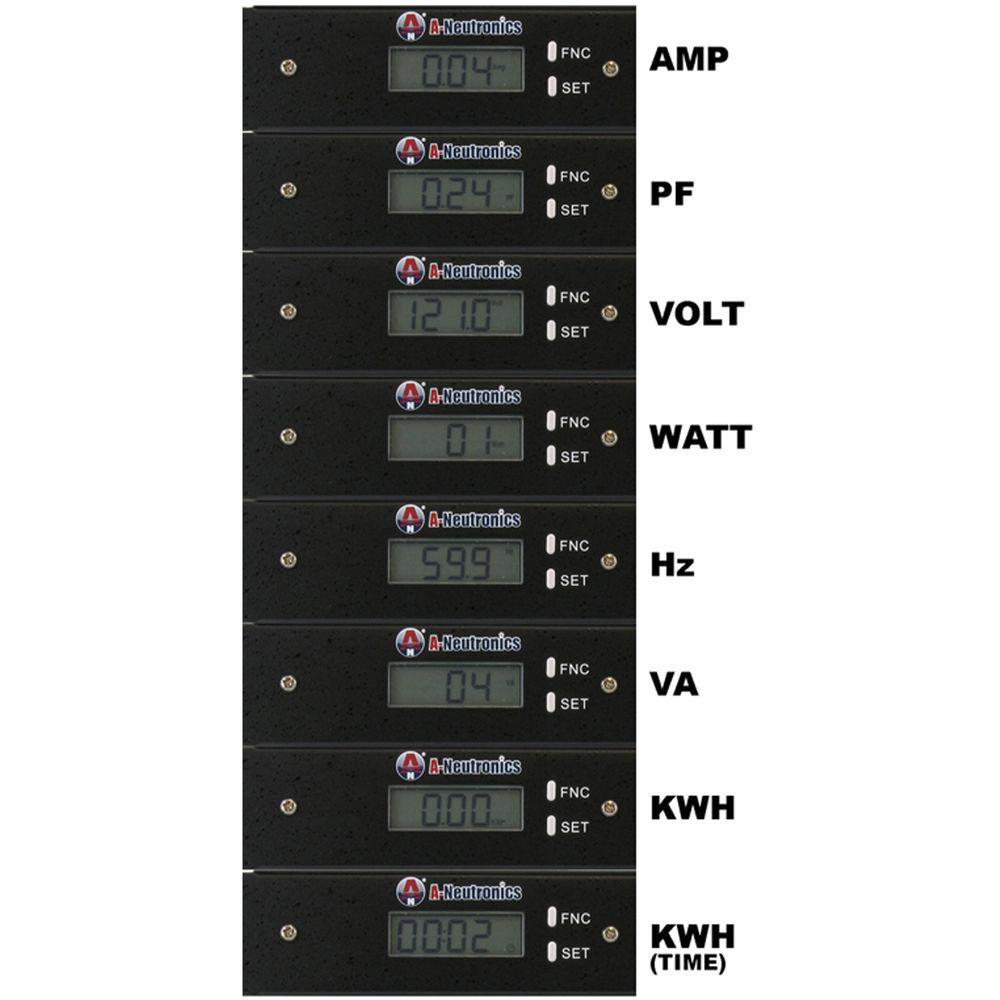

The power strip is built using an all-steel housing with fixed mounting flanges to help make installations more user-friendly. An LCD display with eight different settings shows volts (V), amps (A), watts (W), volt-ampere (VA), frequency (Hz), power factor, kilowatts (kW), and kilowatt hours (kWh). Also featured is an integrated 20A circuit breaker, unfiltered electrical pass-through, and a lit switch with a latching safety cover that helps prevent the unit from being accidentally turned off. Protection is provided by a limited 3-warranty.
Please be aware that this power strip will only work with 20A outlets and will not physically fit in 15A outlets. LCD Volts Amps Watts Volt-Ampere Frequency Power Factor Kilowatts Kilowatt Hours UPC: 857391003178 In the Box A-Neutronics 17-Outlet / 19" Rackmount Power Strip with LCD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neutronics 17-Outlet 19" Rackmount Power Strip with LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neutronics MS-SL12-RD Specs | Overall Length | 19.0" / 48.3 cm | | Maximum Rating | 60 Hz, 20 A, 120 V | | Number of Receptacles | 17 (7 front, 10 rear) | | Type of Receptacle | NEMA 5-20R (20 A, 125 V) | | Type of Plug | NEMA 5-20P (20 A, 125 V) | | Circuit Breaker | 20 A | | Mounting Type | Flange, removable (rackmount screws not provided) | | Switch | Lit with locking cover | | Display | LCD with backlight | | Approvals | UL Approved | | Housing | Steel | | Cord Type | 12/3 SJT | | Cord Length | 15.0' / 4.6 m | | Color of Cord | Black | | Cord Location | Exits the rear of the housing | | Unit Color | Black | | Dimensions | 17.25 x 3.75 x 1.75" / 43.82 x 9.53 x 4.45 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 20.0 x 9.0 x 2.2" |
