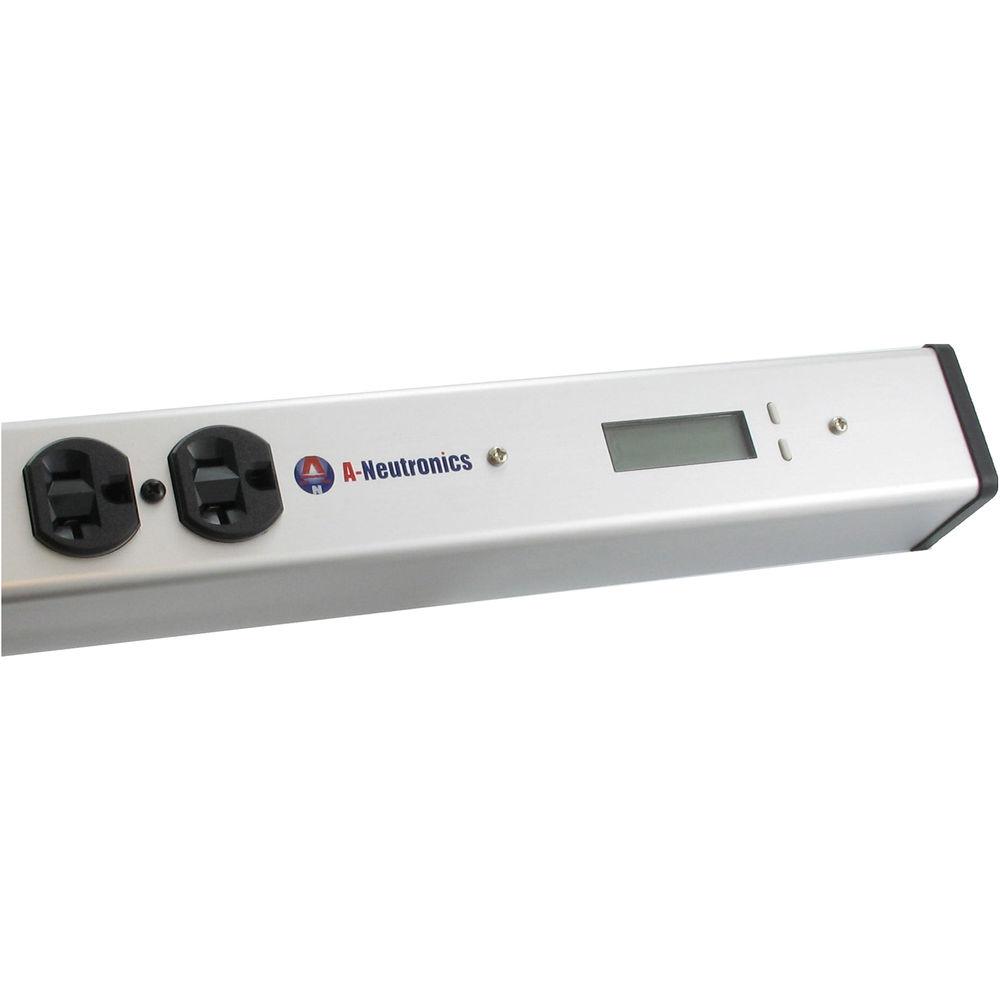

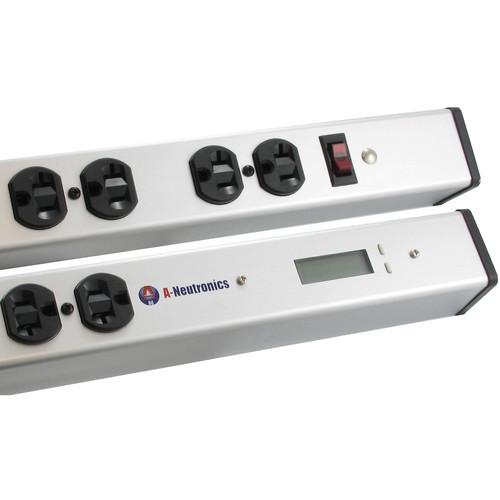

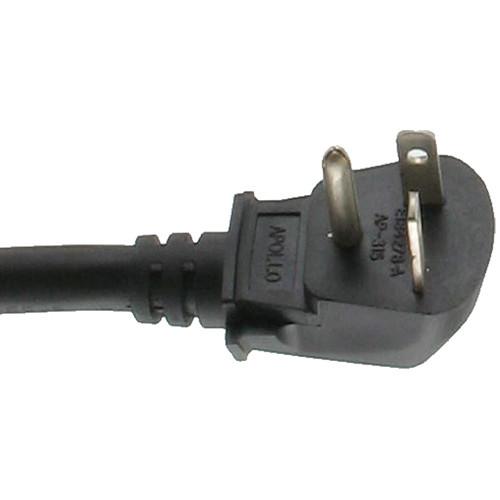

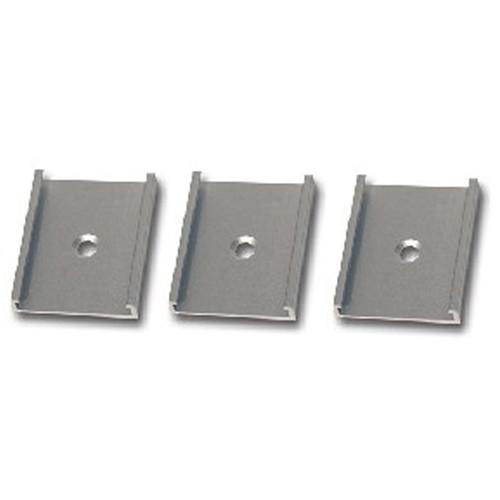

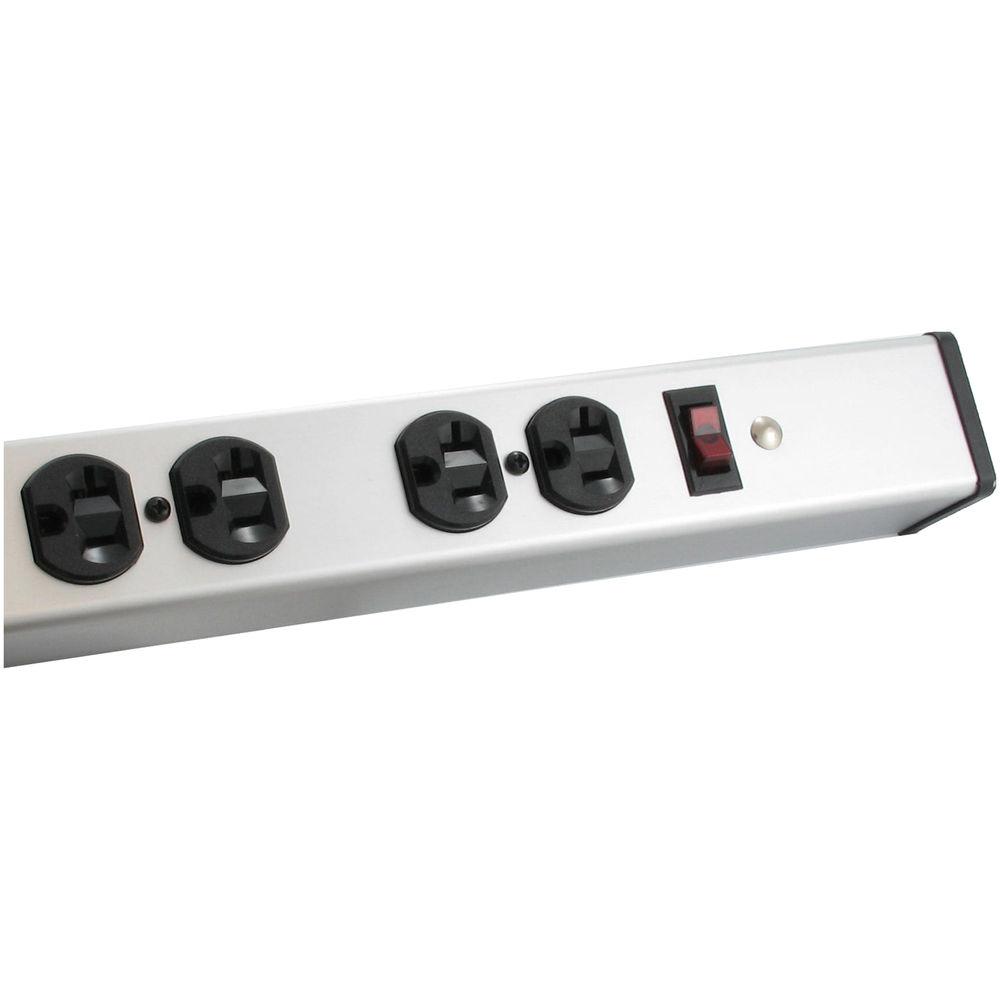

Product description This 24-Outlet Vertical Mount Power Strip from A-Neutronics is well-suited for distributing alternate waveform UPS or generator power in 1 RU / 19" rack enclosures, network closets, and more, in both horizontal or vertical orientations. It provides a maximum rating of 20A, 120V, and 60 Hz, and is equipped with 24 total NEMA 5-20R outlets (20A / 125V). It connects to a wall outlet using its integrated 15' power cord with a NEMA 5-20P plug (20A / 125V). The power strip is built using an aluminum housing and has three flat mounting brackets. It also has an LCD with eight different settings that show volts (V), amps (A), watts (W), volt-ampere (VA), frequency (Hz), power factor, kilowatts (kW), and kilowatt hours (kWh). Also featured is an integrated 20A circuit breaker, unfiltered electrical pass-through, and a lit switch. A straight blade to twist lock jumper is included, and the power strip is covered by a limited 2-warranty.
Please be aware that this power strip will only work with 20A outlets and will not physically fit in 15A outlets. LCD Volts Amps Watts Volt-Ampere Frequency Power Factor Kilowatts Kilowatt Hours UPC: 859777007282 In the Box A-Neutronics 24-Outlet Vertical Mount Power Strip with LCD Display Straight Blade 20A to Twist Lock 20A Jumper Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neutronics 24-Outlet Vertical Mount Power Strip with LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neutronics NP26024 Specs | Overall Length | 19.0" / 48.3 cm | | Maximum Rating | 60 Hz, 20 A, 120 V | | Number of Receptacles | 24 | | Type of Receptacle | NEMA 5-20R (20 A, 125 V) | | Type of Plug | NEMA 5-20P Straight Blade (20 A, 125 V) | | Circuit Breaker | 20 A | | Mounting Type | 3 x Flat mounting brackets | | Display | LCD with backlight | | Approvals | UL Approved | | Housing | Aluminum | | Cord Type | 12/3 SJT | | Cord Length | 15.0' / 4.6 m | | Color of Cord | Black | | Cord Location | Exits the rear of the housing | | Unit Color | Black | | Dimensions | 60.5 x 1.75 x 2.00" / 153.67 x 4.45 x 5.08 cm (outlet side) | | Weight | Not specified by manufacturer | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 52.5 x 5.5 x 2.75" |
